Reactive power compensation using electrical shunt capacitor banks cost

Price:$18.00/Piece
Min quantity:1Piece
Quantity:999Piece
Deliver:In 7 days

Overview

Essential details

• Place of Origin:

• Anhui, China

• Brand Name:

• ZHONGDIAN

• Model Number:

• SVC capacitor bank

• Color:

• RAL 7032

• Rated Voltage:

• 110v-690v

• Rated Frequency:

• 50Hz/60Hz

• Switching mode:

• compound switch

• Compensation capacity:

• 150kvar 200kvar 300kvar 400Kvar

• Certificate:

• IEC,CQC,Patent

• Altitude:

• 2000m

• Keyword:

• SVC series

• Product Name:

• static var compensator

• Type:

• static kvar compensator capacitor banks

• Application:

• Power factor correction

Supply Ability

• Supply Ability

• 100 Set/Sets per Month

Packaging & delivery

• Packaging Details

durable wooden case with pallet

• Port

Nanjing,Shanghai

• Picture Example:

•



• Lead time:

• Quantity(sets)	1 - 2	>2
  Lead time (days)	20	To be negotiated

Recommend Hot Sale Products

Product Description

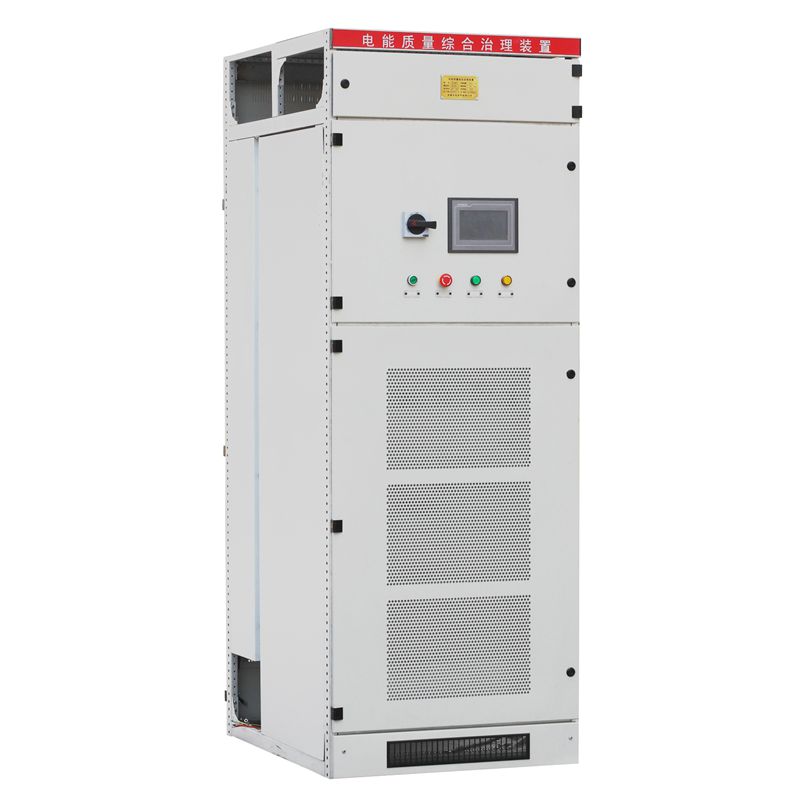

ZD-SVC SERIES APFC Capacitor Control Panel

ZDDQ offers wide range of automatic switched capacitor banks panels for Power Factor correction in various configurations for a wide range of application. The Panels are Contactor switched compound switched or Thyristor switched type static VAR compensator,it is a set of electrical devices for providing fast-acting reactive power compensation in real time on electricity transmission networks. with the high performance for regulating voltage, power factor, harmonics and stabilizing the system.

Specifications

Electrical properties	Rated voltage		AC 380V-690V
	Operating frequency		50Hz/60Hz
	Electrical connection		Three-phase Three wire/four-wire
	Capacity of whole cabinet		50~600kvar
	Compensation mode		Either three-phase
	Compensation effect		≥0.98
	Measuring CT		1 or 3
	Active loss of system		<3%
	Number of units connected in parallel		≤10 units
	MTBT		>100,000 hours
Control	Controller		Thyristor/ contactor/compond switch
	Configuration		Delta/ Star floating/ Star grounding
	Series Reactor		5%, 5.5%, 5.67%, 6%,7%,8%,12.5%14%
	Communication mode		Adopt Modbus remote
	Panel Type		Stand alone/ Modular/ Customized
Environmental requirements	Ambient temperature		-20~55℃
	Relative humidity		Maximum 95%, without
	Altitude above sea level		≤1,000m

Features

1.Increase the load rate and improve the efficiency of the electrical equipment
2.Automatically switch fast response;
3.Accurate compensation;
4.With inner protection device reliable enough,high performance and low-cost operation.
5.Closed structure module design.

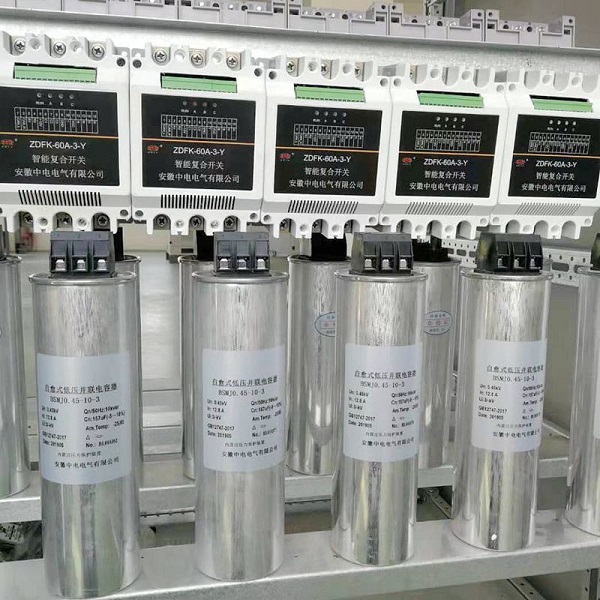

6.Adopts dry self-healing capacitor, small volume, light enough, large capacity;
7.Intelligent operation: it can automatically analyze and calculate system voltage, current, active power, reactive power, power factor, operate in real time automatically.

Our Service

Improve power quality, power solution expert.

◆High/Low voltage reactive power compensation device
◆High/Low voltage Active power harmonic filter
◆ SVG reactive power compensation Device
◆Static Var Generator Module/APF(AHF)Module
◆Hybrid Reactive power compensation device(SVG+TSC, SVG+ Compound switch)
◆Comprehensive Reactive power compensation Device(SVG+APF)
◆Switchgear
◆Over Voltage protection Device
◆Electrical Instruments

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

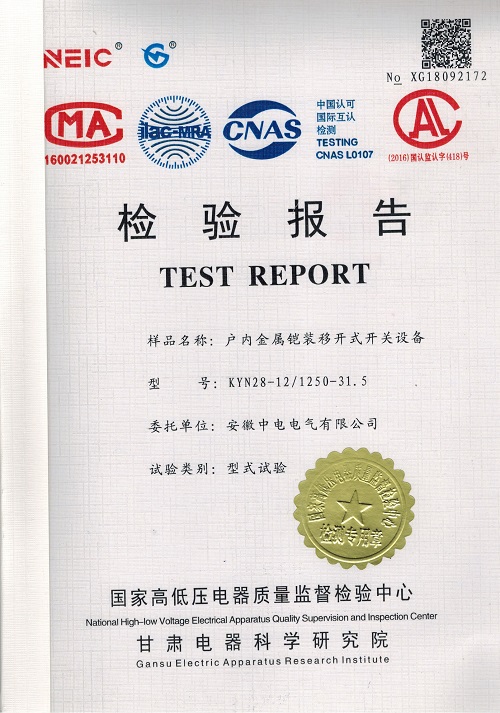

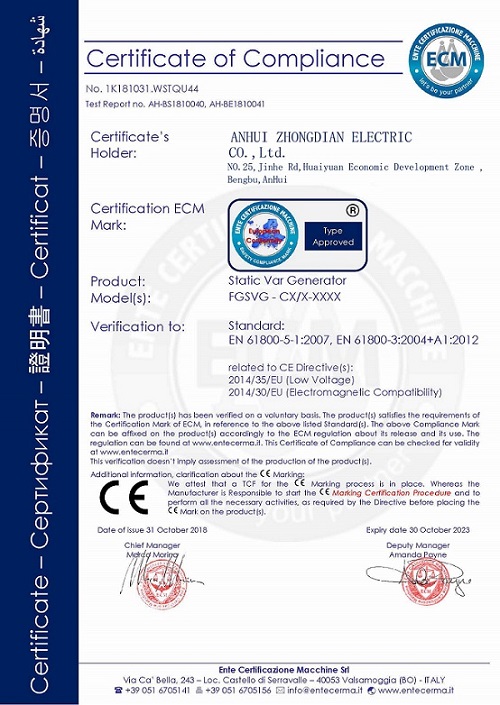

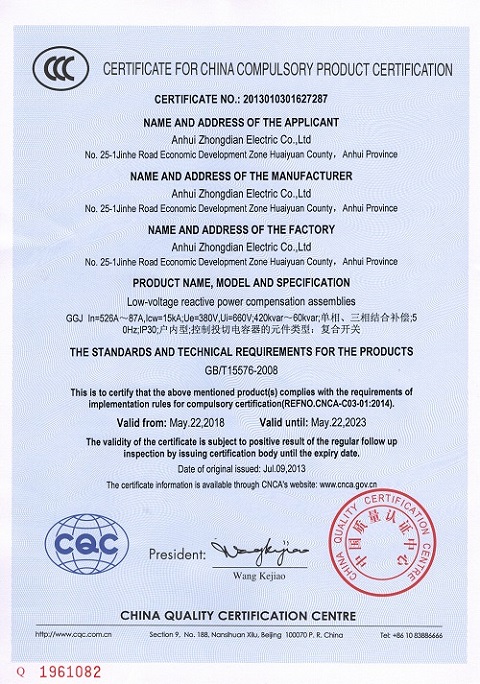

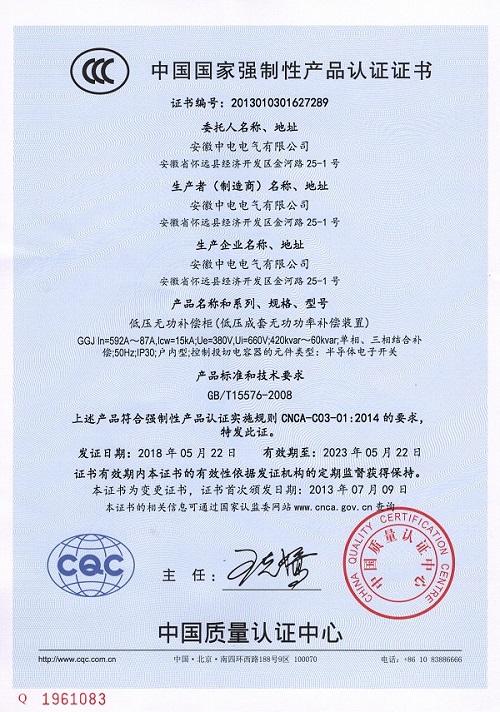

Certifications

Why choose us

1. One-stop supplier globally.
2. Nearly 20 years professional experiences in electrical appliance industry.
3. Professional online technology support for perfecting your power energy solution free.
4. Experienced sales service,oompetive price.
5. Reliable quality and warranty assurance: 12 month or more
5. Whatever big or small order, we can provide you one-to-one service.
6. based on mutural benefit,creat win-win business.

AnHui ZhongDian
