Min quantity:1Piece
Quantity:999Piece
Deliver:In 7 days
Overview
Essential details
Place of Origin:
Anhui, China
Brand Name:
ZDDQ
Model Number:
S11
Usage:
Power
Phase:
Three
Coil Structure:
TOROIDAL
Coil Number:
AUTOTRANSFORMER
Product name:
50KVA 10/0.4KV outdoor full copper line oil immersed power transformer
Rated capacity:
50KVA
Rated voltage:
6.3KV,10KV,11KV,13.2KV,13.8KV,15KV,20KV,22KV,33KV, 35KV
Output voltage:
220V, 380V, 400V, 415V
Vector group:
Dyn11,Dyn5,Yyno or others
Frequency:
50 60HZ
Material:
Copper or Aluminum
Standard:
GB/T1094.1-2013,IEC60076-1:2001
Cetification:
ISO9001,CCC
Key words:
Oil Immersed Transformer
Supply Ability
Supply Ability
1000000 Set/Sets per Month
Packaging & delivery
Packaging Details
Wooden box for 50KVA 10/0.4KV outdoor full copper line oil immersed power transformer
Port
shanghai,nanjing
Picture Example:
Lead time:
Quantity(sets) 1 - 10 >10 Lead time (days) 10 To be negotiated
Video Description
Product Description

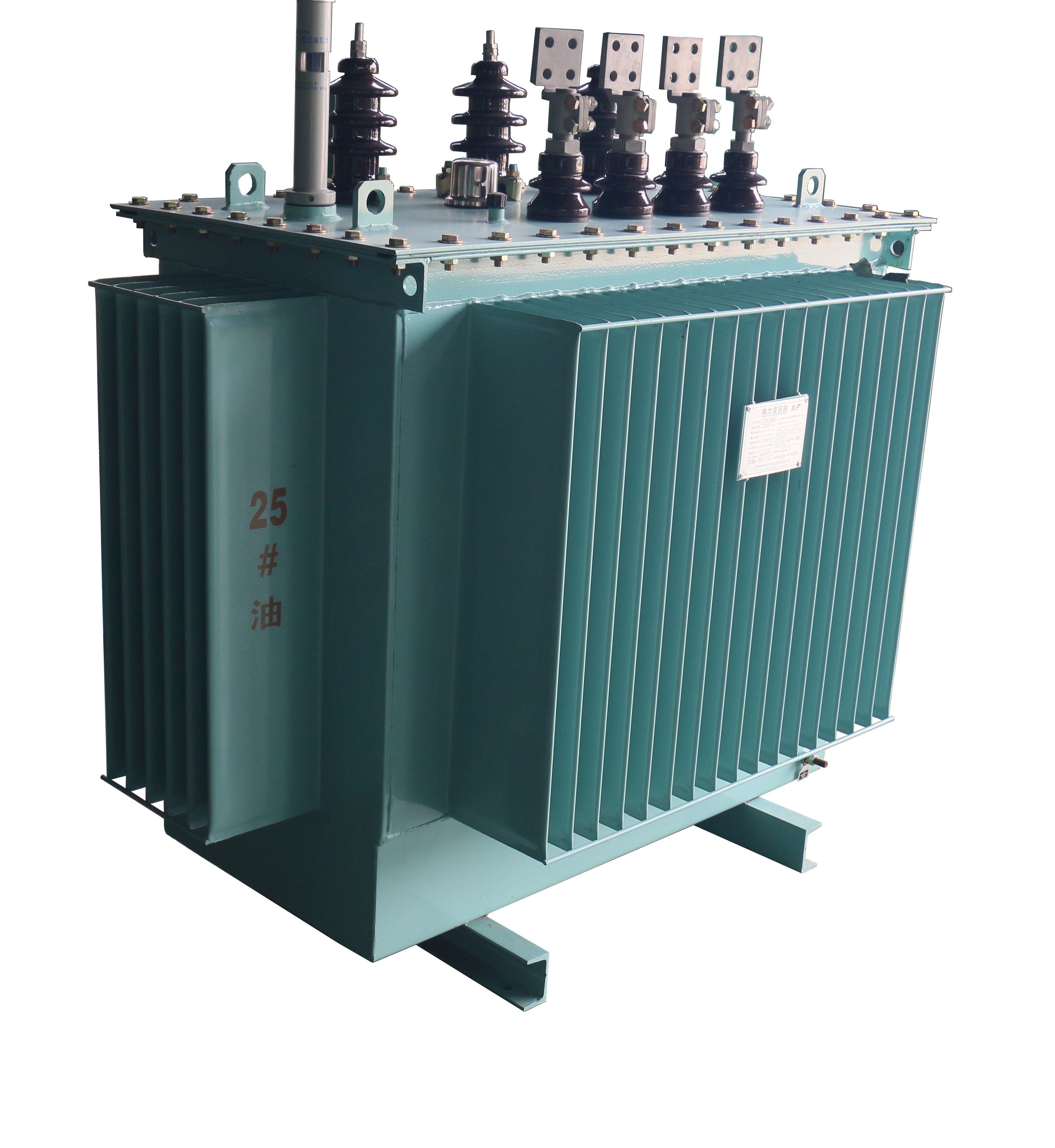

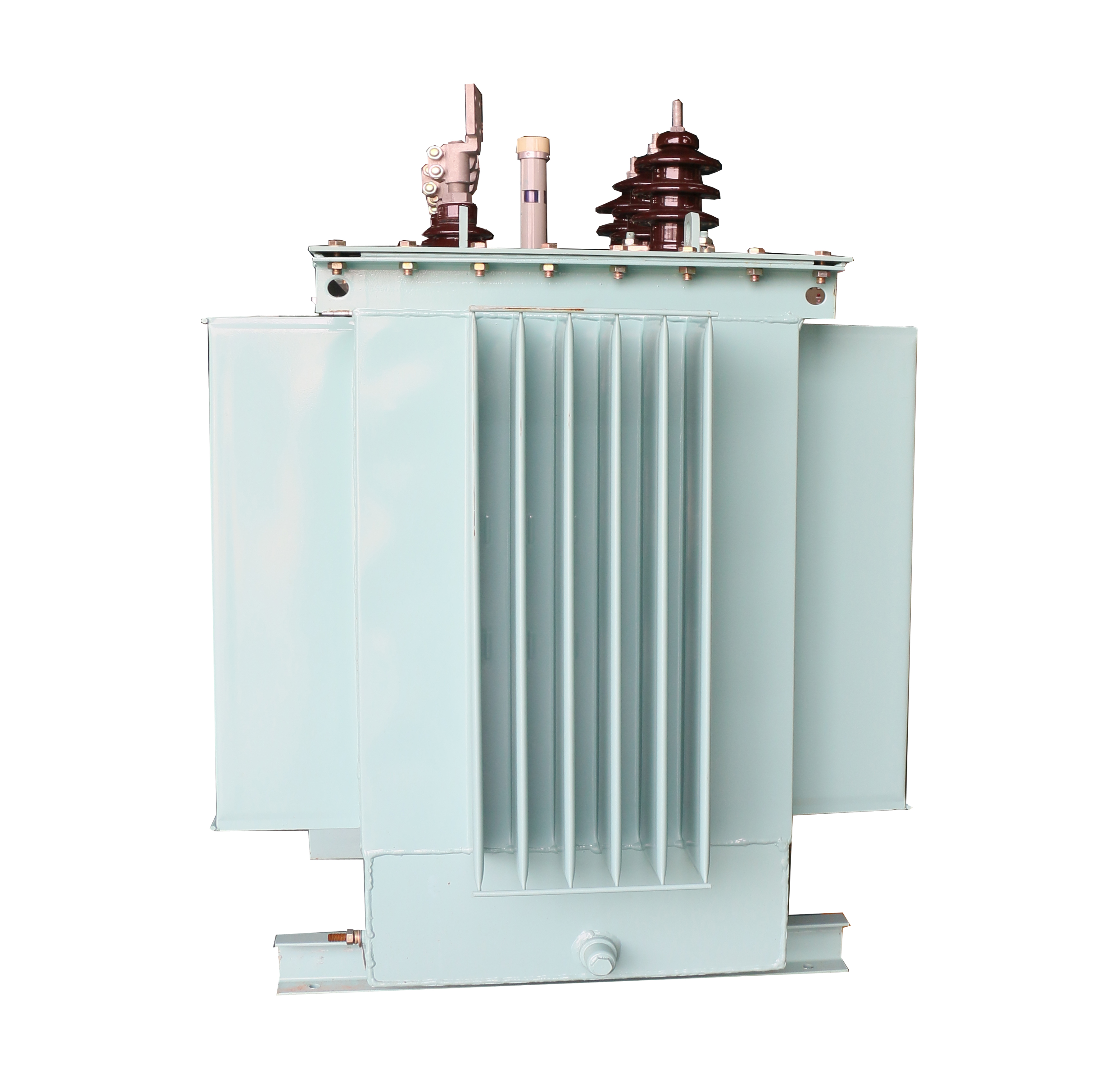

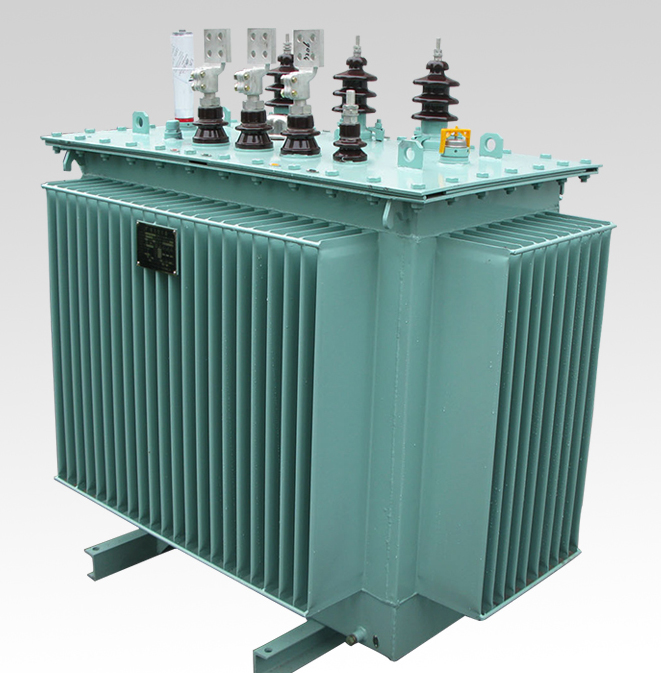

50KVA 10/0.4KV outdoor full copper line oil immersed power transformer
S11 full-sealed oil-immersed power transformer developed by the company has the advantages of low loss,low noise and high efficiency and can achieve good energy-saving effect and reduce pollution.
Compared with common oil-immersed transformer ,it is unnecessary for full-sealed transformer to be equipped with oil conservator and change in oil volume is automatically adjusted and compensated by elasticity of corrugated sheet of corrugated tank , and transformer is isolated from air to prevent and slow down oil degrading and insulation aging, enhance operational reliability, with normal operation and no maintenance.

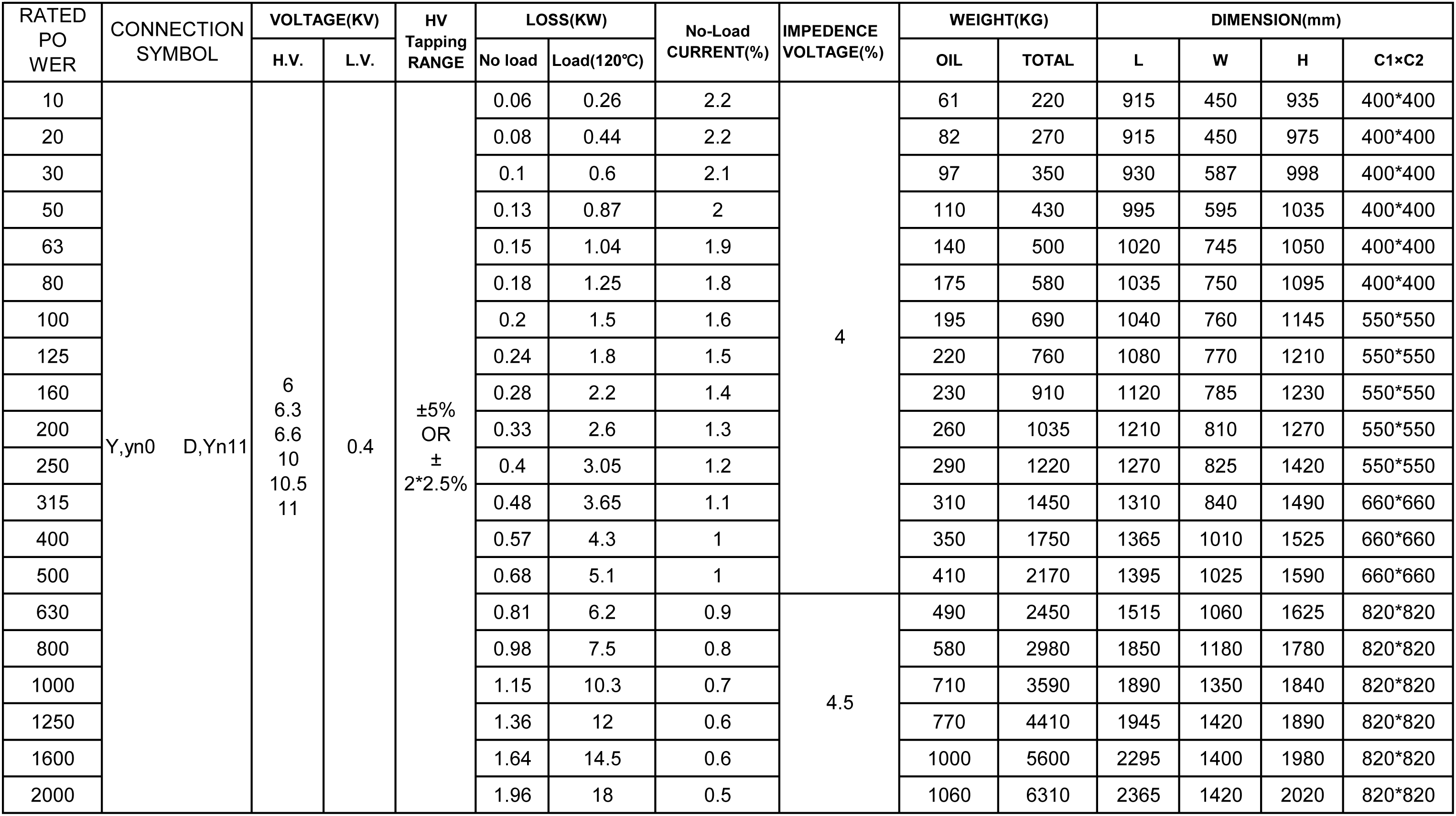

Product Paramenters
Certifications

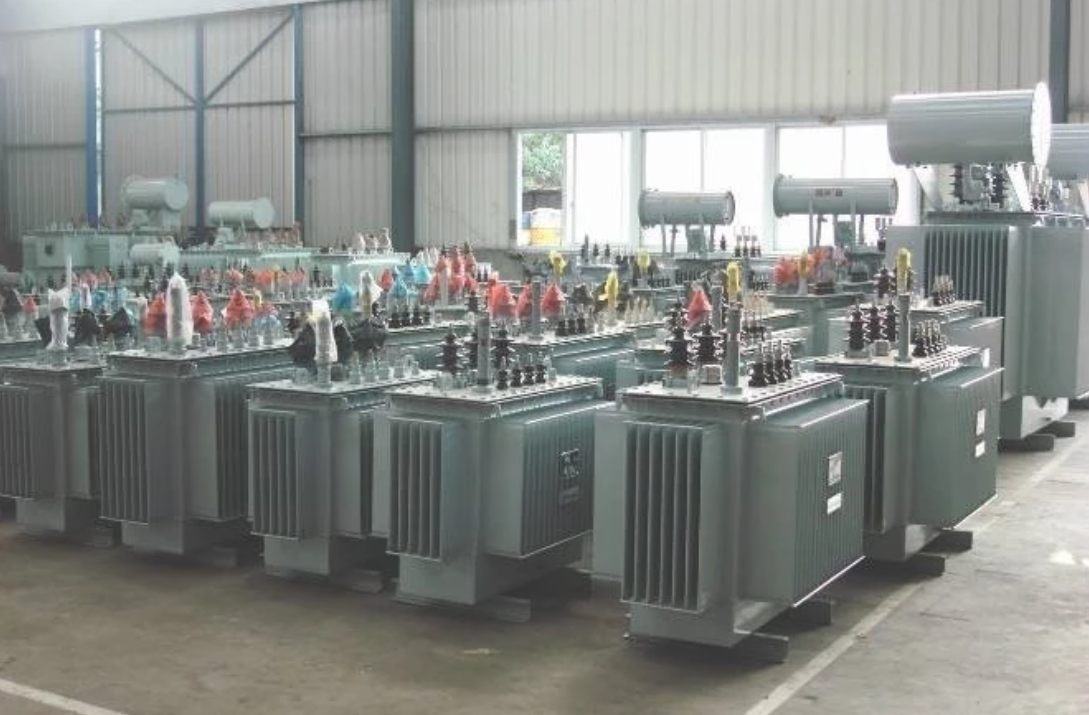

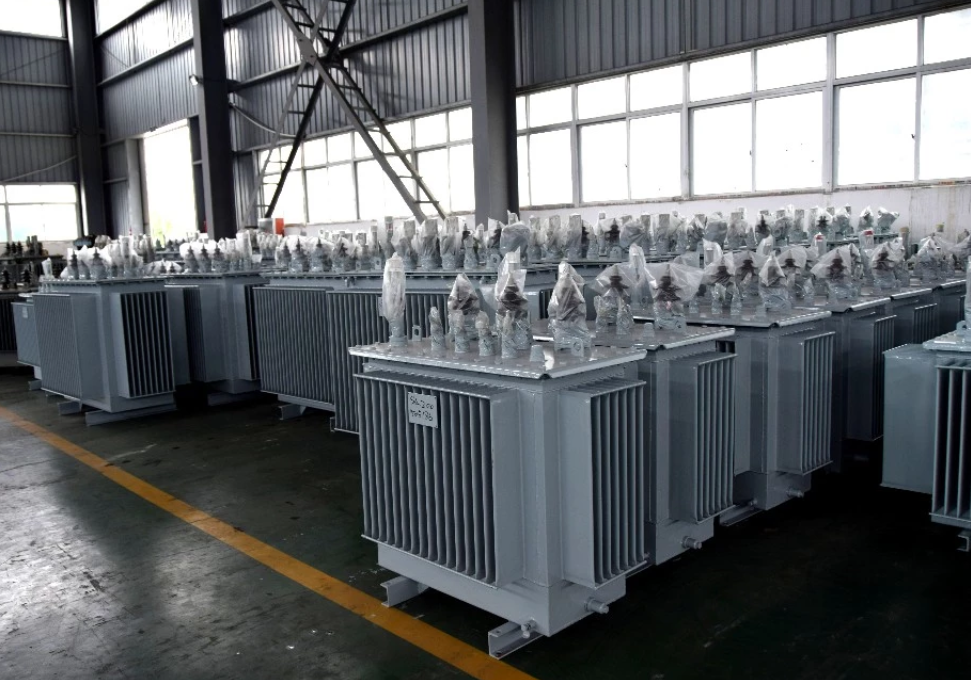

Factory
