Min quantity:1Piece
Quantity:999Piece
Deliver:In 7 days
Overview
Essential details
Place of Origin:
Anhui, China
Brand Name:
ZDDQ
Model Number:
ZD-DWJ
Product Name:
Capacitors in series 100 kvar capacitor bank price
Rated Voltage:
0.2kv~0.69kv
Rated frequency:
50 Hz/60 Hz
Rated Capacity:
50kvar~5000kvar
Principle:
Static Var Compensator SVC
Features:
Multiple step Switching automatically
Application:
Power distribution,transformer,motors,vdf
Keyword:
automatic power factor correction
Protection Level:
IP3X
Certificate:
CCC,ISO9001:2015
Color:
RAL7035
Supply Ability
Supply Ability
10000 Set/Sets per Month
Packaging & delivery
Packaging Details
carton or wooden
Port
Nanjing,Shanghai
Picture Example:
Lead time:
Quantity(sets) 1 - 5 >5 Lead time (days) 10 To be negotiated

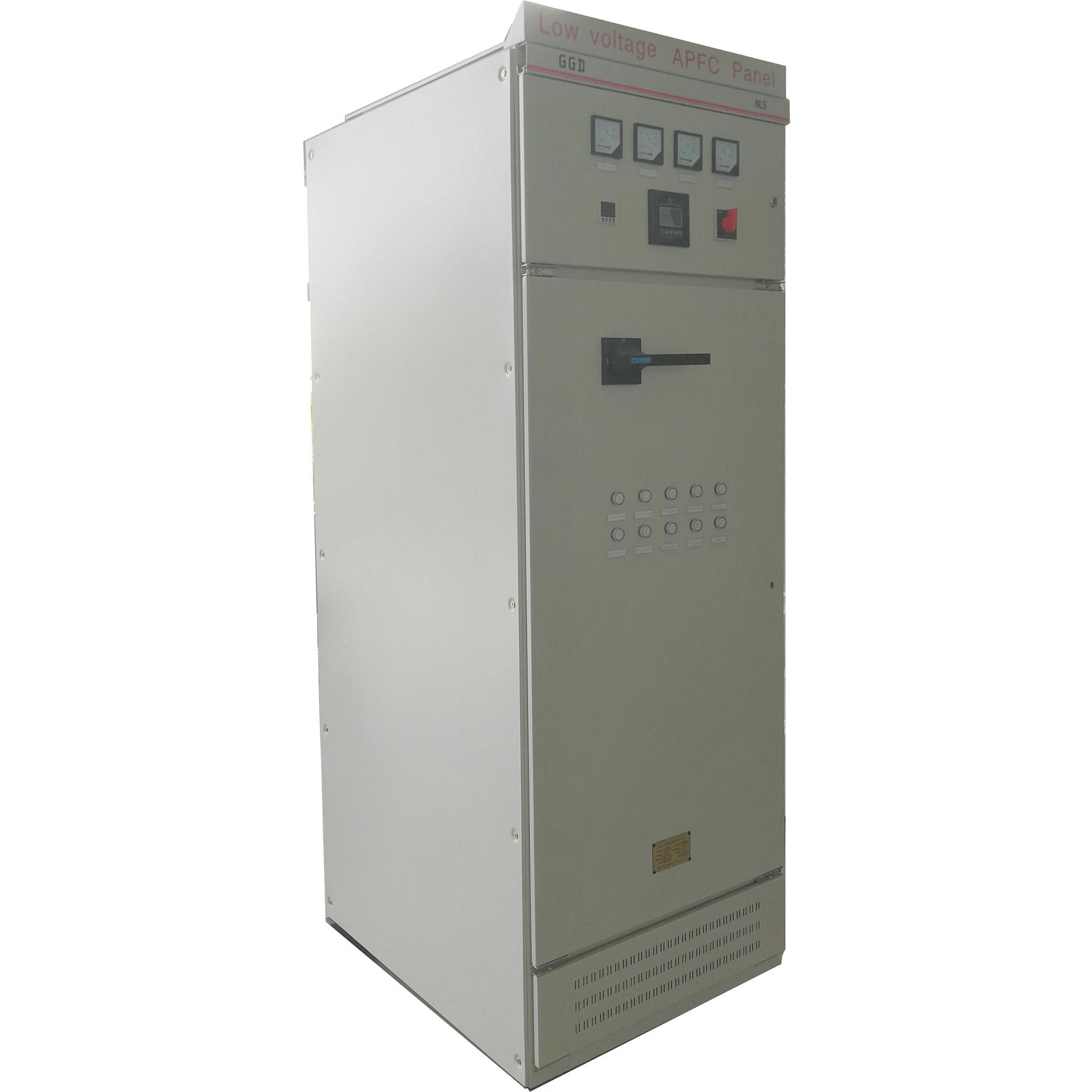

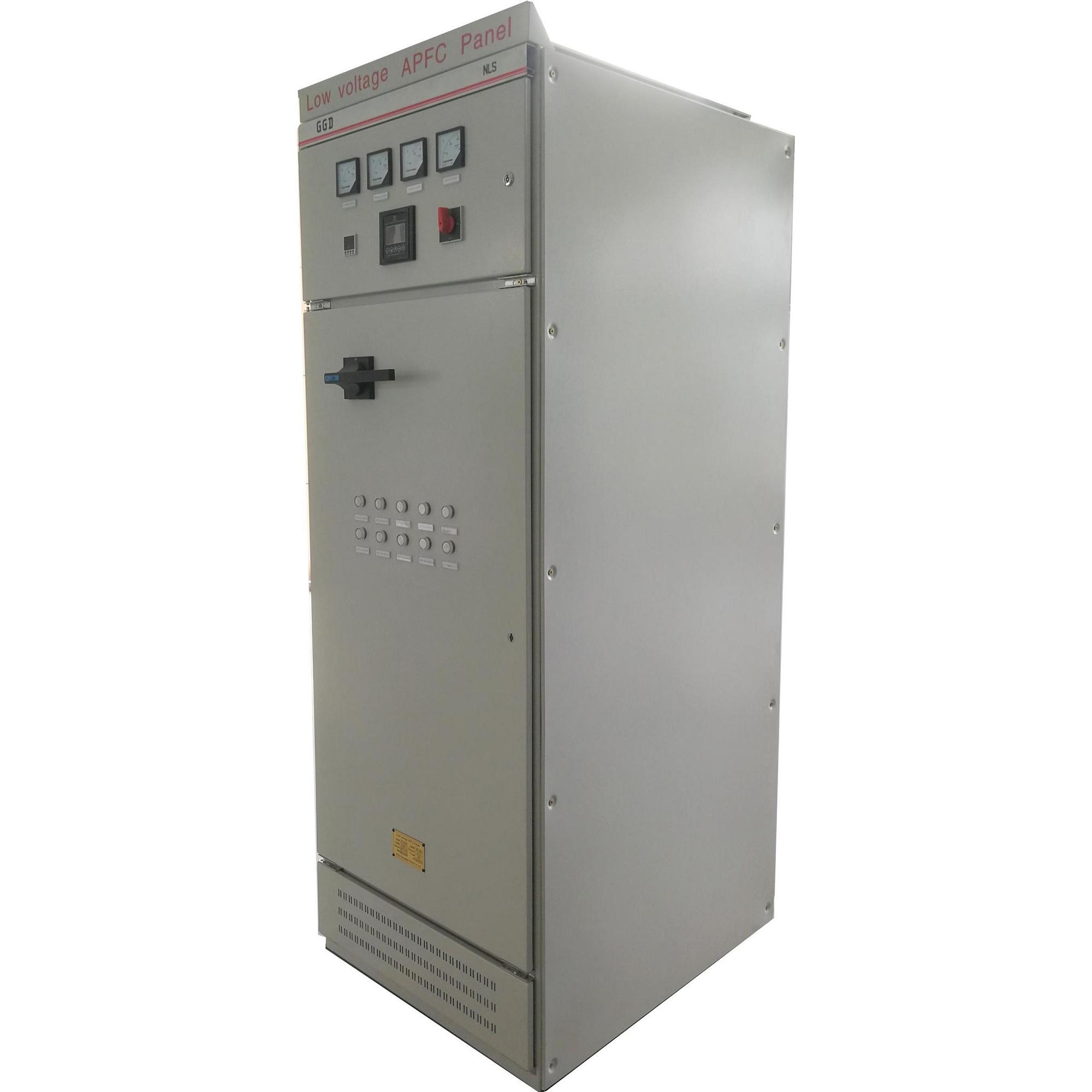

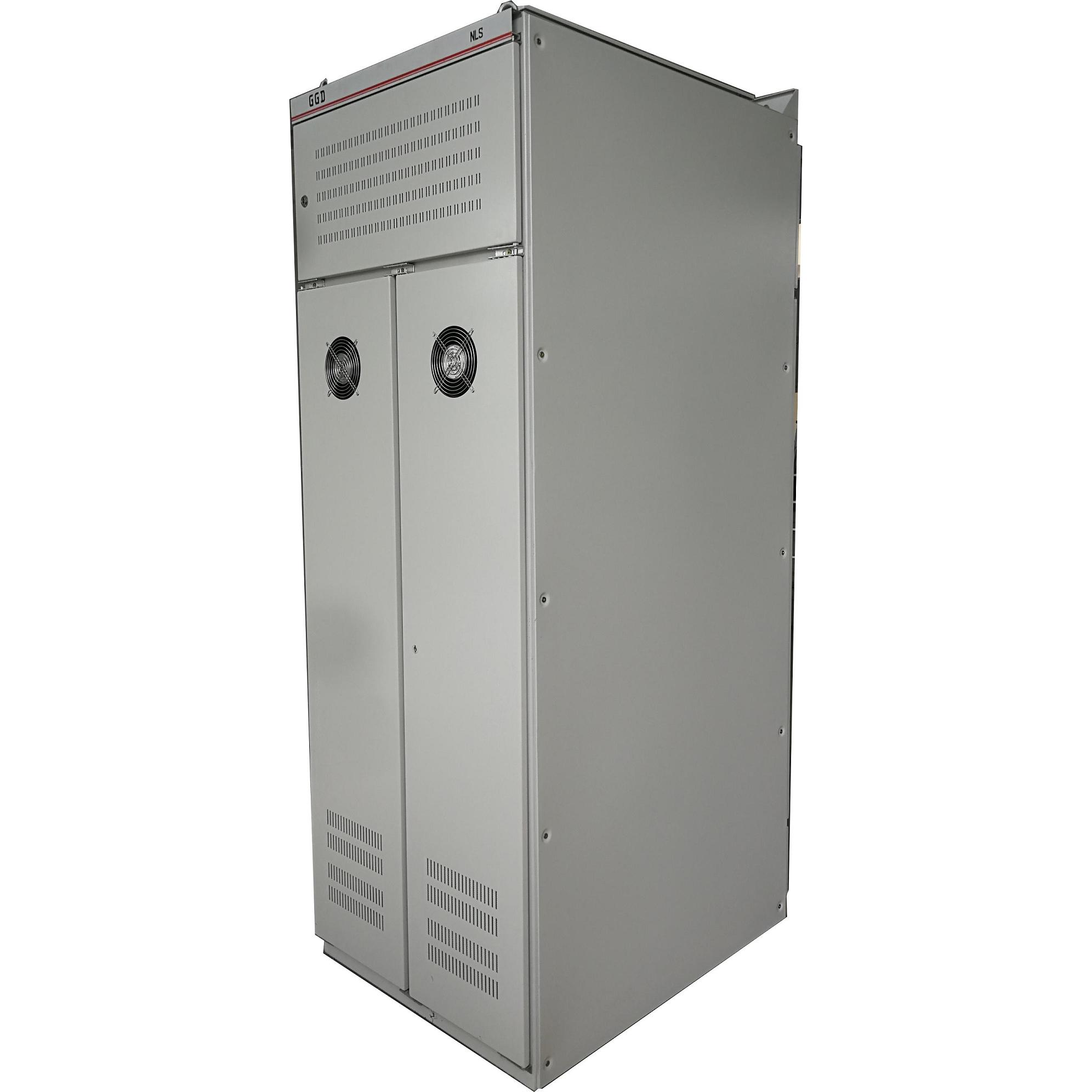

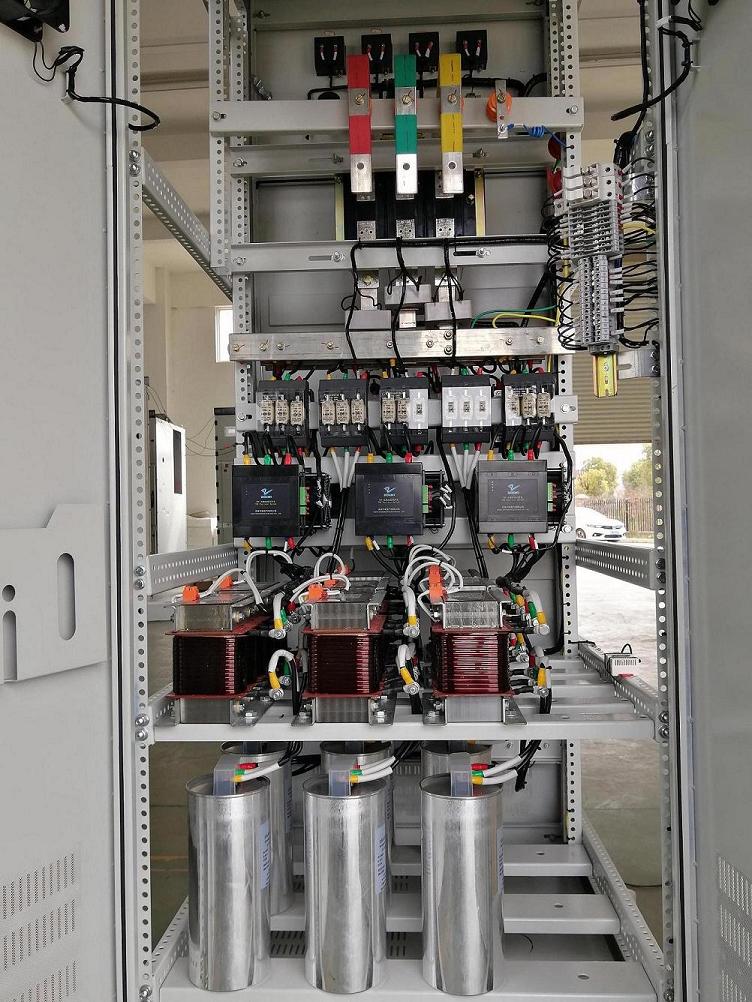

Low voltage metal enclosed automatic capacitor banks
ZDDQ Low Voltage Capacitor Banks(APFC Panel) provide a cost-effective, user friendly, reliable solution for power factor correction.They are a more efficient alternative to individual motor capacitors, especially in large industrial facilities. ZDDQ APFC Panels are designed to provide power factor correction with a single installation on the main plant bus and are ideal for applications where plant loading is constantly changing, resulting in the need for varying amounts of reactive power. The solid state reactive power controller reacts to a current signal from a single remote current transformer (provided by the customer), measures plant power factor and adjusts system load requirements in selected kVAr steps in order to maintain the desired target power factor.
Features of ZDDQ Capacitors

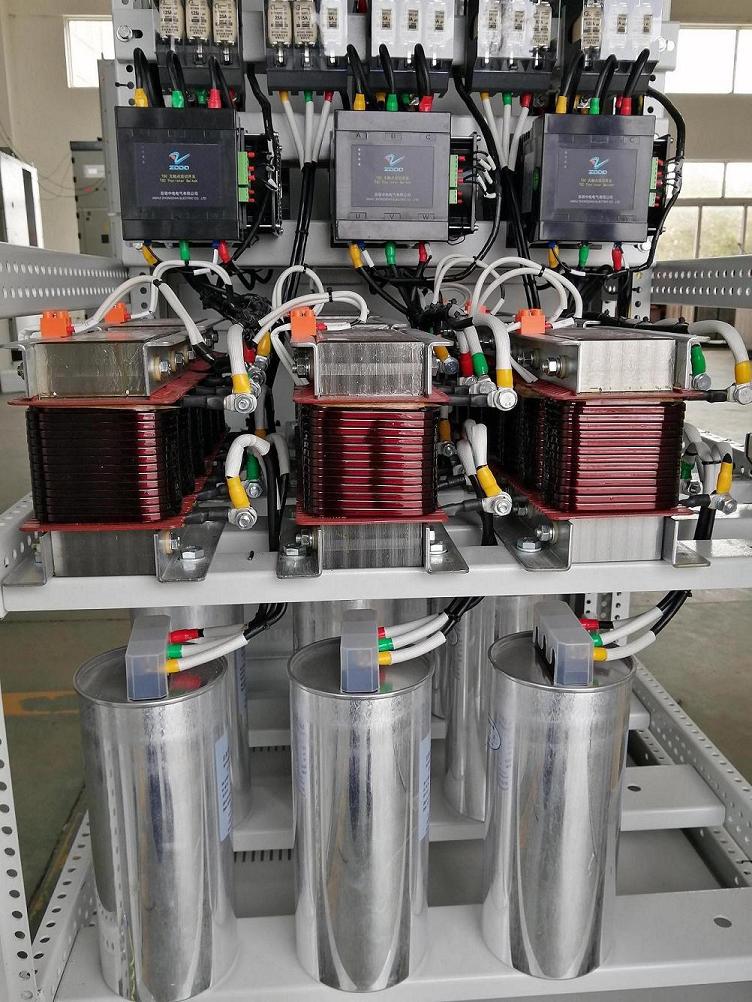

The dielectric of the capacitor windings is made of in-house metallized polypropylene film resulting in exceptional properties:
–High voltage withstands capability.
– Excellent peak current handling capacity.
– High capacitance stability.
– Long life even under high electrical stress.
– Very low losses.
– Exceptional self-healing properties.
– Fire protection.
–Reliable and safe protection. It is based on:
• The instant reaction of state of the art overpressure detection and disconnection devices.
• Double casing insulation protects the windings from the environment and assures high capacitance stability over the whole capacitor service life.
–Suitable for a maximum ambient temperature of +55°C (class D) and a minimum of -25°C.
–The ISO 9001 and 14001 certification guarantees our commitment to the environment.
Technical Data
Why choose ZDDQ APFC Panel
– Consistency in Power Factor under fluctuating load conditions.
– Elimination of Power factor penalty.
– Prevention of leading power factor.
– Fast Real Time Transient-Free switching of Capacitor Banks.
– Prevents damage to sensitive electronic equipment in notwork

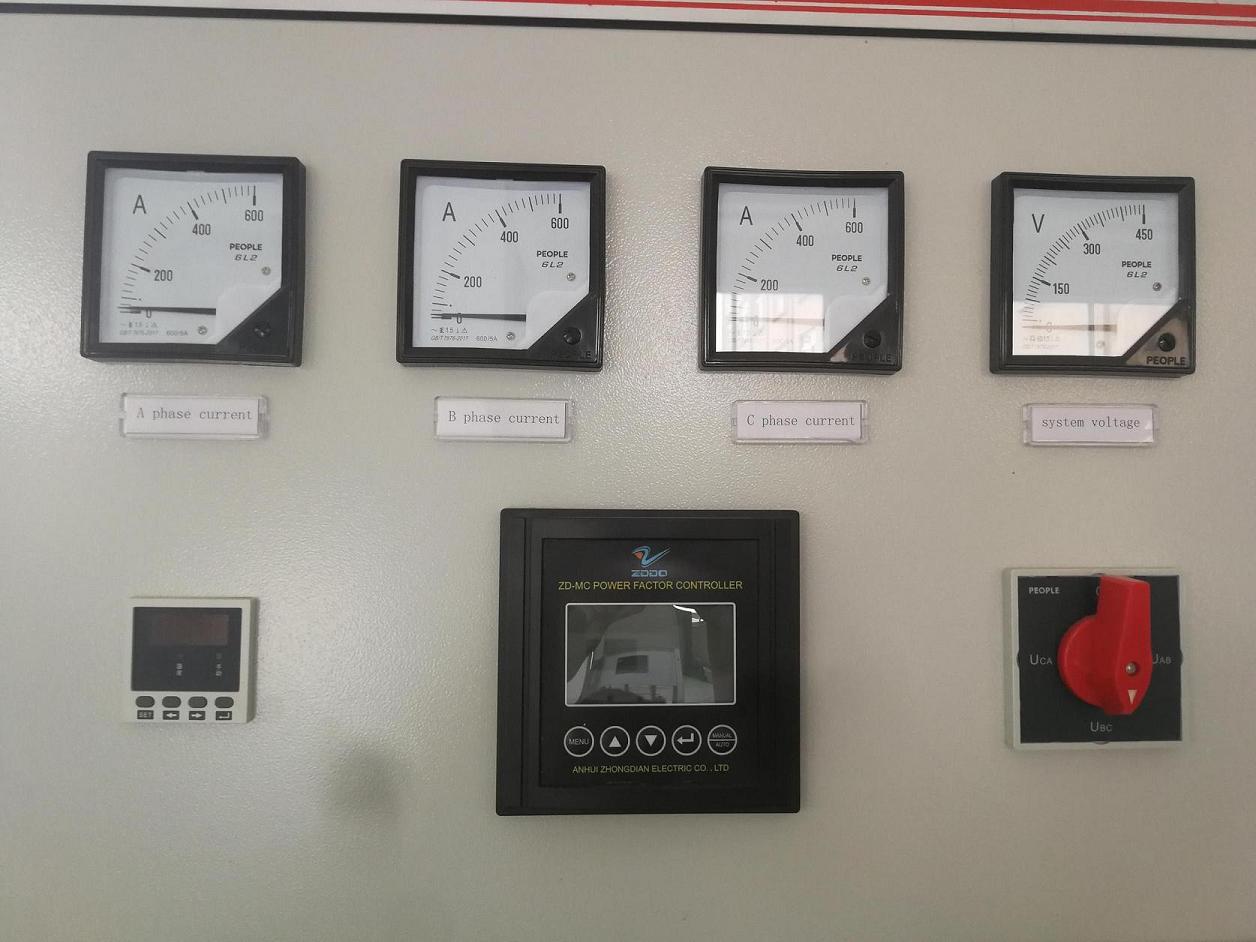

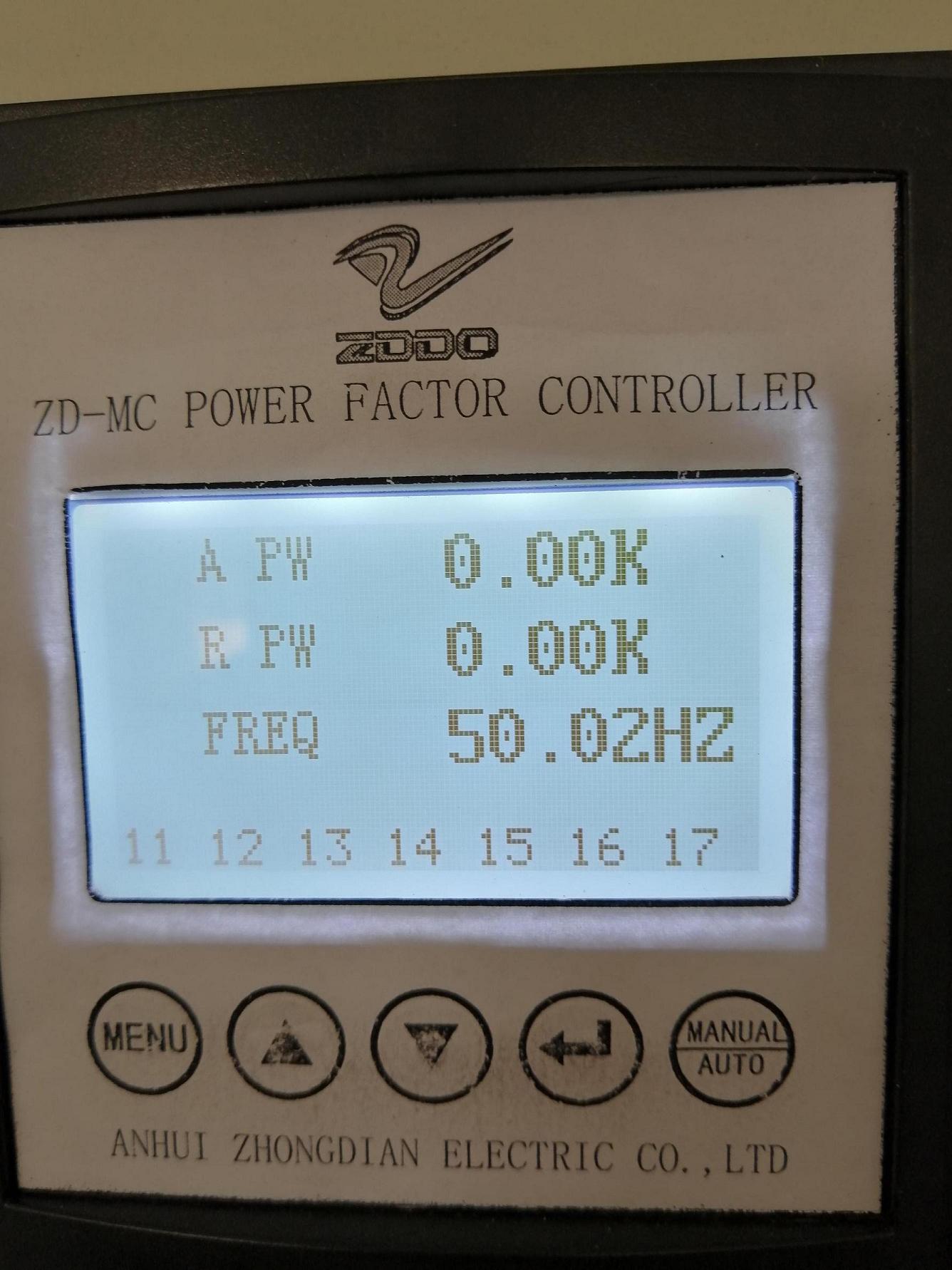

– Highly intelligent micro processor based 3 phase P.F. Controller with Dual P.F. Setting and Master Slave modes.
– LCD Controller has inbuilt with Load Manager with front optical port.
– Optional plugable Data Logger, Ethernet, USB, RS485, modern and capacitor protection modules.
– Saves Energy with P.F Control and Harmonic Filtration.
– Extremely long life expectancy.
– Available with Tuned, 7%, 5.6%, 4% or any other Tuning frequency as per customer request.
– System is available with Contactor/Thyristor switching for non-dynamic and normal loads.
