HV power distribution equipment power factor correction PFI panels

Price:$15.00/Piece
Min quantity:1Piece
Quantity:999Piece
Deliver:In 7 days

Overview

Essential details

• Place of Origin:

• China

• Brand Name:

• ZHONGDIAN

• Model Number:

• ZD-DWJ

• Product name:

• Contactor switched APFC Capacitor banks

• Rated Voltage:

• High Voltage

• Rated Frequency:

• 50Hz/60Hz

• Power factor:

• 0.95-0.99

• Compensation capacity:

• 10-1200Kvar

• Switch:

• AC contactor/Thyristor

• switching mode:

• automatic switching

• Application:

• Power distribution,transmission,correction

• Certificate:

• ISO9001,CCC,Patent

• key word:

• Power Factor correction

Supply Ability

• Supply Ability

• 500 Set/Sets per Month

Packaging & delivery

• Packaging Details

durable wooden case with pallet for Contactor switched APFC Capacitor banks

• Port

Nanjing,Shanghai

• Picture Example:

•



• Lead time:

• Quantity(sets)	1 - 2	>2
  Lead time (days)	20	To be negotiated

Product Description

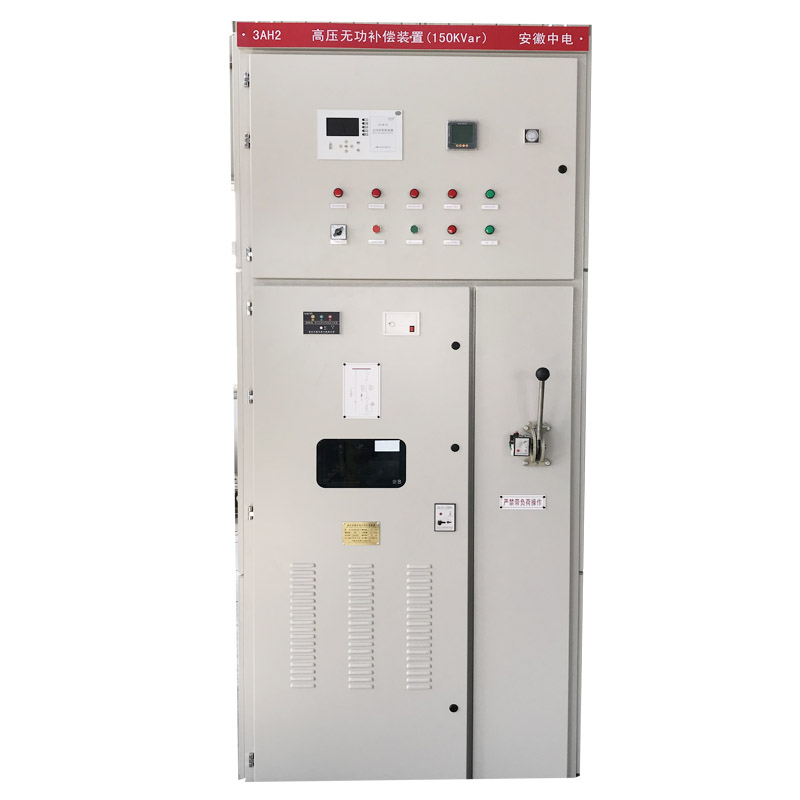

Contactor switched APFC Capacitor banks

10KV Automatic Power Factor Correction Panel based on SVC aims to improve power factor and enhance power quality, utilising capacitors to offset usually inductive loads(motors). SVC APFC system  increase the efficiency of power supply, delivering immediate cost savings on electricity. ZD-GWJ 10Kv automatic power factor correction panels with filters : can detect the reactive power needed by the system in real time,compare it with the set value, carry on the automatic intelligent capacitor-switching on/off, make the reactive power of the system achieve dynamic balance, in order to improve the power factor of the system, stabilize the system voltage.

Specificaiton

Name		10kv Automatic Power factor correction panel
Model		ZD-GWJ-6/10-
Rated Voltage		10Kv
Connection Type		Three-phase 3 wire, Three phase 4 wire
Rated Frequency		50/60HZ
Rated Capacity/panel		1200kVAr
Switch		Vacuum Contactors
Capacitance Tolerance		-5%, +10%
Reactance ratio		6% 12% or customerized
Switching		Automatic switching Capacitors
Storage temperature		-40~85 °C
Working temperature		-25~55 °C
Humidity		≤95%,non-condensate
Dimension (mm)		800(1200)*800(1200)*2200(2400)
Installation		Indoor, free standing
Altitude		<1500m without de-rating
Certification		ISO9001,CCC, Type Test Report

Features

Main features and application

FEATURES

• Latest technology

• High quality materials

• Low losses design

• Dielectric liquid biodegradable

APPLICATIONS

• Power factor correction

• Harmonic filtering

• Motor compensation

• Industrial converter

• Thermal power station

• Solar

• Wind

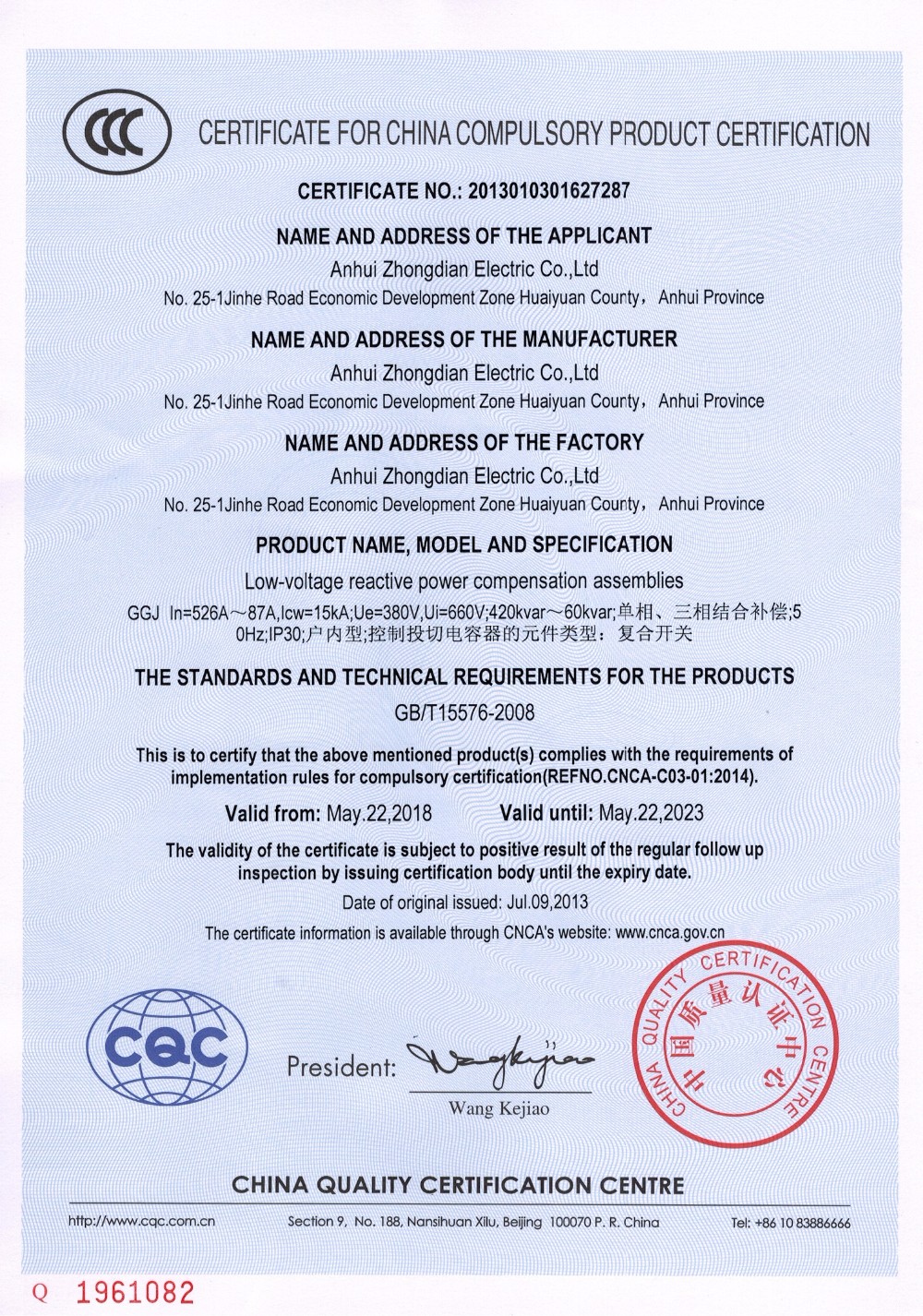

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Why choose us

1. One-stop supplier globally.
2. Nearly 20 years professional experiences in electrical appliance industry.
3. Professional online technology support for perfecting your power energy solution free.
4. Experienced sales service,oompetive price.
5. Reliable quality and warranty assurance: 12 month or more
5. Whatever big or small order, we can provide you one-to-one service.
6. based on mutural benefit,creat win-win business.
