Overview
Essential details
Place of Origin:
Anhui, China
Brand Name:
ZHONGDIAN
Model Number:
ZD-GWJ
Product name:
Hv setting power factor controller effectively improve power quality
Rated Voltage:
3kV~35kV
Rated Frequency:
50Hz/60Hz
Power factor:
≥0.9
Compensation capacity:
150kvar-100Mvar
Switch:
Fixed, Switched, Single Step, Multiple Step
Capacitor Bank Configuration:
automatic switching
Application:
Power distribution,transmission,correction
Certificate:
ISO9001,Type Test Report
key word:
Static Var Compensator
Color:
RAL7035
Supply Ability
Supply Ability
500 Set/Sets per Month high voltage active load balancer
Packaging & delivery
Packaging Details
durable wooden case with pallet for Medium Voltage capacitor compensation device
Port
Nanjing,Shanghai
Picture Example:
Lead time:
Quantity(sets) 1 - 2 >2 Lead time (days) 20 To be negotiated
Product Description

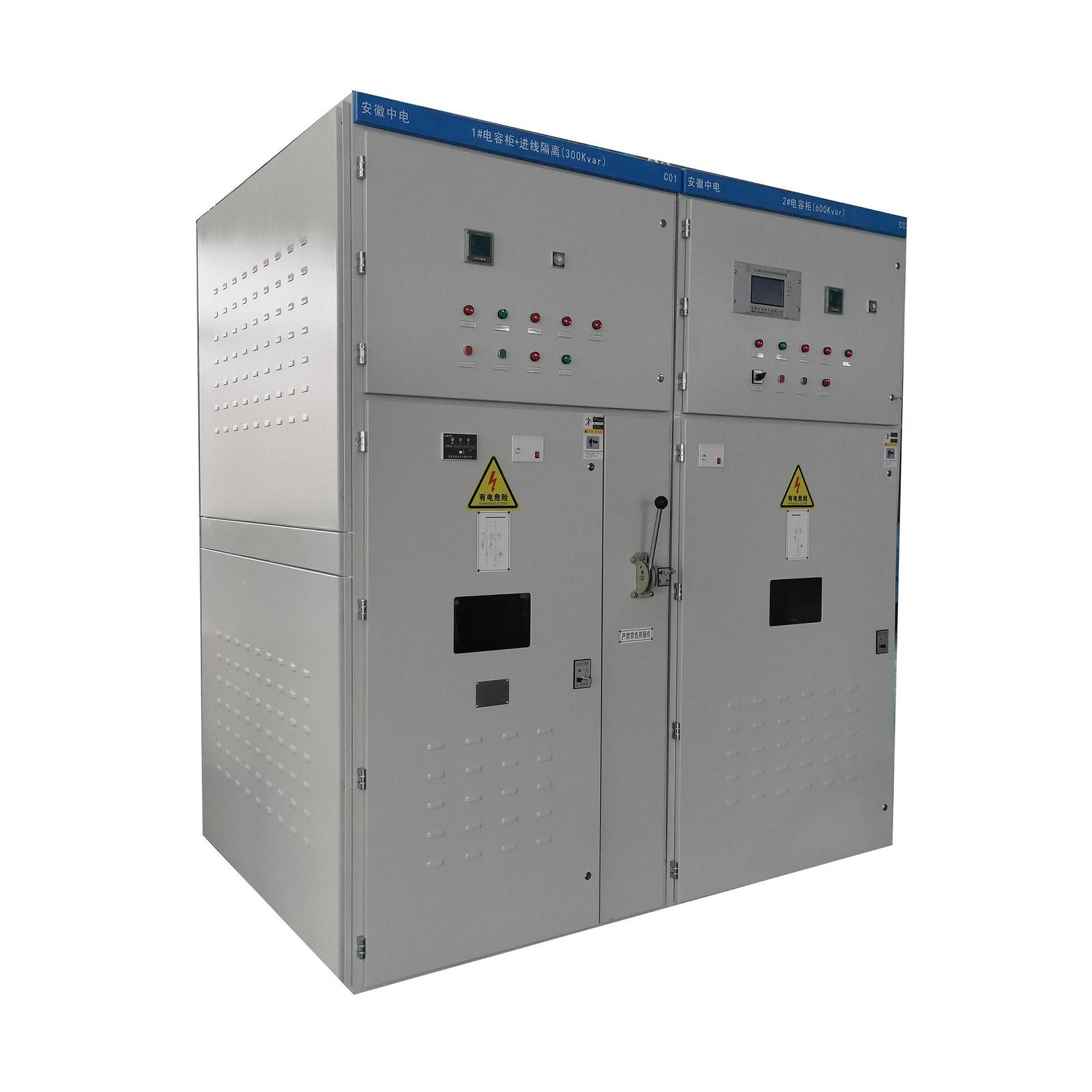

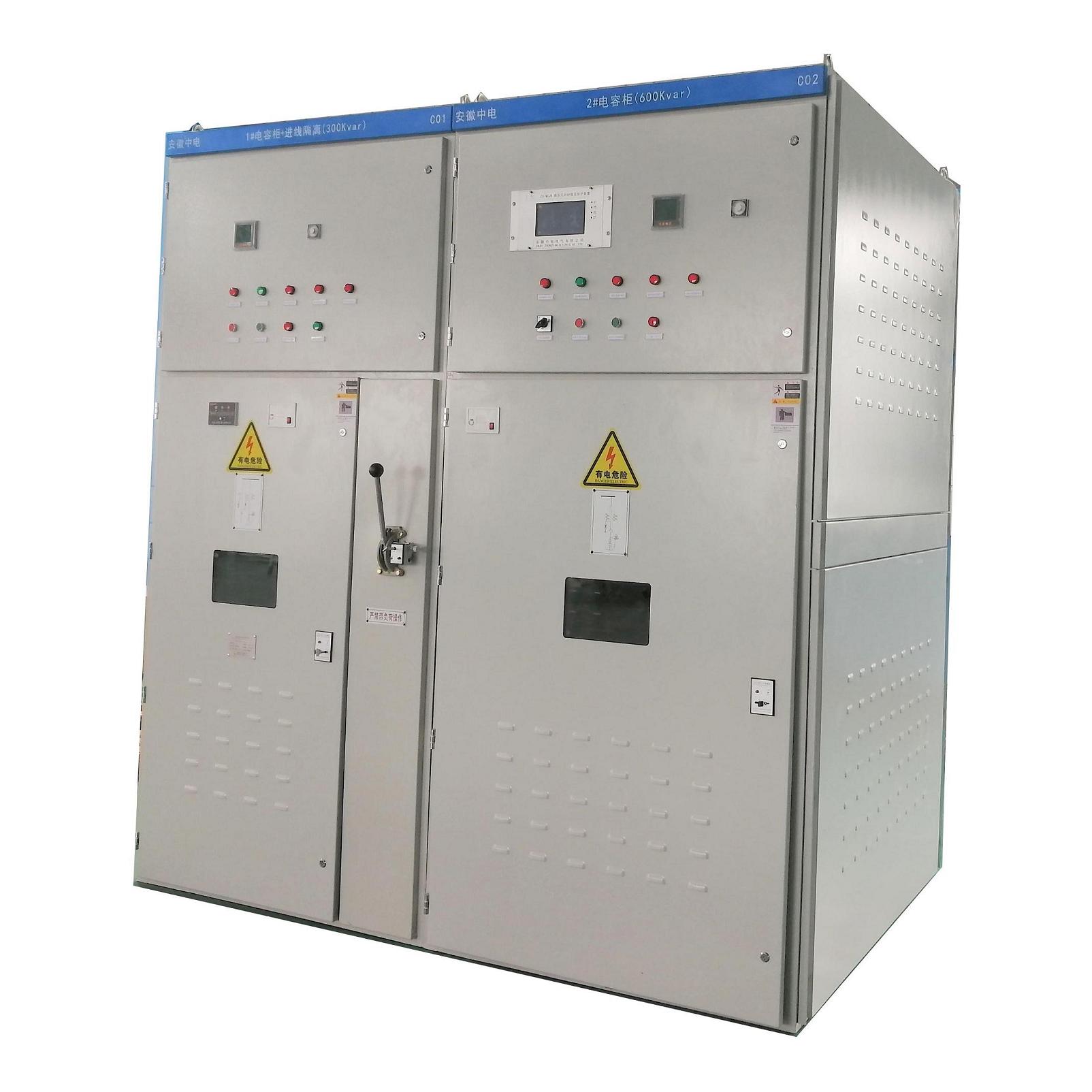

High voltage setting power factor controller effectively improve power quality
High voltage setting power factor controller effectively improve power quality are used everywhere that motors are still directly operated without power electronics, or other consumers with a low inductive cosφ place strain on the grid with reactive power in addition to their active-power requirements. Local supply of this reactive power by means of compensation systems relieves the burden on the supply grid and reduces losses.
Medium Voltage automatic self regulating capacitor bank aims to improve power factor and enhance power quality, utilising capacitors to offset usually inductive loads(motors).APFC system increase the efficiency of power supply, delivering immediate cost savings on electricity.
ZD-GWJ Series Medium Voltage automatic self regulating capacitor bank can detect the reactive power needed by the system in real time,compare it with the set value, carry on the automatic intelligent capacitor-switching on/off, make the reactive power of the system achieve dynamic balance, in order to improve the power factor of the system, stabilize the system voltage.

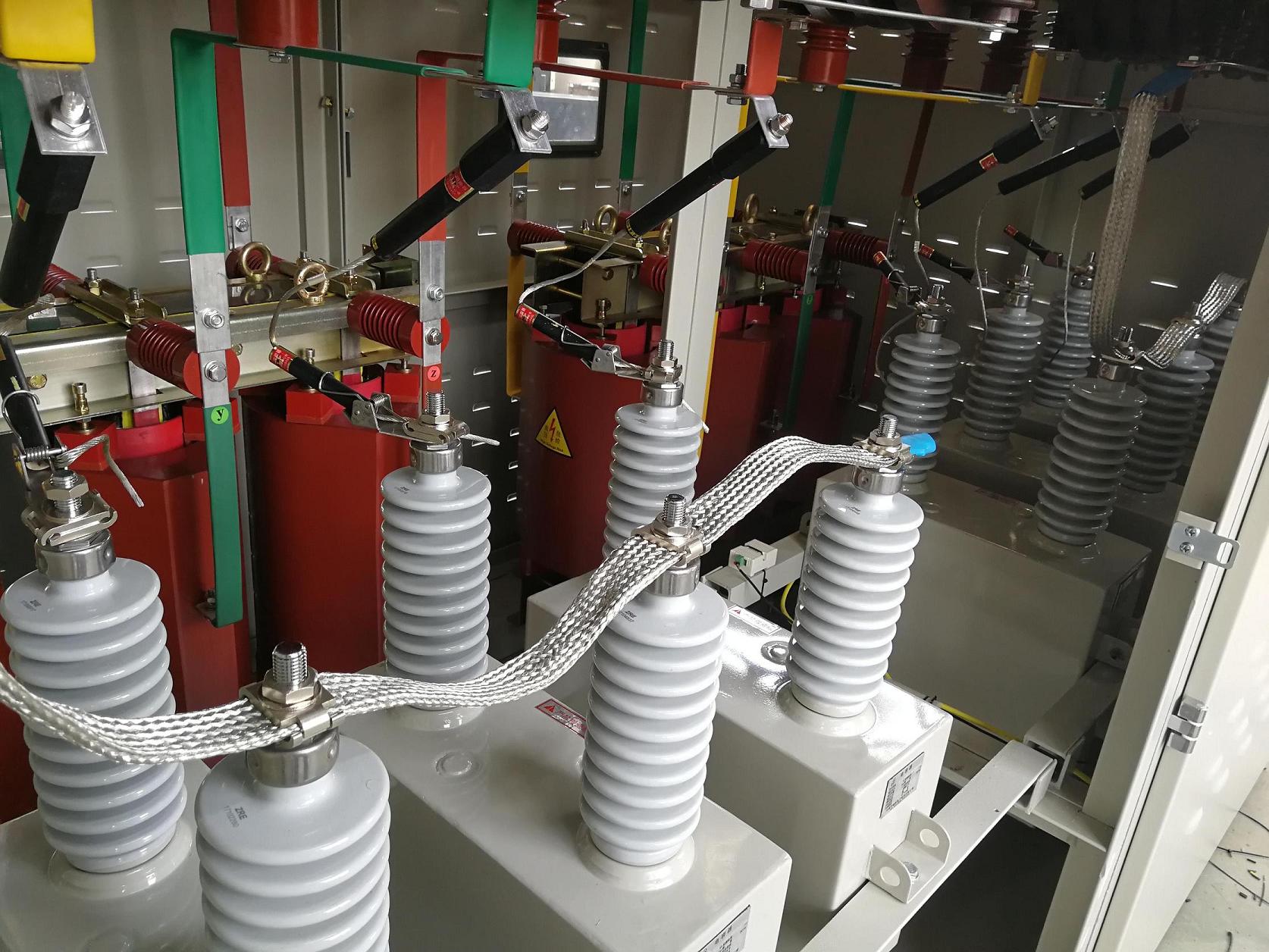

High Power Capacitor Banks

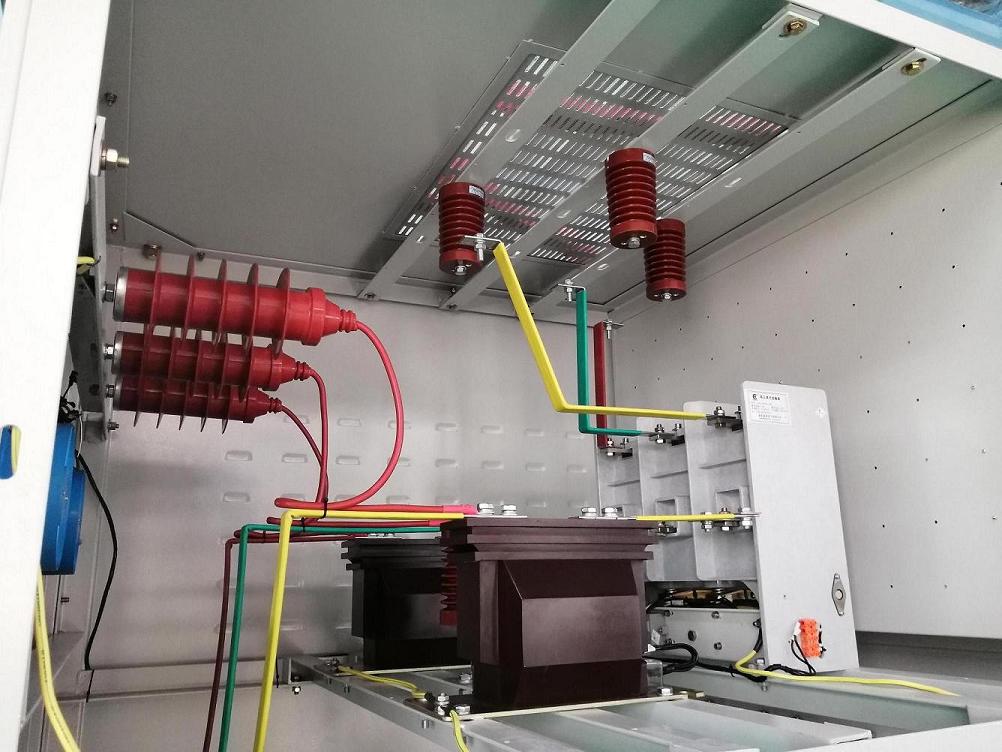

hgih Voltage AC Vacuum Contactors
Technical Data

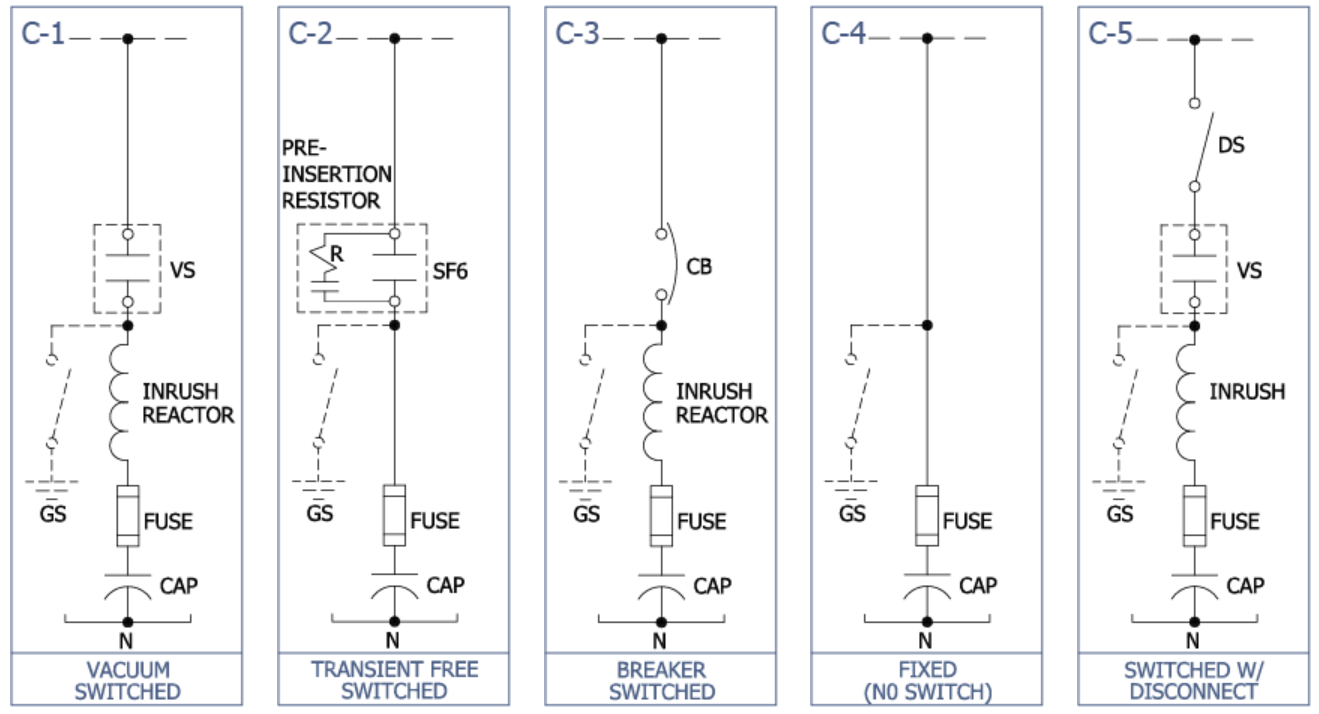

Capacitor configuration

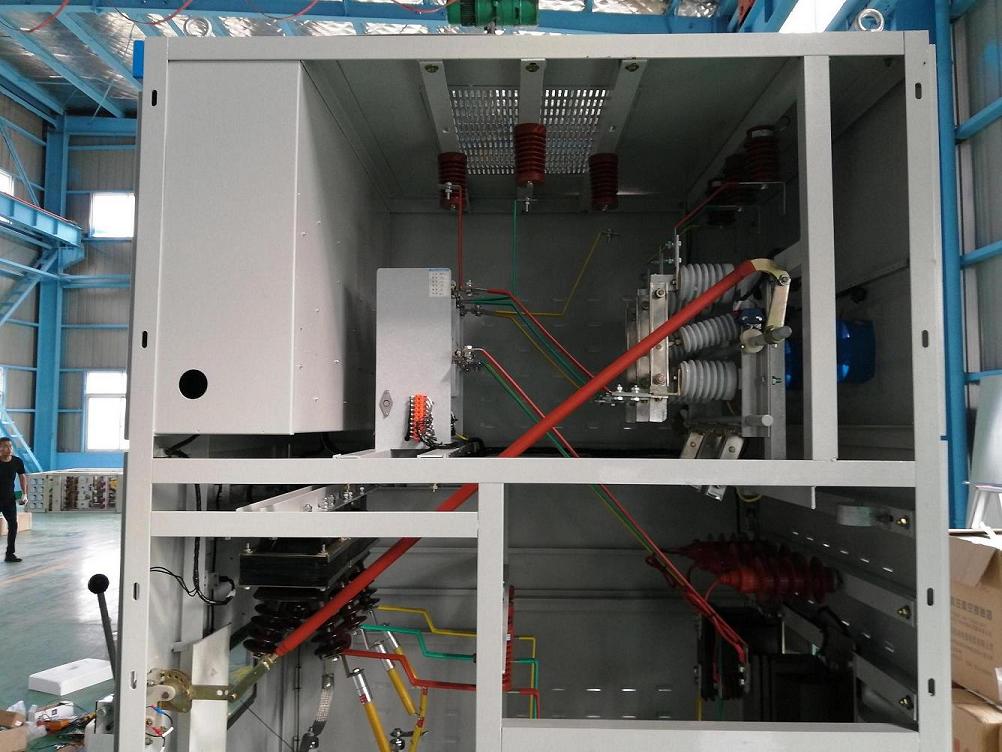

The capacitor compartment may of High voltage Static Var Compensator SVC consists of one capacitor bank or multiple capacitor stages. A capacitor bank or stage normally consists of the capacitors, capacitor fuses, and where applicable, a switching device and transient inrush reactors. Typical bank or stage configuration options are provided below. The capacitor bank/stage compartment is compartmentalized and isolated from the incoming compartment to allow for maintenance and repair.
Features
■Fast return on investment through lower power costs.
■Reduces kVA billing and power factor penalties.
■Effective use of installation.
■Improved voltage quality.
■Increases power flow capability.
■Release system capacity.
■Reduced voltage drops.
■Optimum cable design.
■Reduced transmission losses
■ Fast, easy installation.
■ Reduce startup and commissioning cost.
■Lower site preparation cost and associated risk.
■Enclosure protects against inadvertent contact.
■Key interlock system for safety and proper sequence of operation.
■Designed and built by ISO 9001:2008 certificated factory.

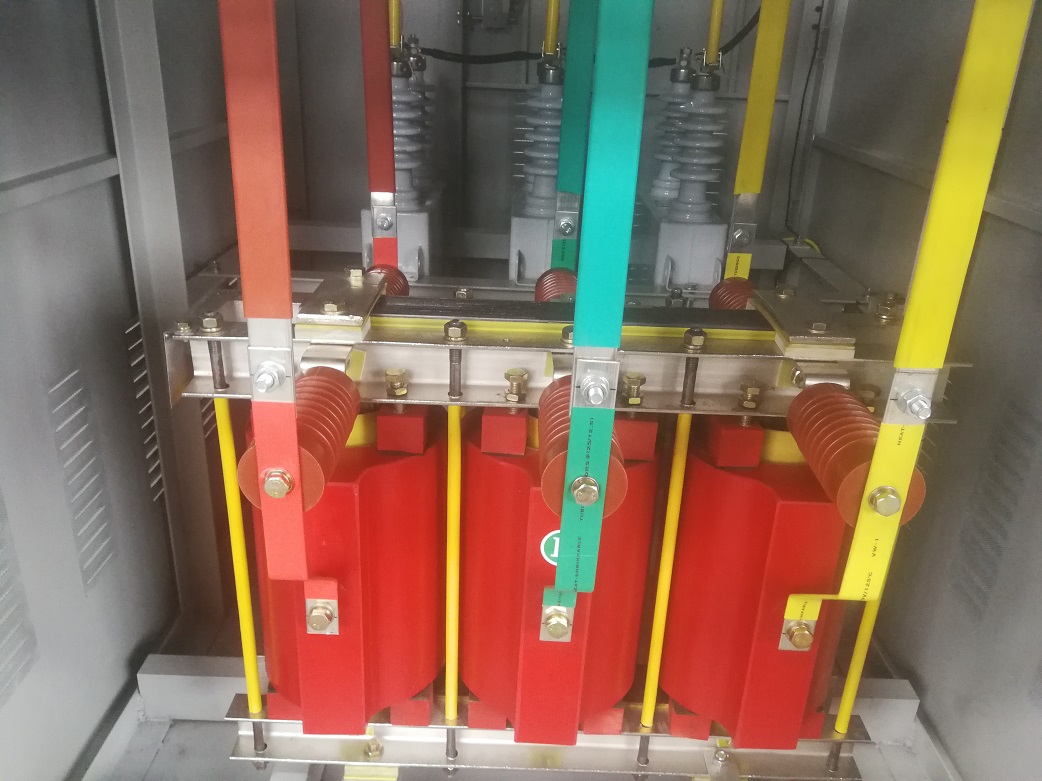

High voltage Reactors
Disconnector

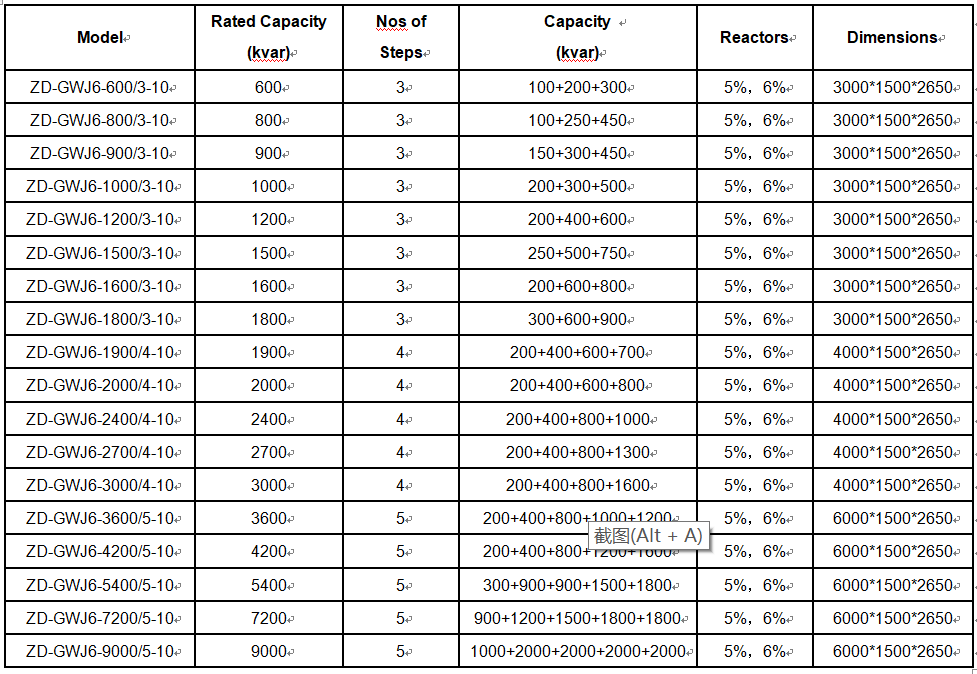

Model Tabel

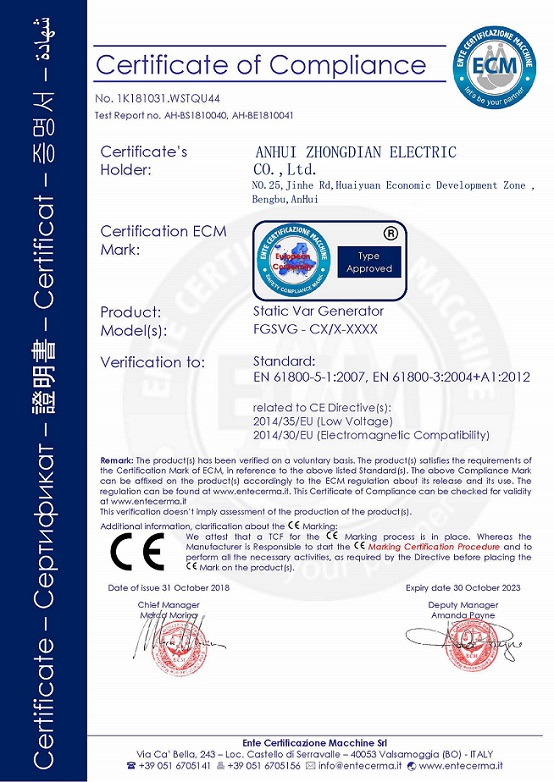

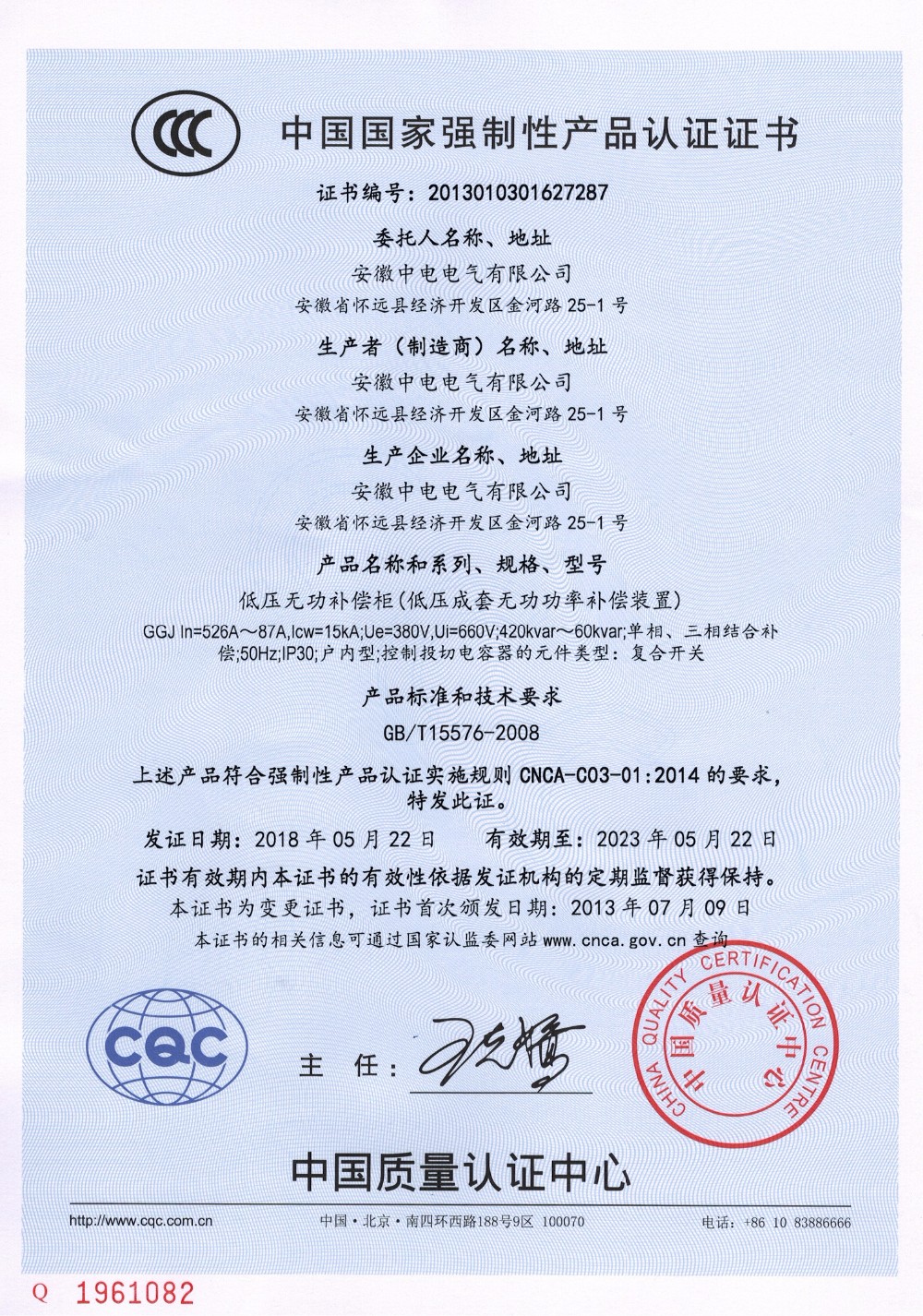

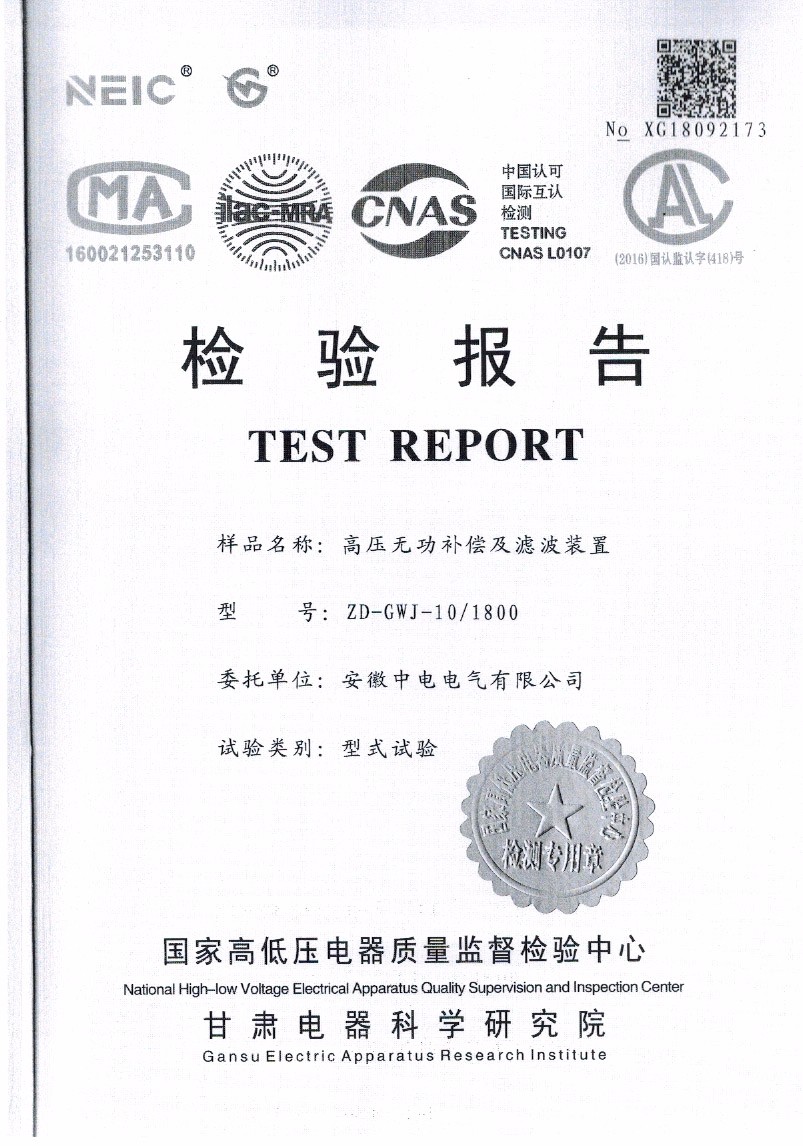

Certifications
