Overview

Essential details

• Applicable Industries:

• Hotels, Garment Shops, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company, Other

• Showroom Location:

• Egypt, Italy, Algeria, South Africa, Morocco

• Condition:

• New

• Type:

• Die-cutting Machine

• Computerized:

• Yes

• Place of Origin:

• China

• Brand Name:

• PRINTYOUNG

• Voltage:

• 380V

• Dimension(L*W*H):

• 4880 x 2100 x 2350 mm

• Weight:

• 14000 kg

• Warranty:

• 1 Year

• Production Capacity:

• 7000 S/H

• Key Selling Points:

• Automatic

• Max. workable width:

• 1080mm

• Machinery Test Report:

• Provided

• Video outgoing-inspection:

• Provided

• Marketing Type:

• New Product 2020

• Warranty of core components:

• 1 Year

• Core Components:

• Motor, Engine

• PLC Brand:

• OTHER

• Max paper size:

• 1080 x 780 mm

• Min paper size:

• 400 x 330 mm

• Max cutting size:

• 1075 x 770 mm

• Die frame inner size:

• 1100 x 790 mm

• Cutting plate size:

• 1080 x 780 mm

• Min gripper edge size:

• 7 mm

• Cutting precision:

• ≤±0.1 mm

• Max cutting pressure:

• 300 T

• Pre-stacking height:

• 1550 mm

• Delivery stack height:

• 1400 mm

Supply Ability

• Supply Ability

• 5 Set/Sets per Year

Packaging & delivery

• Port

Shanghai or Ningbo

• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	60	To be negotiated

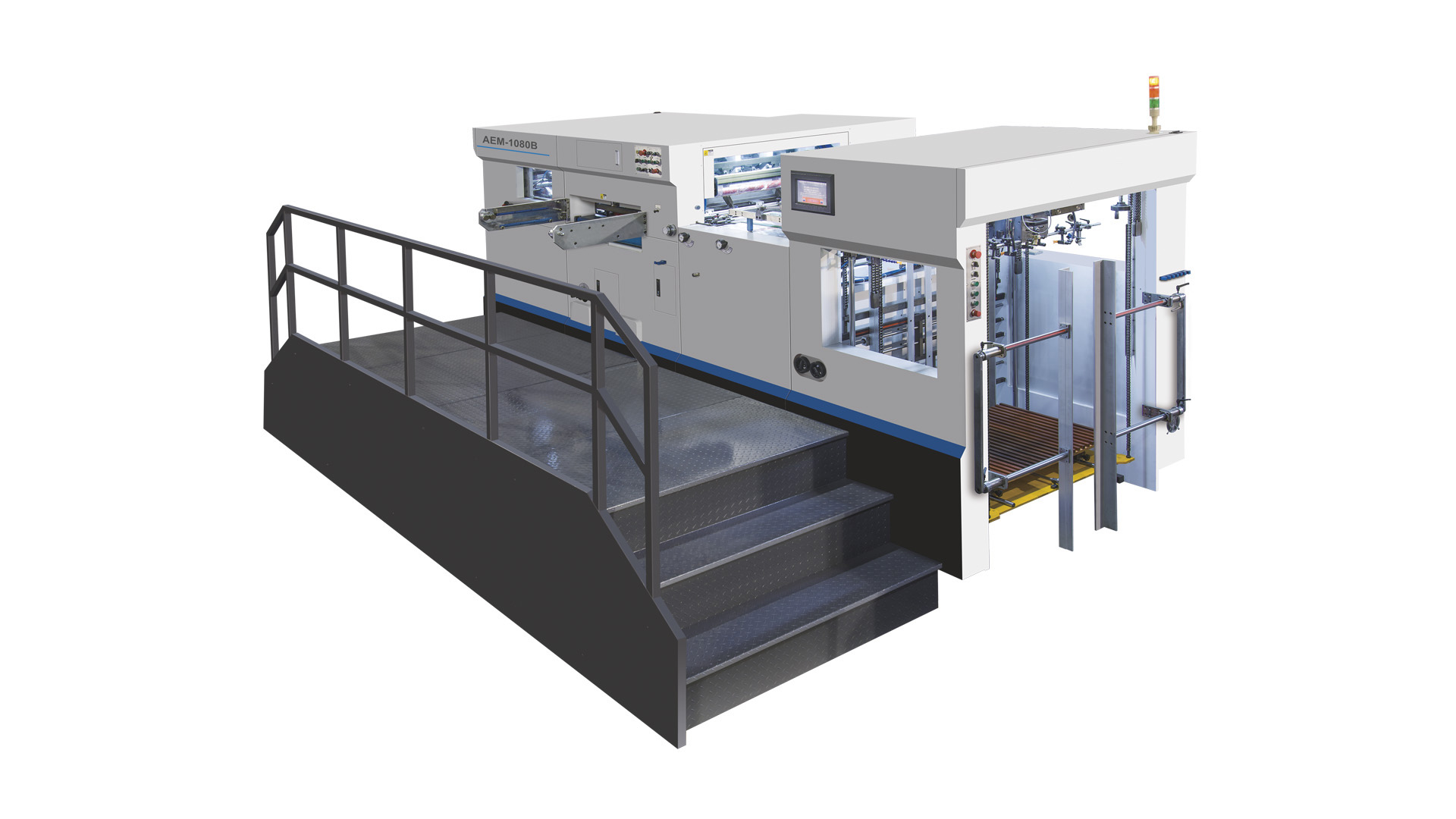

AEM-1080B Automatic Flat Bed Die Cutting Machine

Features

★ Complete design, accurate installation, high stability, high security, low noise.
★ Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
★ High precision interval mechanism, high cutting precision, running steadily.
★ Adopt European feeder, suction adjustable, steadily, precise, good paper applicability.
★ Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
★ Automatic pressure adjust system, pressure digital display.
★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
★ Double, crooked, no-sheet optoelectronic position control, ensure the paper in the right position, reduce waste.
★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.
★ (Optional)5+2mm thin plate system, reduce the makeready time.

Technical Parameters
