Overview

Essential details

• Applicable Industries:

• Manufacturing Plant

• Showroom Location:

• Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain

• Condition:

• New

• Machine Type:

• Bag Forming Machine

• Bag Type:

• Pouch Bag

• Material:

• Plastic

• Computerized:

• Yes

• Place of Origin:

• Zhejiang, China

• Brand Name:

• Wity

• Model Number:

• C+FD

• Voltage:

• 380V

• Dimension(L*W*H):

• 12300*2050*2000mm

• Weight:

• 4500kg

• Warranty:

• 1 Year

• Key Selling Points:

• Multifunctional

• Marketing Type:

• Ordinary Product

• Machinery Test Report:

• Provided

• Video outgoing-inspection:

• Provided

• Warranty of core components:

• 1 Year

• Core Components:

• Motor

• Max Speed:

• 35M/MIN

• Max length of bag making:

• 380mm

• Max width of bag making:

• 580mm

• Dimension of roll material:

• 600*1200mm

• Accuracy of orientation:

• ≤± 0.5mm

• Speed of machine:

• 150 hypo-minute

• Speed of feeding:

• Max: 35 m/min

• Quantity of temperature heating:

• 22

• Bound of temperature:

• 0-300 ℃

• After Warranty Service:

• Video technical support, online support, Spare parts, Field maintenance and repair service

• Local Service Location:

• Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Spain

• After-sales Service Provided:

• online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service

Supply Ability

• Supply Ability

• 30 Set/Sets per Month

Packaging & delivery

• Packaging Details

Stretch film or wooden package

• Port

Ningbo port

• Picture Example:

•



• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	60	To be negotiated

online Customization

Click the image below to start online customization for the design you want.

Customise Now

Video Description

00:00

00:37

Product Description

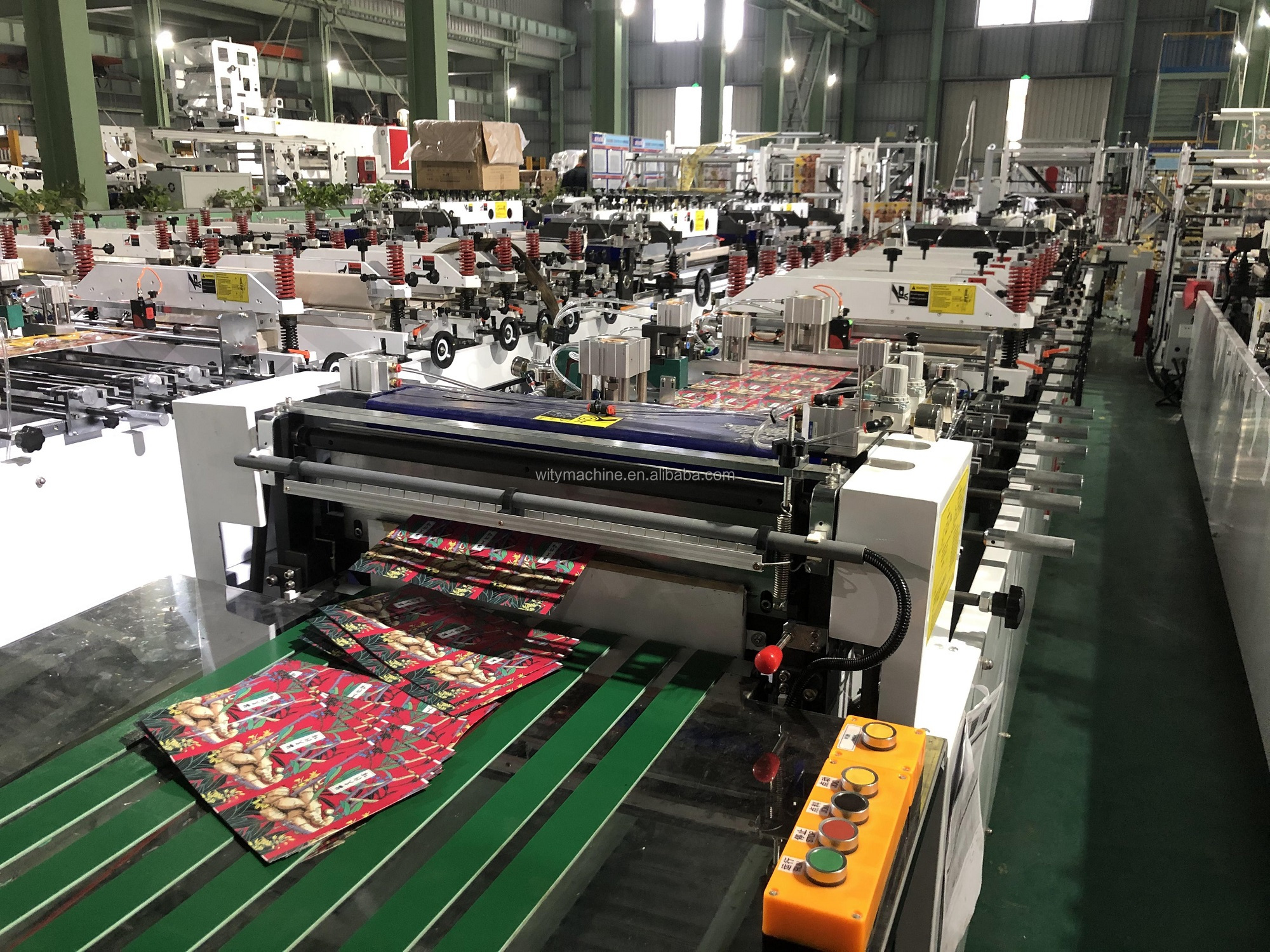

Pouch bag making machine

This machine can do for three side sealing, zipper bag ,stand up bag  (single sheet film folded material and normal stand up bag with another small piece film gusset )

Specification

Features

 Three servo motor for traction from JAPA  PLC adopts Panasonic from Japan; Touch Screen from Taiwan  Main driving is alternating current with Yaskawa from JAPAN inverter, automatic constant tension for unwinding.  Thermal-sealing knife’s quantity of heat: 1. Vertical-sealing for zipper adopts 1 group for heating fluctuation, 2. Vertical-sealing for side sealing adopt 5groups for heating fluctuation, cooling fluctuation from up and down 3. Zipper flattening adopt 2 groups heating. 4. Bottom sealing adopts 3 group heating, 1 group for cooling

Details Images

Unwinder part

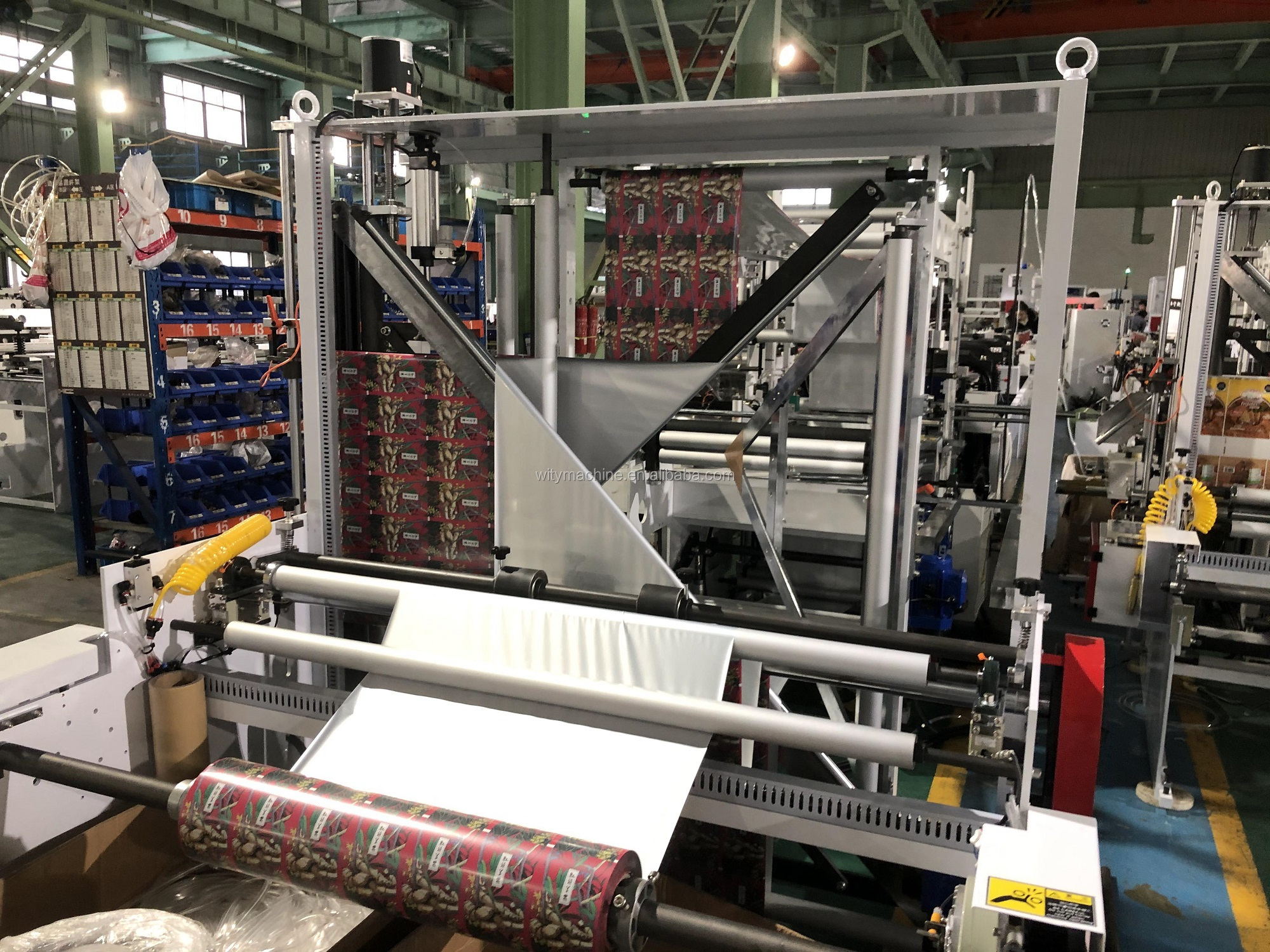

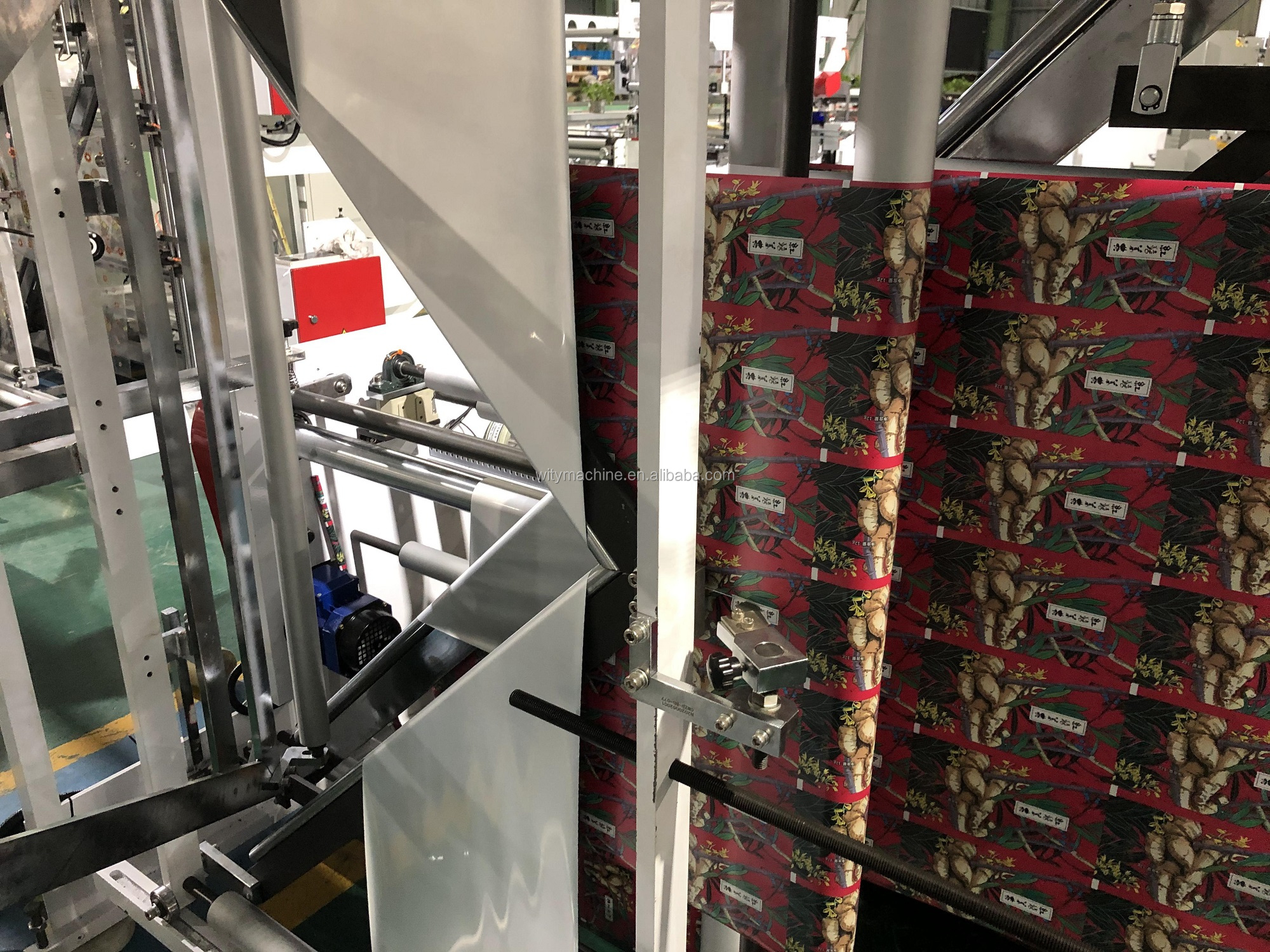

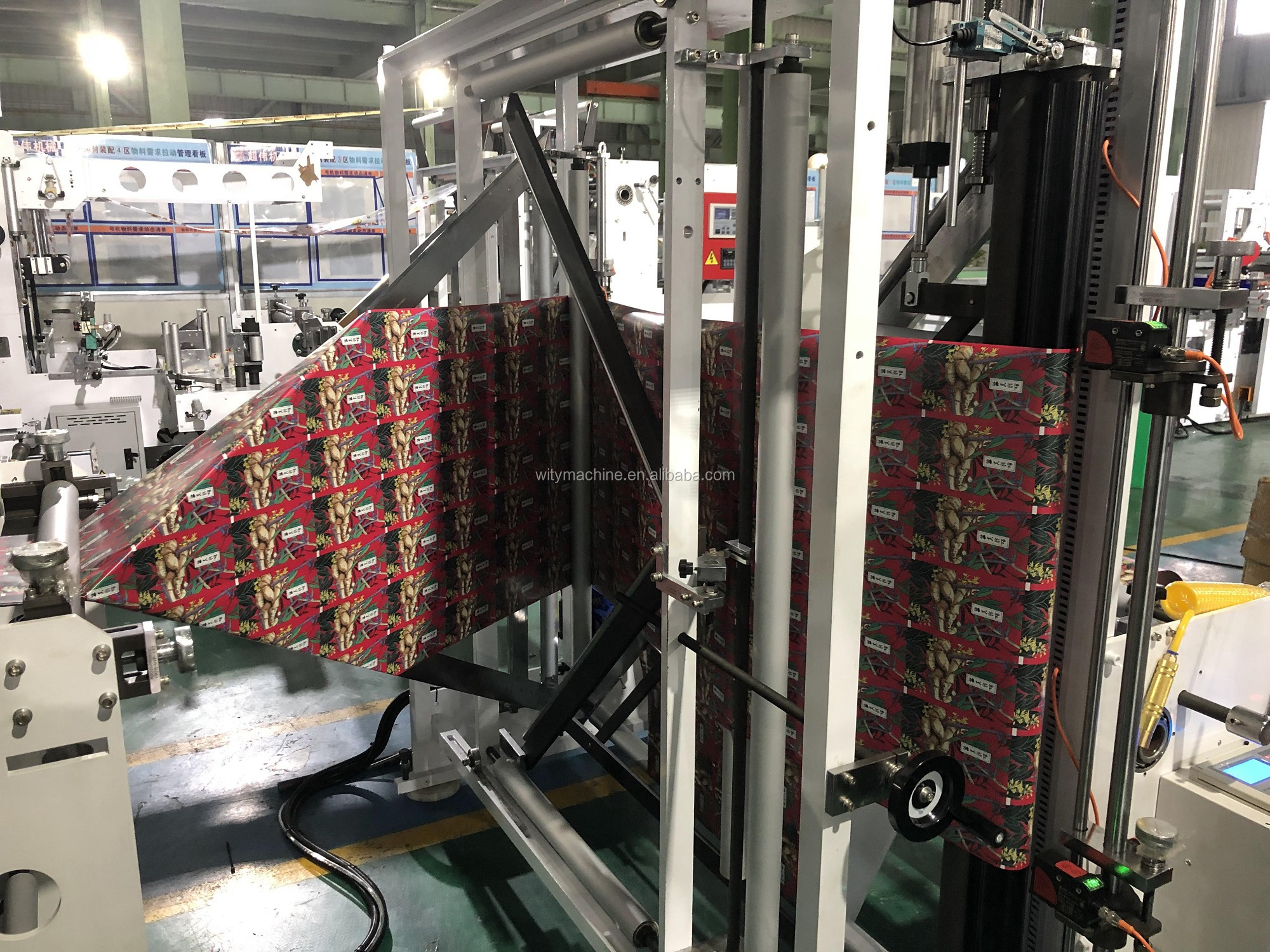

Folding part

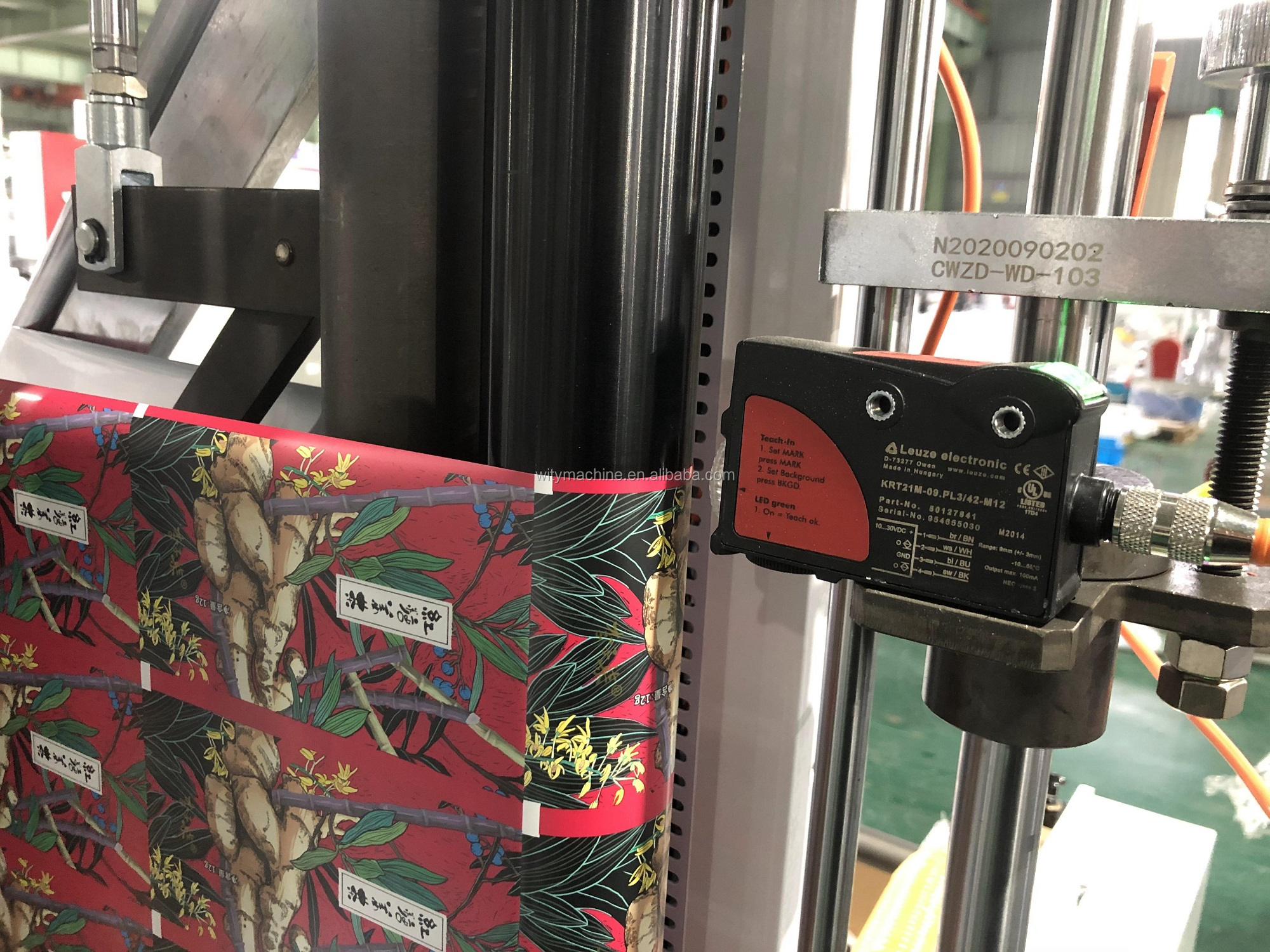

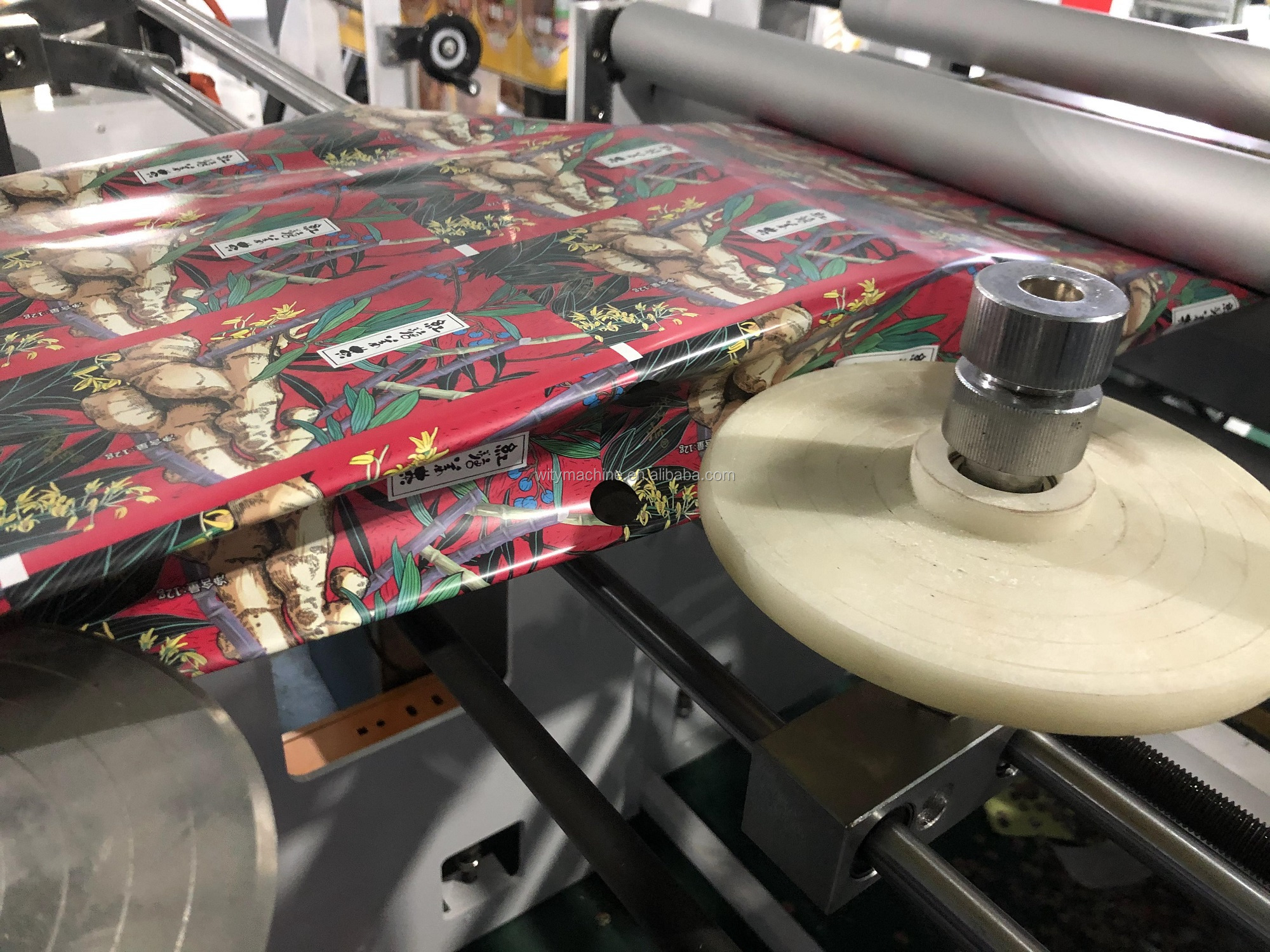

Web-guiding sensor

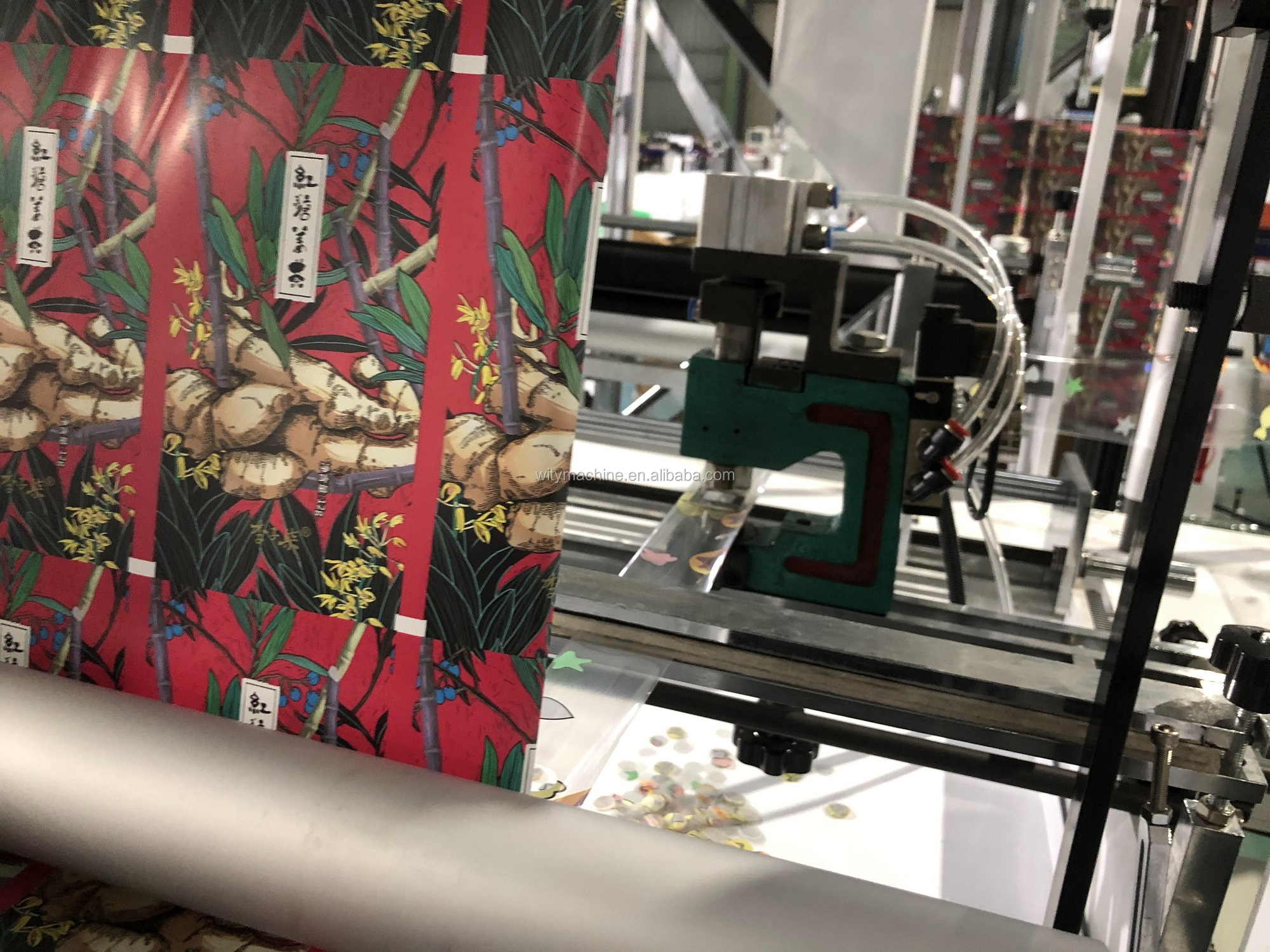

Bottom film hole punching

Film separating

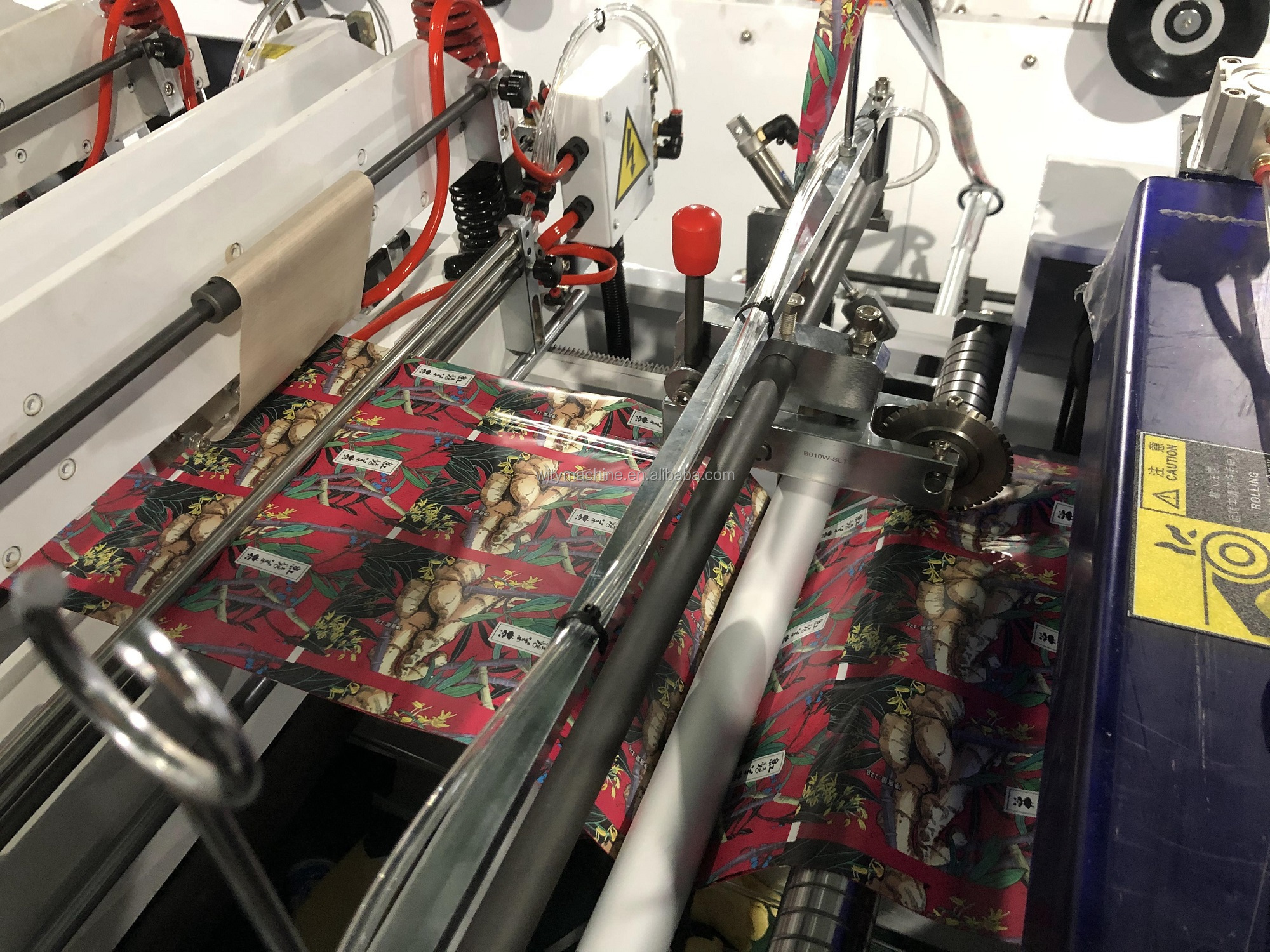

Zipper feeding

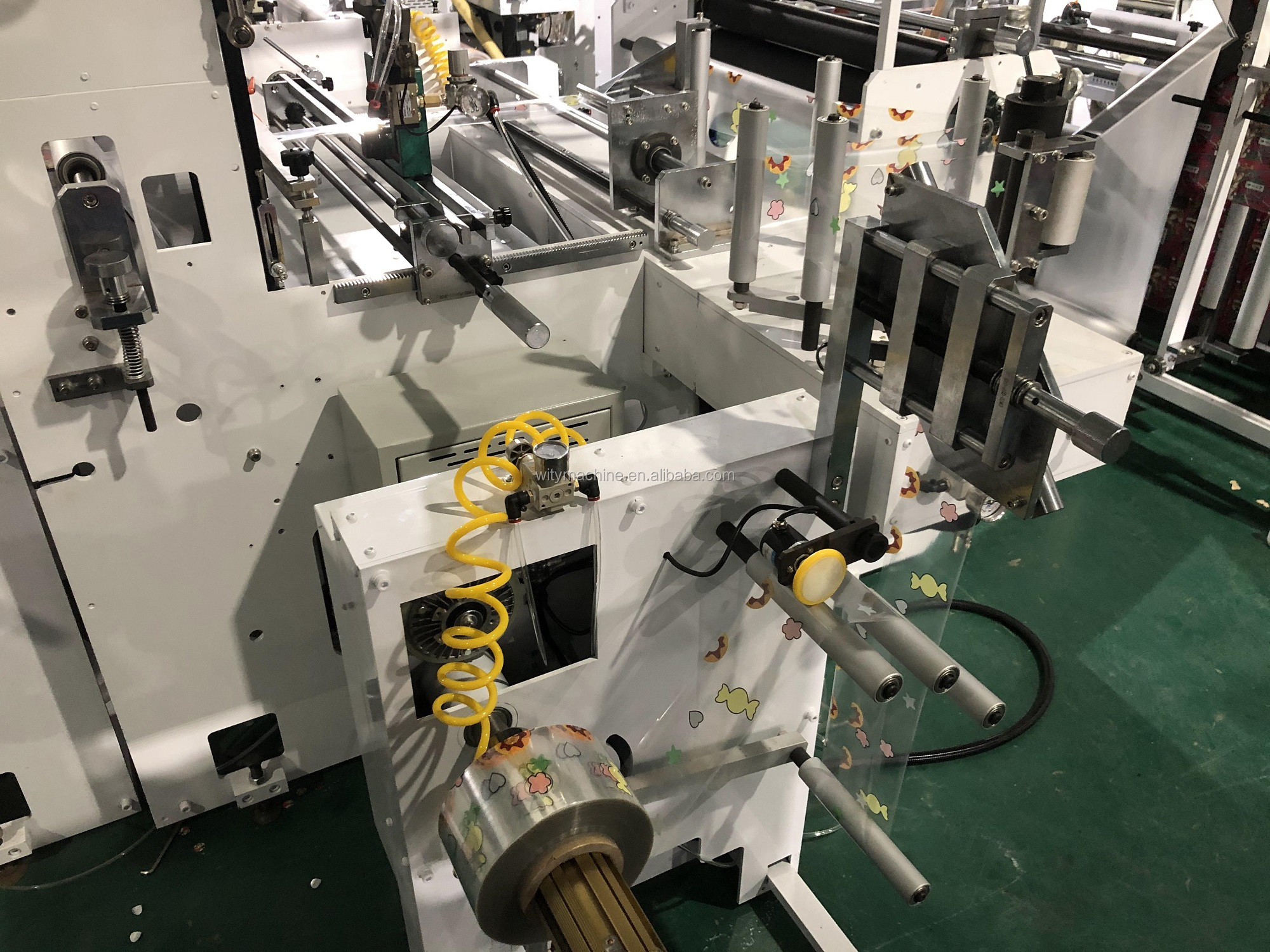

Third film unwinder

Perforation unit

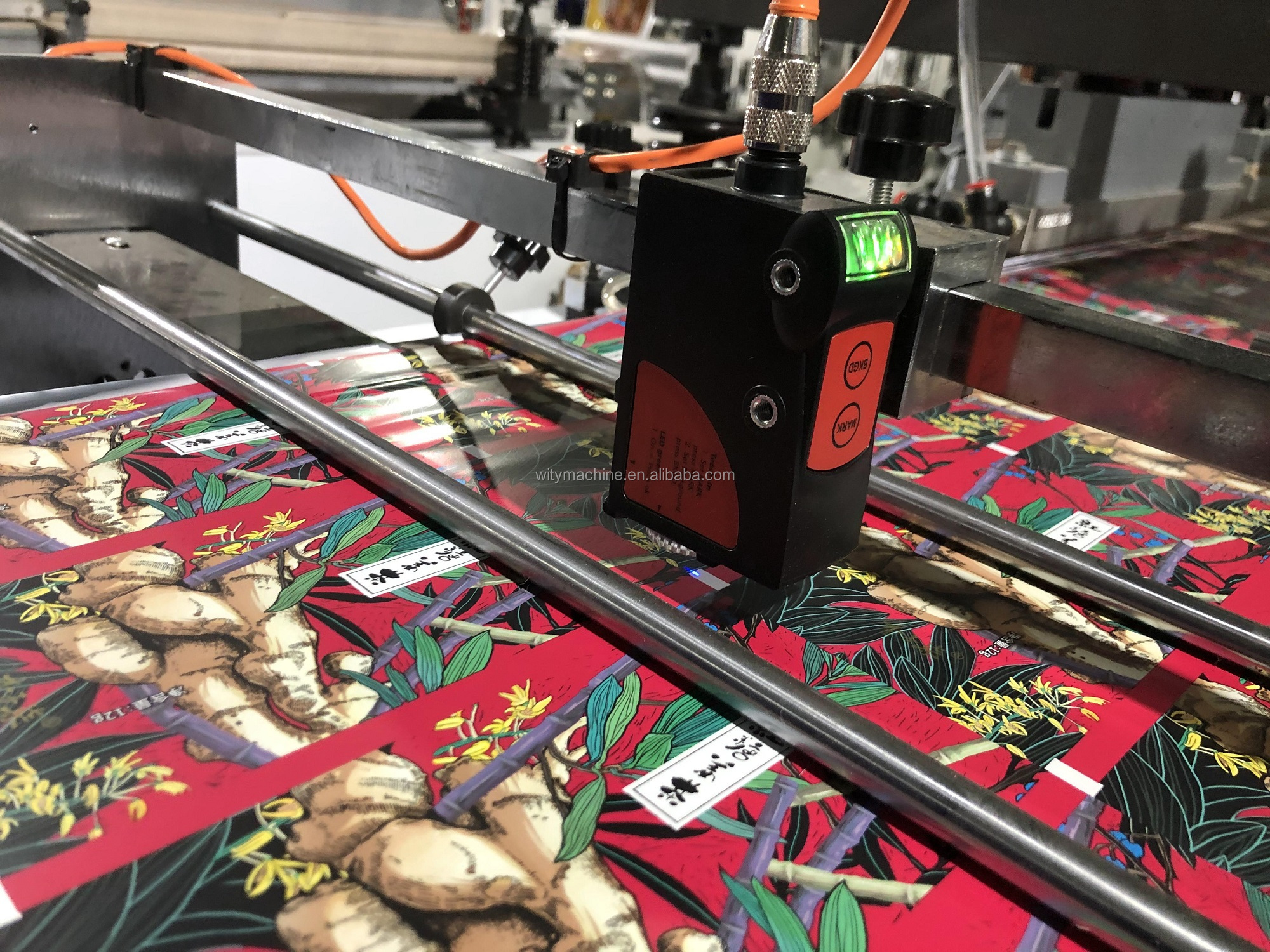

Printed mark sensor
