Overview

Essential details

• Applicable Industries:

• Manufacturing Plant, Food Shop, Printing Shops

• Showroom Location:

• United States, Saudi Arabia, Mexico, UAE, Malaysia

• Condition:

• New

• Machine Type:

• Cutting Machine

• Bag Type:

• sleeve

• Material:

• Plastic, PVC PET

• Computerized:

• Yes

• Place of Origin:

• Zhejiang, China

• Brand Name:

• WITY

• Model Number:

• QD-300

• Voltage:

• 220V 1P

• Dimension(L*W*H):

• 2580x1050x1250mm

• Weight:

• 500kg

• Warranty:

• one year

• Key Selling Points:

• High Productivity

• Marketing Type:

• Ordinary Product

• Machinery Test Report:

• Provided

• Video outgoing-inspection:

• Provided

• Warranty of core components:

• 1 Year

• Core Components:

• Motor, Pump, PLC

• After-sales Service Provided:

• Engineers available to service machinery overseas

• Speed:

• 100-480pcs/min

• Max width:

• 300mm

• Machine color:

• white

• Servo motor:

• YASKAWA Brand

• photocell:

• KonTEC brand

• After Warranty Service:

• Video technical support, online support, Spare parts

• Local Service Location:

• United States, Peru, Saudi Arabia, Mexico, UAE, South Africa

• Certification:

• NO

Supply Ability

• Supply Ability

• 30 Set/Sets per Month

Packaging & delivery

• Packaging Details

wooden case packing

• Port

ningbo/shanghai

• Picture Example:

•



• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	30	To be negotiated

Video Description

00:00

00:53

Description

1.The QD350 series is the ideal shrink sleeve cutting machine that allows converters to offer end users cut sleeves for manual sleeve application. 2.This machine is suitable to sheet cutting heat shrinkable film, trademark compound film, PE film, also can use for perforation the film (optional) 3.It has photocell tracking function and Single chip controlling. 4.According customer requirement it can be add the function: perforating, rewinding, etc.

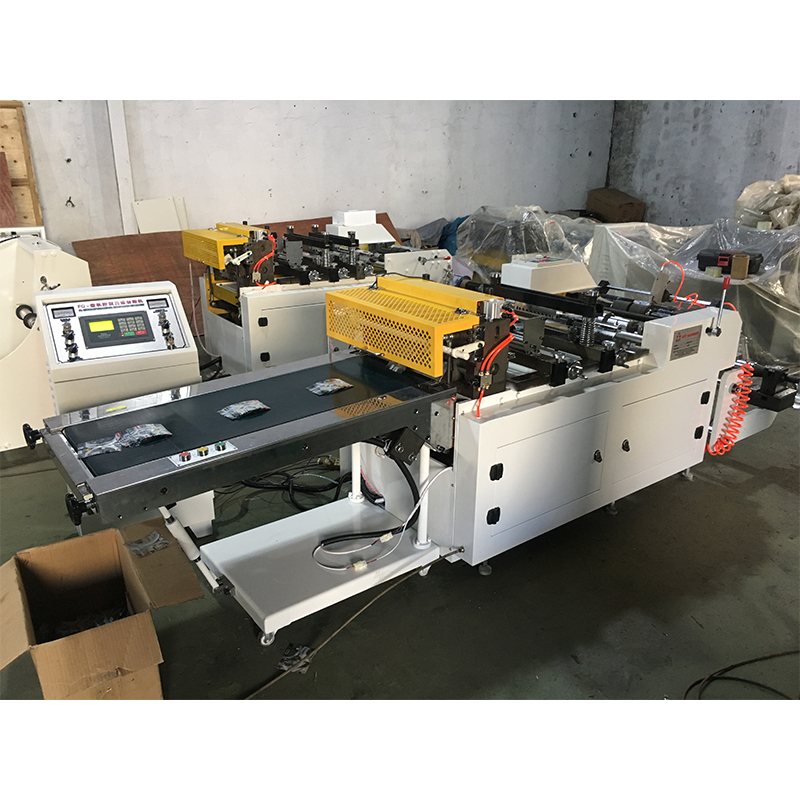

Shrink Sleeve cutting machine with Movable Auto Conveyor Table

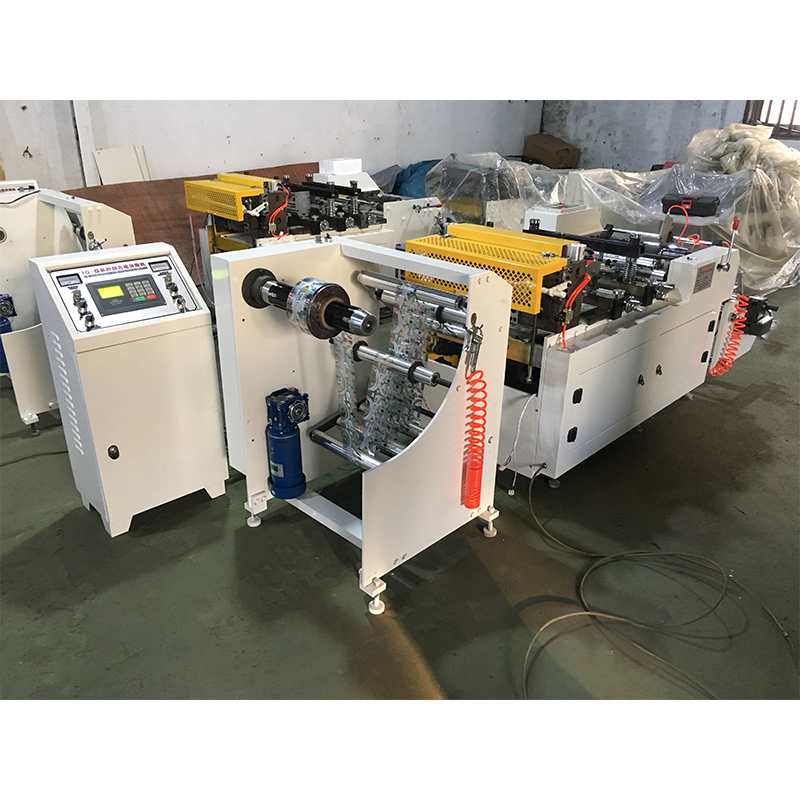

Shrink Sleeve Cutting Machine With Movable Rewinder

Features

1. Build-in unwinder with web-guiding function 2.Air shaft material roll lock 3.Magnetic brake for unwind tension control 4.Automatic constant tension controller  5.KonTEC brand sensor for print mark tracking 6.YASKAWA Servo motor drive and timing belt transmission for precision cutting traction 7.Pneumatic pressing for traction roller pressure adjustment 8.Extend movable conveyor belt collecting table, the delay time is adjustable delay time according label batch quantity. 9.Machine frame steel plate 16mm thickness

PRODUCT SPECIFICATIONS

PRODUCT CONFIGURATION

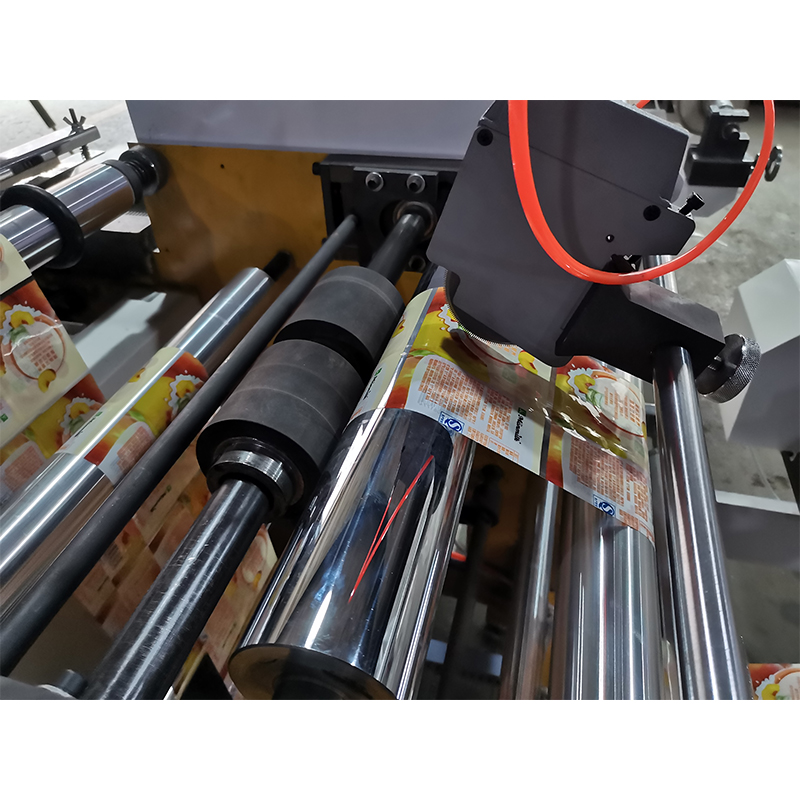

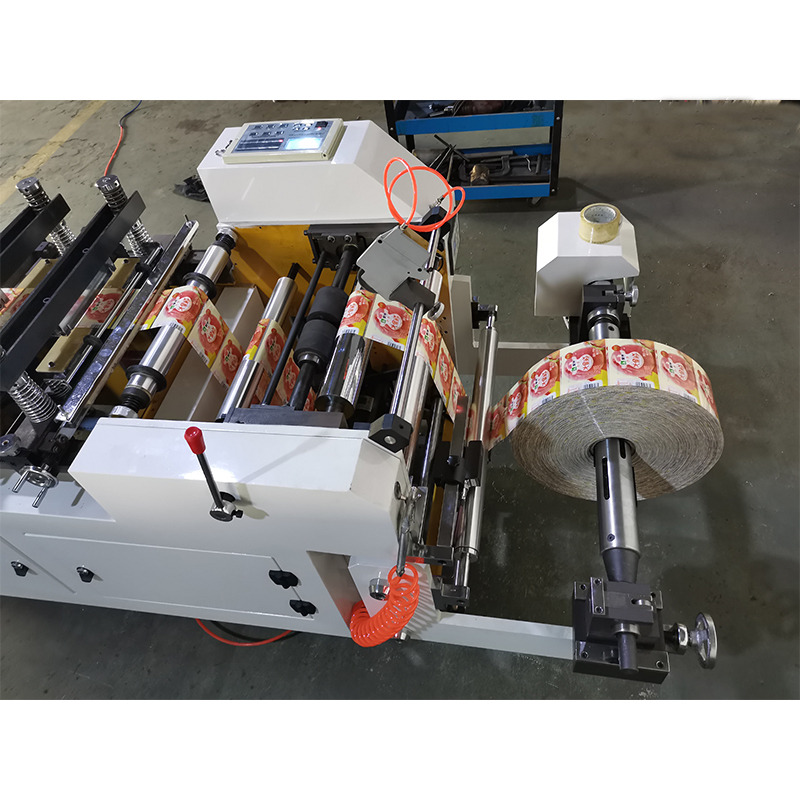

Film Unwinder with Auto tension Control

Vertical Perforation Device

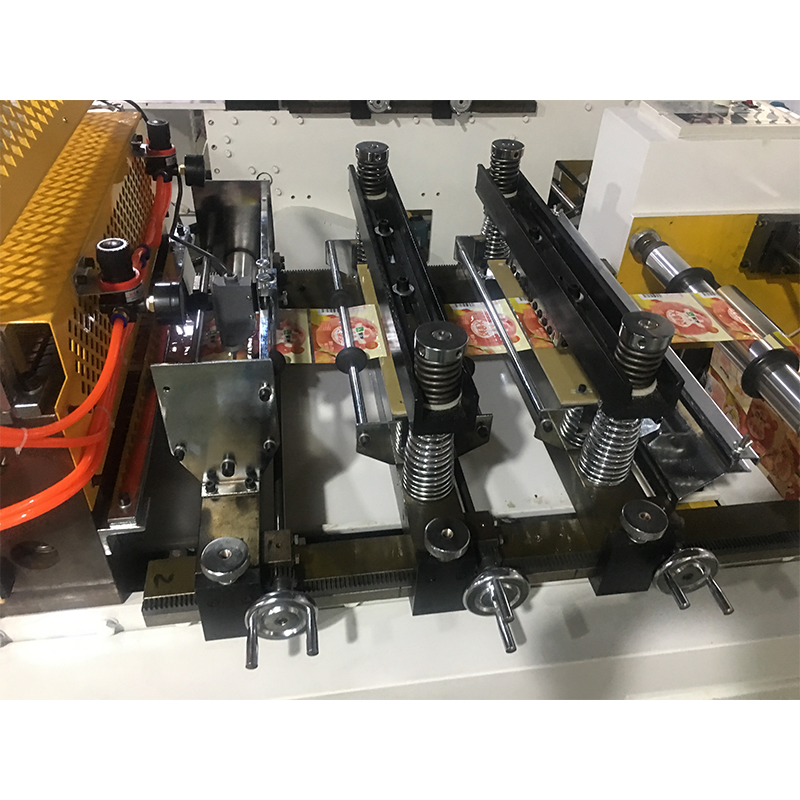

Double Units Crosswise Perforation Device

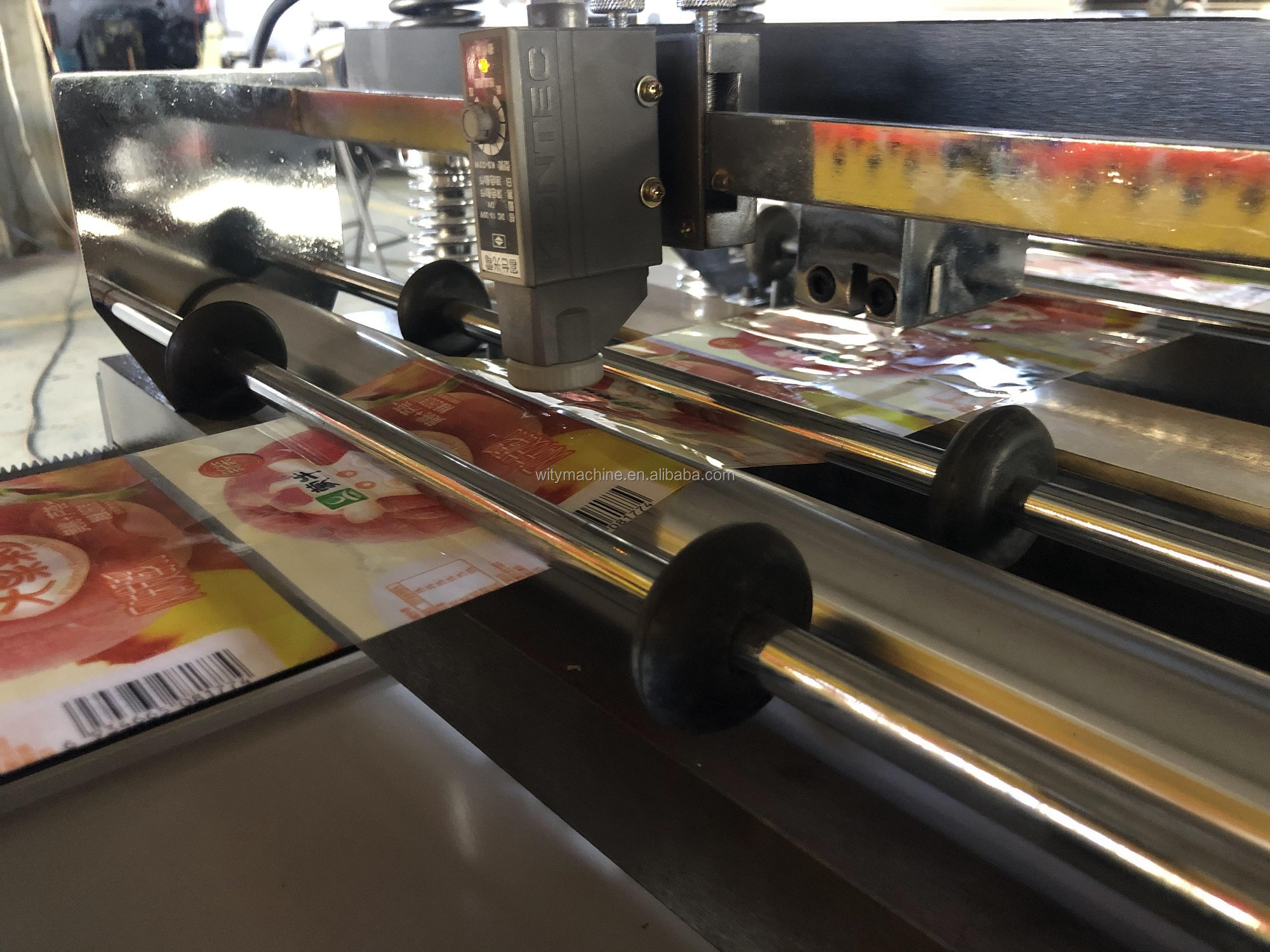

KonTEC brand Photocell for Print-mark Tracking

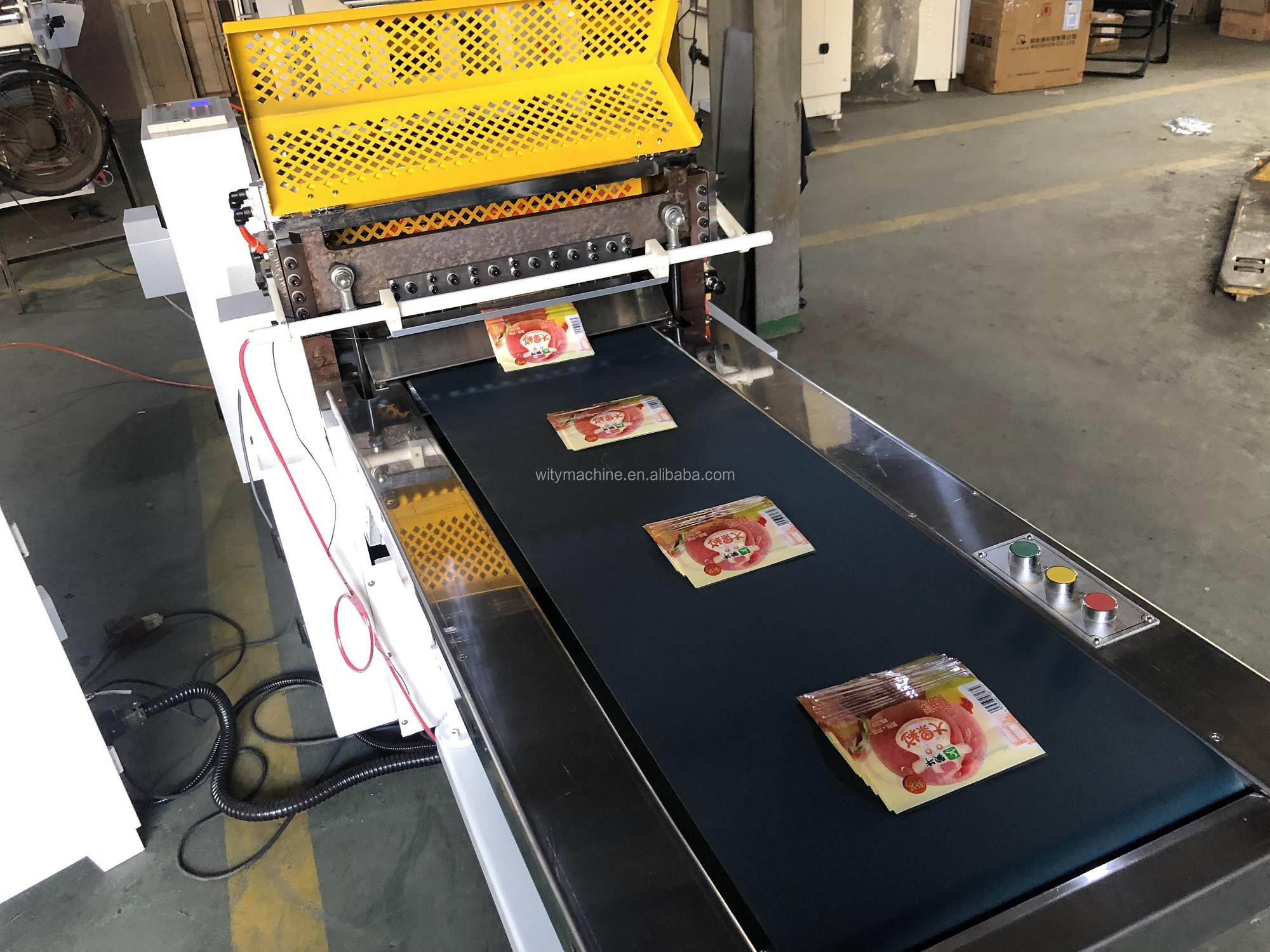

Cutter & Auto Conveyor Table

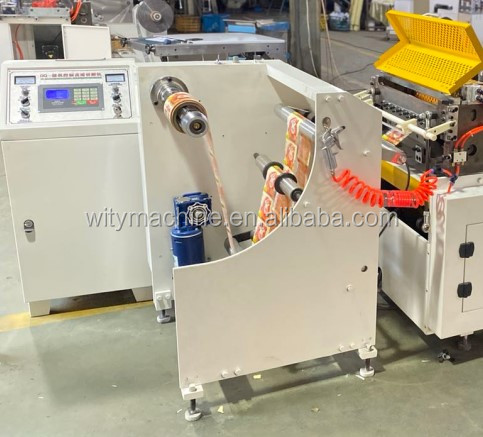

Rewinder(Optional)

Samples
