Overview

Essential details

• Type:

• Heat Press Machine

• Applicable Industries:

• Manufacturing Plant

• Condition:

• New

• Plate Type:

• Nickel Plate

• Place of Origin:

• Zhejiang, China

• Brand Name:

• Wity

• Model Number:

• WT1200

• Usage:

• Film Printer

• Automatic Grade:

• Automatic

• Color & Page:

• Multicolor

• Voltage:

• 380V

• Dimensions(L*W*H):

• 3500*2330*2100mm

• Weight:

• 2000kg (estimate)

• Warranty:

• 1 Year

• Key Selling Points:

• Multifunctional

• Machinery Test Report:

• Provided

• Video outgoing-inspection:

• Provided

• Warranty of core components:

• 1 Year

• Core Components:

• Motor, Pressure vessel, Pump, Other, PLC, Gear, Bearing, Gearbox

• Maximum rewinding diameter:

• 700 mm

• Maximum winding diameter:

• 700 mm

• Embossing speed:

• 20 ~ 60 m/min

• Maximum mechanical velocity:

• 80 m/min

• Tension control range:

• 3 ~ 25 kgf

• Main servo drive motor:

• 4kw

• Reel drive motor:

• 2.2 kw

• Capacity:

• 60kw

• Working power supply:

• AC380/3P/5wires

• After Warranty Service:

• Video technical support, online support, Spare parts, Field maintenance and repair service

• Local Service Location:

• Brazil, Peru, Saudi Arabia, India, Mexico, Russia, Japan, Malaysia, Australia

• Showroom Location:

• Brazil, Peru, Saudi Arabia, India, Mexico, Russia, Morocco, Kenya

• After-sales Service Provided:

• online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

• Marketing Type:

• New Product 2020

Supply Ability

• Supply Ability

• 5 Set/Sets per Month day

Packaging & delivery

• Packaging Details

Standard Export Package

• Port

Shanghai or Ningbo

• Picture Example:

•



• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	35	To be negotiated

online Customization

Click the image below to start online customization for the design you want.

Customise Now

Video Description

00:00

00:21

Product Description

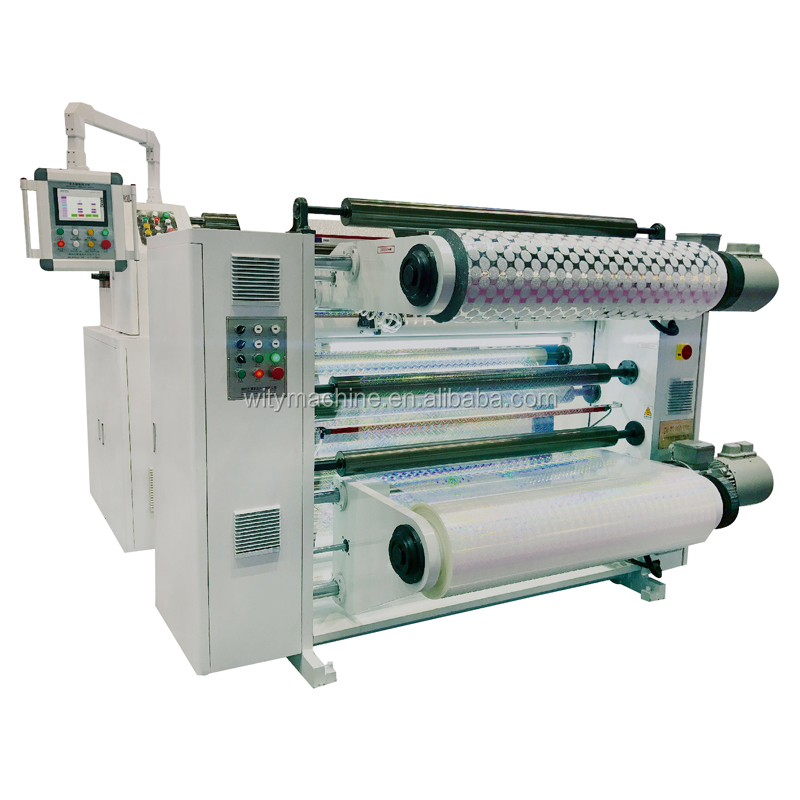

Multi-function Holographic Seamless Embossing Machine

This machine is mainly used for embossing seamless holographic film. This machine is suitable for holographic embossing seamless BOPP, CPP, rainbow film, pillar film, glitter film, multi-lens film, wire drawing film, and so on. It is widely applied in tobacco, wine, and soft package, transfer film and other holographic packaging fields.

Features

1. The machine combines two machines, seamless film embossing and film embossing film machine, with double unwinders and double rewinders. It is non-interference, without nickel plate, which saves material cost. The laser can achieve high brightness and high resolution. 2. It uses PET seamless laser film as mother film, instead of nickel plate. The principle is that the pattern of PET seamless film imprinted on the BOPP. The PET seamless mother laser film can be repeatedly embossed dozens of times. After embossing, the PET film can also be used for package. 3. It has web-guiding control system, auto feeding, take-up system, which is to make sure the embossing roller surface temperature stabilized at ±1℃, also to ensure that the embossing material is not deformed due to temperature change.

Specification

Details Images
