Overview

Essential details

• Processing Type:

• Plastic Thermoforming Machine

• Plastic Type:

• PS, BOPS, PP

• Max.Forming Height(mm):

• 120 mm

• Forming Width (mm):

• 600 mm

• Forming Length (mm):

• 120 mm

• Production Speed(Cycles/min):

• 20-30cycles/min

• Video outgoing-inspection:

• Provided

• Machinery Test Report:

• Provided

• Warranty of core components:

• 1 Year

• Core Components:

• PLC, Bearing, Motor

• Air Pressure(MPa):

• 3 MPa

• Sheet Thickness(mm):

• 0.3 - 2 mm

• Heating Power (kW):

• 86.42 kW

• Air Comsumption(L/min):

• 3000 L/min

• Water Comsumption(L/min):

• 12 L/min

• Condition:

• New

• Product Type:

• Plastic Cup

• Place of Origin:

• Zhejiang, China

• Brand Name:

• WITY

• Voltage:

• 380V/50HZ

• Dimension(L*W*H):

• 3550x1900x2700mm

• Weight (T):

• 4.8 T

• Power(KW):

• 97kw

• Warranty:

• 1 Year

• Applicable Industries:

• Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company

• Key Selling Points:

• Long Service Life

• Showroom Location:

• United States, Philippines, Pakistan, Spain, Colombia, Romania, Japan

• Feeding sheet width:

• 500-680mm

• Feeding sheet thickness:

• 0.3-2.0mm

• Max. Forming Area:

• 680*350mm

• Max. Forming Depth:

• 120mm

• Max. Diameter of Feeding Sheet Roll:

• 600mm

• Main Motor Power:

• 7.5kw

• Winder Motor:

• 0.55kw

• Heating Power:

• 86.42kw

• Sheet Feeding Motor:

• 3kw

• Total power:

• 97kw

• After-sales Service Provided:

• Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, online support

• After Warranty Service:

• Video technical support, online support, Spare parts, Field maintenance and repair service

• Local Service Location:

• Canada, Italy, France, Brazil, Indonesia, Pakistan, Russia, Australia, Algeria, Kazakhstan

• Marketing Type:

• Hot Product 2021

Supply Ability

• Supply Ability

• 10 Set/Sets per Month

Packaging & delivery

• Packaging Details

Standard Export Packaging

• Port

Shanghai or Ningbo

• Picture Example:

•



• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	35	To be negotiated

Product Description

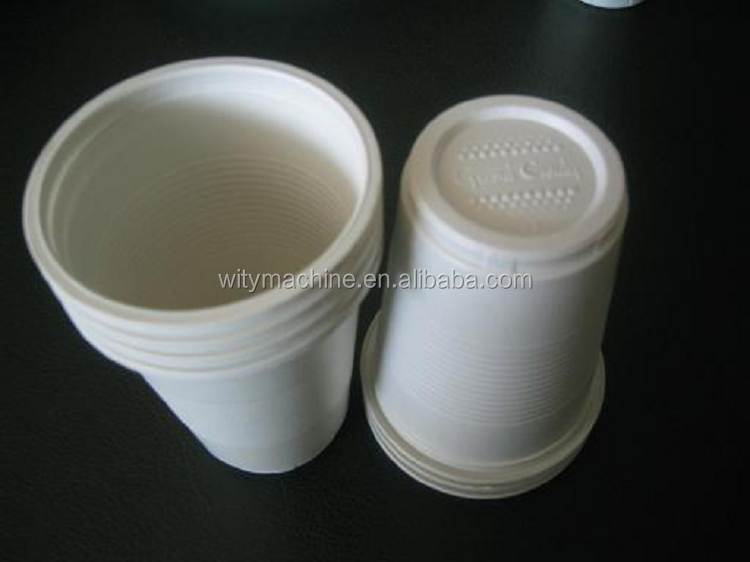

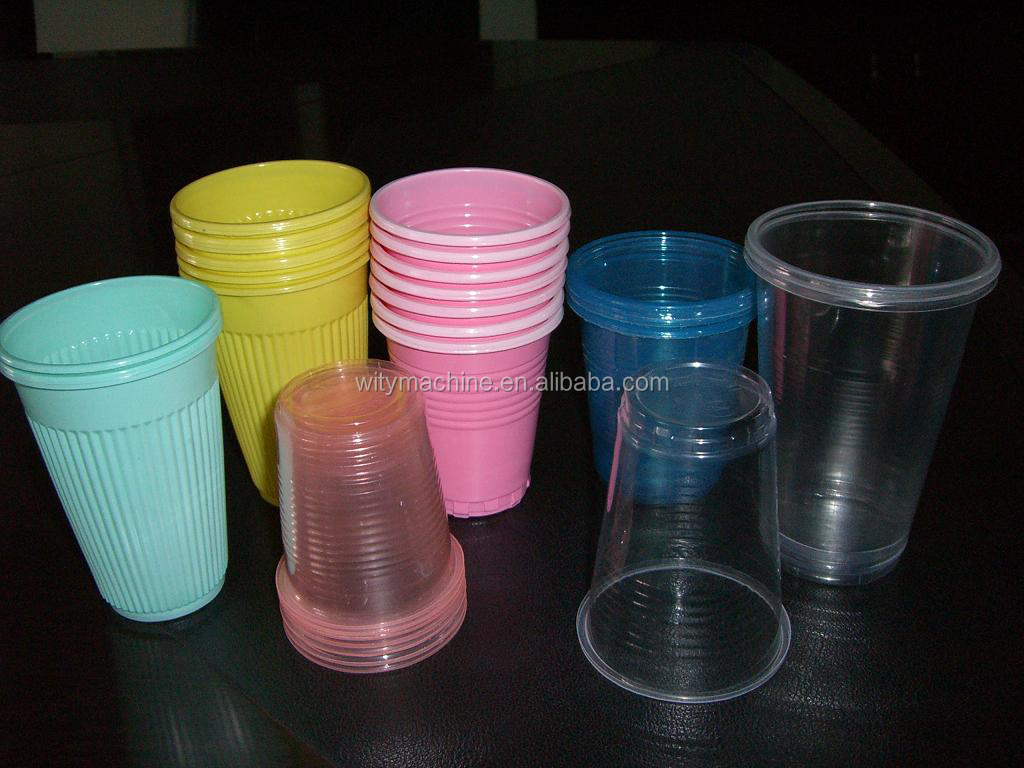

It is used for forming PP.PS.HIPS.PVC.and PET plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups, milk cups chocolate package boxes, candy boxes and fast-food boxes etc.

Specification

Details Images
