Overview
Essential details
Type:
Heat Press Machine
Applicable Industries:
Manufacturing Plant
Condition:
New
Plate Type:
Others
Place of Origin:
Zhejiang, China
Brand Name:
Wity
Model Number:
320
Usage:
Label Printer
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
380V
Dimensions(L*W*H):
1400*900*1400mm
Weight:
800kg
Warranty:
1 Year
Key Selling Points:
Easy to Operate
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pump, Gear
Working web width:
200mm
Embossing speed:
3000 cycle/hour
Driven style:
Servo Reduction motor
Control system:
PLC control
Unwind and rewind diameter:
250mm
Heating temperature:
80~120℃
Hydraulic pressure:
2.5mpa
After Warranty Service:
Video technical support, online support, Spare parts, Field maintenance and repair service
Local Service Location:
Germany, Saudi Arabia, Russia
Showroom Location:
Germany, Saudi Arabia, Russia
After-sales Service Provided:
online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Marketing Type:
Ordinary Product
Supply Ability
Supply Ability
15 Set/Sets per Month
Packaging & delivery
Packaging Details
STANDARD EXPORT PACKAGE
Port
Ningbo Port
Picture Example:
Lead time:
Quantity(sets) 1 - 1 >1 Lead time (days) 20 To be negotiated
online Customization
Click the image below to start online customization for the design you want.
Customise Now
Video Description
Product Description

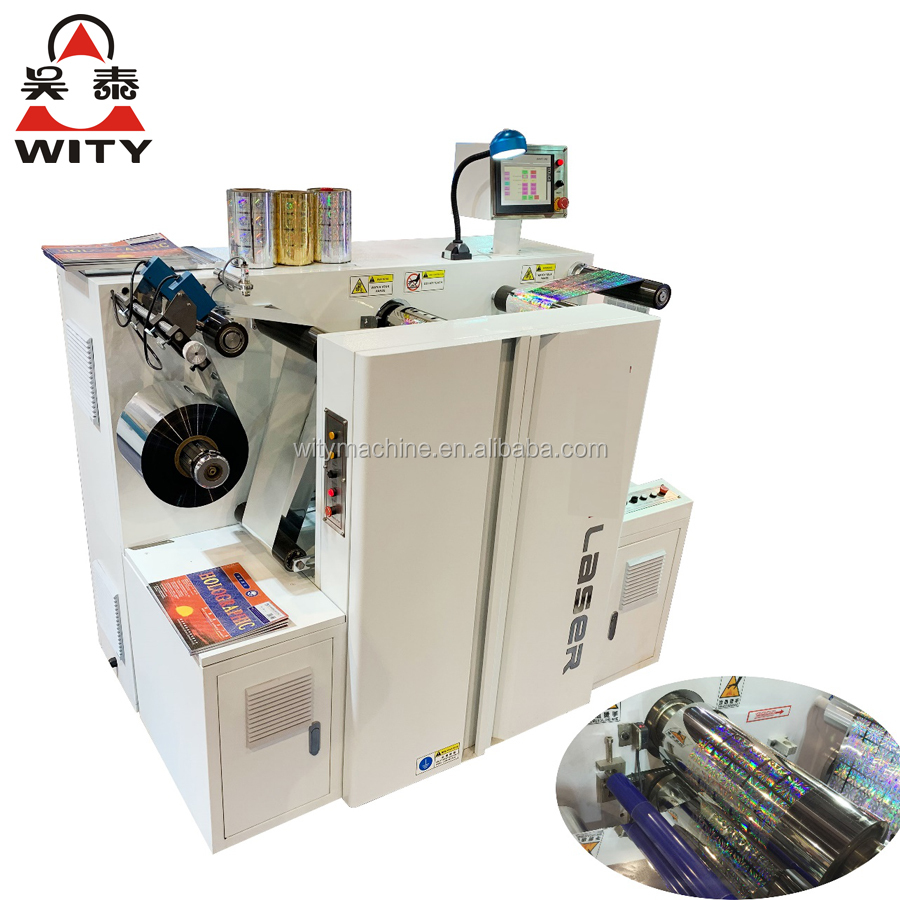

Q/CKLJ5-180 Laser Holographic Embossing Press (Equidistance)
This machine works to make rainbow holographic pattern Al-plated PET film by embossing way which is brilliant in color, vivid and lifelike in designed pattern, strong in 3D effect with a dynamic vision under any lighting source and angle. Being excellent in anti-counterfeit performance, the processed film is suitable for labeling or packaging cigarette, wine food drugs and other light-inductrial products.
Advantages
1)Automatic web-guiding unwind 2)PLC intelligent temperature control 3)Working plate or Film break off automatic stop 4)Plate distance is freely adjustable 5)Compact structure, easy installation 6)Dust removing roller 7)Embossing precision: ≦0.15mm
Specification
Working web width: 200mm
Embossing speed: 3000 cycle/hour
Driven style: Servo Reduction motor
Control system: PLC control
Unwind and rewind diameter: 250mm
Heating temperature: 80~120℃
Total power: 4kw
Hydraulic pressure: 2.5mpa
Positioning system: servo motor position control
Clean model: dust remove roller
Overall dimension: 1400x900x1400mm
Total weight: 800kg

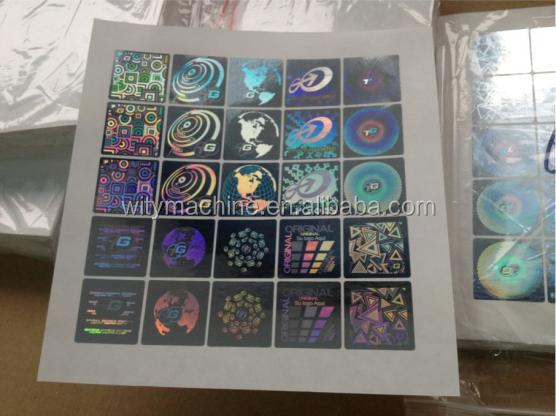

Samples
