Min quantity:1Piece
Quantity:999Piece
Deliver:In 7 days
Overview
Essential details
Place of Origin:
China
Brand Name:
YOMIN
Model Number:
YEM073TJ
Display Type:
Analog Only
Phase:
Single Phase
Measuring Energy Range:
5(20),10(40),20(80),30(100)A
Accuracy Class:
class 1
Output Voltage:
127,230V
Operating Temperature:
-20°C ~ + 60°C
Dimensions:
168x124x115mm
installed:
front board mounted
Type:
AC Active Meter
Display:
Register
Rated Current:
10-40A
CLASS:
2
Frequency:
50HZ/60HZ
Certificate:
IEC
Standard:
IEC62053-11
Supply Ability
Supply Ability
20000 Piece/Pieces per Month for KWH Meter
Packaging & delivery
Packaging Details
Export Carton with Inner Foam Box for KWH Meter
Port
SHANGHAI/NINGBO for KWH Meter
Lead time:
Shipped in 5 days after payment

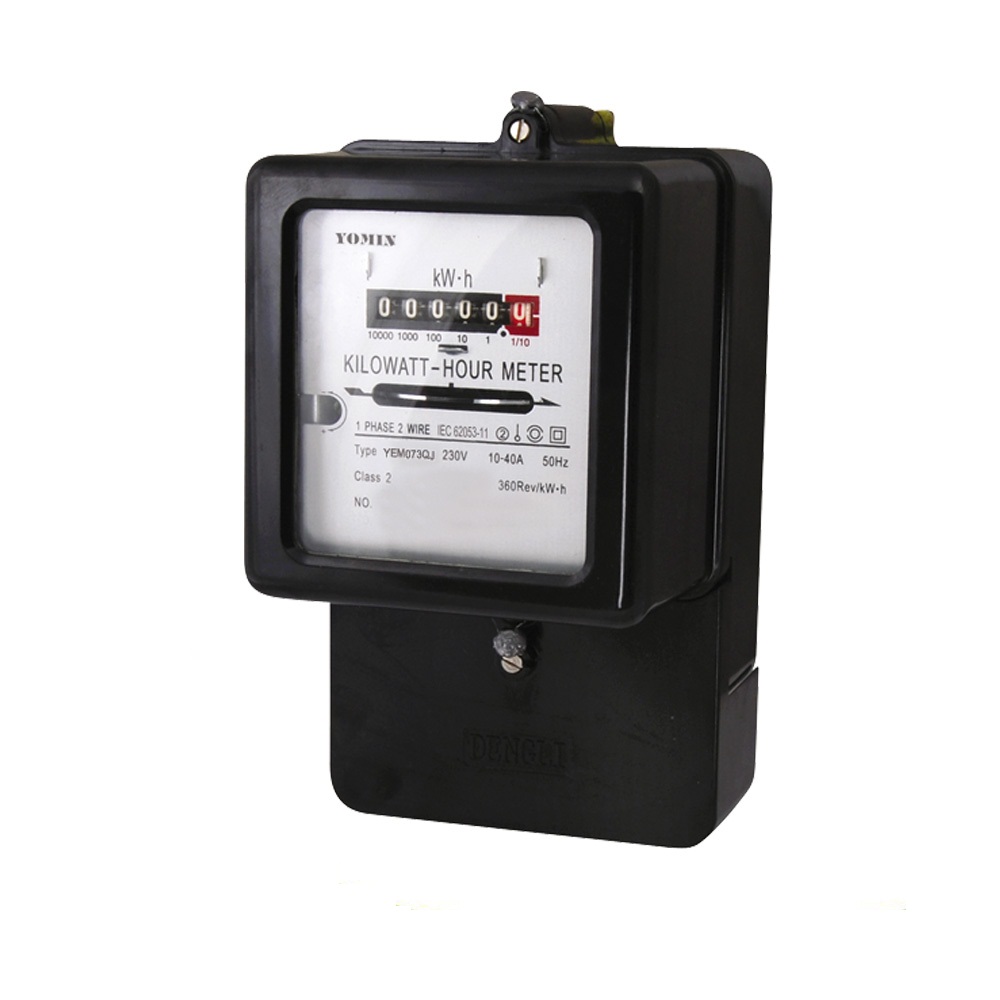

AC Front Board Single Phase KWH Meter Indoor Outdoor Energy Meter DD862 Active Energy Meter
Model YEM073TJ single phase electromechanical front board installed active energy meter is a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD862 single phase electromechanical meter, and fully absorbs new technologies about electromechanical meter from domestic and abroad. The meter completely accords with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is used for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.
Functions
1. Front board three fixed installation, the cover is made ABS engineering plastics molded overall, has a transparent glass window, the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: economy benefits, specious appearance, etc.
2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.
3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.
4 Standard configuration bottom bearing is used of double gem bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. It has following features: long life and minimal friction, etc. May select magnetic thrust bearing (Product Configuration code is TD).
5. All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.
6. Standard configuration 6 digits display by drum wheel mechanical register, may select 5 digits display by drum wheel mechanical register (Product Configuration code is TG).
7. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).
8. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.
9. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is TK).
10. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is UJ)
Technical parameters
Model | Accuracy | Reference Voltage(V) | Current specifications(A) | Starting current(A) | Insulation performance | |
YEM073TJ | Class 2 | 127 230 | 5(20) 10(40) 20(80) 30(100) | 0.025 0.05 0.1 0.15 | AC voltage 2kv for 1 minute, 1.2/50us waveform impulse voltage 6kv | |

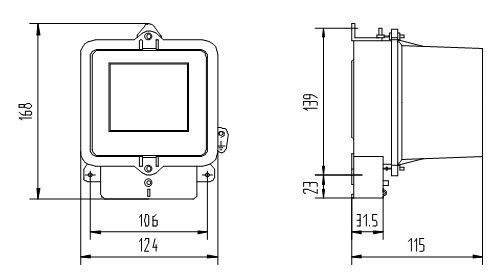

Dimension
Wiring Diagram
| TerminalsNote1Inlet phase line3Outgoing phase line4Inlet neutral line5Outgoing neutral line
| Terminals | Note | ||||
1 | Inlet phase line | |||||
3 | Outgoing phase line | |||||
4 | Inlet neutral line | |||||
5 | Outgoing neutral line | |||||
F
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
1)MOQ: 100 pcs/item based on existing packing.
2)T/T-30% deposit and 70% against copy of BL
3)L/C is also acceptable
4)Ningbo/Shanghai
