Overview
Essential details
Place of Origin:
Shanghai, China
Brand Name:
HOTON
Warranty:
1 Years
Total toe-in:
0~±20°
Camber:
0~±20°
Caster:
0~±20°
Kingpin Inclination:
0~±20°
Maximal wheelbase it can Measure:
4000mm
Tread range:
2000mm
warranty:
one year
Technical support:
all the time
Supply Ability
Supply Ability
500 Set/Sets per Month
Packaging & delivery
Packaging Details
plywood boxes and cartons
Port
Shanghai

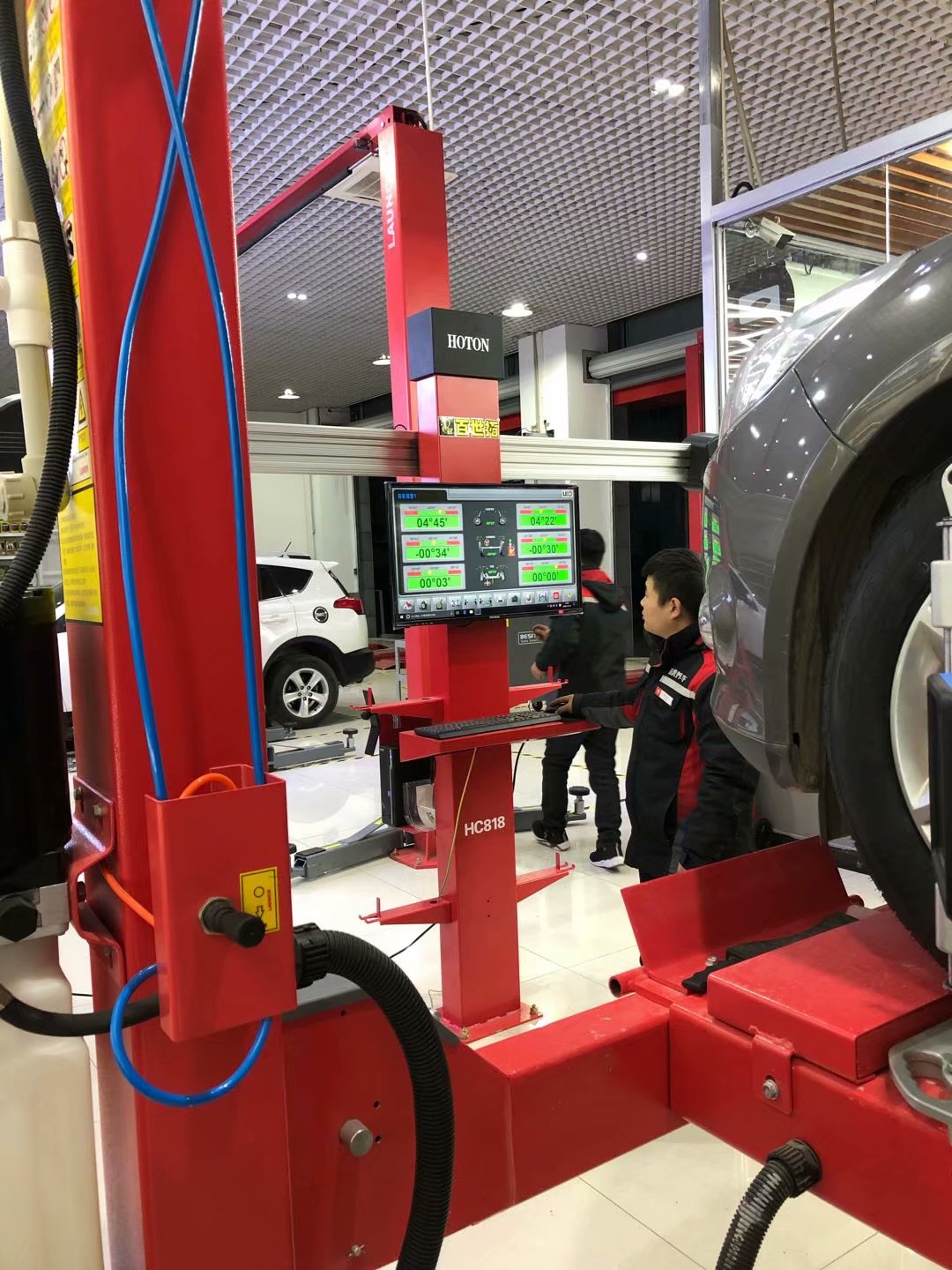

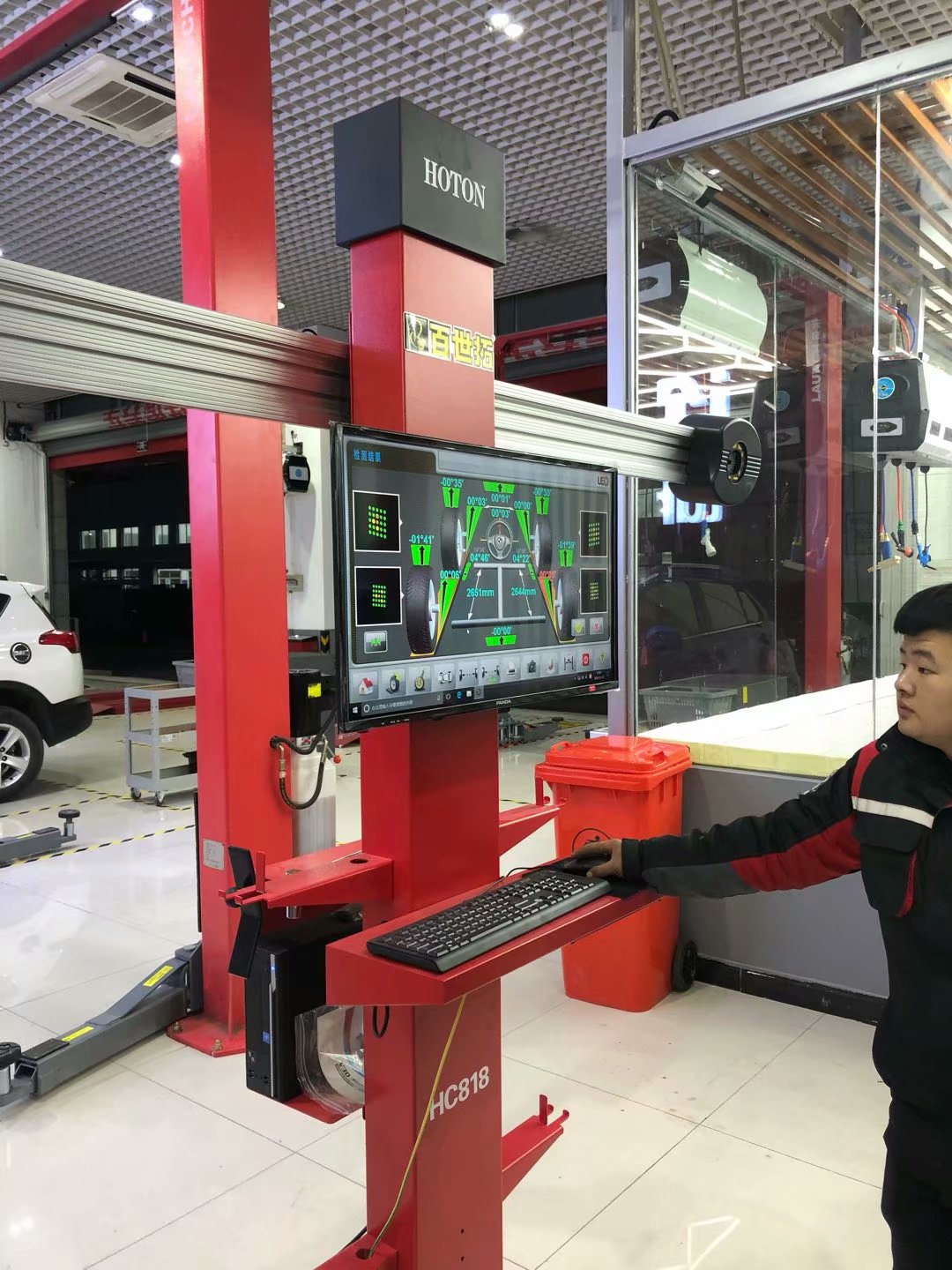

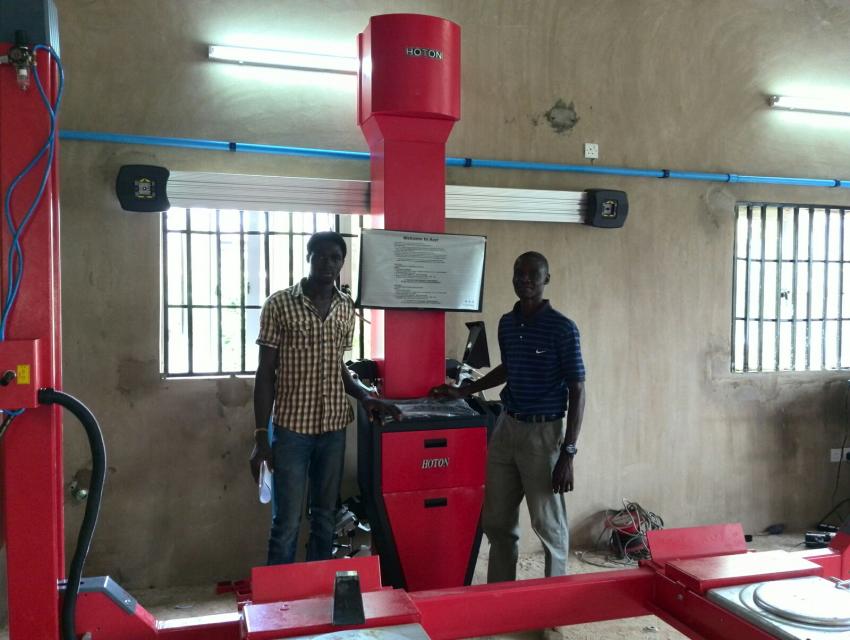

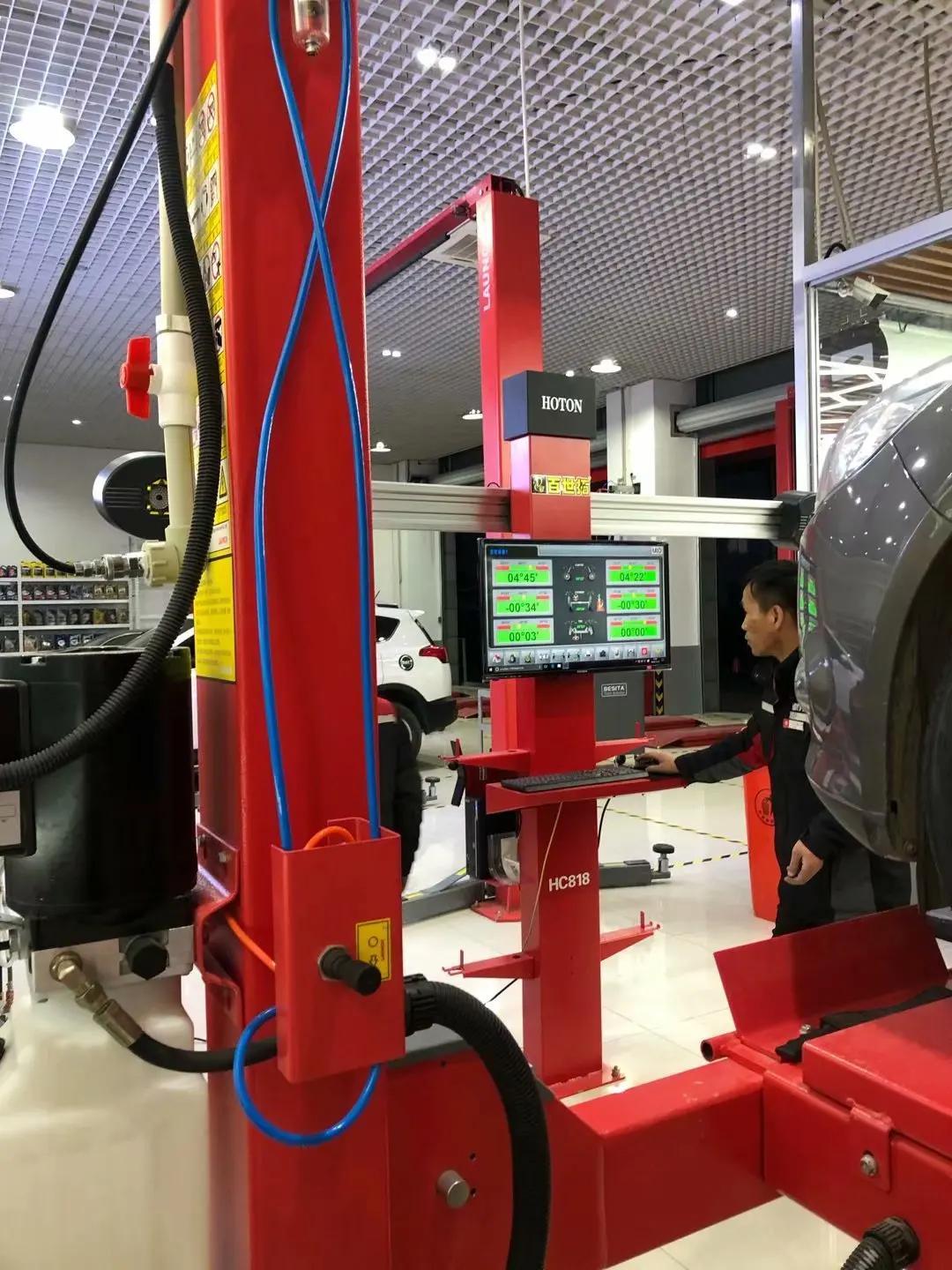

Picture Example:
Lead time:
Quantity(units) 1 - 1 >1 Lead time (days) 7 To be negotiated
Video Description
MORE LEARN:http://www.cnautoequipment.com/cnauto/main2.asp
importANT FEATURES:
Famous-brand computers,
One key to restart the system,
Immediate use after installation,
Calibration? No need.
Automatic function to eliminate the lift unevenness,
Accurate measurement result, no need to push the car,
Mini targets,
Long and wide measurement,
High repeatability.
Measuring parameters:
Display accuracy: Range - , Accuracy 1/0.01°/0.1mm
Camber: Range ± 10°, Accuracy ± 2'
Caster: Range ± 20°, Accuracy ± 5'
K.P.I.: Range ± 20°, Accuracy ± 5'
Toe-in: Range ± 20°, Accuracy ± 2'
Set back: Range ± 5°, Accuracy ± 2'
Thrust angle: Range ± 5°, Accuracy ± 2'
Thread: Range 2,000mm, Accuracy ± 2mm
Wheelbase: Range 4,000mm, Accuracy ± 2mm
Packing Information:
Packing style: plywood boxes and cartons.
2 CBM totally
Technical advantages:
-- 3D digital camera measurement system: two 3D digital cameras, four targets
-- Target Features: There is no electronic components on the target, without data transmission
-- no batteries facilitate the complete elimination of circuit failure. The product is more stable
-- Equipment Calibration: Equipment calibration is done once only when the installation is complete, which is not necessary to regularly repeat.
-- dynamic measurement: dynamic measurement based on pushing. Without raising its body, the vehicle is at a natural state. Simultaneous detection of four wheels would reduce measurement time and improve the accuracy.
Software system: simple operation, to read the basic wheel alignment data within two minutes.
-- Low demand for horizontal level of lift: for the list, the levelness difference of 5cm or less has little impact on the measurement results, different from the traditional technology with over-reliance on gravity optical platform levelness degrees.
-- All-model measurement: it can detect long body, low chassis vehicles.
-- Maintenance: Maintenance is simple; the device doesn’t need periodic calibration.

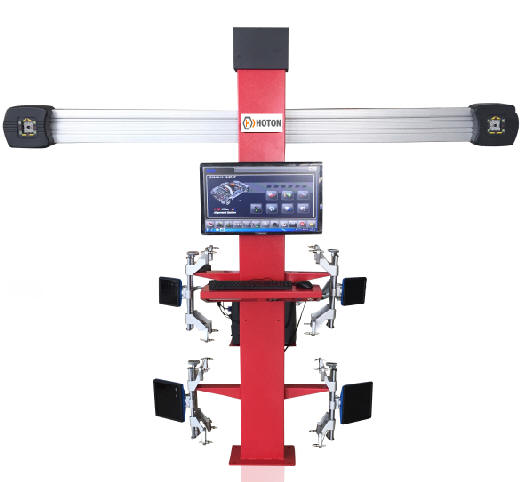

-- Standard components with this machine:
1: Two cameras, beams and high column in line with the movable cabinet, 2: famous-brand computer with keyboard and mouse, 3. 19-inch LCD monitor, 4. A4 printer, 5. big and small targets, and luxury aluminum alloy columns 6. clamps: 12 "-22", 7 brake pedal holder, 8. Steering wheel holder, 9. Wedge-shaped pads, 10. turn-plates (400*400*50, one set)
-------------------------------------------------------------------------------------------------------
