solar panel manufacturers black 400w 440w 460w mono solar panels off grid on grid hybrid system



Price: 0.17Dollar/watts
Min quantity: 1000 watts
Quantity: 5000000 watts
Deliver: In days
Area: China
Expiry: Long-term
Edit time: 2022-09-28 10:32
Hits: 4578

Company integrity file
more>New Products
Solar Panel 9BB 12BB Half Cut Solar Panels Jinko 535W PV Module wholesale Trina Tier 1 480Watt 490watt 500watt Monocrystalline Price Solar Pv Panel for home factory solar panel manufacturers black 400w 440w 460w mono solar panels off grid on grid hybrid system China Sunway Solar Roof Panels 530W 540W 550W Monocrystalline Solar Panels Prices Shingled solar panel 445w 385w 390w 400w 410w mono solar photovoltaic module shingled solar Off grid 1kw 3kw 5kw 8kw complete full set 5 megawatt solar generator set on grid solar cell power s
Detail

Overview

Essential details

Supply Ability

Packaging & delivery

00:00

00:37

view more >>Recommended by seller

Trina Half Cell PV Solar Power Panel 600W 550W 560W 570W 580W 480W 450W 460W 470W 144Cells Mono PERC Photovoltaic Module 700W

$0.19 - $0.27 / watt

10000 watts

450w 480w 500w 550w sun power mono half cell solar panel 1000w price 600 watt pv module

$0.19 - $0.27 / watt

10000.0 watts

Prepaid Solar Home Power System 10Kw and 380V AC Grid Tied Portable Solar Energy Systems

$0.35 - $0.55 / watt

100 watts

Off Grid Solar System Inverter Solar Power System 5kw 10kw 20kw home Solar Energy Power System

$0.35 - $0.75 / watt

100 watts

5kw Load Power On Grid Solar Energy 5000w home solar panel solar power system wholesale price

$450.00 - $950.00 / kilowatt

1.0 kilowatt

Sunway 156 cells Half Cell Half Cut 600w Mono Solar Cell Panel Price PV Perc Plate Module Solar Panel for Solar Energy System

$0.20 - $0.23 / watt

1000000.0 watts

Electrical Parameters

Module

SW440M-144 ~ SW460M-144

Encapsulation

Class/Eva/Cell/Eva/Backsheet

Maximum Power Pmax (W)

440

445

450

455

460

Maximum Power Voltage (Vmp/V)

40.5

40.8

41

41.3

41.6

Maximum Power Current (Imp/A)

10.86

10.92

10.98

11.04

11.1

Open Circuit Voltage (Voc/V)

49

49.2

49.5

49.8

50.1

Short Circuit Current (Isc/A)

11.3

11.36

11.42

11.48

11.54

Cell Efficiency(%)

22.18

22.43

22.68

22.93

23.19

Module Efficiency (%)

20.24

20.47

20.7

20.93

21.16

Power Tolerance (W)

0 ~ +5W

Temperature Coefficient of Isc (αIsc)

0.06%/℃

Temperature Coefficient of Voc (βVoc)

0.30%/℃

Temperature Coefficient of Pmax (γPmp)

0.38%/℃

STC

Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5

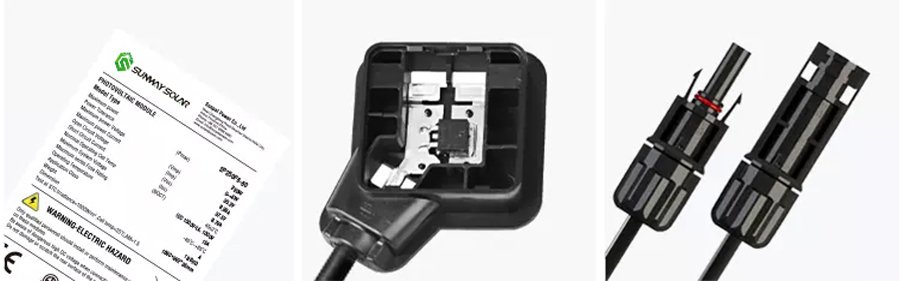

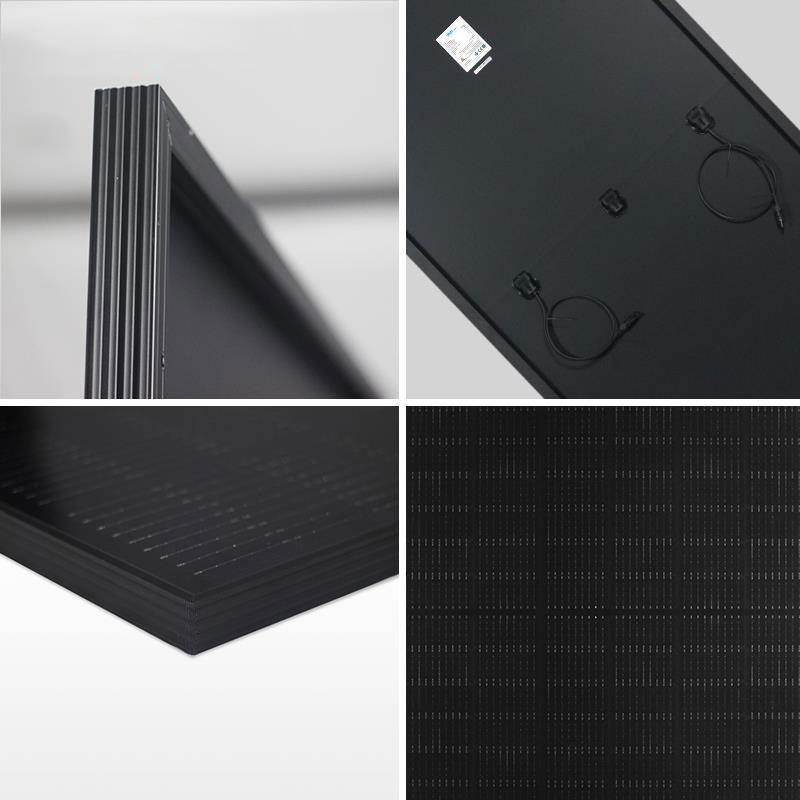

Product Details

Waterproof Labels Product by Waterproof Labels

Sunway/OEM

Juction Boxes by TL, QC Solar Innovative Full-Glue-Filled IP68 Waterproofness

PV Connector by TL, QC Solar

MC4 4mm Qualified cable

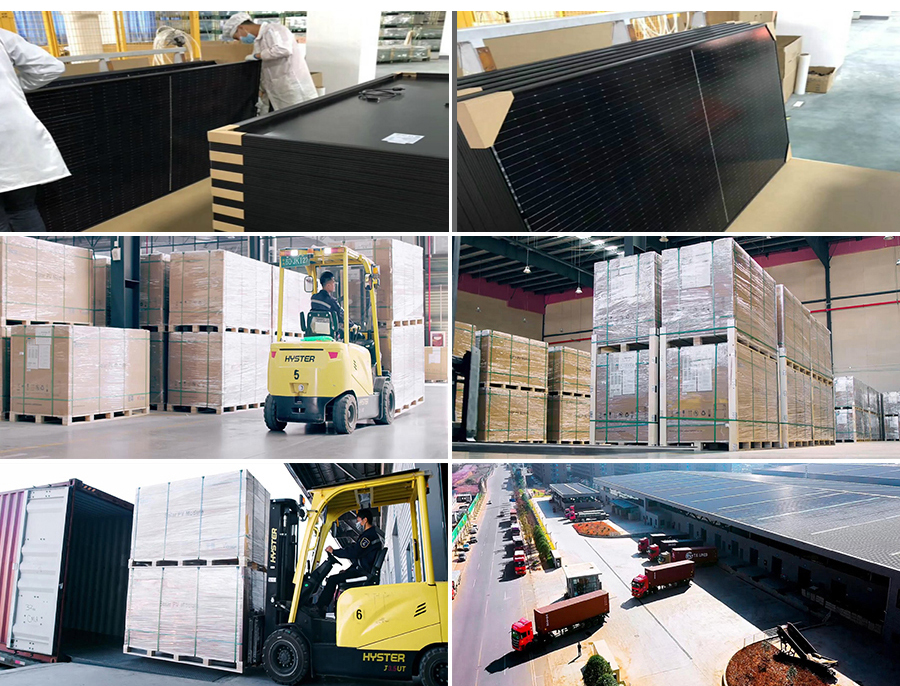

Product Packaging

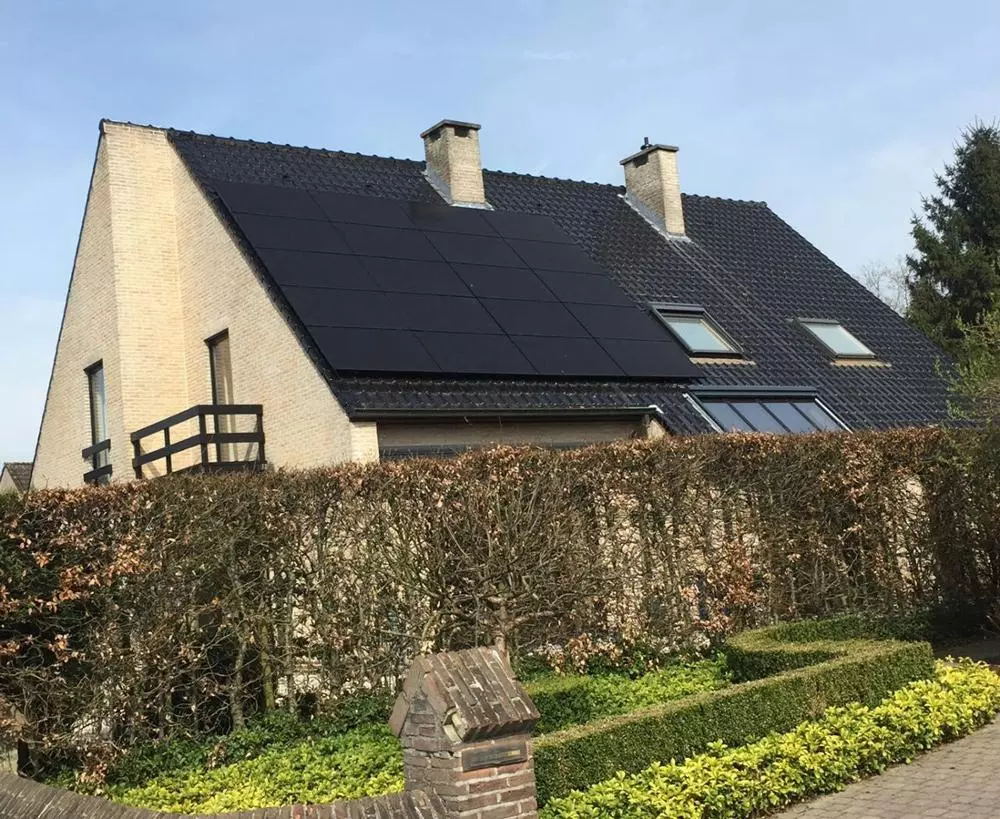

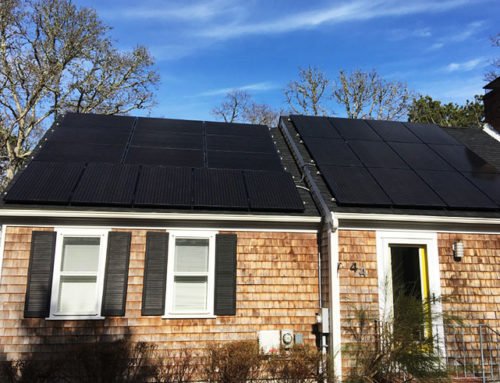

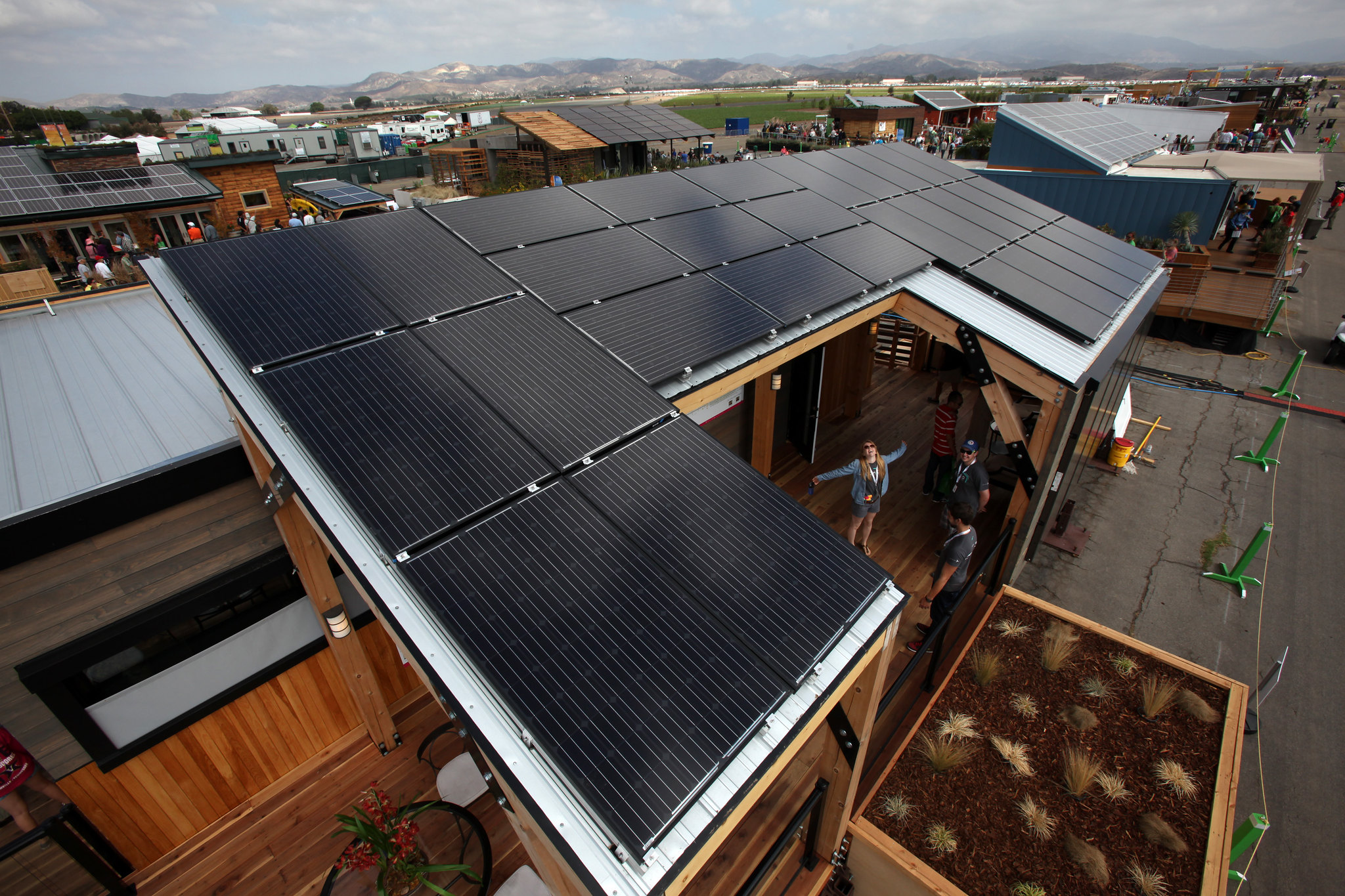

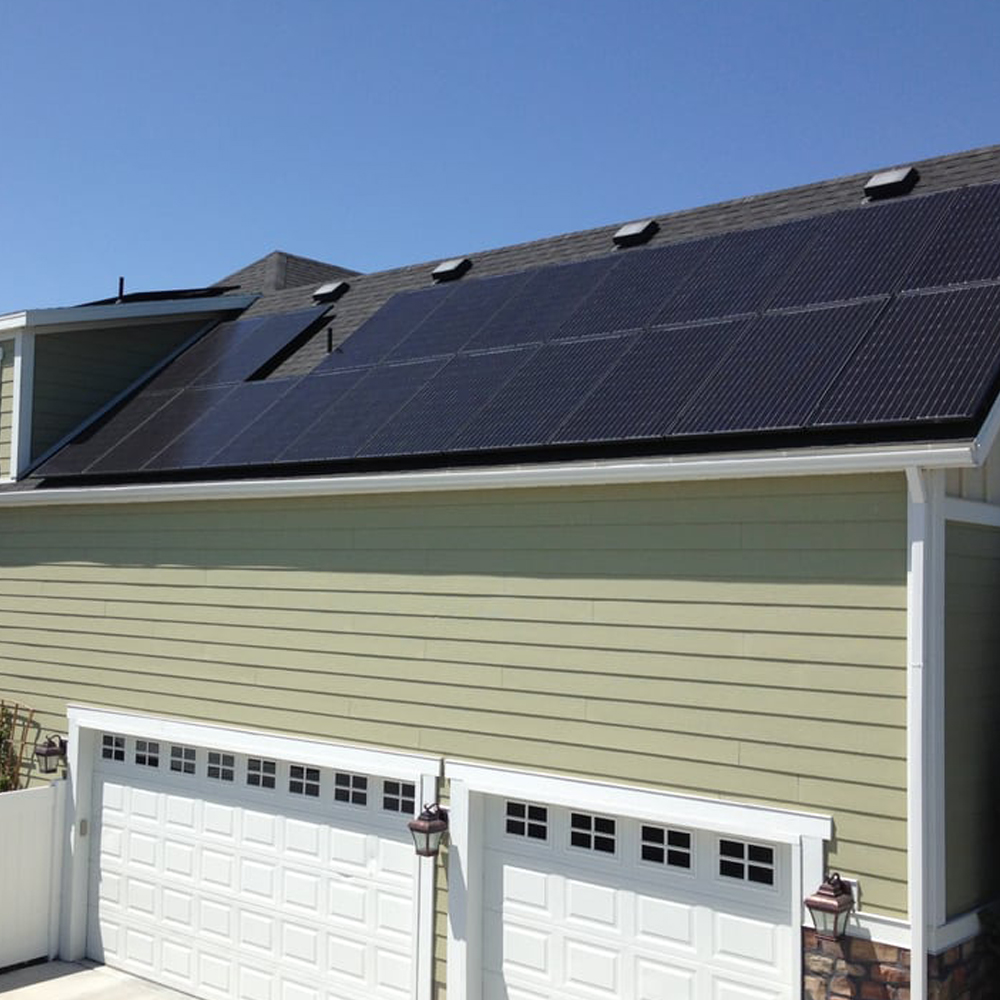

Project Case
