Overview

Essential details

• Place of Origin:

• Anhui, China

• Brand Name:

• SUNWAY

• Model Number:

• SW410M

• Cell size:

• 166mmx83mm

• Type:

• PERC, Bifacial, Double-glass, All Black, Flexible, Overlapping, Shingled

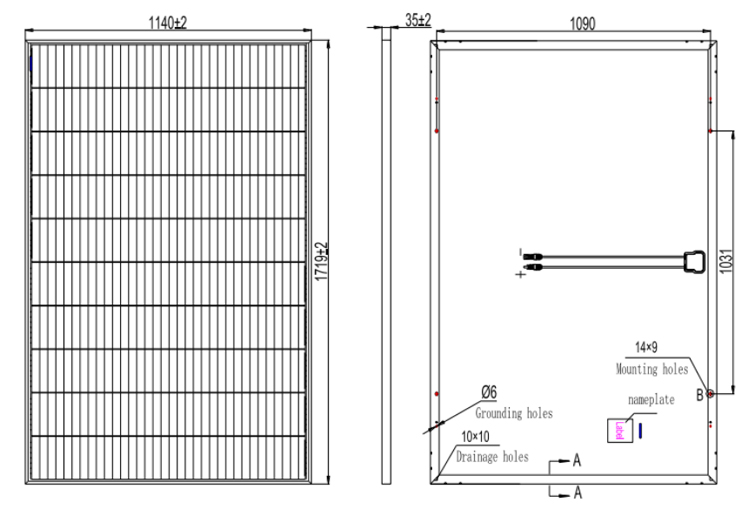

• Panel Dimensions:

• 1719*1140*35mm

• Panel Efficiency:

• 20.9%

• Certificate:

• CE/TUV

• Warranty:

• 30 years

• Product name:

• 385w 390w 400w 410w mono solar module panels shingled solar

• Power:

• 385w-410w

• Glass:

• Ture Clear Low Iron Glass

• Output Cables:

• 4mm, Length 300mm

• frame:

• Anodized Aluminium Alloy

• Color:

• Balck

• Junction Box:

• IP68,3 diodes

• Connector type:

• M C4 compatible

• Application:

• Solar Power System

• Power Tolerance:

• 0~+5w Tolerance

Supply Ability

• Supply Ability

• 100000000 Watt/Watts per Week

Packaging & delivery

• Packaging Details

Standard wooden pallet for exporting

• Port

shanghai or any china port

• Lead time:

• Quantity(watts)	1 - 10000	10001 - 100000	100001 - 1000000	>1000000
  Est. time (days)	7	15	20	To be negotiated

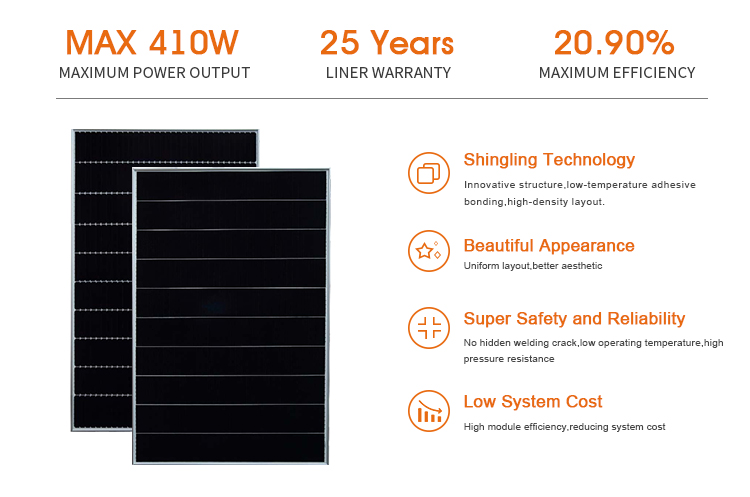

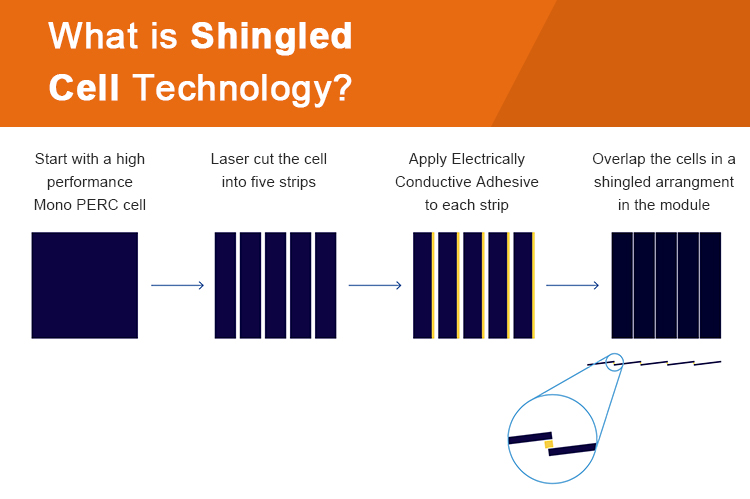

What are shingled solar modules?

The shingle module increases the effective power generation area by more than 2% compared with conventional modules, and the number of cells that can be packaged is increased to 66 pieces compared to the 60-piece version.

Replacing the soldering strip with conductive adhesive avoids the shielding area of the soldering strip to reach 4%.

Such shingle technology has also become one of the current  mainstream packaging technologies for high-efficiency modules.

Specifications

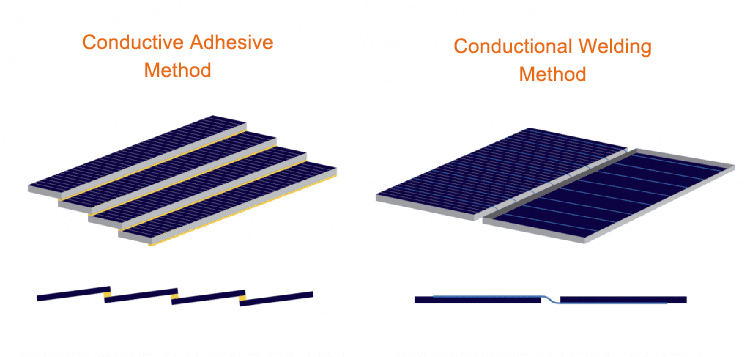

Shingled Module Technology

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.

Products Description

PERC mono solar cells

1.Shingled components of the same area can be packed into more cells

2.Reduce power loss and hot spots caused by shading

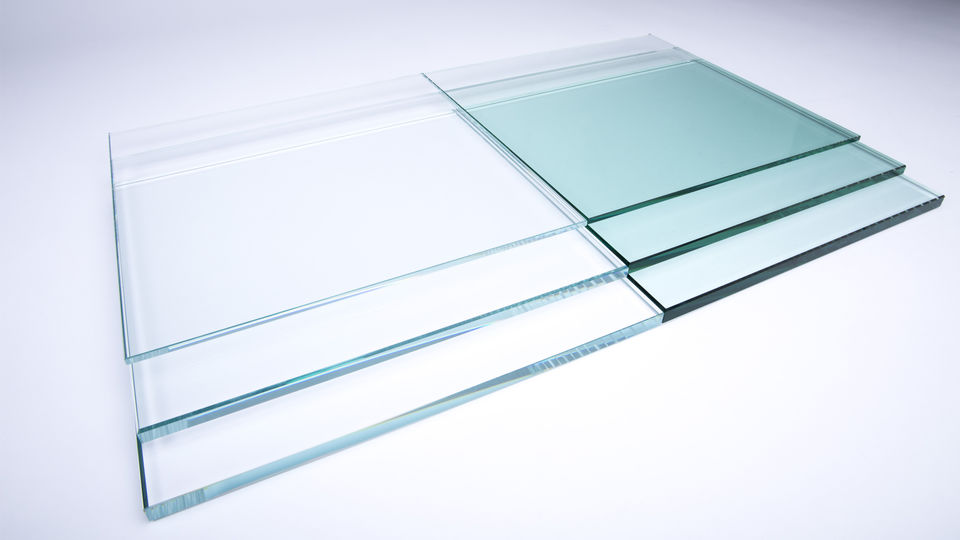

Glass

1.Ture clear low iron glass

2.Translucency of normal luminance is increased 2%
3.Module efficiency is increased 2%

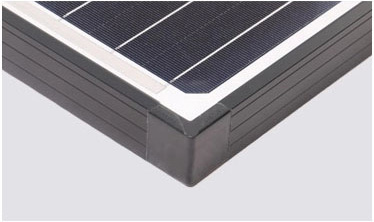

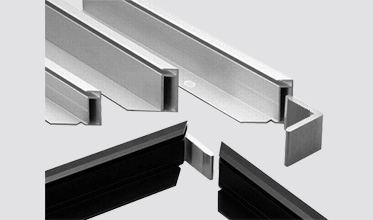

frame

1.Silvery and black
2. Thickness 30/35/40/45/50mm

Humanized design

1.Prevent the aluminum frame from scratching the hand
2.Using the rain to clean dirt remaining on the solar module

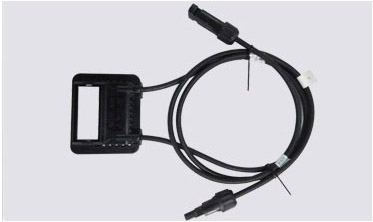

Junction box

1.Quality diode ensures module running safety
2. IP68 protection level
3. Long service life

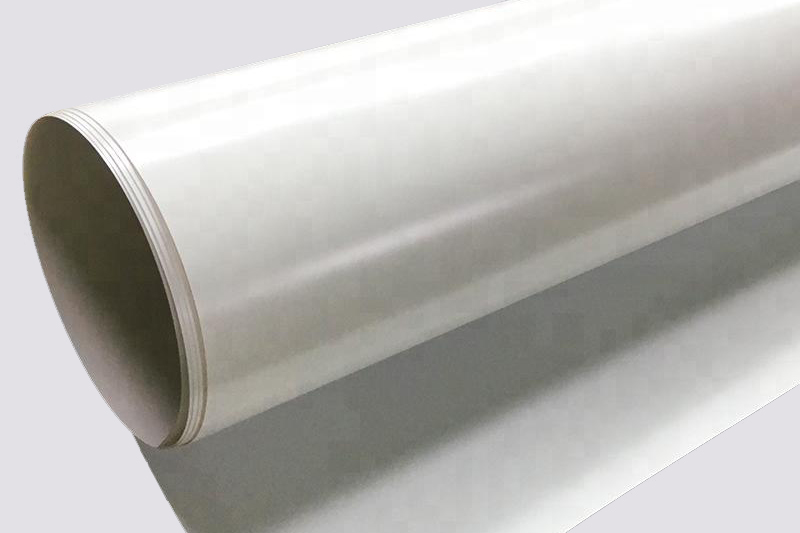

Back sheet

1.Low moisture permeability against snail trail defect
2.Excellent electric insulation for high system voltage up to 1500v
3.Outstanding weatherproof performance

Company Profile

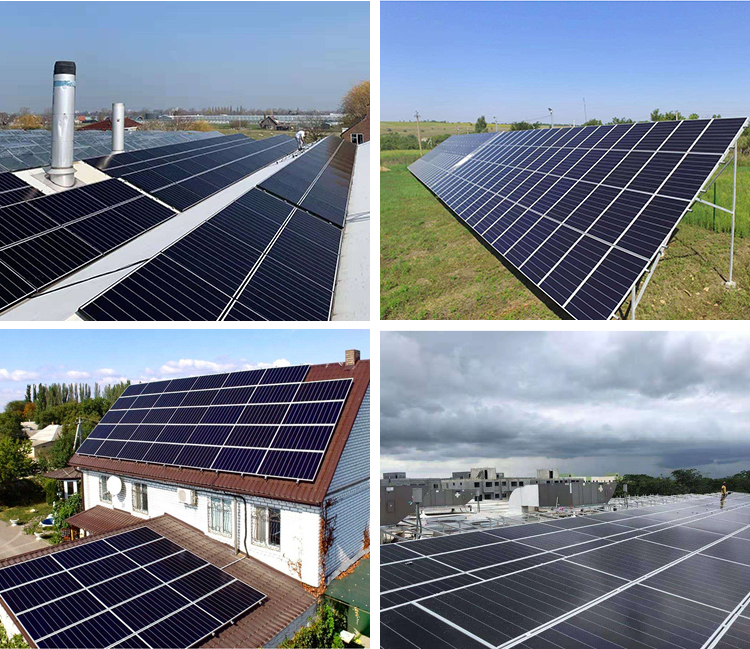

Application

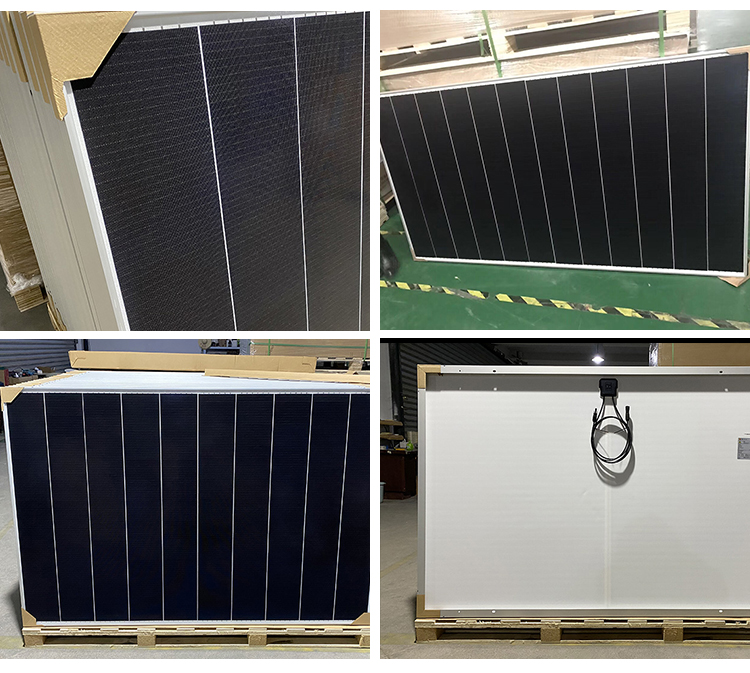

Product Packaging
