Overview
Essential details
Place of Origin:
China
Condition:
New
Weight (KG):
80
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
2 years
Core Components:
PLC
Warranty:
2 years
Applicable Industries:
Other
Showroom Location:
None
Name:
Industrial Robot Arm
Type:
Six-axis Vertical Multi-joint
Function:
Picking Lifting Handing Placing Positiong
Axis:
6 Axis Robot
Technics:
System Assembly
Payload:
6KG 10KG 20KG 50KG
After-sales Service Provided:
Engineers available to service machinery overseas
After Warranty Service:
online support
Advantage:
Save Human Resource
Packaging & delivery
Packaging Details
1.Standard wooden cases with sponge filled inside for packing protection
2. Customized Packing as per Customer's requirement.
Lead time:
Quantity(sets) 1 - 1 >1 Lead time (days) 15 To be negotiated
Video Description
Professional 6 axis welding robot arm length 1400mm TIG MIG robotic welding system on sale laser welding machine with robot arm
Product Description
Product Introduction:
MR Series welding robots with compact, small size and light weight and good welding precision and reliability, are dedicated arc welding robots which has the welding to achieve a stable , highly accurate welding path , shorten cycle welding , pipe fittings and cables extend life. Meanwhile MR Series welding robots can do the welding for a flexible work in a small space, you can easily select the ground installation, mounting, flip, etc.
Features:
1. Small size
2. Light weight
3. High running speed
4. High position repeat accuracy
5. Good welding reliability
Principal Data
Model | MR1400 | |
Payload | 6 KGS | |
Max Working Radius | 1405 mm | |
Arm Length | 2391 mm | |
Number of Axis | 6 | |
Max speed | Axis1 | 150 °/S |
Axis2 | 150 °/S | |
Axis3 | 160 °/S | |
Axis4 | 360 °/S | |
Axis5 | 320 °/S | |
Axis6 | 360 °/S | |
Max Operation Area | Axis1 | ±165° |
Axis2 | +155° ~ -90° | |
Axis3 | +70° ~ -200° | |
Axis4 | ±170° | |
Axis5 | ±120° | |
Axis6 | ±360° | |
Max moment Allowable Torque | Axis5 | 54 NM |
Axis6 | 23 NM | |
Weight | 140kg | |
Position Repeatability | 0.05mm | |
Working temperature | 0-45 ℃ | |
MR1400 Robotic Arm Standard Configuration List | |||
Control System | SMR1000 Controller + STEP Series Servo Driver | ||
Item No. | MR1400 | ||
Servo Motor Brand | TAMAGAWA MOTOR | ||
Length of power line | 5M | ||
Length of encoder lines | 5M | ||
Length of power supply line | 5M | ||
The teaching machine brand | Keba/SRTP1000 | ||
Length of teaching machine line | 5M | ||
Communication | Category | Name | Specifications |
Bus | EtherCAT bus | 1 piece | |
CANopen | 1 piece | ||
RS232/RS485 | 1 piece | ||
IO | digital input DI (Weidmuller) | 1 piece(16 road) | |
digital output DO (Weidmuller) | 1 piece(16 road) | ||
Others | Ethernet Standard Ethernet interface | 1 piece | |
Accessories | CD(Software, Project, electronic user manual) | ||
Remark | |||

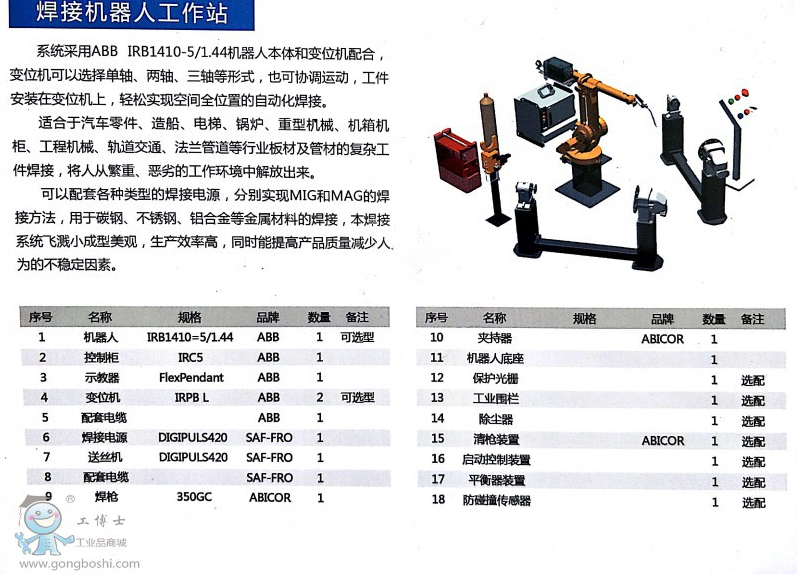

Application----Arc welding
l Stabilize and improve welding quality and ensure its homogeneity
l Improve productivity, a day to 24 hours of continuous production
l Improving labor conditions, long-term work in hazardous environments
l Reduce operational technology requirements for workers
l Shorten product modifications and updating cycle, reduce the corresponding investment in equipment
l Can achieve mass production welding automation
l Save floor space
