Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
YEM074OJ
Display Type:
Analog Only
Phase:
Single Phase
Measuring Energy Range:
0-999999.9kWh
Accuracy Class:
2.0
Output Voltage:
127V,230V
Operating Temperature:
-20°C~+60°C
Dimensions:
161x114x106mm
Display Mode:
Counter 5/6
Connection Mode:
Direct Mode
Frequency:
50HZ/60HZ
Starting Current:
0.1A, 0.15A, 0.2A,0.05A
Installation type:
Front Board
Rated Current:
10(20)A,20(40),30(60)A,40(80)
Standard:
EC62053-11
Material of meter case:
ABS,Glass,Steel,Bakelite
Style:
Customized design
Communication Mode:
Far Infrared, RS485 (DL/T645-1997; Modbus-RTU)
Supply Ability
Supply Ability
20000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
PE bag+White box+Master Carton
Port
Ningbo or Shanghai
Lead time:
5 days after payment
Chinese Electricity Eeter Working/Watt Hour Meter / Mechanical Energy Meter
| Accuracy | Frequency | Size | Material |
| 2.0 | 50/60Hz | 161×114×106mm | ABS,Glass,Steel,Bakelite |
Current Specification(A) | Starting Accurent(A) | Display Mode | Insulation Performance |
| 10(20),20(40),40(60),60(80) | 0.1A,0.15A,0.2A,0.05A | Counter 5/6 | AC voltage 4kv for 1 minute, 1.2/50us waveform impulse voltage 6kv |

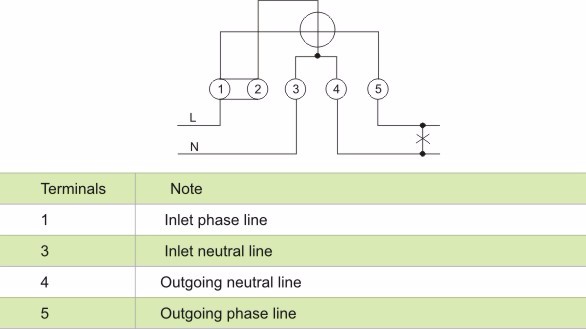

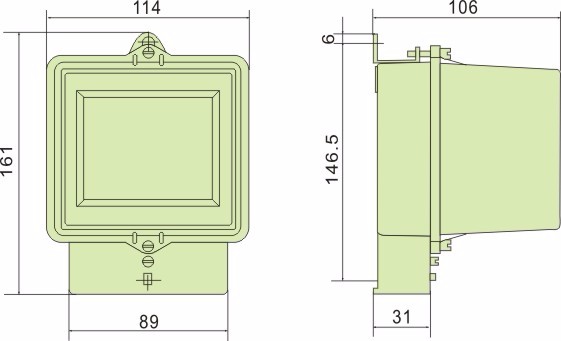

Dimension and Wiring
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 2-3 days, but the
exact lead time should be discussed with our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
1)MOQ: 100 pcs/item based on existing packing.
2)T/T-30% deposit and 70% against copy of BL
3)L/C is also acceptable
4)Ningbo/Shanghai
