Overview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• Yomin Energy meter

• Model Number:

• YEM071VB

• Display Type:

• Analog Only

• Phase:

• Single Phase

• Measuring Energy Range:

• 5(30)A,10(60)A,20(100)A

• Accuracy Class:

• 2.0

• Output Voltage:

• 127V,230V

• Operating Temperature:

• -20°C~+60°C

• Dimensions:

• 132x127x116.5mm

Supply Ability

• Supply Ability

• 20000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

Export Carton

• Port

Ningbo or Shanghai

• Lead time:

• Shipped in 5 days after payment

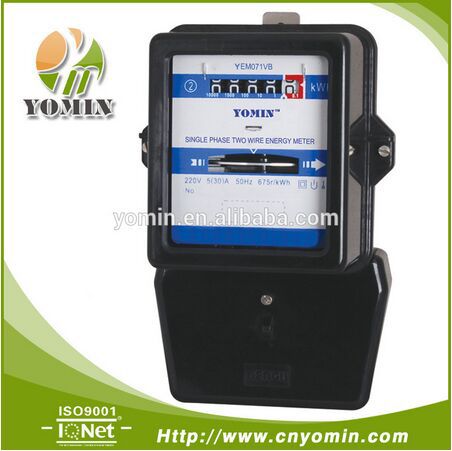

ISO 9001 Factory YEM071VB Single phase electronic front board installed active counter energy meter

Model:YEM071VB

Product Description

Model YEM071VB single phase electromechanical front board installed active

energy meter is a kind of new style single phase two wire active energy meter, it

is designed on the basis of original single phase electromechanical meter, and

fully absorba new technologies about electromechanical meter from domestic

and abroad, and development long-life technology. The meter completely

accords with relevant technical requirements of class 2 single phase active

energy meter stipulated in international standard IEC 62053-11. It can accurately

and directly measure 50Hz or 60Hz active energy consumption from single phase

AC electricity net, it is used for setting indoor or out door meter box, and it can

display total energy consumption by drum wheel mechanical register. It has

following features: high overload, power loss, long-life, specious appearance, etc.

Features

1. Front board three fixed installation, the bottom of the meter and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. The cover is also made of bakelite material and has a transparent glass window.It has following features: good weatherability, high rigid, specious appearance, etc.

2. The meter frame adopt top-quality steel plate once molding with excellent mechanical strength, stable structure and anti-impact.

3. Voltage components is used of all closed vacuum pouring coil by epoxy resin. Current components is used of double insulation structure, has good electrical characteristics.

4. The meter adopt magnetic thrust bottom bearing, oriented bearing is made of lubrication graphite bush and stainless steel needle. It has following features: small abrasion, long life and minimal friction, etc.

5. All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.

6. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is VE).

7. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.

8. Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is VA).

9. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is RB).

Technical parameters

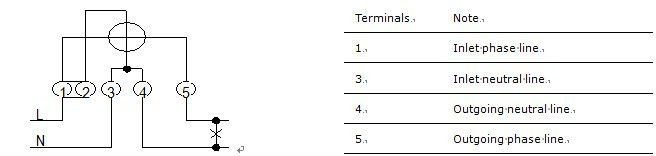

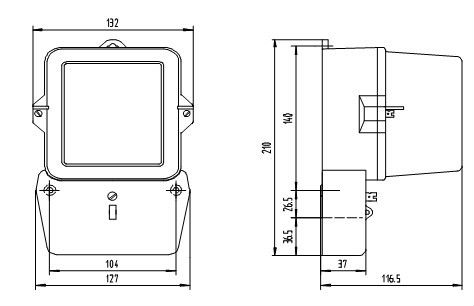

Dimension and wiring
