Overview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• YOMIN

• Model Number:

• YEM091PC

• Display Type:

• Digital Only

• Phase:

• Single Phase

• Measuring Energy Range:

• 5(30),10(60),20(100)A

• Accuracy Class:

• class 1

• Output Voltage:

• 127,230V

• Operating Temperature:

• -20°C ~ + 60°C

• Dimensions:

• 168x110x68 mm

• installed:

• front board mounted

Supply Ability

• Supply Ability

• 20000 Piece/Pieces per Month for Energy Meter

Packaging & delivery

• Packaging Details

Export Carton with Inner Foam Box for Prepaid Energy Meter

• Port

SHANGHAI/NINGBO for Prepaid Energy Meter

• Lead time:

• Shipped in 2-5 days after payment

Front Board Installed Single Phase Smart Card Prepaid Energy Meter

with LED Display

Model YEM091PC single phase electronic prepayment front board installed active energy meter is a kind of single phase two wire active energy meter which purchases electricity by IC card, electric energy measuring, load control and using electricity management. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is used for setting indoor or out door meter box. This meter has LED display shows power. It has following features: good reliability, light weight, specious nice appearance, convenient installation, etc.

Functions

1. Standard configuration one meter one card, can repeat input money from PC machinery which with IC programmer, may select one-time recharge card. (Please specified when ordering).

2. It has IC card with code and data against false, standard configuration use storage IC card, may select non-contact RF card. (Product Configuration code is PK)

3. Standard configuration payment by kWh, may select payment by money. (Please specified when ordering).

4. Standard configuration of the prepayment management system use of single version, may select network version. (Please specified when ordering).

5. It has load control and function of automatic fault detection and instructions, standard configuration without function of open terminals cover and detection, may select open terminals cover and cut power.(Please specified when ordering).

6. 6 LED digits display, 5+1 digits display (99999.1kWh), may select 7 LED digits display. (Product Configuration code is QC).

7. A port of pulse output passive closed(polarity), complying with standard IEC 62053-31 and standard DIN 43864.

8. Two LED instructions signal of energy impulse (red) and direction of the flow of load current (yellow).

9. Automatic detection the direction of the flow of load current. When the yellow LED display, that is meaning the direction of the flow of load current reverse.

10. Single direction single component measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

11. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is PD).

12. Front board three fixed installation, standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is PA)

Technical parameters

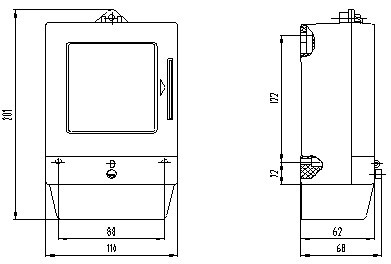

Dimension

Wiring Diagram

	Terminals	Note
	1	Inlet phase line
	3	Outgoing phase line
	4	Inlet neutral line
	5	Outgoing neutral line
	2 and 5	Port of pulse output passive closed

FR

Front Board Installed Single Phase Prepaid Energy Meter Prepayment Energy Meter KWH Meter Electric Meter with LED Displa

1 Where is your factory?

Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.

2 Are you manufacturer or business?

We are manufacturer established in 2002, and have over 16 years production experience.

3. Can I ask for samples?

Yes

4. What's the warranty of your products?

18 months

5. What's the lead time?

Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed  with our sales.

6. How about the MOQ, Payment term, Delivery port, and shipping date?

1)MOQ: 100 pcs/item based on existing packing.

2)T/T-30% deposit and 70% against copy of BL

3)L/C is also acceptable

4)Ningbo/Shanghai
