Min quantity:15sets
Quantity:500sets
Overview
Essential details
Place of Origin:
Guangdong, China
Brand Name:
Sunchees
Model Number:
WTS2KW
Warranty:
3years
Certification:
ce
Customized:
NO
Output Voltage:
220v
Rated Power:
5kw
rotor diameter:
2m
Type:
Wind Power Generator
Name:
2000w alternative wind generator
wind turbine rated power:
2000w
Generator type:
Three Phase Permanent Magnet
Rated wind speed:
12m/s
Starting wind speed:
3m/s
Cut in wind speed:
3.5m/s
Security wind speed:
45m/s
wind turbine life span:
20 years
Solar wind hybrid inverter:
Pure sine wave off grid inverter
Supply Ability
Supply Ability
3000 Set/Sets per Month alternative wind generator
Packaging & delivery
Packaging Details
Export standard package suitable for tough handling and sea transport.
China wind turbine manufacturer 2000w alternative wind generators
Port
Guangzhou/ Foshan
Lead time:
Quantity(sets) 1 - 2 >2 Lead time (days) 7 To be negotiated
China wind turbine manufacturer 2000w alternative wind generators
What is the wind generator?
Wind turbine generator can be installed in the off-grid wind power supply system. It can supply the power very conveniently and independently. This system can supply you the totally self-reliant power solution, it is free from the limit of the electricity grid in your local.
The whole system includes a wind turbine, a tower, a controller, some batteries and a inverter. Of course you can add some solar panels to be a hybrid wind and solar power system, fully catch the wind and solar to be your power.
Wind on grid system: wind turbine +wind on grid controller +grid tie inverter
Wind off grid system: wind turbine +wind controller+ battery +pure sine wave inverter
System Application:
1. Living house and home building;
2. Office building, factory and warehouse
3. Shopping mall, venue, stadium and so on
4. Power station, field operation and some huge engineer construction
System specification
SUNCHEES Off grid wind generator-WTS2000 | |
System Basic Information | Wind generator power:2000W,Annual average energy: 5000kWh Supply power for air-condition, refrigerator, water pump, washer |
Wind generator
Quantity 1pc
| ModelWT2000Rated power2000WStarting wind speed3m/sCut-in wind speed3.5m/sRated wind speed 12m/sSecurity wind speed45m/sRated DC voltage48VRated speed374 r/mRotor diameter3200mmProtectionElectromagnetic torque control and electricity brakeType3 phase permanent magnetism synchronization generatorBlade materialExtra-strong fiber glassPacking materialPlywood box and foam materialPacking Size850*480*350mmN.W&G.W(kg)117/132kg
|
Wind controller
Quantity 1pc | WC2kw/48v wind charger controller Rated Battery Voltage: 48V Wind Turbine Maximum Input: 80A Unload Voltage (factory default): 56V Unload Current (factory default): 50A |
Gel Battery
Quantity 1pc | Capacity:12V/200AH full sealed Solar power Gel battery, Service life:6-8 years , Size: 522*240*219mm weight:59KG |
Off-Grid inverter
Quantity 1pc | Pure sine wave wind inverter, Model: SI2KW DC Input voltage: 48V AC Output 110/120/220/230/240V; with grid charger build-in Protection against overload, short circuit, anti-reverse, discharger, etc. |
Guy cable tower
Quantity 1pc | 6m tower; It help fasten wind generator in safe altitude. Use steel material with rust prevention. Easy to install |
Cable
Quantity 1 set | 1)4pcs 16mm2*35CM battery cable connect 2pcs 16mm2*1M battery cable connect 2)10mm2 cable 100M 3) Battery terminals |
Sunchees Wind generator advantages:
1.Low start-up wind speed
Low wind speed serie small wind turbine for home generate more than 60% effective power than the same rotor diameter wind generator annually.
2.High-efficient Generator
Three-phase permanent magnet synchronous wind generator,more than 10% of the efficiency of ultra-GB,starting resistance,only be 1/3 of the GB limit,motor insulation rating class H insulation.
3.Innovative Noise Reduction Technology
Start and product electricity at the 2.5m/s,noise only at 45db at 13m/s/.
4.Perfect Wind Wheel System
The wind turbine wheel are made of a low temperature resistance,aging high strength compound material,can cope with a variety of complex wind conditions,charge wind energy into electrical energy efficiently and sustainably.
5.Unique Design Of The Rudder
Wind Generator rudders are ale to respond to the wind speed and wind direction flexibly,enhancing the efficiency of power generation.
Complete set wind generator each parts
Wind turbine
Pure sine wave inverter
Wind controller and dump load
\
Battery
Wind turbine tower
Cable

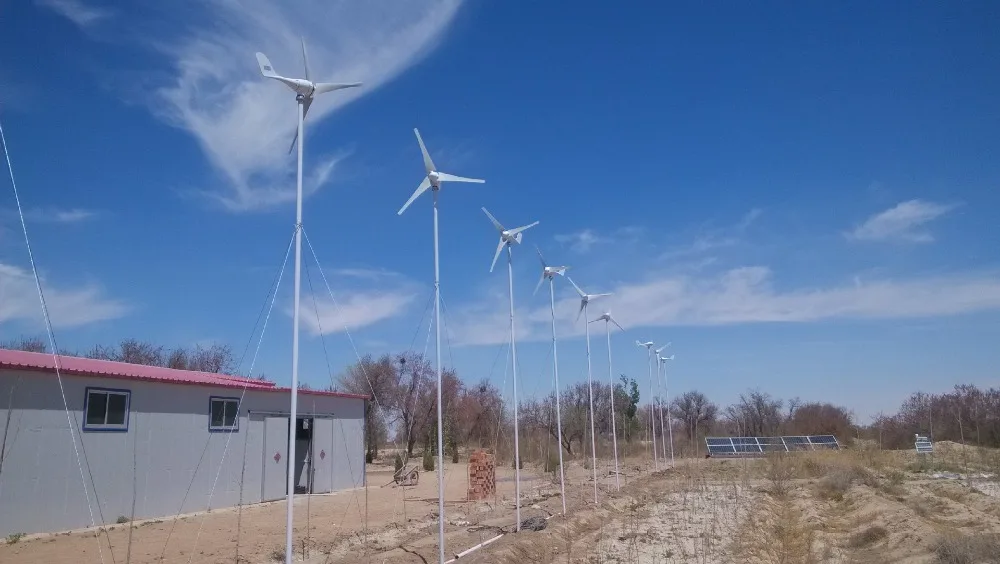

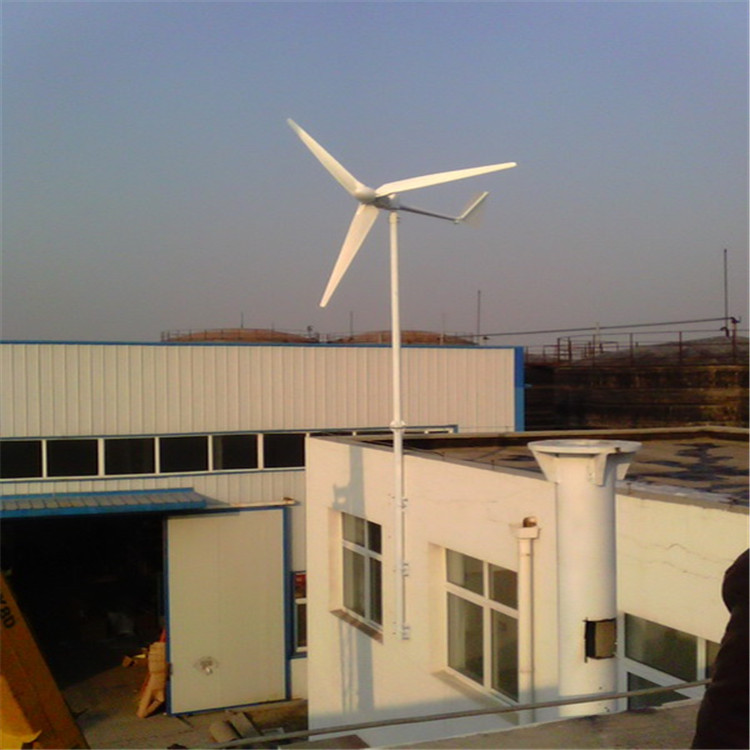

System Applications
Packaging & Shipping
Shipping
Material in stock can be produced (procedure 5-20days) right away after pre-payment /confirm/iation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.
Company Information
FAQ
1. Q: Does installation Easy
A:Very easy, every customer can do it by themselves, we will supply all the components for installation and very details installation manual.
2. Q: Does our wind is enough for a wind generator ?
A: As our wind generator can start running at low wind speed2.5m/s. so your average annual wind speed is more than 5m/s then you can use it .
3. Q: Which model wind generator is suitable for me?
A: Please contact our sales with following points :
a. What appliance do you want to running by the system? How many watts are they and their working time .
b. Your annual wind speed .
4. Q: Can I only buy parts not whole system?
A: Yes,for example you can manufacture tower in local , we can supply you tower drawing.
Our Services
We can provide prompt response and customized solution.
Customized solutions are more accurate and economical. For accurate solution at the first time, please tell us the location side(city name) to check sunshine condition and daily power consumption. More information and quotation, pls feel free to contact me directly!
