Price:$3200.00/sets
Min quantity:10sets
Quantity:500sets

Overview

Essential details

Place of Origin:
Guangdong, China

Brand Name:
Sunchees

Model Number:
WTS5KW

Warranty:
10YEARS

Certification:
ce

Customized:
Yes

Output Voltage:
220v

Rated Power:
5kw

rotor diameter:
2m

Type:
Wind Power Generator

wind electric generator:
5KW 230V wind turbine generator

wind turbine rated power:
5000w

Generator type:
Three Phase Permanent Magnet

Rated wind speed:
13m/s

Starting wind speed:
4m/s

Cut in wind speed:
4m/s

Security wind speed:
60m/s

wind turbine life span:
20 years

Solar wind hybrid inverter:
Pure sine wave off grid inverter

Supply Ability

Supply Ability
3000 Set/Sets per Month Free electricity generator

Packaging & delivery

Packaging Details

Export standard package suitable for tough handling and sea transport.
Free electricity generator 5KW 230V vertical wind turbine generator

Port

Guangzhou/ Foshan

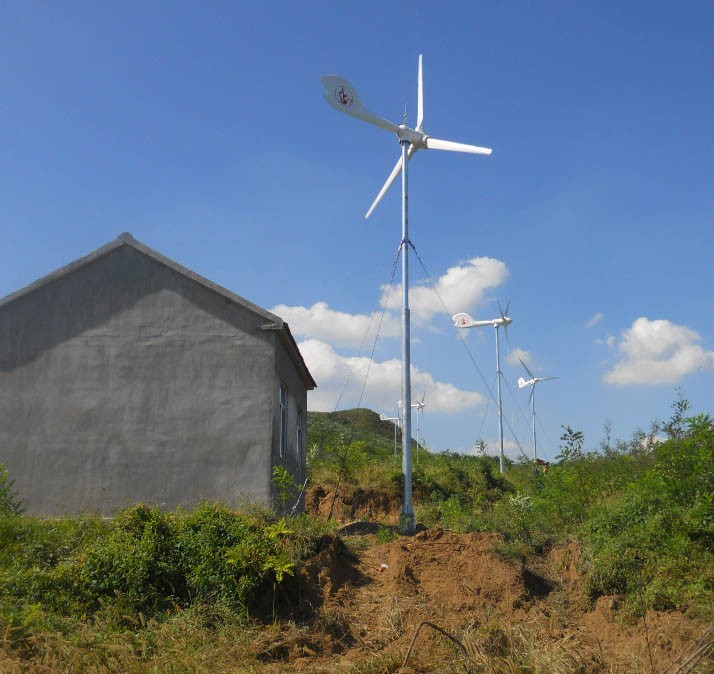

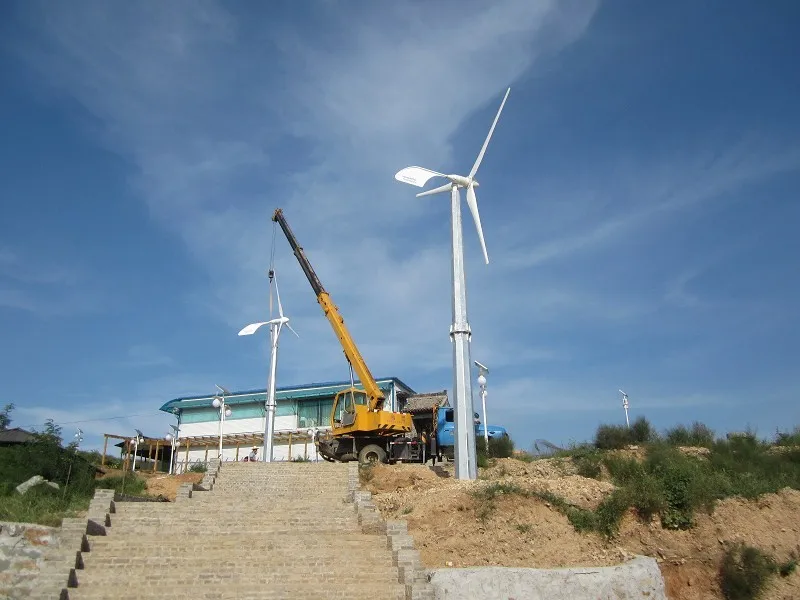

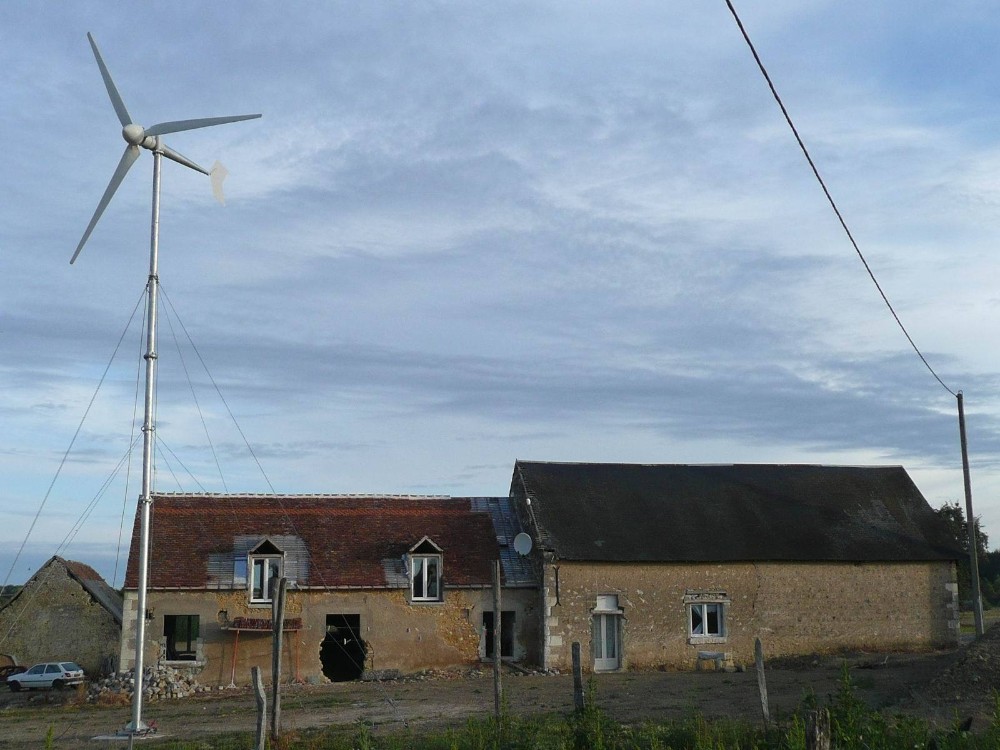

Picture Example:

Lead time:
Quantity(sets) 1 - 1 >1
Lead time (days) 15 To be negotiated

Free electricity generator 5KW 230V vertical wind turbine generator

What is the wind turbine system?

Wind turbine generator can be installed in the off-grid wind power supply system. It can supply the power very conveniently and independently. This system can supply you the totally self-reliant power solution, it is free from the limit of the electricity grid in your local.

The whole system includes a wind turbine, a tower, a controller, some batteries and a inverter. Of course you can add some solar panels to be a hybrid wind and solar power system, fully catch the wind and solar to be your power.

Wind on grid system: wind turbine +wind on grid controller +grid tie inverter

Wind off grid system: wind turbine +wind controller+ battery +pure sine wave inverter

System Application:

1. Living house and home building;

2. Office building, factory and warehouse

3. Shopping mall, venue, stadium and so on

4. Power station, field operation and some huge engineer construction

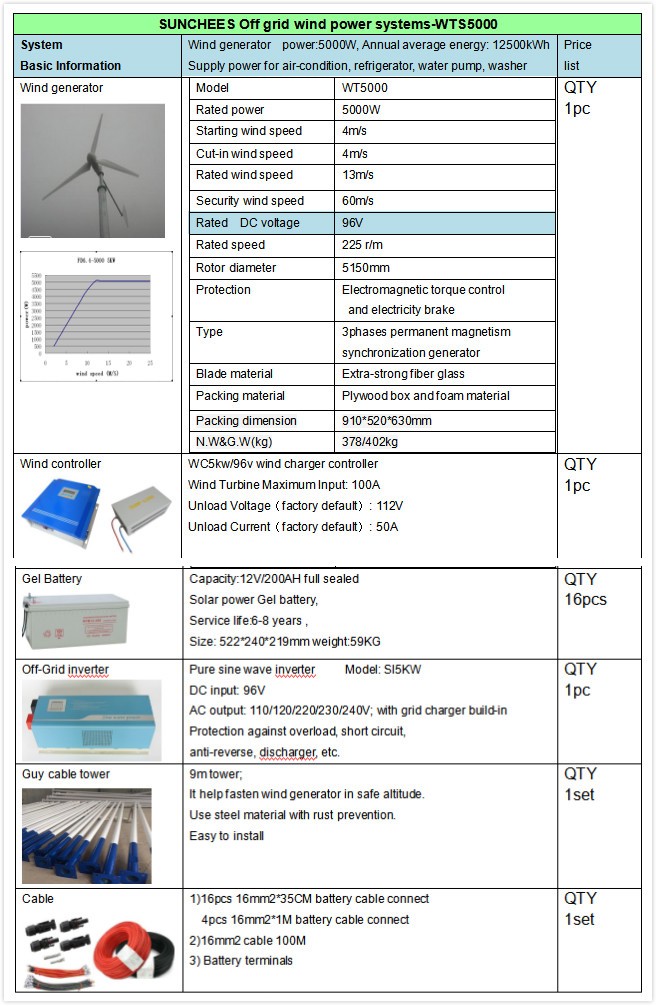

System specification

Sunchees Wind turbine Advantages:

1.Low start-up wind speed

Low wind speed serie small wind turbine for home generate more than 60% effective power than the same rotor diameter wind generator annually.

2.High-efficient Generator
Three-phase permanent magnet synchronous wind generator,more than 10% of the efficiency of ultra-GB,starting resistance,only be 1/3 of the GB limit,motor insulation rating class H insulation.

3.Innovative Noise Reduction Technology
Start and product electricity at the 2.5m/s,noise only at 45db at 13m/s/.

4.Perfect Wind Wheel System

The wind turbine wheel are made of a low temperature resistance,aging high strength compound material,can cope with a variety of complex wind conditions,charge wind energy into electrical energy efficiently and sustainably.

5.Unique Design Of The Rudder
Wind Generator rudders are ale to respond to the wind speed and wind direction flexibly,enhancing the efficiency of power generation.

Complete set wind turbine system each parts

Wind turbine
