Min quantity:1Piece
Quantity:100Piece
Overview
Essential details
Condition:
New
Warranty:
3 years
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Energy & Mining
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
3 years
Core Components:
Bearing, Motor
Place of Origin:
Jiangsu, China
Brand Name:
NENGYUAN
Model Number:
NYKP-5
Type:
Generator
Electricity Generator Type:
Hydro Power
Output Voltage (V):
220380
Key Selling Points:
Long Service Life
Head:
3 -5m
Flow:
0.06-0.2
Frequency:
50/60HZ
Rated speed:
1000-1500r/min
Rated power:
5kw
G.W.:
380kg
Size:
60*60*250cm
Suggested inlet dia.:
over 250mm
Turbine inlet dia.:
250mm
After-sales Service Provided:
Free spare parts, Video technical support, online support
Local Service Location:
None
Supply Ability
Supply Ability
100 Piece/Pieces per Week
Packaging & delivery
Packaging Details
multilayer box package
Port
shanghai

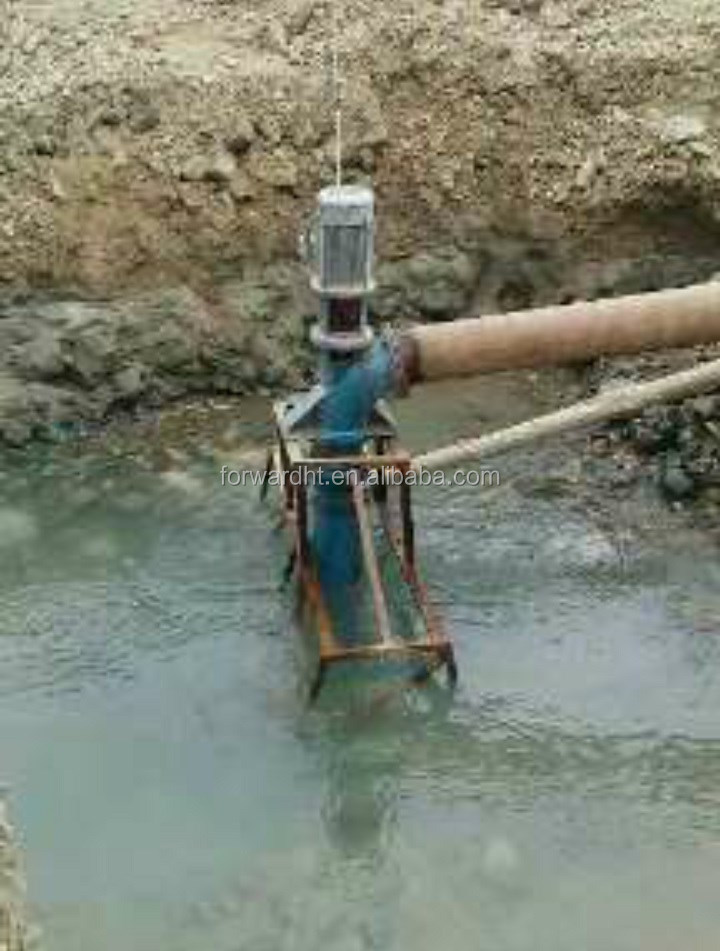

Picture Example:

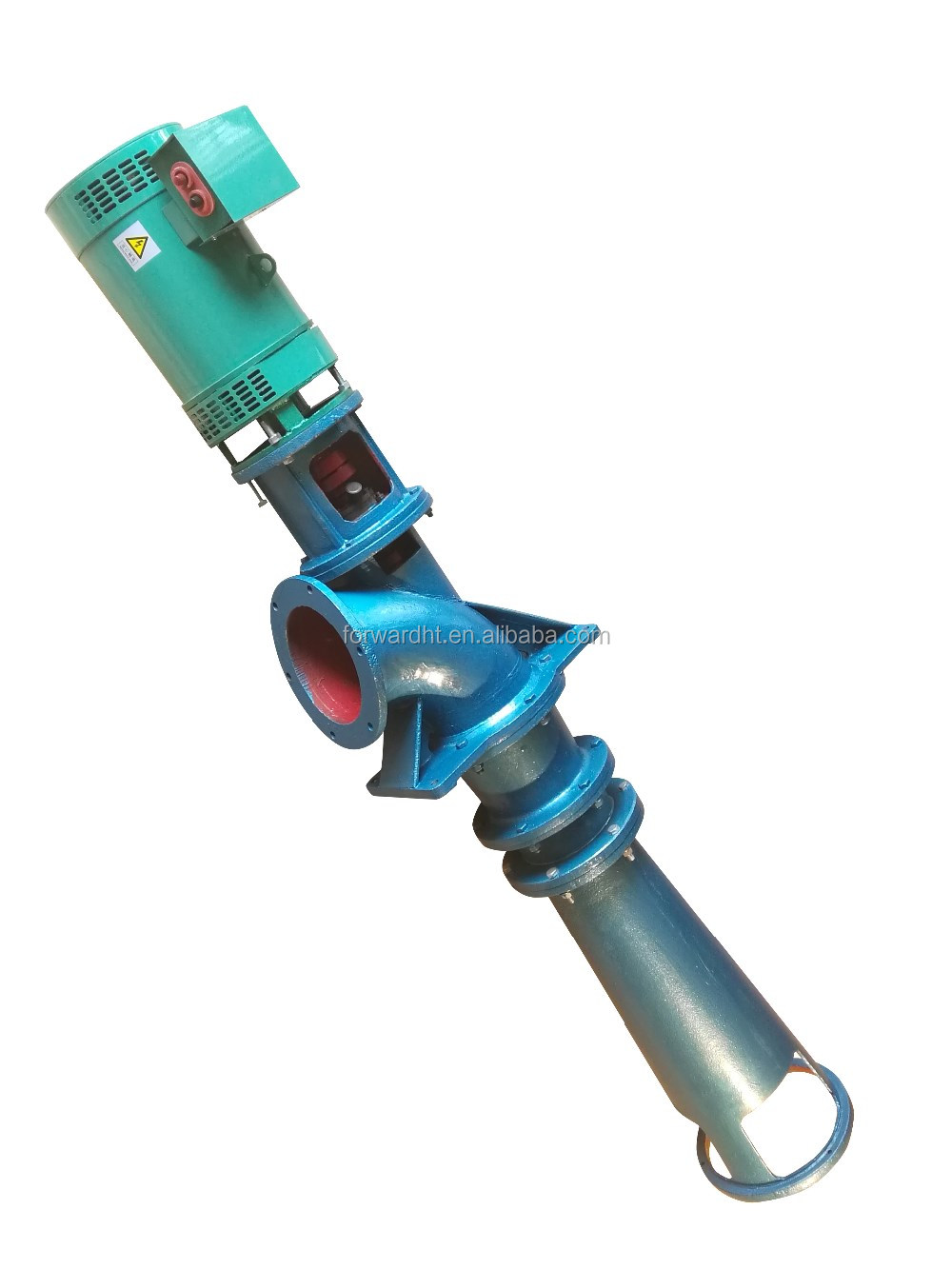

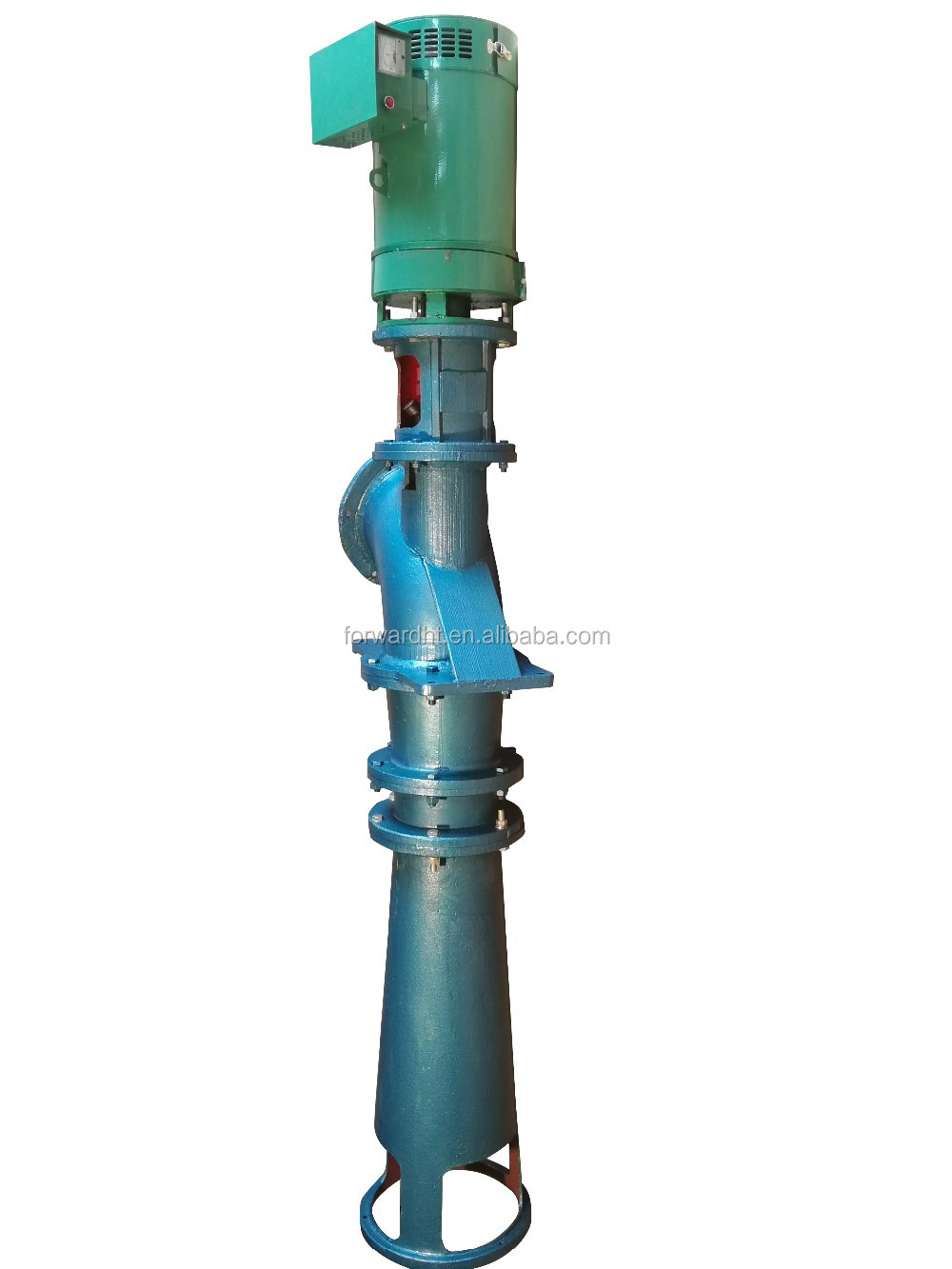

Low head pressure type kaplan turbine
This new type of turbine is a pressure type reaction turbine suit for low head and large flow.The rated power ranges from 3kw to 200kw.
The main features are:
1. Turbine and generator are separated, which is more easy to install and maintain;
2.Turbine has 3 bearings, generator has 2 bearings. The turbine has a separate oil lubrication system ensuring a more reliable system.
3. The axial thrust within turbine is well balanced by a special design of axial thrust balancing device. Therefore, the structure of radial flow turbine is more reliable.
4.auto voltage rectifier is installed within generator, the voltage is more stable.
5.pressure type inlet, which is more easy to install and has higher efficiency.
