Min quantity:1sets
Quantity:100sets
Overview
Essential details
Place of Origin:
Jiangsu, China
Brand Name:
Well-being
Model Number:
HL
Water Head:
1-500m
flow Rate:
0.0001-8 cubic meter per second
Runner Diameter:
100-800mm
Runner Material:
Stainless steel or casting iron
Control System:
Automatic or semi-automatic
Rated Cosin Factor:
0.8
Efficiency:
87-96%
Voltage:
110,220V,400V/50-60hz optional
Packaging & delivery
Selling Units:
Single item
Single package size:
50X50X50 cm
Single gross weight:
50.000 kg
Package Type:
Wooden case packaging with protective steel frame 30kw mini hydro generator hydroelectric generators mini hydro power water turbine
Lead time:
Quantity(sets) 1 - 1 >1 Lead time (days) 10 To be negotiated
Product Description:

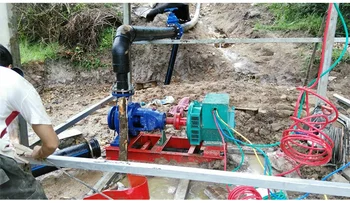

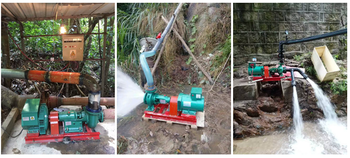

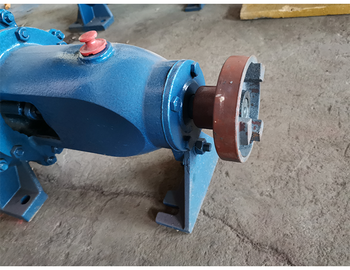

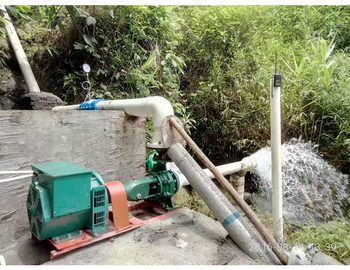

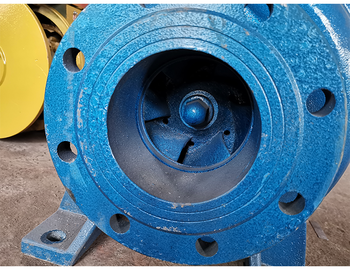

Micro mixed flow turbine we produced is horizontal axial arrangement type. They are suitable for 5-30m water head, capacity 5KW-100KW.Separated generator and turbine design facilitate maintenance and spare parts replacing. Structure of turbine three bearings and generator 2 bearings makes it much more robust, and in additional turbine’s individual lubricate system ensure a service life of at least 30 years. According to customer’s feedback, this unit of turbine able to work three years continuously while doesn’t need to change any bearing.

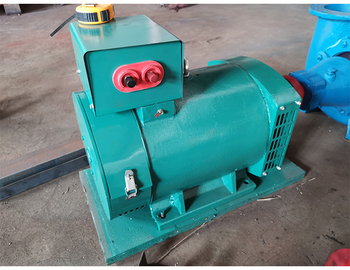

The generator used is brushless excitation type, which no need to change carbon brush frequently, and AVR device ensured a steady outputvoltage.

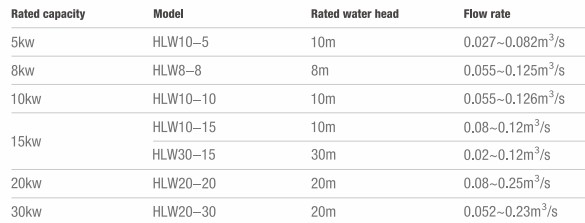

Parameters (below parameter only reference, hydro turbine is tailor-made product, please contact us for precise technic parameter)
