Overview

Essential details

• Customized support:

• Software reengineering

• Place of Origin:

• France

• Model Number:

• ATV630

• Type:

• DC/AC Inverters

• Output Type:

• Triple

• Output Current:

• 0-20A

• Output Frequency:

• 50hZ/60hZ

• Size:

• Depends

• Weight:

• 3KG~100KG

• applied range:

• General type

• Inverter type:

• ATV630

• Warranty:

• 12 Months

• Color:

• Black

• Protection:

• Short Circuit/Overload/Overcurrent

• Condition:

• 100% New and Original

• Package Type::

• Carton packaging

• Product name:

• Frequency Inverter

• Application:

• motor/drive/elevator/pump/fan

• Keyword:

• Frequency Converter Ac Power Source

Supply Ability

• Supply Ability

• 1000 Set/Sets per Month

Packaging & delivery

• Packaging Details

Standard Carton package

• Port

Any port of China

• Picture Example:

•

• Lead time:

• Quantity(sets)	1 - 50	51 - 100	>100
  Lead time (days)	3	7	To be negotiated

Product Description

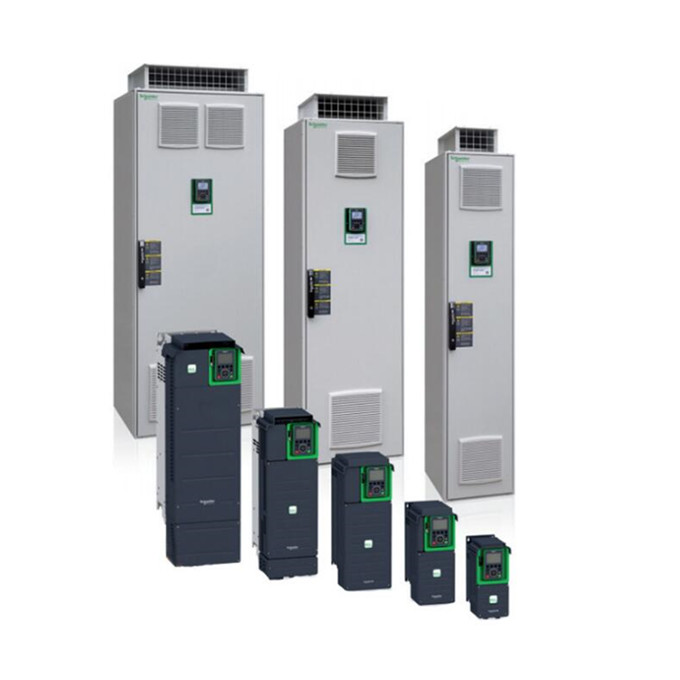

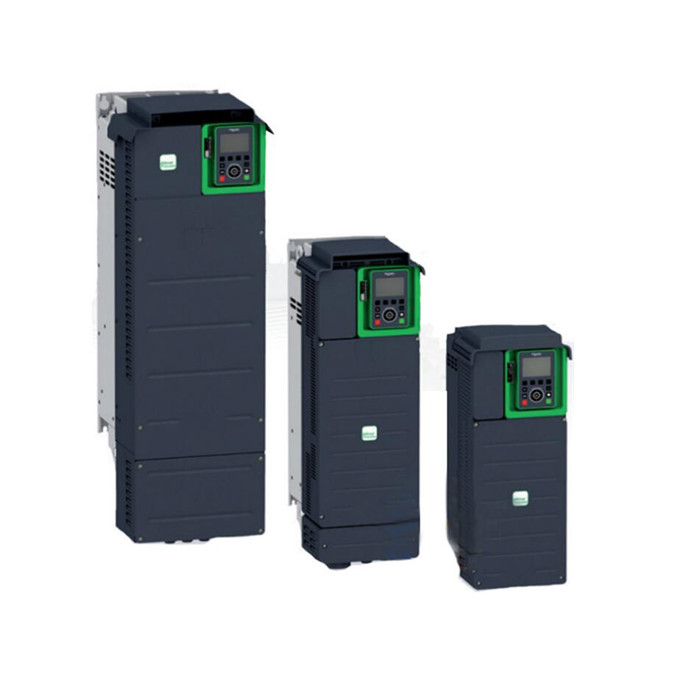

ATV630 variable speed drives

Altivar Process drives offer extensive flexibility in water & wastewater, mining, minerals & metals, oil & gas and food & beverage applications. Depending on Provides the efficiency you deserve customer requirements, Altivar Process drives are available as wall-mounting, floor standing, and optimized solutions for integration into cabinets.

Altivar Process drives are specifically designed for meeting the requirements of the following market segments:

-Water & wastewater

-Oil & gas

-Mining, minerals & metals

-Food & beverage

Three-phase supply voltage: 200...240 V 50/60 Hz Wall-mounting drives

200...240 V IP 21/UL Type 1 drives:

THDi ≤ 44% at 100% load in Normal duty

0.75kw   1hp         ATV630U07M3

1.5kw     2hp         ATV630U15M3

2.2kw     3hp         ATV630U22M3

3kw         –            ATV630U30M3

4kw        5hp         ATV630U40M3

5.5kw     7.5hp      ATV630U55M3

7.5kw     10hp       ATV630U75M3

11kw      15hp       ATV630D11M3

15kw      20hp       ATV630D15M3

18.5kw   25hp       ATV630D18M3

22kw      30hp       ATV630D22M3

30kw      40hp       ATV630D30M3

37kw      50hp       ATV630D37M3

45kw      60hp       ATV630D45M3

55kw      75hp       ATV630D55M3

75kw      100hp     ATV630D75M3

Three-phase supply voltage: 380...480 V 50/60 Hz Wall-mounting Drives

380...480 V IP 21/UL Type 1 drives:With category C2 integrated EMC filter

0.75kw    1hp        ATV630U07N4

1.5kw      2hp        ATV630U15N4

2.2kw      3hp        ATV630U22N4

3kw          –           ATV630U30N4

4kw         5hp        ATV630U40N4

5.5kw      7.5hp     ATV630U55N4

7.5kw      10hp      ATV630U75N4

11kw       15hp      ATV630D11N4

15kw       20hp      ATV630D15N4

18.5kw    25hp      ATV630D18N4

22kw       30hp      ATV630D22N4

30kw       40hp      ATV630D30N4

37kw       50hp      ATV630D37N4

45kw       60hp      ATV630D45N4

Three-phase supply voltage: 380...480 V 50/60 Hz Wall-mounting drives

380...480 V IP 21/UL Type 1 drives:With category C3 integrated EMC filter

55kw        75hp       ATV630D55N4

75kw       100hp      ATV630D75N4

90kw       125hp      ATV630D90N4

110kw     150hp      ATV630C11N4

132kw     200hp      ATV630C13N4

160kw     250hp      ATV630C16N4

220kw     350hp      ATV630C22N4

250kw     400hp      ATV630C25N4

315kw     500hp      ATV630C31N4

Company Information

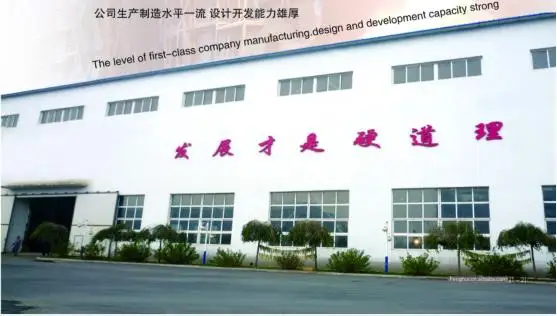

Company Introduction

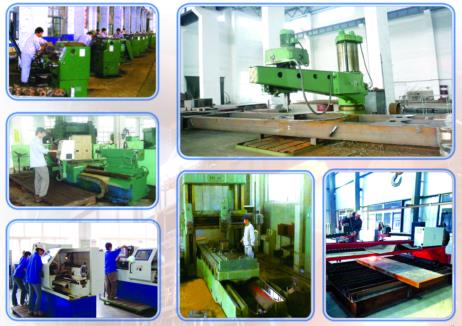

Anshan Fenghui Continuous Caster Manufacture Co.,Ltd---a 25 years of experience manufacture company in the field of complete set of metallurgical equipment.It specially design,manufacturing,installation and commissioning,service and engineering continuous casting machine,its products are exported to North Korea,Thailand,Turkey,Malysilyia so on.Our products are approved by foreign users.We have all kinds of model inverters, frequency inverter is our advantage products.We are a large and professional frequency inverter product manufacturer in China,I can assure you best strong quality.

Since 1995, we have already developed and established good business relationship with worldwide reputed customers. based on the experienced and professional manufacturing and trading business in the field,we can guarantee the quality and stability of goods.

More details at: https://asccm.en.alibaba.com

Team Construction:

A big family, Trade Department

Our Services

a. Reply your inquire in 24 working hour.

b. Technical and professional guidance.

c. Best quality and best price.

We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedbacks on goods and our service.

FAQ

Q1.What is the payment terms?

We could accept these payment terms:T/T or L/C at sight,Western Union.

Q2. Why choose our company?

High quality service and low price.100% new and original one.We are a manufacturer with 25 years of experience.

Q3.What’s the delivery time?

If in stock,we usually deliver the cargos about 20~30 days after receiving customer’s prepayment and original LC.
