Essential details

• Model Number:

• RX600

• Type:

• Fixed Resistor

• Place of Origin:

• Jiangsu, China

• Brand Name:

• Liwang

• D/C:

• Lot

• Application:

• PCB

• Rated Power:

• 3W~250W

• Resistance:

• 0.1~180KΩ

• Supplier Type:

• Original manufacturer

• Cross Reference:

• RX600

• Media Available:

• datasheet

• Tolerance:

• J,K

• Technology:

• Wirewound

• Package Type:

• Surface Mount

• Resistance Tolerance:

• ±1%,±2%,±5%,±10%

• Temperature Coefficient:

• ±250PPM/℃

• Operating Temperature:

• -55℃~+275℃

• Brand:

• Resistor

• Packaging:

• Customized

• Power (Watts):

• Customized

• Composition:

• Wirewound

• Features:

• Customized

• Coating, Housing Type:

• Aluminum

• Size / Dimension:

• Customized

• Height - Seated (Max):

• Customized

• Lead Style:

• Customized

• Package / Case:

• Customized

• Circuit Type:

• Isolated

• Number of Resistors:

• Customized

• Number of Pins:

• Customized

• Applications:

• Customized

• Mounting Type:

• Customized

• Number of Terminations:

• Customized

• product name:

• RX600 wirewound resistor for battery/underpan installating resistor

• Quality Certification:

• ISO9001: 2008

• Environmental Certification:

• ISO14000

• color:

• yellow

Supply Ability

• Supply Ability

• 100000 Piece/Pieces per Week

Packaging & delivery

• Packaging Details

export cartons

• Port

SHANGHAI

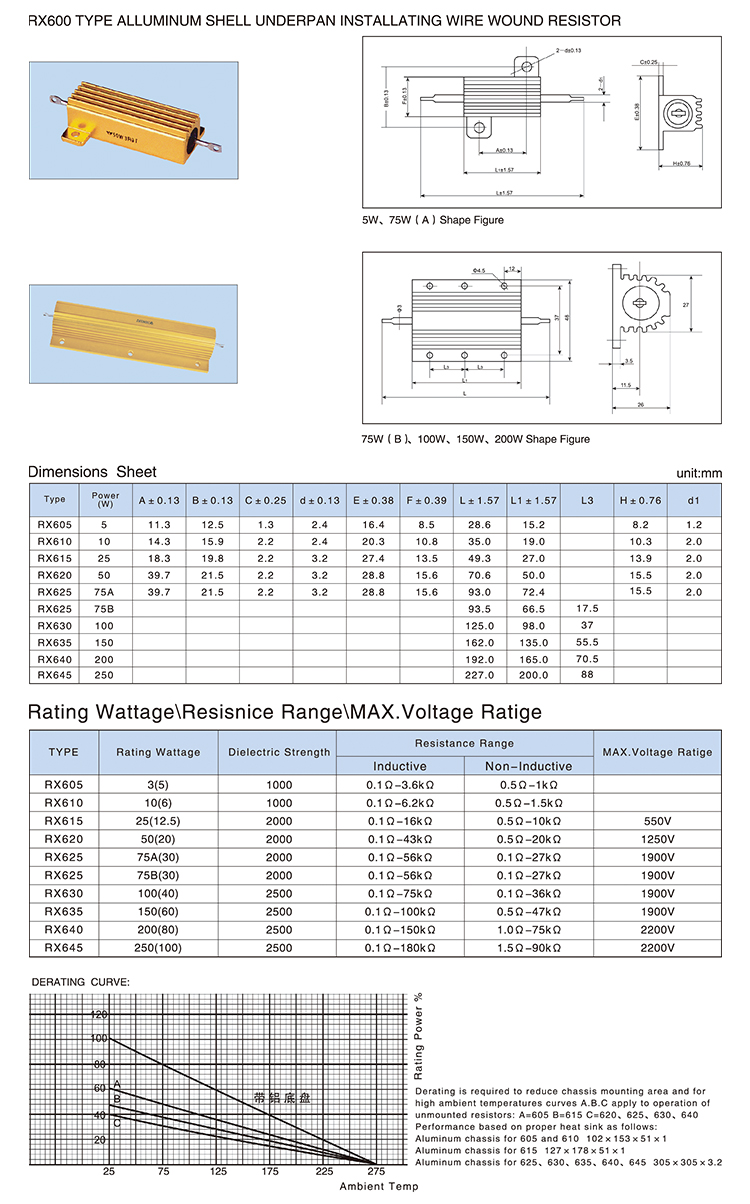

• Picture Example:

•

• Lead time:

• Quantity(pieces)	1 - 10000	>10000
  Est. time (days)	10	To be negotiated

       01

       High bearing power

       The resistance wires are evenly distribu-

       ted, and the wire diameter of the same

       specification is thicker. It is not easy to

       burn out and can withstand greater

       impact power.

02

Good insulation safety

The resistor sealed with refractory mud

has high temperature resistance, corros-

ion resistance and safe insulation.

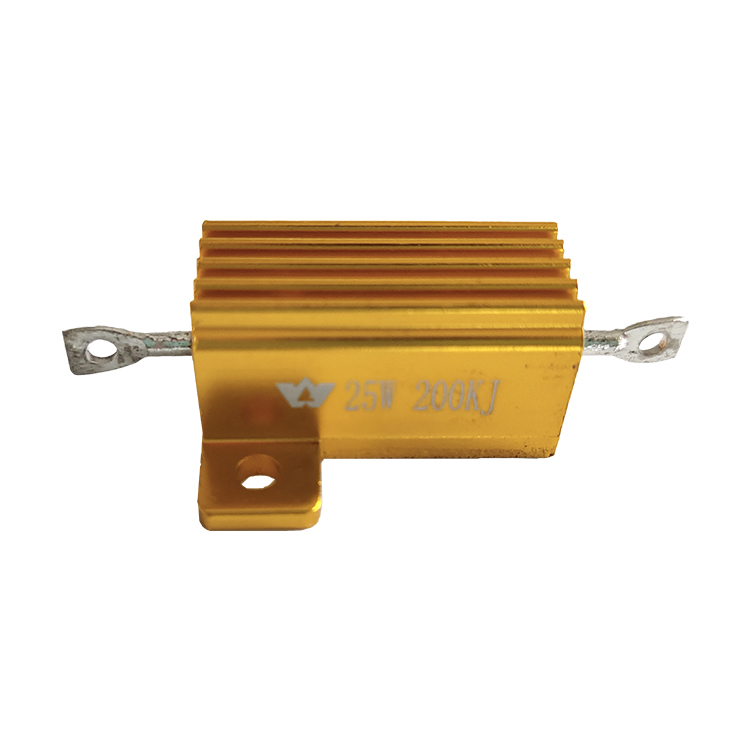

       03

       Super thick aluminum shell                 material

       It is made of ultra thick aluminum shell

       with strong corrosion resistance and

       high temperature resistance.

04

Fast heat dissipation

It adopts high heat dissipation aluminum shell, which is easy to heat dissipation, convenient installation and beautiful appearance.
