Product Description

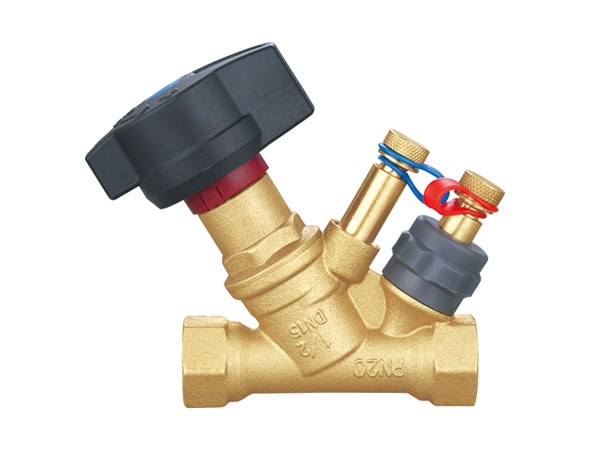

Brass Balance Valve | |
Size | 1/2" 3/4" 1"-2" |
Material | Brass |
Surface | Brass/Nickel Plating |
Connection | Male & Female |
Thread | BSP |
Working Temperature | -20 ℃ to 120 ℃ |
Medium | Oil,Gas,Water |
Test Pressure | 100% tested with 0.6MPa - 0.8MPa by air |
OEM Accept | Yes |
Place of origin | Zhejiang,China(Mainland) |
Size: DN25-DN50
Applicalbe in Heating and Cooling system (glycol or brine water), Drink Water system(Hot Water / Cold Water), Sea Water (Clod Water)
Function: Balancing, Set-advanced, Measure, Shut-off. Leakage(Optional)
Valve Body, Valve Cover: Brass Connection: Screwed DIN2999 BS21
Name | Material |
Valve Body, Valve Cover | Brass |
Connection | Screwed DIN2999 BS21 |
Connector link | PP |
Valve Core | Copper Alloy |
Valve Shaft | Copper Alloy |
Manual Wheel | PC |
Max Work Pressure | PN16 |
Fluid Error | ±5% |
Seal | PTFE(Double-sided O-ring |
Orifice insert | Brass |
