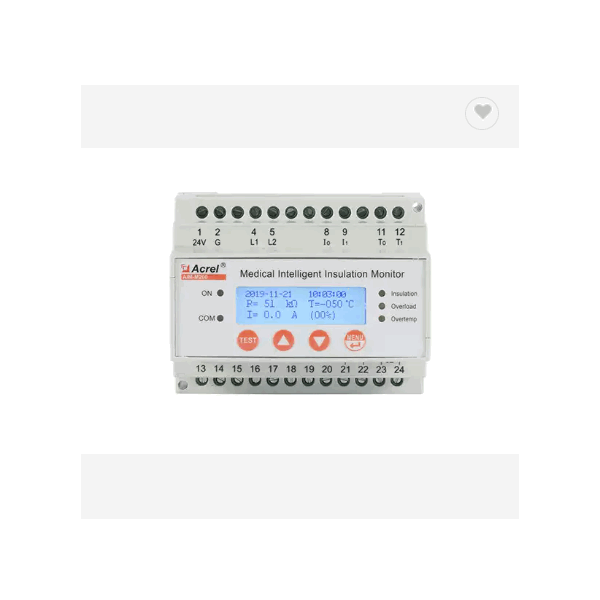

Acrel AIM-M200 Insulation Monitor Device IEC approved used for hospital IT power supply system

Price:$1292.30/Piece
Min quantity:10Piece
Quantity:1000Piece

Overview

Essential details

• Place of Origin:

• Jiangsu, China

• Brand Name:

• Acrel

• Model Number:

• AIM-M200

• Display Type:

• Digital Only

• Phase:

• /

• Operating Temperature:

• -25℃~+65℃

• Dimensions:

• /

• Powr supply for device:

• DC 24 V

• Power consumption:

• 3 VA

• Insulation resistance Monitor:

• 10~999kΩ

• Alarm of Insulation resistance:

• 50~999kΩ

• Reaction time:

• 2S

• Current Monitor:

• 2.1~50A

• Temperature Monitor:

• -50℃~+200℃

• DIgital output:

• 2 relay ouput(not programmable)

• Contact capacity:

• 2A/30VDC or 2A/250VAC

• Interface:

• RS485*1, Modbus-RTU/ CAN

Packaging & delivery

• Packaging Details

carton

• Port

Shanghai

• Picture Example:

•

• Lead time:

• Quantity(pieces)	1 - 10	11 - 30	31 - 100	>100
  Lead time (days)	3	5	7	To be negotiated

Technical parameters

Parameter	Value
Power Supply	DC 24V
Power consumption	3 VA
Insulation resistance Monitor	10~999kΩ
Alarm resistance	50~999kΩ
Reaction time	2S
Measureing voltage	＜12 V
Current Monitor	2.1~50A
Alarm value	5~50A
Accuracy	5%
Temperature Monitor	PT100
Monitor range	-50℃~+200℃
Alarm value	0℃~+200℃
Alarm output	2 relay(not programmable)
Contact capacity	AC 250V/3A, DC 30V/3A
Communication	RS485, Modbus RTU; CAN
Working temperature	-20℃~+55℃

Notes:

IEC certificate

Application
