Min quantity:100Piece
Quantity:10000Piece
Overview
Essential details
Private Mold:
Yes
Brand Name:
Justlink
Model Number:
JL-S0401B
Place of Origin:
Guangdong, China
Color:
black
Certifications:
CE FCC ROHS
Resolution:
4Kx2K@60Hz
HDMI version:
HDMI2.0b
HDCP version:
HDCP2.2
Material:
metal
Package:
Color Box
Warranty:
1 Year
Packaging & delivery
Selling Units:
Single item
Single package size:
20X10X6.6 cm
Single gross weight:
0.300 kg
Package Type:
each piece in color box, 20 pieces in one carton.
Lead time:
Quantity(pieces) 1 - 100 >100 Lead time (days) 7 To be negotiated
Recommended by seller
Quad Multi-viewer HDMI Switcher Out HD Multiviewer HDMI Switch Seamless Full HD 1080p 4x1 IR Control 4 in 1 out converter
$45.00 - $52.00 / piece
5 pieces
4K HDMI Switch Audio Output 4-port HDMI Switcher 2.0b 4x1 with ARC Coaxial Toslink 3.5mm with IR Remote Control Hdmi switch
$12.20 - $12.90 / piece
2 pieces
HDMI Splitter 4K*2K 3D Mini 3 Ports Switcher Cable 1.4b 1080P for DVD HDTV Xbox PS3 PS4 3 in 1 out Port Hub HDMI AUTO Switch
$1.60 - $2.50 / piece
1 piece
3x1 HDMI Switch with IR Wireless Remote for Ultra 4K support DVD Players and Stellite Receivers, Digital Projectors
$2.15 - $2.99 / piece
1 piece
4-Port 4K@60Hz HDMI Switcher Box Selector Audio Extractor Splitter with IR Wireless Remote hdmi switch 4x1
$8.00 - $10.00 / piece
500.0 pieces
Best selling HDMI Switch 5x1 Switcher Selector 3D support 4k With IR Remote HDMI Splitter Infrared Receiving Cable
$2.55 - $3.80 / piece
2 pieces
Justlink 4K 4x2 HDMI Switcher Splitter 4 Input 2 Output Switch with ARC R/L 3.5mm Aux Coaxial SPDIF Audio Extractor
$15.20 - $16.59 / piece
1 piece
3 in 1 Out 4K HDMI Switch 4K@60Hz Ultra HD HDMI Switcher
$4.20 - $6.50 / piece
5 pieces
4K 3x1 HDMI Cable Splitter HD 1080P Video Switcher Adapter 3 Input 1 Output 3 Port HDMI Hub for Xbox PS4 DVD HDTV PC Laptop TV
$3.00 - $4.30 / piece
5 pieces
4K HDMI Switcher 2.0 Switch audio extractor HDR ARC splitter 4X1 with remote(HDMI in to HDMI+toslink+stereo audio out)
$9.71 - $12.50 / piece
5 pieces
HDMI 2.0b Switch 3x1 Splitter 3 in 1 4K@60HZ Switcher Box with ARC Remote Optical Toslink SPDIF+Coaxial+Analog RCA Stereo Audio
$9.30 - $10.00 / piece
1 piece
V2.0 5X1 HDMI Switch with HDR+ARC (3D 4K*2K@60Hz) support HDR 4K@60Hz 5x1 HDMI Switch up to 5 HDMI signal input
$10.24 - $13.90 / piece
5 pieces
Products Description

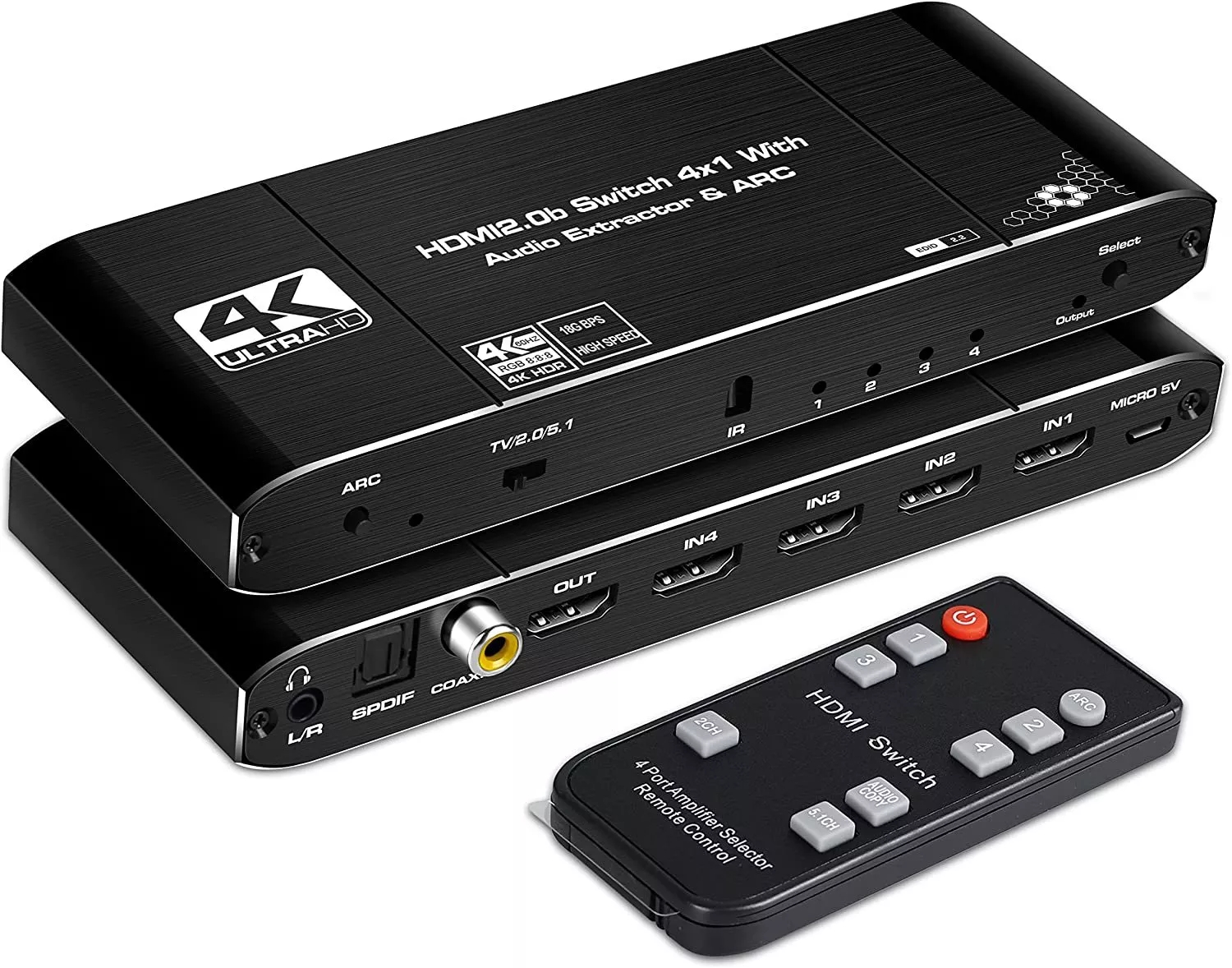

HDMI2.0 Switch 4ports ARC 4K

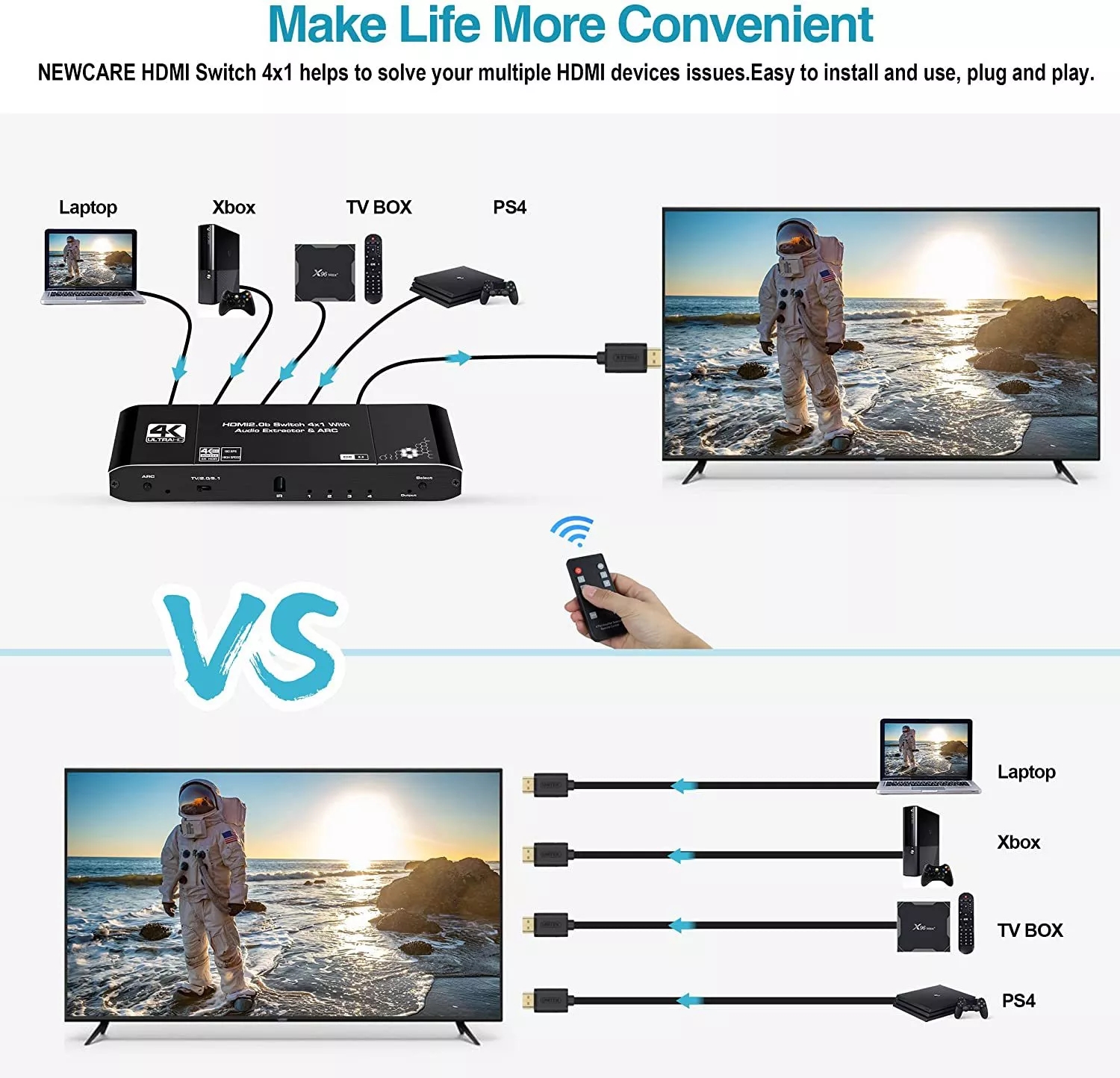

This HDMI Switch support 4 HDMI Inputs to 1 HDMI Output, can be applied for connection, signal amplification, multi-picture
conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD
TV,LCD,Projector, as well as an Audio/Video receiver. The excellent quality allows you to experience the fun brought by the
infusion of science and technology into life.
Keypoint:
This 4 port HDMI switch supports HDCP 2.2, HDMI2.0b,4K @60HZ 4:4:4, RGB4:4:4,Full HD,UHD, Deep Color to 36bit.,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.5Gbps, Support ARC function, The Display More Clear and More Delicate,Give You a Nice Feeling of Home Theater.

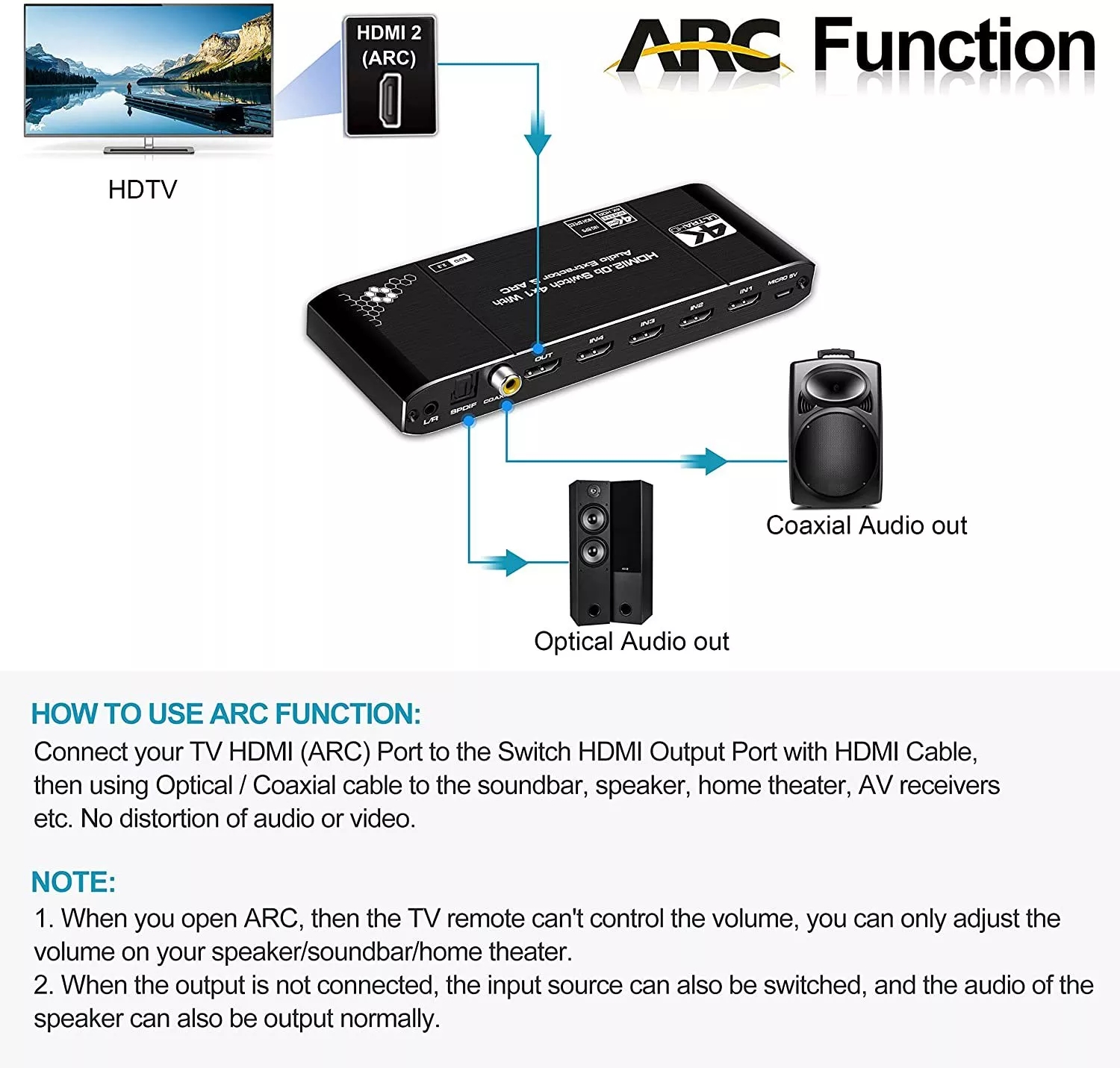

·ARC Support: Supports ARC (Audio Return Channel), Extractor the Audio from TV to Soundbar or Amplifier.
Connect your TV HDMI(ARC) Port to this switch HDMI Output Port with HDMI Cable, then using optical/Coaxial cable to the soundbar, Speaker, home theater, A/V receivers etc.No distortion of audio or video(Note:3.5mm audio port not support ARC function)

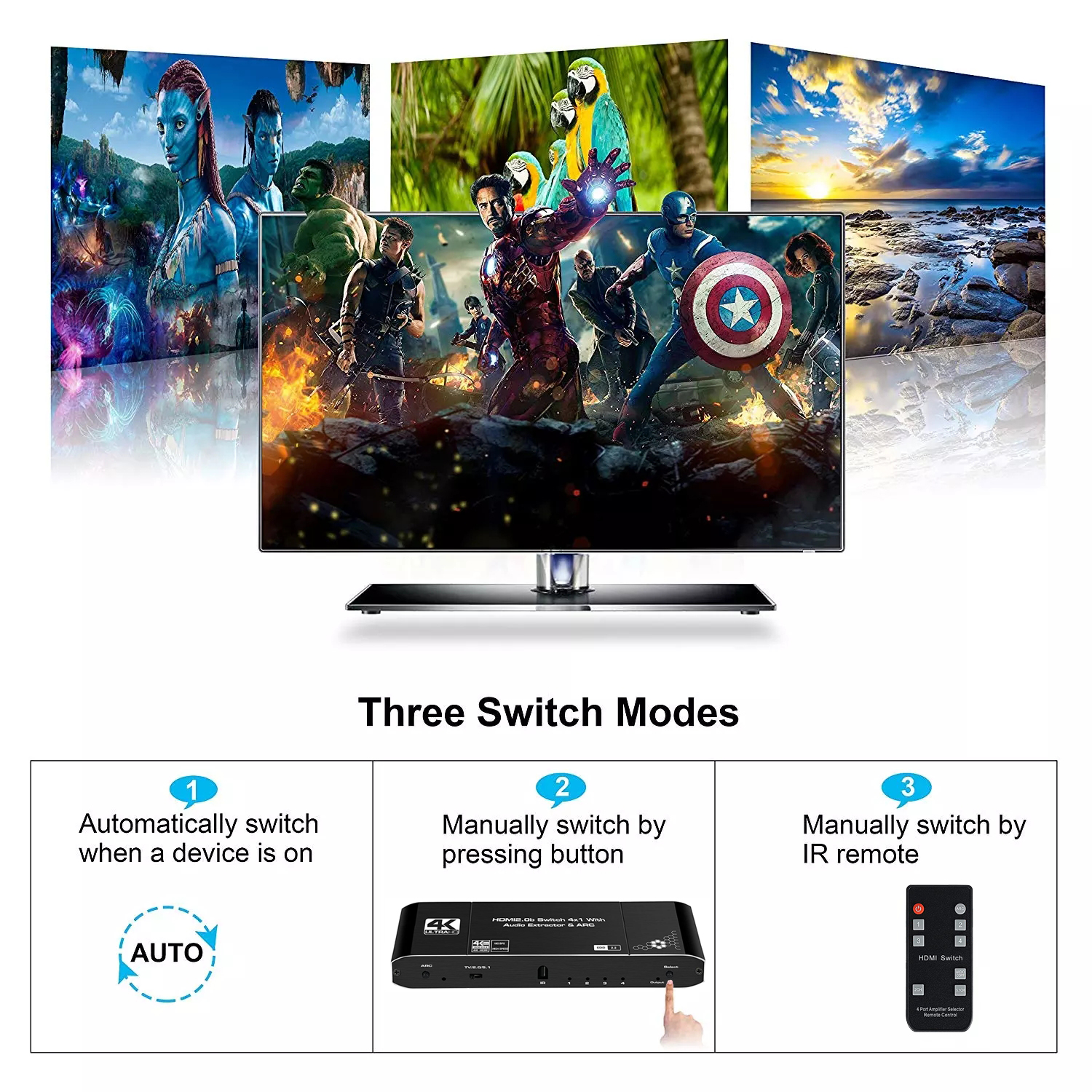

·Auto-Switch with Remote Control: It will automatically skip to the most recently inserted HDMI signal source,it will automatic change from HDMI source A to HDMI source B when you turned on source B and back to source A when you turned source B off. (Tips:It will not allows auto-switch to the PS4/xbox due to current protection principle)
· Widely Compatible: Compatible with any HDMI devices such as Nintendo Switch, PS4 , Xbox 360, Xbox One X, PS3, Beamer,DVB Receivers, Blu-ray Player, Apple TV 4, Laptop and HDTV/HD Monitor etc.
Just connect your HDMI devices and the power adapter and enhance your home theater experience with high-resolution video and audio
Note:
Maximum remote control distance is 8 meters,(warm tip:to better control,we suggest you point at IR light of the switch,finger pulp to press it,Wait 2 seconds each time before next time,please press it properly) you will be going to realize that the display will black screen about 5seconds to change next source. This is normal,please don’t worry.

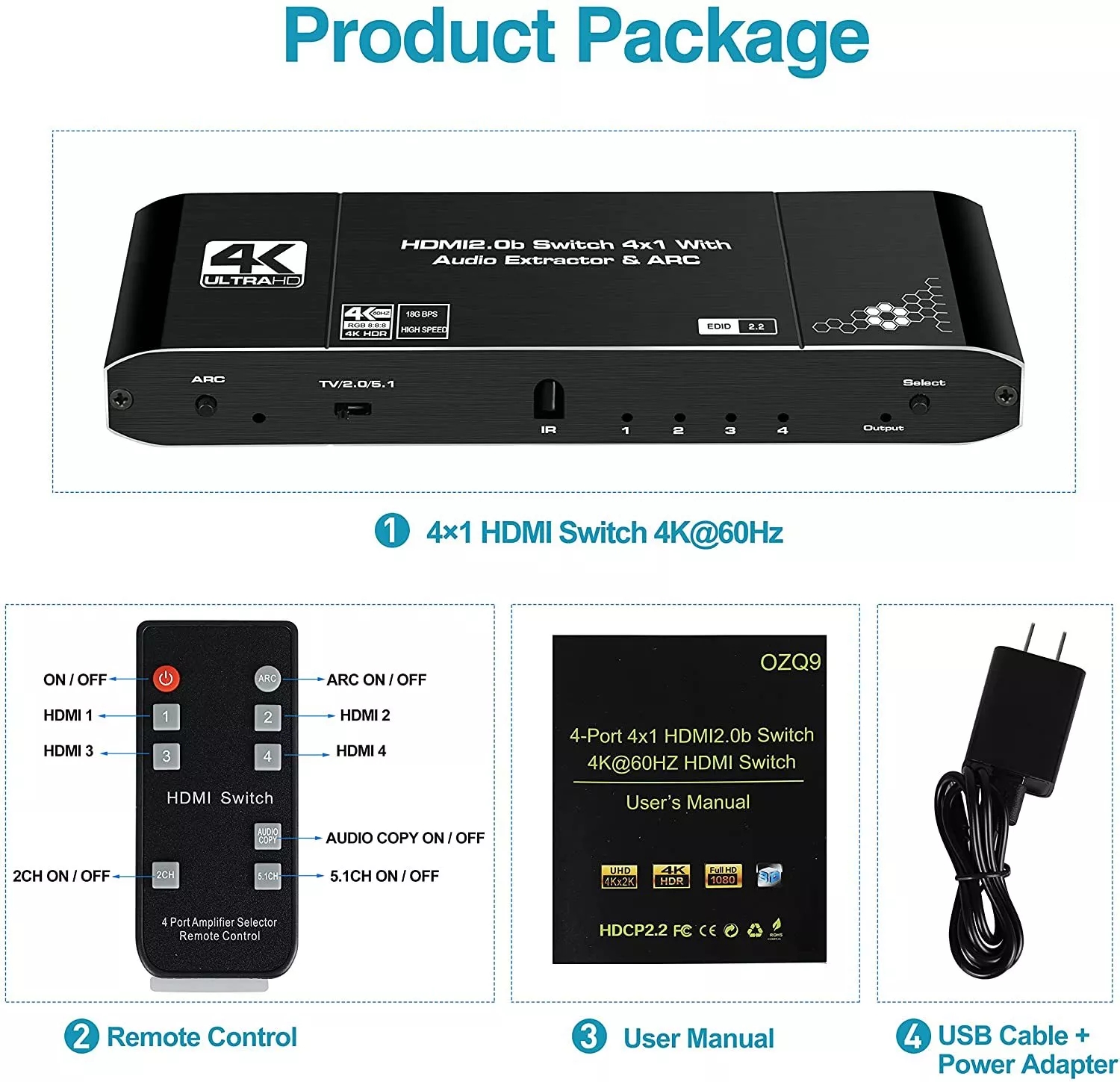

Package:
Giftbox
1 * HDMI Switch 4x1
1 * Remote
1 * DC 5V/1A Power Adapter
1 * User Manual
Features

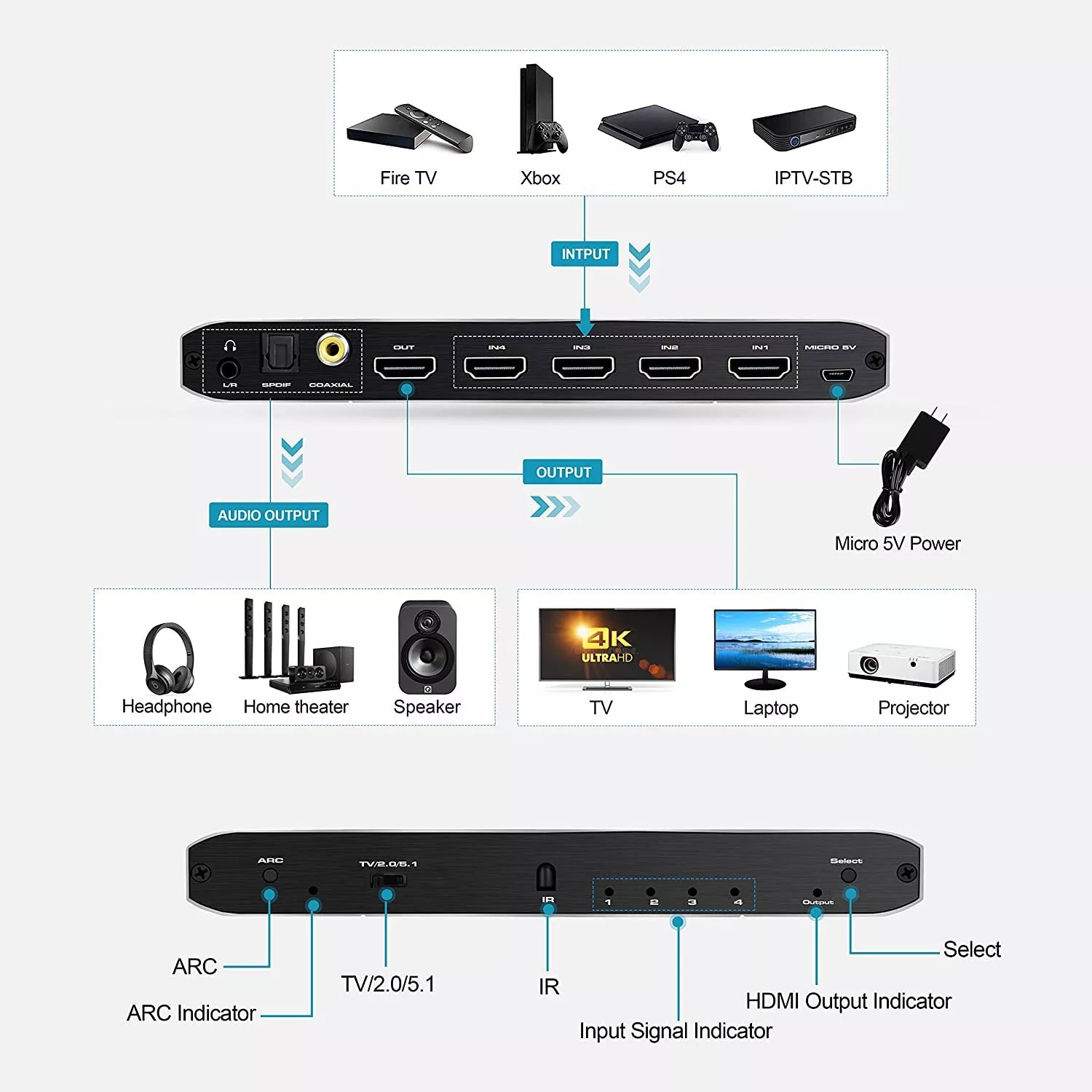

-Input: HDMI x 4
-Output: HDMI x 1, Toslink x 1, 3.5mm L/R x 1, Coaxial x 1
-Coaxial and Toslink port output support ARC. (Note:3.5mm audio port not support ARC function)
-Support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / YcbCR 4:2:2 /(4k@60hz
RGB4:4:4)
-Max bandwidth per channel: 600MHz. Max baud rate per display: 18.5Gbps
-Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio
format, But can't decode these audio formats.
-Support 24/30/36 bit deep color per channel (Kindly Note: It is can not compatible with DVI.we do not recommended that you use
HDMI to DVI cable connect to your projector /monitor)
-HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resolution up to 4K@60HZ;can reach up to 5 meters if your
Resolution up to 4K@30HZ
Specification
Product details
