Min quantity:1Piece
Quantity:999Piece
Deliver:In 7 days
Overview
Essential details
Plate Type:
Screen Printer
Applicable Industries:
Home Use, Retail, Printing Shops
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
XF
Usage:
Paper Printer, PCB,membrane switch,glass,PET film,light guide plate
Automatic Grade:
Semi-automatic
Color & Page:
single color
Voltage:
380V
Dimensions(L*W*H):
1500x1160x1620mm
Weight:
500 KG
Certification:
ISO9001
Warranty:
1year
Key Selling Points:
Easy to Operate
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Gear, PLC
structure:
vertical structure
vertical printing drive:
electrical reduction gear motor
printing head drive:
electrical motor
table material:
stainless steel
vaccum control:
turbine fan
scraper control:
cylinder
printing stroke:
adjustable
cylinder control:
solenoid valve
printing head up and down:
independant cylinder
printing speed control:
frequency converter
Supply Ability
Supply Ability
100 Piece/Pieces per Month
Packaging & delivery
Packaging Details
standard export wooden box package:1635*1215*1815mm
Port
Qingdao
Lead time:
Quantity(pieces) 1 - 1 >1 Lead time (days) 10 To be negotiated
factory price of screen printing machine price
Product Description
1. Scope of application:
1)This screen printing machine series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries.
2)screen printing machine suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB, PET heating transfer film,tempered glass,auto windshield,light guide plate,DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of PVC, which have high requirement in overprinting.
2. Feature:
1).The screen printing machine platform is adjustable and moveable, which make it convenient to take the material.
2).vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.
3).The screen printing machine adopts micro computer integrated systerm, printing and plate moving up &down are driven by independent Current Source.
4).screen printing machine blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.
5).Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.
6).Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.
7).Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.
3. Parameters:
Model | XF-4060 | XF-5070 | XF-6090 | XF-80120 | XF-70140 | XF-10200 |
Max Printing area(mm) | 400*600 | 500*700 | 600*900 | 800*1200 | 700*1400 | 1000*2000 |
Printing table size(mm) | 500*700 | 600*800 | 700*1000 | 900*1300 | 800*1500 | 1100*2100 |
Max frame(mm) | 650*930 | 700*1100 | 850*1300 | 950*1630 | 900*1600 | 1350*2430 |
Flat precision(mm) | ±0.05 | ±0.05 | ±0.05 | ±0.01 | ±0.01 | ±0.01 |
Printing thickness (mm) | 30 | 30 | 30 | 30 | 30 | 30 |
Over print accuracy (mm) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Printing pressure kg/cm2 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Printing frequency /Hr | 1150 | 1050 | 950 | 850 | 850 | 700 |
Voltage/power V/kw | 380/2.1 | 380/2.45 | 380/2.45 | 380/4.15 | 380/4.15 | 380/5.6 |
Equipment weight kg | 380 | 450 | 500 | 580 | 630 | 750 |
Overall dimensions (L*W*H)(mm) | 1130*1050*1620 | 1280*1100*1620 | 1500*1160*1620 | 1860*1400*1900 | 2060*1300*1900 | 2600*1500*1680 |

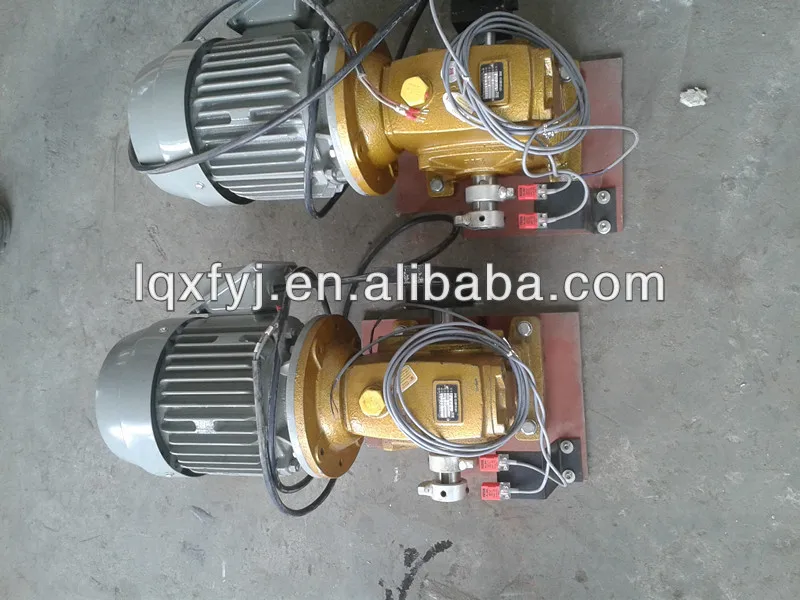

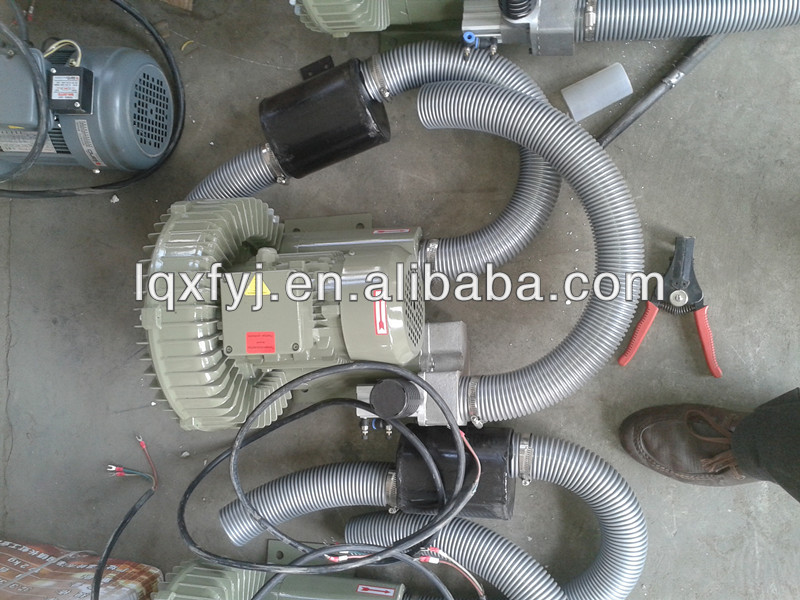

4. screen printing machine actual pictures:
