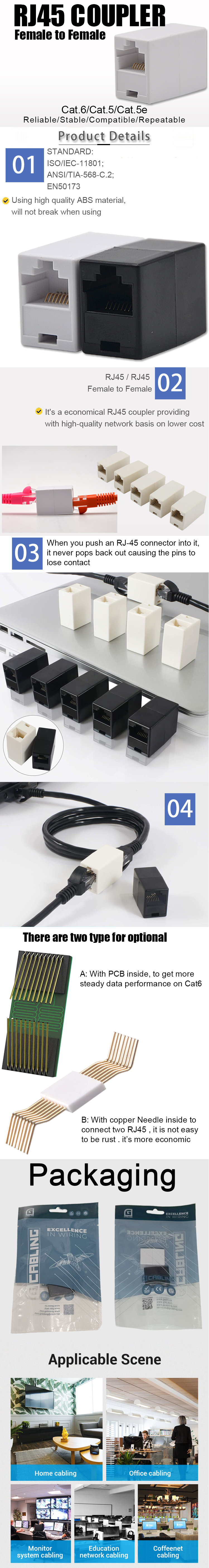

Gcabling 5pack RJ45 coupler 1 to 1in-Line coupler ethernet network lan cable joiner UTP FTP RJ45 Ext

Application

*Standard:ISO/IEC-11801;ANSI/TIA-568-C.2; EN50173-1 ;

* RJ45 coupler provides ethernet extension; It is compatible with Cat.6 or Cat5e
*Application:1000base-T ; 100base-Tx,10base-T,155M ATM,4/16MB Token Ring,100Mbps TP-PMD,ISDN,ADSL,Analog & Digital Voice (VoIP) / Video,POE Control Signal

Specification

*RJ45 coupler 8P8C Female to Female

*Color: White , Black , Ivory
*Category: Cat6 Cat5e Cat5
*QC:100% broken circuit testing
*Humidity:10% ~ 90%RH
*Temperature:-20℃~ 60℃
*OEM /ODM:Available

Feature

* The coupler ensure a strong and corrosion-free connection.
* The adapter can be made with or without PCB inside.

*It's a economical RJ45 coupler, providing with high-quality and inexpensive network tools and
accessories

Application

*Certification: ETL Certified
*Standard:SO/IEC-11801;ANSI/TIA-568-C.2; EN50173-1
*Application: 10Gbase-T , 1000base-T,100base-Tx,10base-T,155M ATM,4/16MB Token Ring,100Mbps TP-PMD,ISDN,ADSL,Analog & Digital Voice (VoIP) / Video,Power over Ethernet (PoE),Control Signal

Specification

*Voltage rating: 125VCA RMS
*Current rating: 1.5Amp
*Contact resistance: 100 MILLIOHMS MAX
*Insulation Resistance:1000 MEGOHMS MIN@500VDC
*Dielectric strength: 750 VAC RMS, 60Hz 1min

Feature

*Description：24port UTP Patch Panel

*Data performance:  Cat6 Cat5e optional

*IDC:  Dual type to support both 110 and Krone type IDC

*Port: RJ45 8P8C socket unshielded
*Material of PIN：Phosphor bronze
*Wiring Scheme：T568A/T568B

*Working Life:  > 750 times for RJ45 socket ;

                           >200 times for IDC punching.
*QC:100% testing
*Wroking Humidity:10% ~ 90%RH
*Working Temperature:-20℃~ 60℃
*OEM /ODM:Available
