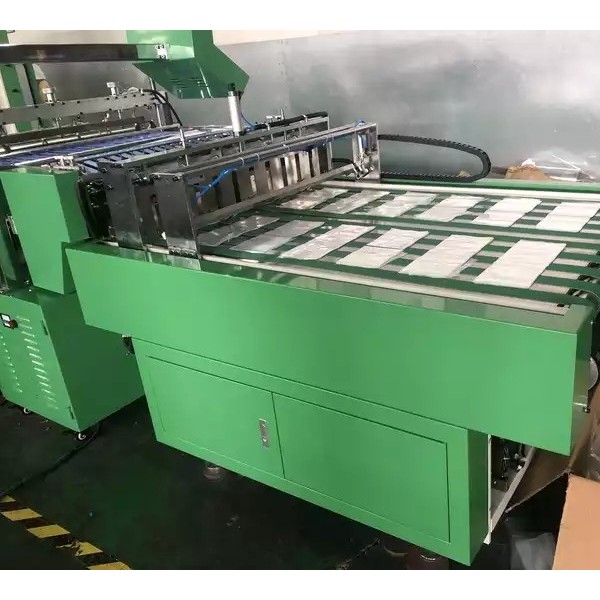

High speed PE side sealing heating cutting bag making machine

Price:$24.00/Piece
Min quantity:1Piece
Quantity:999Piece
Deliver:In 7 days

Overview

Essential details

• Applicable Industries:

• Garment Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops

• Showroom Location:

• Egypt, Turkey, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, India, Spain, Thailand, Chile, UAE, South Africa, Ukraine, Uzbekistan, Malaysia, Morocco

• Condition:

• New

• Machine Type:

• Bag Forming Machine

• Bag Type:

• Heat cutting side sealing bag

• Material:

• Plastic

• Computerized:

• Yes

• Place of Origin:

• Zhejiang, China

• Brand Name:

• WITY

• Model Number:

• DRQ-S800

• Voltage:

• 380V/3P

• Dimension(L*W*H):

• 5800*1550*1750mm

• Weight:

• 1700KG

• Warranty:

• one year

• Key Selling Points:

• High Productivity

• Marketing Type:

• New Product 2020

• Machinery Test Report:

• Provided

• Video outgoing-inspection:

• Provided

• Warranty of core components:

• 1 Year

• Core Components:

• Motor, Pump, PLC, Gearbox

• After-sales Service Provided:

• Engineers available to service machinery overseas

• Size:

• 800mm

• Speed:

• 220pcs/min

• Machine color:

• Green

• Function:

• PE, BOPP, POF,CPP bags

• Controller:

• SYMAC

• Photocell:

• Panasonic brand

• Puncher:

• 1pcs

• Sealing knife:

• Straight Sealing Knife

• Touch screen:

• Movable

• After Warranty Service:

• Video technical support, online support, Spare parts

• Local Service Location:

• Egypt, Turkey, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Spain, Thailand, Malaysia, Morocco, UAE, Sri Lanka, South Africa, Ukraine, Uzbekistan

• Certification:

• No

Supply Ability

• Supply Ability

• 30 Set/Sets per Month

Packaging & delivery

• Packaging Details

Stretch film package

• Port

Ningbo/Shanghai

• Picture Example:

•



• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	30	To be negotiated

Video Description

00:00

00:44

Wity Machinery

Product Description

This machine is suitable for various kind of material such as BOPP, CPP, LDPE, HDPE, POF & laminated film,etc, which with printed or without printed. It is a kind of ideal equipment for making Stationery bag, ornaments bag, garment Bag, food bag and hang bag.

Features

1.Touch screen operating, SYMAC movement control, easy operation 2.The main motor speed, traction speed and unwinding speed synchronization controlled. 3.The whole machine adopts servo motor drive. 4.Accurate tracking printing pattern, automatic stop and alarm when missing printed mark. 5.Pneumatic puncher, the punching position can be adjusted independently. 6.Main motor controlled by frequency inverter, easy operation and reduce power consumption. 7.Automatic counting, can preset the stack number according request quantity. 8.Firm and smooth bag sealing .

Specification

Model	DRQ-S800	DRQ-S1000
Max.bag Width	780mm	980mm
Bag Length	70-650mm	70-650mm
Film thickness	0.02-0.1mm	0.02-0.1mm
Speed	250pcs/min	250pcs/min
Power supply	380V/50HZ	380V/50HZ
Max.Unwinding diameter	Ф550mm	Ф550mm
Air compressor	5HP	5HP
Total power	15 KW	16KW
Weight	1700KG	2000KG
Size(L*W*H)	5800×1550×1750mm	5800×1750×1750mm

Bag Details

Sample Pictures

Detailed Images

Double Unwinders with 2 sets of Slitting Knife

Dancing Rollers

Hole Puncher & Photocell for Printed Mark Tracking
