Min quantity:1Piece
Quantity:999Piece
Deliver:In 7 days
Overview
Essential details
Type:
Rotogravure Printing Machine
Applicable Industries:
Manufacturing Plant
Showroom Location:
Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, Russia, UAE, Sri Lanka, South Africa, Ukraine, Uzbekistan, Malaysia
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Motor
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
wity
Usage:
Paper Printer, Label Printer, film printer
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
380V/3P
Dimensions(L*W*H):
16225x2895x2815mm
Weight:
28000kg
Warranty:
1 Year
Key Selling Points:
High Productivity
After-sales Service Provided:
Engineers available to service machinery overseas, online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Speed of Printing:
200m/min
Print Material:
BOPP .PET.PVC.PE.Aluminum Foil
Printing colors:
3~12color
Diameter of unwind/rewind:
600mm
Motor:
7 motors
Register Precision:
Vertical ±0.2mm
MODEL:
YAD-K
Inverter:
YASKAWA
After Warranty Service:
Video technical support, online support, Spare parts, Field maintenance and repair service
Local Service Location:
Turkey, Philippines, Indonesia, Pakistan, Malaysia, UAE, South Africa, Ukraine, Uzbekistan
Certification:
CE
Supply Ability
Supply Ability
15 Set/Sets per Month
Packaging & delivery
Packaging Details
standard wooden package
Port
Shanghai or Ningbo
Picture Example:
Lead time:
Quantity(sets) 1 - 1 >1 Lead time (days) 90 To be negotiated
Video Description

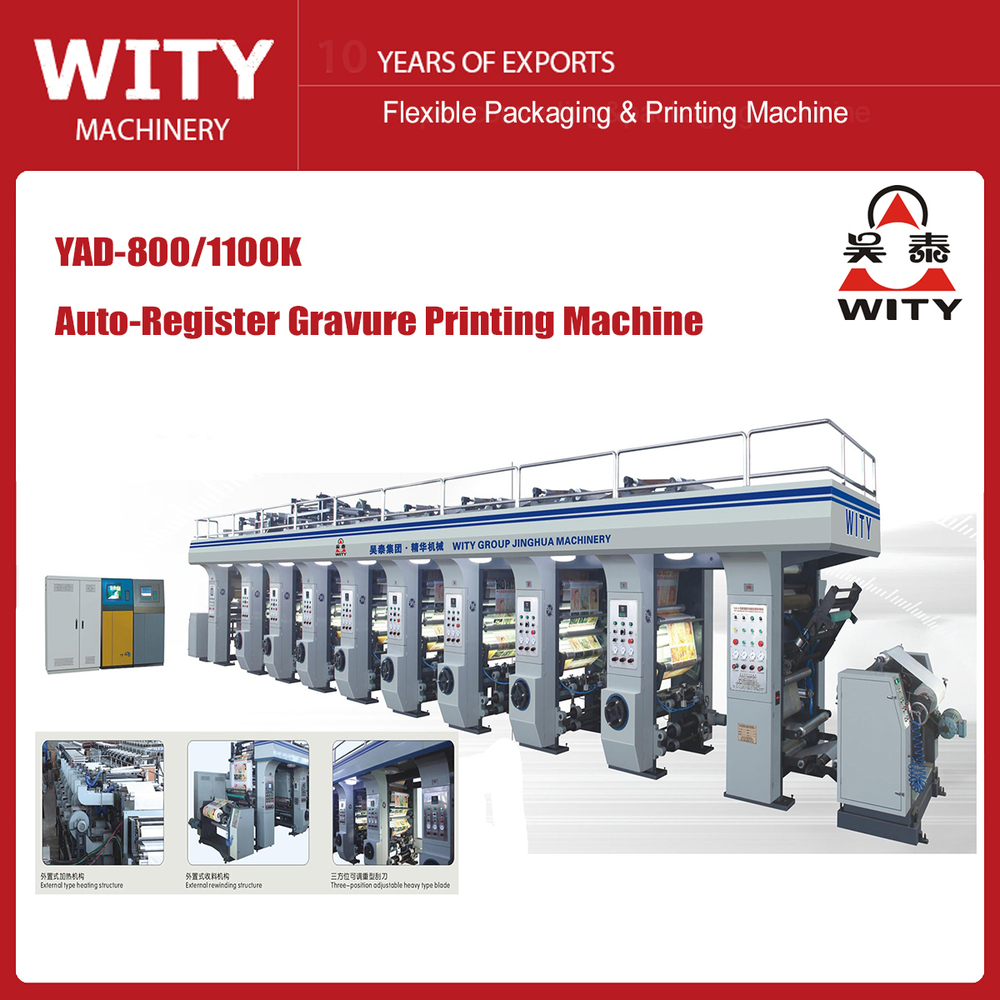

Auto Register Gravure Printing Machine
1. Introduction:
This model gravure printing machine is cost effective, compact structure, automatic control, high precision color register, high quality printing result, suitable for many kinds plastic film, paper roll material high quality and efficiency printing. Note: can extra equip horizontal color register structure, double side printing structure, electronic transmission structure
2. Characteristic:
a) Independent heavy duty type machine frame
b) Big gear box for shaftless plate cylinder loading
c) Unwinding and rewinding with double roll non-stop material roll changing
d) Four floating roller and seven motor closed loop for tension control
e) Japan Fujikura brand low friction air cylinder for tension swing roller control
f) Japan Yaskawa brand frequency inverter for vector frequency conversion motor control
g) Swiftly reaction for speed increasing and decreasing, steady color register, high output
h) With double cooling structure of water cooling and air cooling
i) Double screw rod longitudinal auto color register structure
j) Three direction adjustable double shaft pneumatic control scraping blade (movement: ±6mm)
k) External type independent heating system
l) Touch screen controller for tension controlling
m) High static picture and precision color register system
3. Main parts origin
(1) Seven frenquency converter 7 sets Yaskawa of JANPAN
(2) Brake resistance 6pcs
(3) PG card 7 sets Yaskawa of Janpan
(4) Register system 1 set kesai or huamao
(5) Inspection unit 1set kesai or huamao
(6) Seven motor tension system 1set Huamao
(7) Man-machine 1set Hitech of taiwan
(8) Cylinder AIRTAC of taiwan
(9) Low-friction cylinder 4pcs Fujikura of Japan
(10) Precision adjust value Bellofram of USA
(11) switch button made in china
(12) Main tranction bear JANPAN(NSK)
(13) low-vole electrics made In china
(14) thermo-control meter made in china
(15) frequency motor 6 sets Siemens of Germany
(16) Encoder Omron of Japan
(17) Singel deaphragm pumps made in china(wuhan)
(18) hot relay,middle relay,contactor made in china
(19) Cooling roll and guide roller shanghai
(20) Air switch Delixi
4. Main techmical parameters(Note:Take 8 colors as example):
Technical data | YAD8800K | YAD81100K |
inner diameter of core | 76mm | 76mm |
diameter of material | 600mm | 600mm |
diameter of printing plate | 110-300mm | 110-300mm |
width of printing | 800mm | 1100mm |
register precision | 0.15mm | 0.15mm |
printing speed | 60-180m/min | 60-180m/min |
overall dimensions(mm) | 16225x2495x2815 | 16225x2895x2815 |
total power | 155kw | 180kw |
weight | 23000kg | 28000kg |
Printing material
1, OPP/BOPP/CPP 15-60μm
2, PET 12~60μm
3, PA 15-60μm
4, Cellophane 20-40μm
5, PVC/PO/PVDC 40-70μm
6, combined layer film upto 150g/m2
7, combined press film upto 150g/m2
8, PE 60-100μm
Note:the precision of PE film is ±0.2
Machine photos:

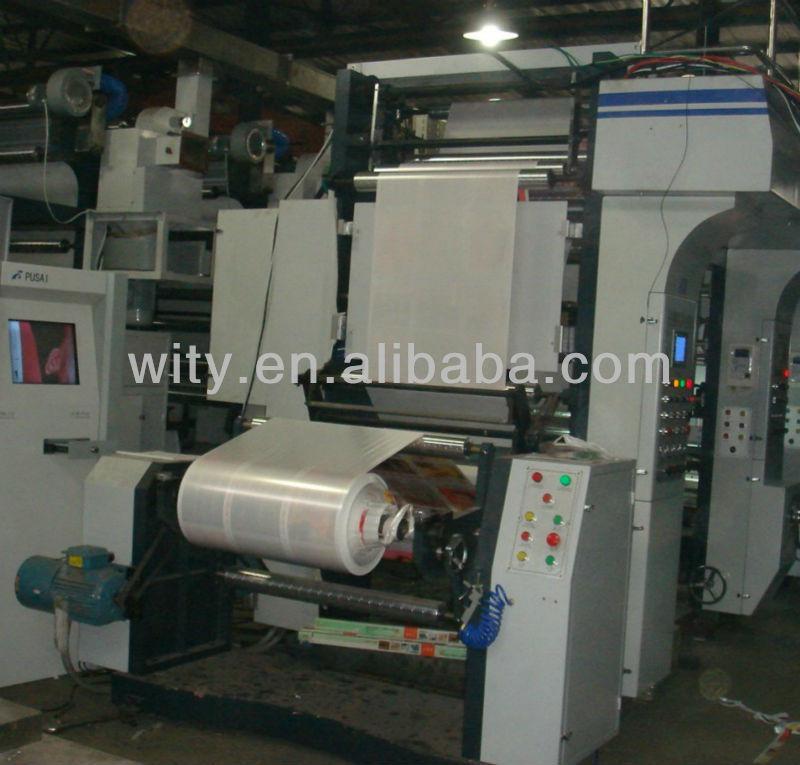

1) Independent unwinder and non stop unwinding structure

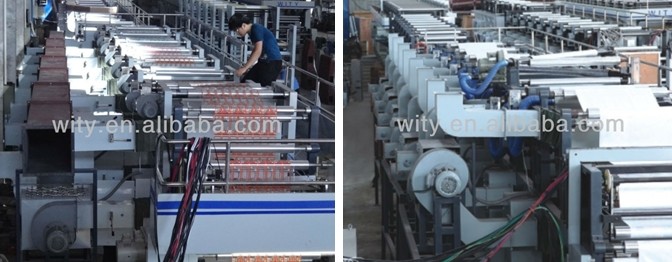

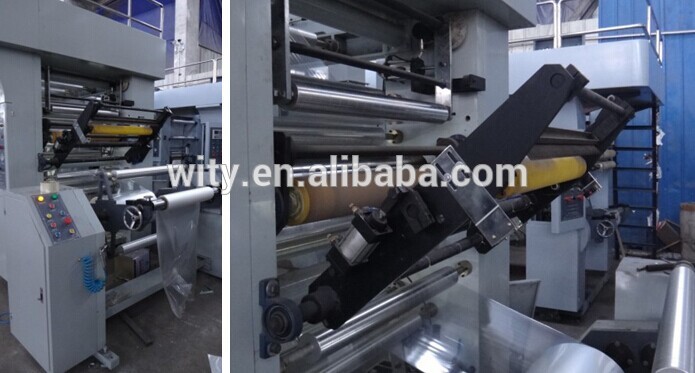

2) Printing unit 3) Independent non stop splicing structure rewinder
4) External type heating structure:

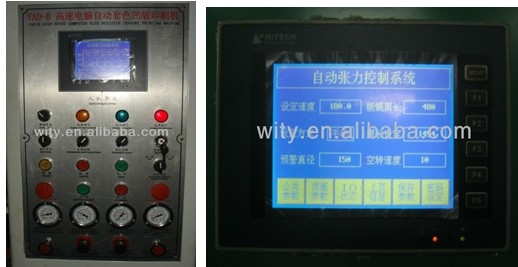

5) Touch screen tension control:
