Overview

Essential details

• Place of Origin:

• Jiangsu, China

• Brand Name:

• Well-being

• Model Number:

• CJ

• Water Head:

• 1-500m

• flow Rate:

• 0.0001-8 cubic meter per second

• Runner Diameter:

• 100-800mm

• Runner Material:

• Stainless steel or casting iron

• Control System:

• Automatic or semi-automatic

• Rated Cosin Factor:

• 0.8

• Efficiency:

• 87-96%

• Voltage:

• 110,220V,400V/50-60hz optional

Packaging & delivery

• Selling Units:

• Single item

• Single package size:

• 50X50X50 cm

• Single gross weight:

• 50.000 kg

• Package Type:

• Wooden case packaging with protective steel frame 15kw Pelton Turbine Price pico water turbine hydro electric generator mini hydro generator

• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	10	To be negotiated

Product Description:

Pelton turbine belongs to impulse turbine category. Except features of low invest, compact structure and easy to install, compared with turgo turbine, efficiency of pelton turbine is much higher, and it can be use to develop higher head of hydraulic power resource.

Dual nozzle pelton turbine is totally designed and produce by our company and we have applied intellectual property right. Water head of FORWARD micro Pelton turbine range from 20-200m, and capacity 5KW-100KW.

Generator adopted by FORWARD is brushless excitation type, which installed AVR device for ensuring a steady output voltage. Voltage and frequency all are customizable

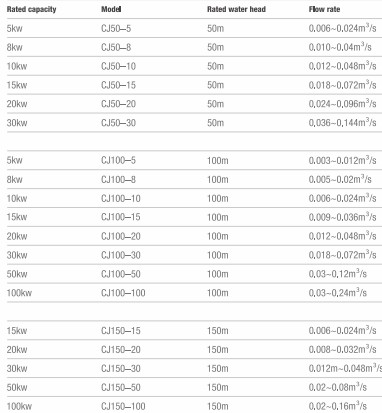

Parameters (below parameter only reference, hydro turbine is tailor-made product, please contact us for precise technic parameter)
