Overview

Essential details

• Applicable Industries:

• Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops

• Showroom Location:

• None

• Condition:

• New

• Machine Type:

• Bag Forming Machine

• Bag Type:

• Sealing bag

• Material:

• Plastic-plastic, paper-plastic, alu-plastic

• Computerized:

• Yes

• Place of Origin:

• China Mainland

• Model Number:

• SLZD-B600

• Voltage:

• 3 Phase 380V

• Dimension(L*W*H):

• 10500*1850*1870mm

• Weight:

• 5500 KG

• Warranty:

• 1 Year

• Key Selling Points:

• Easy to Operate

• Marketing Type:

• New Product 2020

• Machinery Test Report:

• Provided

• Video outgoing-inspection:

• Provided

• Warranty of core components:

• 1 Year

• Core Components:

• Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox

• Max Speed:

• 100pcs/min

• Max.Diameter of Roll Material:

• 600mm

• Max.Width of Roll Material:

• 1250mm

• Max.Capacity:

• 150 pcs/min

• Max.Mechanical Speed:

• 35m/min

• Total Power:

• 50KW

• Machine Weight:

• 5500kg

• Overall dimension:

• 10500*1850*1870mm

• Application:

• Packaging Industry

• Processing Type:

• Heat Sealing Hot Cutting

• Keywords:

• Bag Marking Machine

Supply Ability

• Supply Ability

• 600 Set/Sets per Year

Packaging & delivery

• Packaging Details

Sea worth package.
Delivery needs 40ft container.

• Port

NINGBO PORT

• Lead time:

• Quantity(sets)	1 - 1	>1
  Est. time (days)	45	To be negotiated

Performance and Characteristics:

1,Whole machine controlled by central PLC control system with man-machine. More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.
2,Constant auto-tension control for unwinding, LPC edge alignment, AC inverter constan speed auto material feeding.
3,imported double servo-motor material dragging control system.
4,Main motor for up-down sealing and pressing equipped with inverter.
5,PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.
6,Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator.
7,Temperature adjustment range: 0 ~ 300℃.
8,Counter: quantity, batch accumulation, pre-set available.
9,Operation Method: by length fixation control and / or by photocell tracking control.
10,Punching device: working rhythm can pre-set as continuous, interval or stop, punching time can be pre-set.
11,Material Skip Feeding: one to six times available.
12,Batch Conveying Function available, the quantity of batch can be preset

Application:

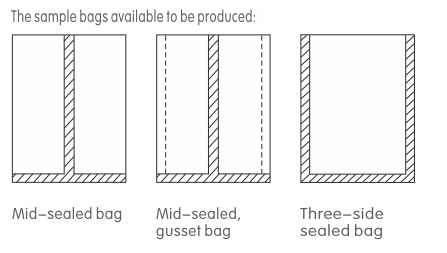

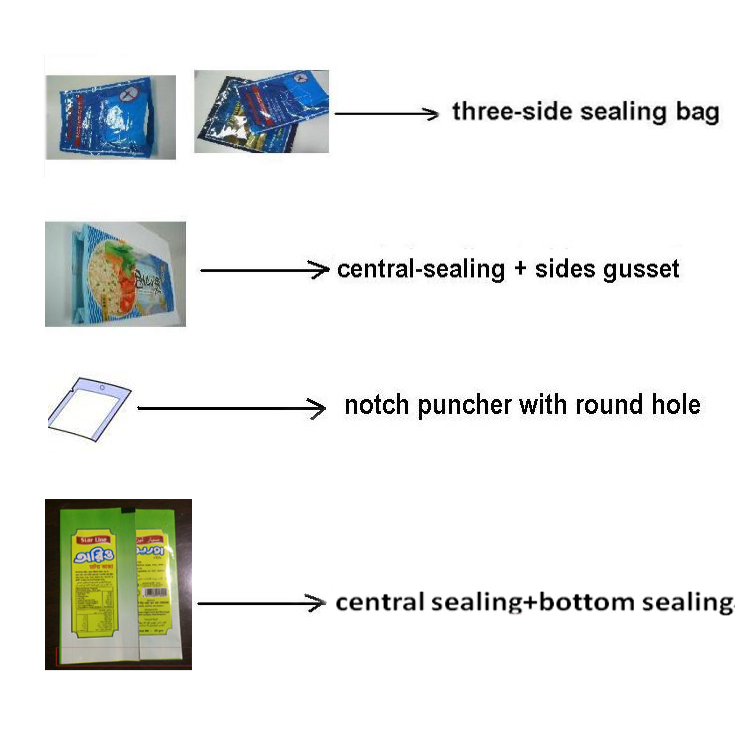

With such characteristics as reasonable structure, easy operation and high automatic, this machine is suitable for producing pouch from various plastic-plastic, paper-plastic laminated material and it is a kind of ideal Bag-making equipment for producing Middle sealing and three-side sealing bags.

Main Technical Variables:

Click here to contact us >>>

More Products

Company Information

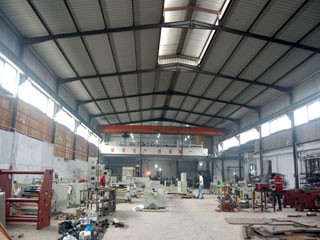

Ruian City HENYUE Printing Machinery Manufacture Co.,Ltd. located in Rui’an which well known as the capital of China's machinery, the traffic around is convenient.
