Overview

Essential details

• Applicable Industries:

• Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

• Brand Name:

• S.Precision

• Place of Origin:

• Anhui, China

• Voltage:

• 220V/50Hz

• Application fields:

• Dairy products factory, Commercial catering, Flour mill, Winery, Fruit processing plant, Cooking oil factory, Cannery, Beverage Factory, Meat processing plants, Vegetable processing plant, Seasoning plant, Frozen food Factory, Snack food factory, Bakery

• After-sales Service Provided:

• Field installation, commissioning and training, Overseas service center available

• Certification:

• ISO 9001 CE

• Type:

• small tea color sorter

• X ray output:

• Maximum voltage60kV ,Maximum current 5mA,Rated power210W

• Safety:

• X-ray leakage rate : below 1μsv/h,Interlocked safety device

• Size of Detected Object:

• Maximum width: 400mm,Maximum height : 220mm

• Belt Width:

• 420mm

• Conveyor Speed:

• 10~100cm/s

• Power input:

• 220V,50Hz,AC

• Total power:

• 1200W

• Total weight:

• 360kg

Supply Ability

• Supply Ability

• 600 Set/Sets per Year

Packaging & delivery

• Packaging Details

Tea Color Sorter use wood carton packing

• Port

shanghai ,china

• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	15	To be negotiated

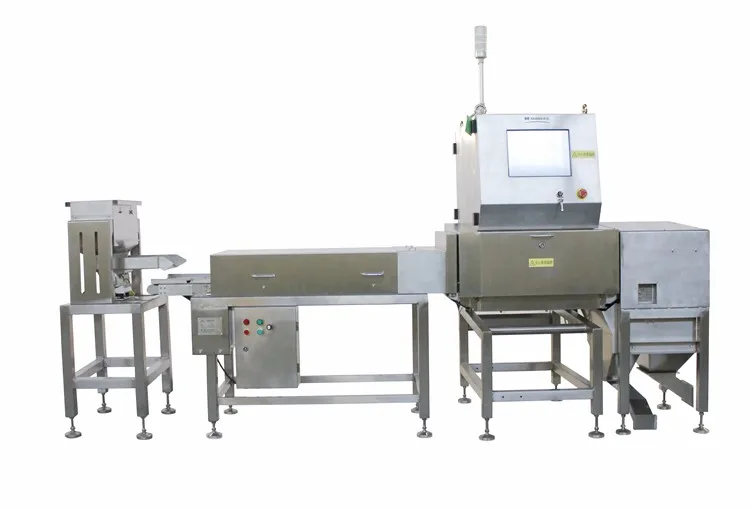

X-ray machine for food processing

Product Description

Product Introduction

1,X-ray impurity detection machine can detect and sort the bulk materials and packing materials mixed with the impurities, and is especially applied to the packing materials detection, which is the brand new detection equipment different from the color sorter

2,With rich function algorithm,the X-ray impurity detection machine can realize the impurities, missing parts and weight detection, and various mask function

3,X-ray impurity detection machine is applicable to the material detection with larger density differences, and is especially applicable to the detection of stone, metal, glass and rigid plastics

4,Friendly human-machine interface is easy for operation,superior image management system is convenient for later data analysis

5,The latest DTC5 detector has good imaging consistency, and the signal to noise ratio of normalization image is high. The physical resolution is 0.4 mm, and can realize the detection of 0.3 mm stainless steel ball. The scanning speed can be up to 1m/s

6,The transmission parts adopt the mobile structure, and are easy to remove and wash. The protection grade is up to IP66

7,Multiple safety devices to ensure human safety,the leakage rate is less than 1μsν/h

8,15-inch touch display screen is easy for operation


Imaging principle diagram for reference
