Overview

Essential details

• Condition:

• New

• Applicable Industries:

• Fish farming

• Showroom Location:

• None

• Video outgoing-inspection:

• Provided

• Machinery Test Report:

• Provided

• Marketing Type:

• New Product 2021

• Warranty of core components:

• 1 Year

• Core Components:

• other

• Place of Origin:

• Guangdong, China

• Brand Name:

• Zhonghang

• Weight:

• 245kg, 245kg

• Size:

• 670*1140*1360mm, 670*1140*1360mm

• Power:

• 5.4KW/7.24HP, 5.4KW/7.24HP

• Warranty:

• 1 Year

• Productivity:

• 100g/h

• Weight (KG):

• 245 kg

• Comodity:

• Ozone generator

• Model:

• ZH-OY-100G

• Ozone Output:

• 100g/h

• Air tube:

• Dia.4*8mm

• Voltage:

• 220V/50Hz

• Gas source dew point:

• -45℃

• Cooling mode:

• Water cooling

Supply Ability

• Supply Ability

• 2000 Unit/Units per Month

Packaging & delivery

• Packaging Details

In plywood box

• Port

Huangpu

Video Description

00:00

05:38

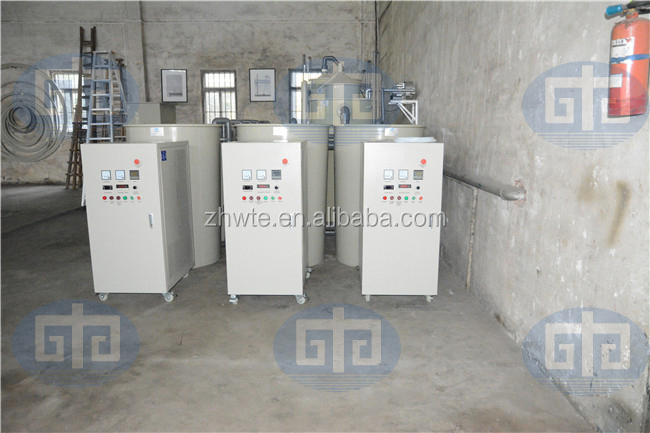

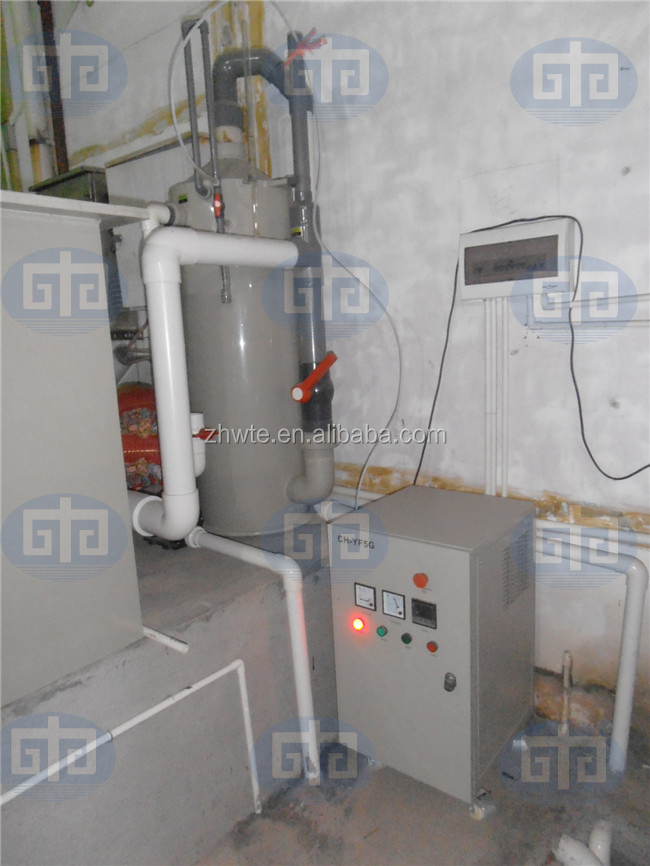

Water Treatment Ozone Generator for Indoor Fish Farm

Product Description

Ozone’s stronger oxidization property will oxidative damage and breakdown cell’s enzymes to kill different kinds of Pathogens quickly, and decolor, remove smell, improve the water quality at the same time.

Features of ZH-TY-10G Ozone generator

1. This ozone generator has an internal oxygen generator, it converts the air into oxygen first, then use oxygen to produce Ozone. So the ozone density will be high and has alow attenuation of ozone.

2. Use inner & outer air-filled type ceramic ozone generating tube technology. Low temperature rise and can work continuously, efficient and stable.

3. Adjustable. Use High frequency pulse modulation control variable power supply, can make accurate control of ozone output base on different demands.

4. Anti-oxygen and corrosion resistance material

5. Easy operate control panel. Control cabinet switch settings, can turn on/off regularly, easy operate and achieve the goal of no operator.

6. Configure intake flow switch

7. Configure a 5microns automatic drain filters, make sure the air source is clean.

8. Multiple faults monitoring function. When have a failure shutdown, it will send out sound and light alarm, make operation safe and reliable.

Products Images

Packaging & Shipping

 One Ozone Gnerator will be paked in a plywood box
