Gcabling FDB 24 core ftth ODN fiber optic termination box fibre optique terminal splitter fibra opti



Price: 6.49Dollar/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Area: China
Expiry: Long-term
Edit time: 2023-01-31 17:15
Hits: 259

Company integrity file
more>New Products
Gcabling 2core ftth 86 box loaded SC/APC fiber coupler pigtail fiber optic fiber box FTTH face plate Gcabling fiber optical terminal box 2 core FTTH SC/APC UPC 2port fibra optica 86mm access terminatio Gcabling 1KM 1 sx core fiber optic cable optical fiber cable outdoor indoor drop equipment suppliers Gcabling 8P8C RJ45 internet lan modular jacks cat 5e cat 6 UTP network module ethernet cat5e cat6 ke Gcabling FDB 8 core fiber optic termination box optical distribution ODN FTTH box fibra optica 8C fi Gcabling rj45 female conector FTP connectors ethernet coupler IP67 cat6 waterproof connector RJ45 co
Detail

Overview

Essential details

Supply Ability

Packaging & delivery

Fiber Solution

Please click here to have more details!

Products Description

 >>Send inquiry<<

Please click here to have more details!

Application

*Standard:IEC 60529,ISO 20653
*Application: for home ,hotel, office and buildings FTTB FTTH Fiber cabling system



Specification

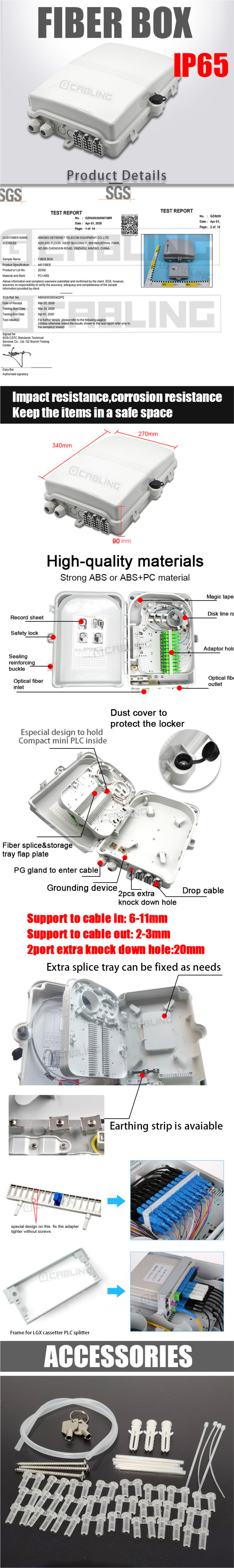

*Description: Fiber distribution box 24 ports for fiber drop cable

*Port :  2Port for fiber cable in support 6mm--12mm

             24Port for drop cable out support 2mm-5mm
*Size: 340*270*100mm
*Material: PC+ABS
*Color: gray / White / Black ... customized
*Temperature:-40℃~ 80℃
*OEM / ODM: Available




Features

1:Water-proof design with IP-65 Protection level.
2:Efficient cable management. it's Integrated with splice cassette and cable management rods to manage fibers in a reasonable fiber radius condition control more than 40mm.
4:Easy to maintain and extend the capacity.
5:Suitable for the fusion splice or mechanical splice.
7:1*8 and 1*16 Splitter can be installed as an option.
