Application

*Certification:ISO9001,ETL,CE,RoHS
*Standard:ISO/IEC-11801;ANSI/TIA-568-C.2; EN50173-1 ;
*Application:IEEE 802.3an 10Gbase-T,1000base-T,100base-Tx,10base-T,155M ATM,4/16MB Token Ring,100Mbps TP-PMD,ISDN,ADSL,Analog & Digital Voice (VoIP) /Video

*PoE PLUS COMPLIANT shielded RJ45 connector for IEEE 802.3at Power over Ethernet (PoE+) network applications up to 30W with a Cat6A Ethernet cable; Compatible with a PoE IP camera or PoE access point

Specification

*RJ45 keystone jack 8P8C
*Category：CAT6a Cat6 Shielded

*IDC : Toolless type
*Working life: >750 times Min for socket;

                         >200times min for IDC;

*Wiring Scheme：T568A / T568B
*QC:100% testing
*Voltage rating: 125VCA RMS *Current rating: 1.5Amp
*Contact resistance: 100 MILLIOHMS MAX
*Insulation Resistance:1000 MEGOHMS MIN@500VDC
*Dielectric strength: 750 VAC RMS, 60Hz 1min
*Humidity:10% ~ 90%RH
*Temperature:-20℃~ 60℃
*OEM /ODM:Available

Feature

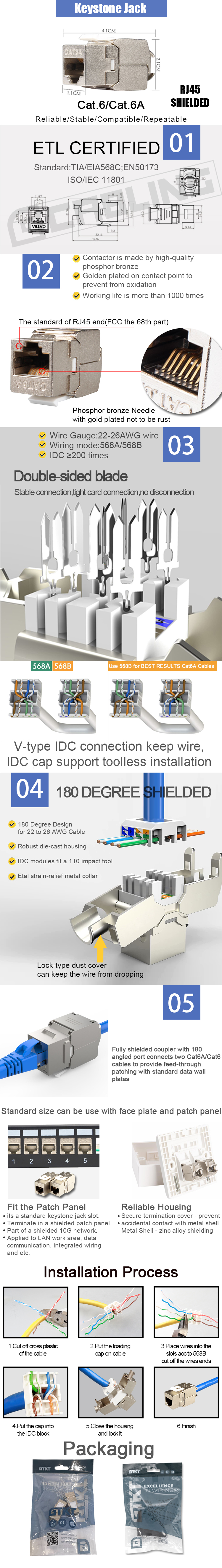

* Full metal Jacket RJ45 Shielded Keystone jacks fit a standard wall plate or patch panel with a keystone blank outlet, supports 22 to 26 AWG solid or stranded wire, compatible with cat6a/cat6/cat5e/cat5 ethernet sftp/ftp/utp cables.
* 180 Degree Easy Termination Jack supports tool-free, A 180 degree wide-angle, hinged design provides easy access and termination; Dual IDC modules have universal T568-A or T568-B labels
* Superior Construction combines one piece metal keystone with an integrated silencing cylinder to suppress EMI/RFI, NEXT, and AXT; Stickers on the inside prevent accidental contact with the metal housing; IDC module covers assist with cable strain relief;
* Snap-in retaining clip ensures a secure connection. Plug in a Cat6A patch cable to connect .
