Overview

Essential details

• Model Number:

• 24192

• Type:

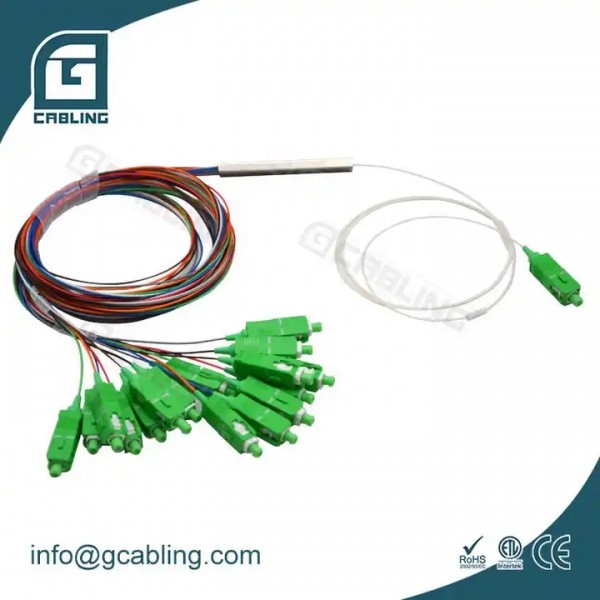

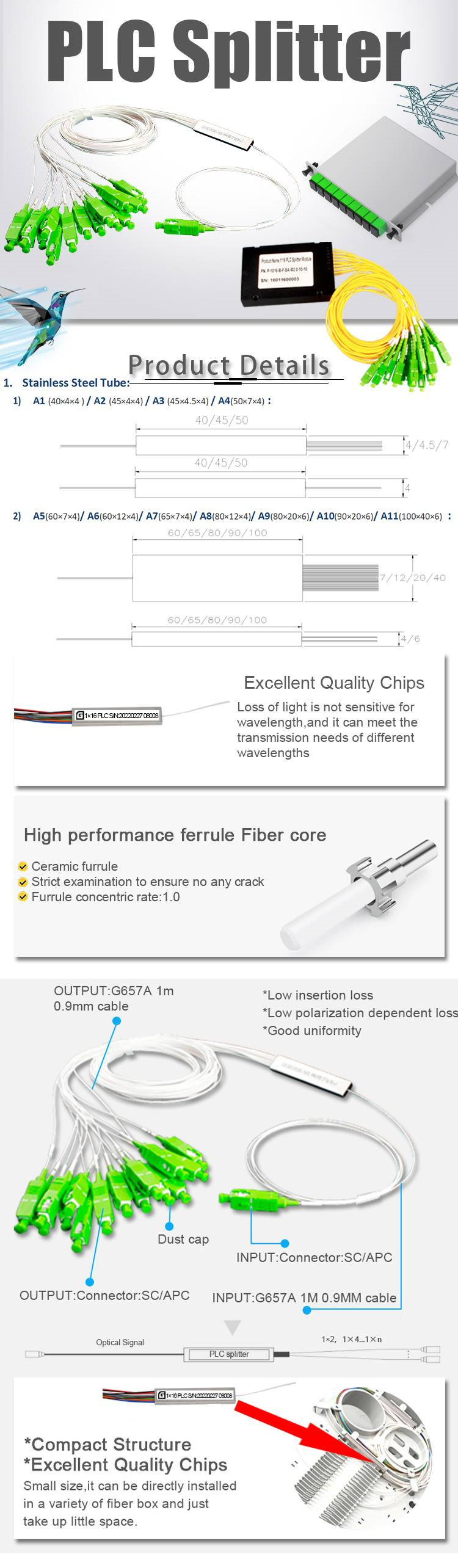

• Fiber optic PLC Splitter

• Place of Origin:

• Zhejiang, China

• Brand Name:

• Gcabling or OEM

• Use:

• FTTB FTTC FTTH Fiber cabling system

• Warranty Time:

• 10YEARS

• Network:

• Wireless Lan, Wired LAN, TCP, Ip, GPRS, wifi, 4g, GSM, 5G

• Type of splitter:

• Fiber Optic PLC splitter

• Type of connector:

• SC connector

• Type of end:

• APC / UPC

• Type of PLC:

• 1x4 1x8 1x16 1x32 1X64 2X4 2X8 2X16 2X32 2X64

• Type of fiber cable:

• Singlemode SM

• Diameter of fiber wire:

• 0.9mm or 2.0mm

• Spec of fiber wire:

• G657A1 / G657A2

• Operating Wavelength(nm):

• 1260~1650

• Operating temperature:

• -40℃~85℃

• Standard:

• GR-326-CORE; IEC 61300-3-4

Packaging & delivery

• Selling Units:

• Single item

• Single package size:

• 25X13X3 cm

• Single gross weight:

• 0.200 kg

• Package Type:

• 1PC or 2PCS per blister box

• Lead time:

• Quantity(pieces)	1 - 5000	>5000
  Lead time (days)	15	To be negotiated
