Gcabling 12 sx core pigtail 2M SC LC APC UPC SM LSZH G657A 0.9mm Singlemode 9/125 colours fiber opti



Price: 7.00Dollar/Piece
Min quantity: 1 Piece
Quantity: 999 Piece
Deliver: In 7 days
Area: China
Expiry: Long-term
Edit time: 2023-01-31 17:09
Hits: 258

Company integrity file
more>New Products
Gcabling 2core ftth 86 box loaded SC/APC fiber coupler pigtail fiber optic fiber box FTTH face plate Gcabling fiber optical terminal box 2 core FTTH SC/APC UPC 2port fibra optica 86mm access terminatio Gcabling 1KM 1 sx core fiber optic cable optical fiber cable outdoor indoor drop equipment suppliers Gcabling 8P8C RJ45 internet lan modular jacks cat 5e cat 6 UTP network module ethernet cat5e cat6 ke Gcabling FDB 8 core fiber optic termination box optical distribution ODN FTTH box fibra optica 8C fi Gcabling rj45 female conector FTP connectors ethernet coupler IP67 cat6 waterproof connector RJ45 co
Detail

Overview

Essential details

Packaging & delivery

Video Description

00:00

00:22

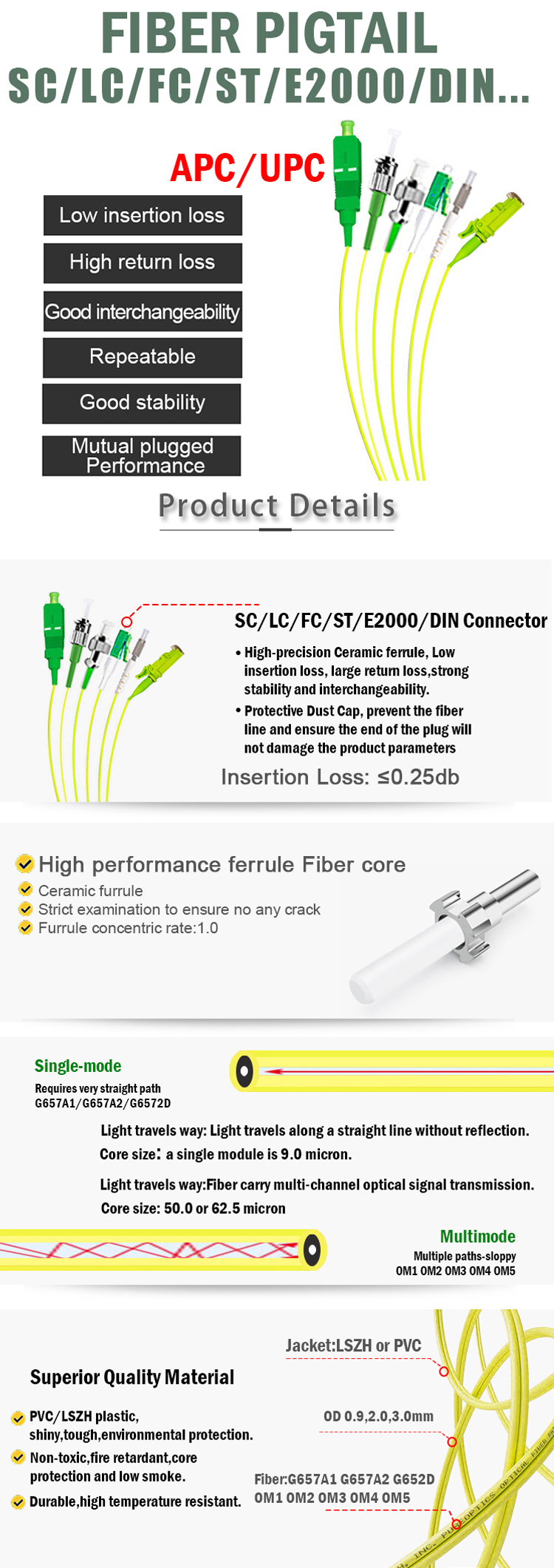

Products Description


Application

*Standard: IEC 61300-3-4; GR-326-CORE; IEC 60874-1

*Application: CATV, FTTH FTTB FTTX Network cabling system
* 100% inspected both on performance and endface finishing

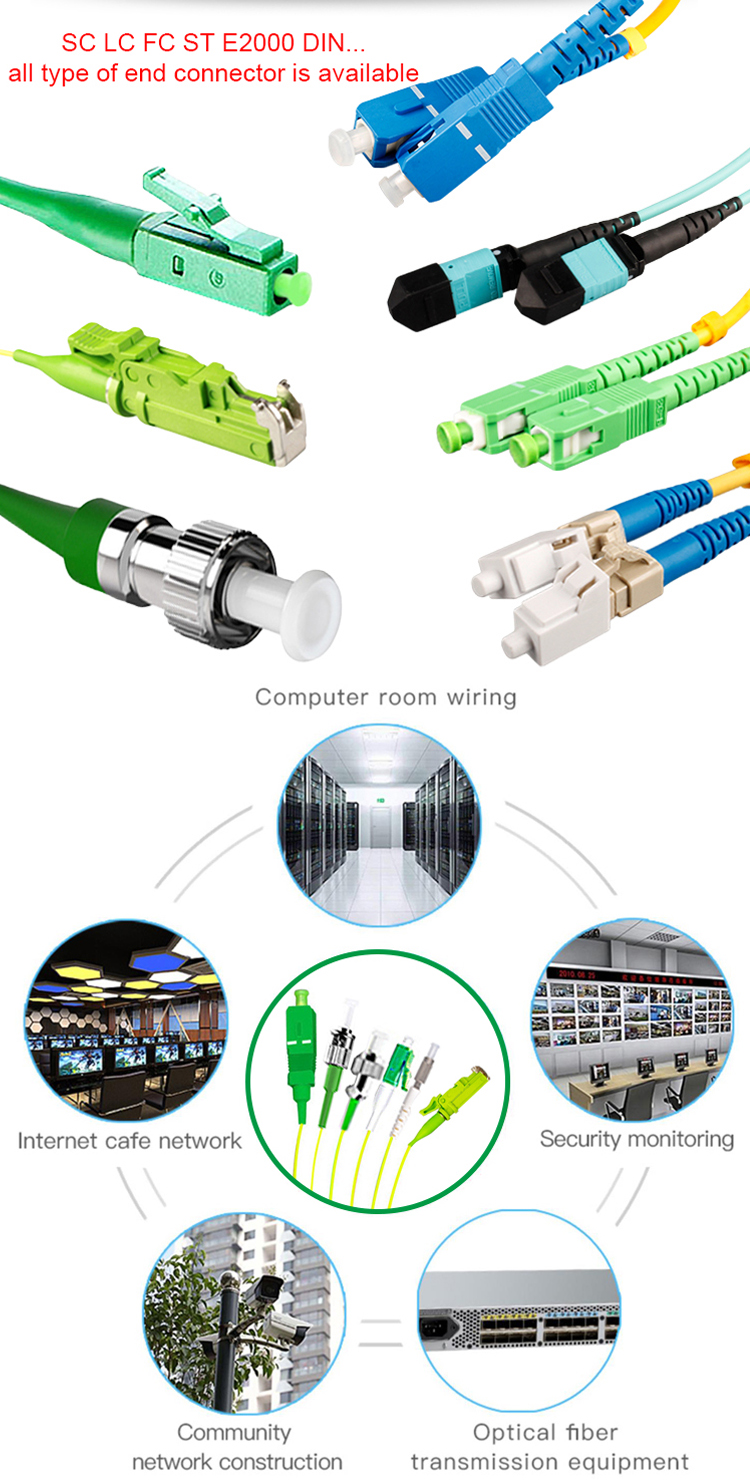

Type of connector

SC, LC, FC, ST, E2000, MPO/MTP, , DIN, MT-RJ

Number of fiber:

Simplex , Duplex , 4 cores , 6 cores , 8 cores , 12 cores

Cable jacket OD(mm)

Typical: 0.9mm , 2.0mm , 3.0mm (1.2mm , 1.6mm , 1.8mm , 2.4mm optional)

Cable length:

1M, 1.5M 2M , 3M ,

Type of Fiber

Singlemode SM


Spec of Fiber core

G652D/G657A1/G675A2


Cable color:

yellow , white , blue ,orange , green , brown , gray , red , black , Violet , Pink , Auua


Operating wavelength(nm)

1310, 1550

Fiber diameter(um)

9/125


Endface type

UPC

APC




Typical Insertion Loss(dB)

≤0.3

≤0.3





Return Loss(dB)

≥50

≥55





Exchangeability

≤0.2

Vibration

≤0.2
