Overview

Essential details

• Type:

• Offset Printer

• Applicable Industries:

• Printing Shops, Advertising Company

• Showroom Location:

• Uzbekistan

• Condition:

• Used

• Plate Type:

• Flatbed Printer

• Place of Origin:

• Japan

• Brand Name:

• ryobi

• Usage:

• Paper Printer, Label Printer, Card Printer, Bill Printer

• Automatic Grade:

• Automatic

• Color & Page:

• Multicolor

• Voltage:

• 380v

• Year:

• 2016

• Make:

• komori

• Dimensions(L*W*H):

• 4330x1820x1720mm

• Weight:

• 9000 KG

• Warranty:

• 1 Year

• Key Selling Points:

• Automatic

• Marketing Type:

• Ordinary Product

• Machinery Test Report:

• Provided

• Video outgoing-inspection:

• Provided

• Warranty of core components:

• 6 Months

• Core Components:

• Bearing, Motor, PLC

• Application:

• Brochures posters, magazines ,paper card

• PLATE SIZE:

• 510x410x0.15mm

• Printing speed:

• 12000sheet per hour

• Color:

• 4-5 colors

• Min sheet size:

• 520x360mm

• Material:

• 28-450gsm

• plate laoding:

• automatic

Supply Ability

• Supply Ability

• 10 Set/Sets per Month

Packaging & delivery

• Packaging Details

Seaworthy packaging 20 or 40ft container

• Port

Qingdao

• Picture Example:

•

• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	15	To be negotiated

Video Description

00:01

00:49

Product Overview

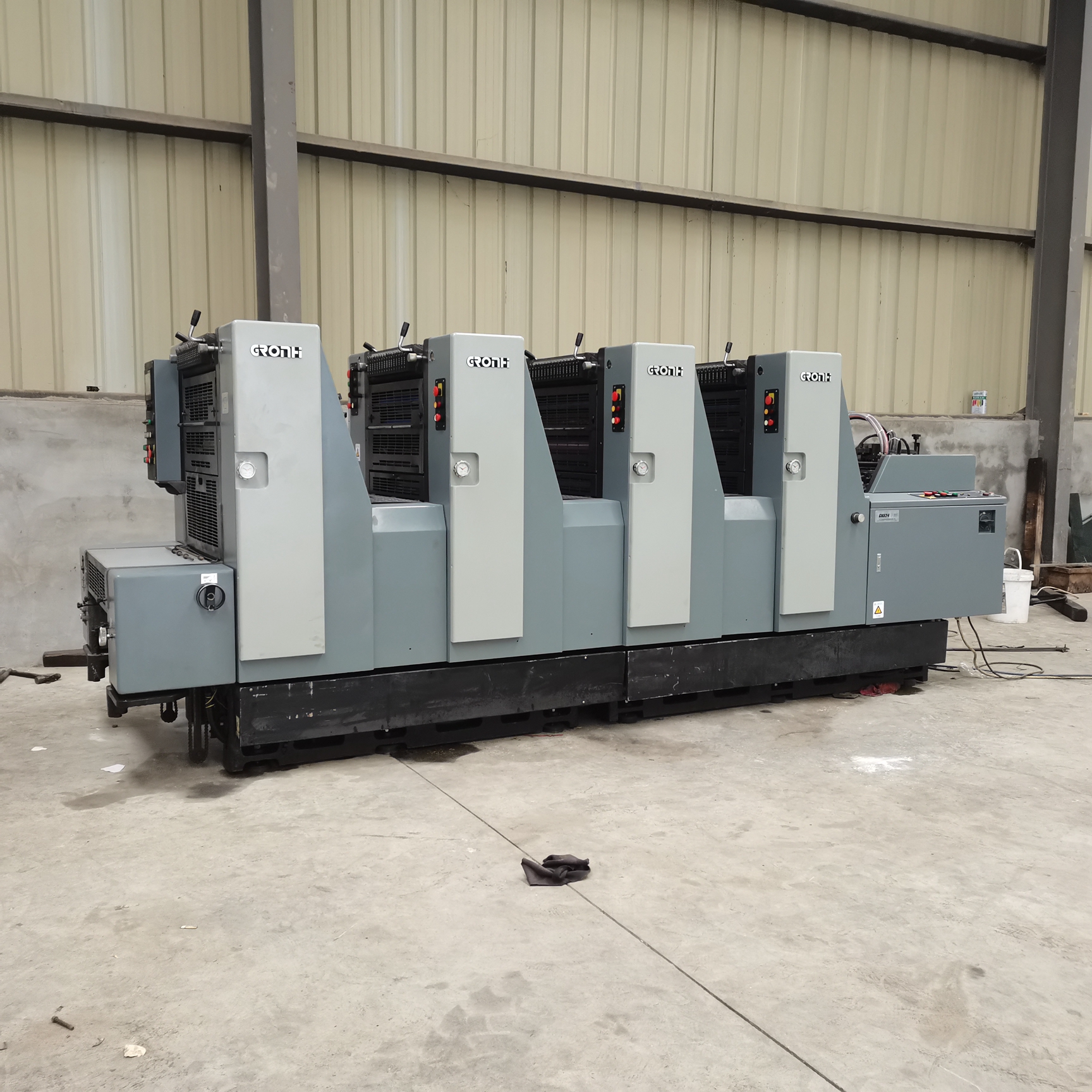

Ryobi Komori akiyama shinohara HANS GRonHI AUTOMATED 52CM FOUR COLOUR PRESS REFURBISHED GH524

refurbished shinohara gronhi GH524 , the machine 90% new,  Machine working speed is 12000sheet Per Hour, Auto plate laoding( 4 plate only need 2 minutes). Computerized registration, Acohol Dampening system. Super printing quality for CMYK magzines,bruchures, posters. Price is very cheap.

FEATURES AT A GLANCE

High levels of automation

Low power consumption Low cost consumables Small footprint Super fast makeread

Low cost per sheet High end commercial quality

00:01

04:59

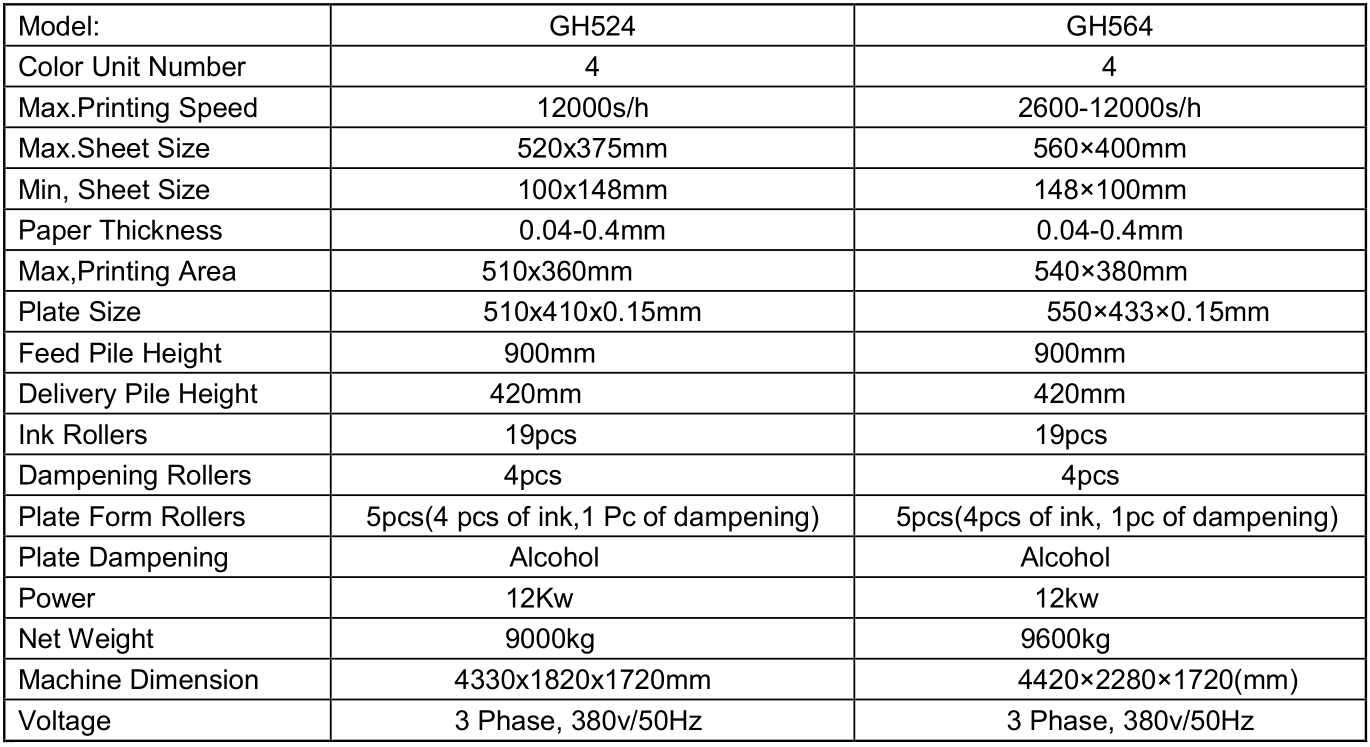

PRODUCT SPECIFICATIONS

PRODUCT CONFIGURATION

Our Advantages

Stream feeder with suction belt feed board Mechanical and ultrasonic double sheet detection Pneumatic side lay Continuous monitoring of sheet arrival at front lays Semi automatic plate loading with pre load facility Precision laser cut segmented ink keys Continuous metered dampening system with an oscillating bridge roller and pre-damp facility Optional integrated or separated dampening during production Speed compensated damping Automated refrigeration - recirculation and dosing unit Cylinder movement-circumferential-lateral and diagonal Quick release blankets Touch screen controls Programmable pre-dampening cycle Powder spray unit with heated reservoir and vibration Three motorised suction slow down devices Sheet de-curler Air shower in delivery Central oil shower lubrication system Pneumatically controlled operation
