Overview

Essential details

• Type:

• Offset Printer

• Applicable Industries:

• Printing Shops, Advertising Company

• Showroom Location:

• Uzbekistan

• Condition:

• Used

• Plate Type:

• Flatbed Printer

• Place of Origin:

• Germany

• Brand Name:

• Roland

• Usage:

• Paper Printer, Label Printer, Card Printer, Bill Printer

• Automatic Grade:

• Automatic

• Color & Page:

• Multicolor

• Voltage:

• 380v

• Year:

• 2016

• Make:

• Roland

• Dimensions(L*W*H):

• 7972x3140x2014mm

• Weight:

• 27800 KG

• Warranty:

• 1 Year

• Key Selling Points:

• Sustainable

• Marketing Type:

• Ordinary Product

• Machinery Test Report:

• Provided

• Video outgoing-inspection:

• Provided

• Warranty of core components:

• 6 Months

• Core Components:

• Bearing, Motor, PLC

• Application:

• Brochures posters, magazines ,paper card

• Max Sheet Size:

• 720x1020mm

• Min sheet size:

• 300x393mm

• PLATE SIZE:

• 773x1030mm

• Printing speed:

• 12000sheet per hour

• Color:

• 4-5 colors

• Material:

• 28-450gsm

• plate laoding:

• quick action clamp

Supply Ability

• Supply Ability

• 10 Set/Sets per Month

Packaging & delivery

• Packaging Details

Seaworthy packaging 20 or 40ft container

• Port

Qingdao

• Picture Example:

•

• Lead time:

• Quantity(sets)	1 - 1	>1
  Lead time (days)	15	To be negotiated

Video Description

00:00

00:30

Product Overview

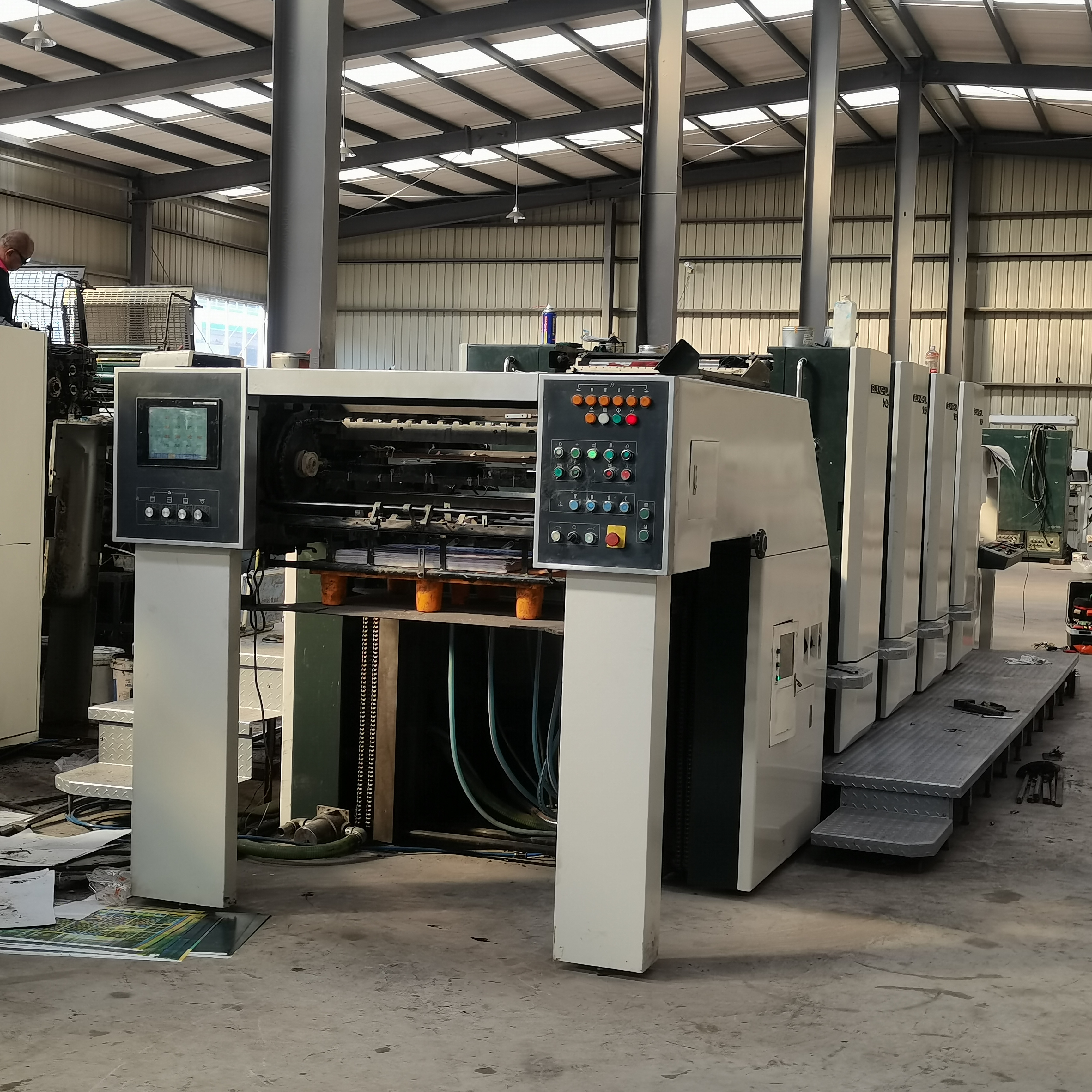

Refurbished  Man roland 4 color colour offset printing machine offset printer

refurbished  , the machine 90% new,  Machine working speed is 12000sheet Per Hour, Auto plate laoding( 4 plate only need 2 minutes). Computerized registration, Acohol Dampening system. Super printing quality for CMYK magzines,bruchures, posters. Price is very cheap.

FEATURES AT A GLANCE

1. CIP3 color control system 2. Touch screen with man-machine conversation 3. Pneumatic component imported 4. Dampening system 5. Vacuum pump from Taiwan 6. Dry-pump from Orion 7. Center-control oiling system 8. Computer control punching machine

00:00

00:22

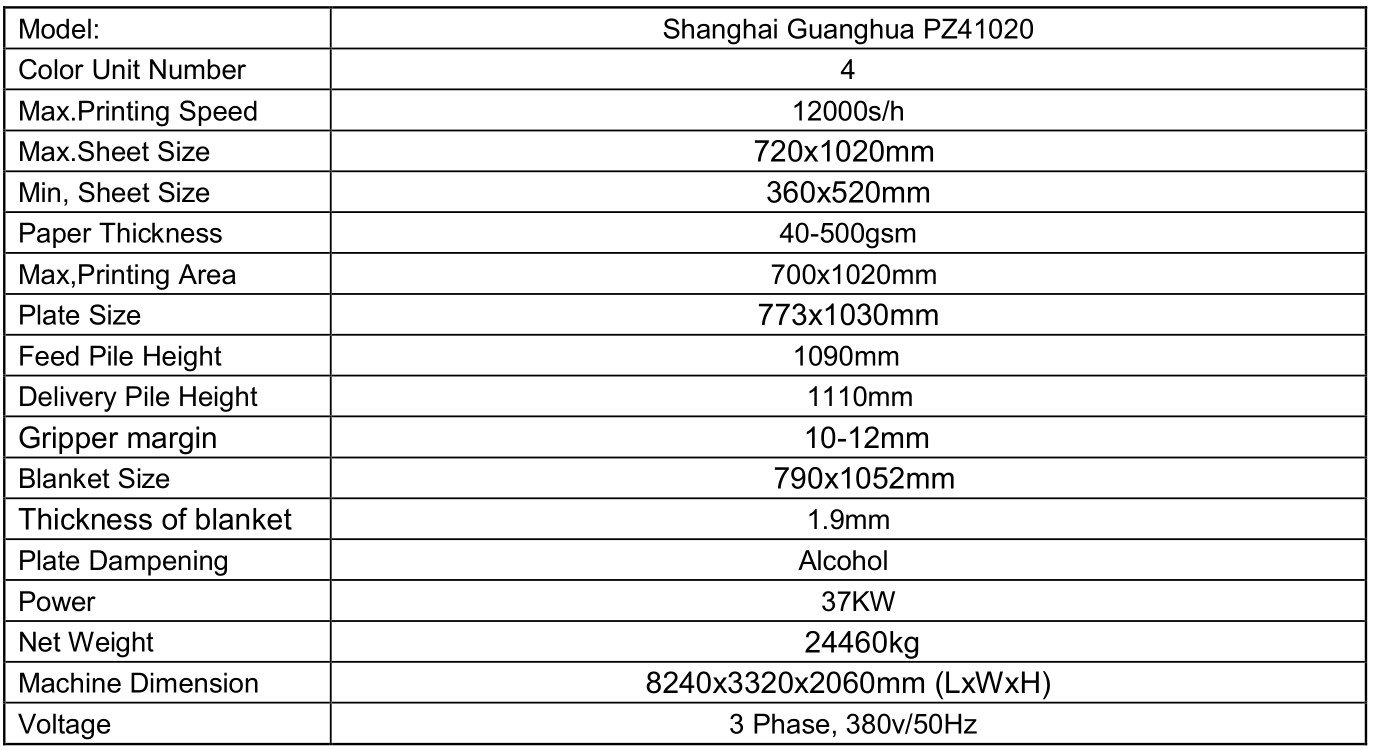

PRODUCT SPECIFICATIONS

PRODUCT CONFIGURATION

Our Advantages

Stream feeder with suction belt feed board Mechanical and ultrasonic double sheet detection Pneumatic side lay Continuous monitoring of sheet arrival at front lays Semi automatic plate loading with pre load facility Precision laser cut segmented ink keys Continuous metered dampening system with an oscillating bridge roller and pre-damp facility Optional integrated or separated dampening during production Speed compensated damping Automated refrigeration - recirculation and dosing unit Cylinder movement-circumferential-lateral and diagonal Quick release blankets Touch screen controls Programmable pre-dampening cycle Powder spray unit with heated reservoir and vibration Three motorised suction slow down devices Sheet de-curler Air shower in delivery Central oil shower lubrication system Pneumatically controlled operation

Products Description

Feeder: 1. Non-stop feeder 2. Ultrasonic double sheet detector 3. Detector for over-sheet in front-lay 4. Detector in side-lay 5. Static-feed device(option)

Printing unit 1. Double diameter impression cylinder(φ540) 2. Pneumatic control impression 3. Remote control device of plate adjustment in circumferential & axial & diagonal directions 4. Continuous dampening system 5. Remote control of dampening feed 6. Inking key remote control(option) 7. Semi-automatic plate changing device(option) 8. Plate-bending device(option) 9. Impression automatic adjustment(option) 10. Inking-system auto wash(option) 11. Blanket auto wash device(option)

1. High-pile with non-stop delivery 2. Vacuum paper transfer system 3. Paper bending release 4. Power spray 5. Electrical power spray(option) 6. Static-free device(option)
