Overview

Essential details

• Products Status:

• Stock

• Type:

• Barcode Scanner

• Scan Element Type:

• 1D/2D Imager

• Optical Resolution:

• WVGA 752 H x 480 V pixels

• Brand Name:

• ZEBRA RS507 Ring Scanner

• Place of Origin:

• China

• Warranty(Year):

• 1-Year

• After-sales Service:

• Repair

• Light source:

• Led

• Aiming Element:

• 655 nm ± 10 nm Visible Laser

• Illumination Element:

• 637 nm ± 20 nm Red LEDs

• Battery:

• Li-Ion 970mAh, 3.7V / Li-Ion 1940mAh, 3.7V

• Drop Specification:

• 6 ft./1.8 m multiple drops to concrete

• Sealing:

• IP54

• Humidity:

• 5% to 85% (non-condensing)

• Certification:

• FCC, Ce, RoHS

• Operating Temperature:

• -4° to 131° F/-20° to 55° C

• Weight:

• Triggerless, standard battery: 4.3 oz./121.4 g

Packaging & delivery

• Packaging Details

New in Box

• Lead time:

• Quantity(pieces)	1 - 10	>10
  Lead time (days)	3	To be negotiated

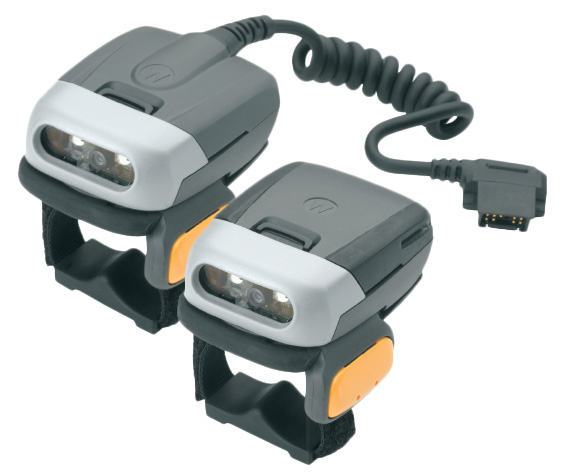

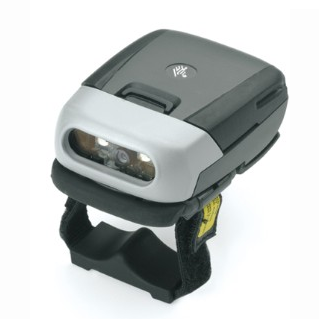

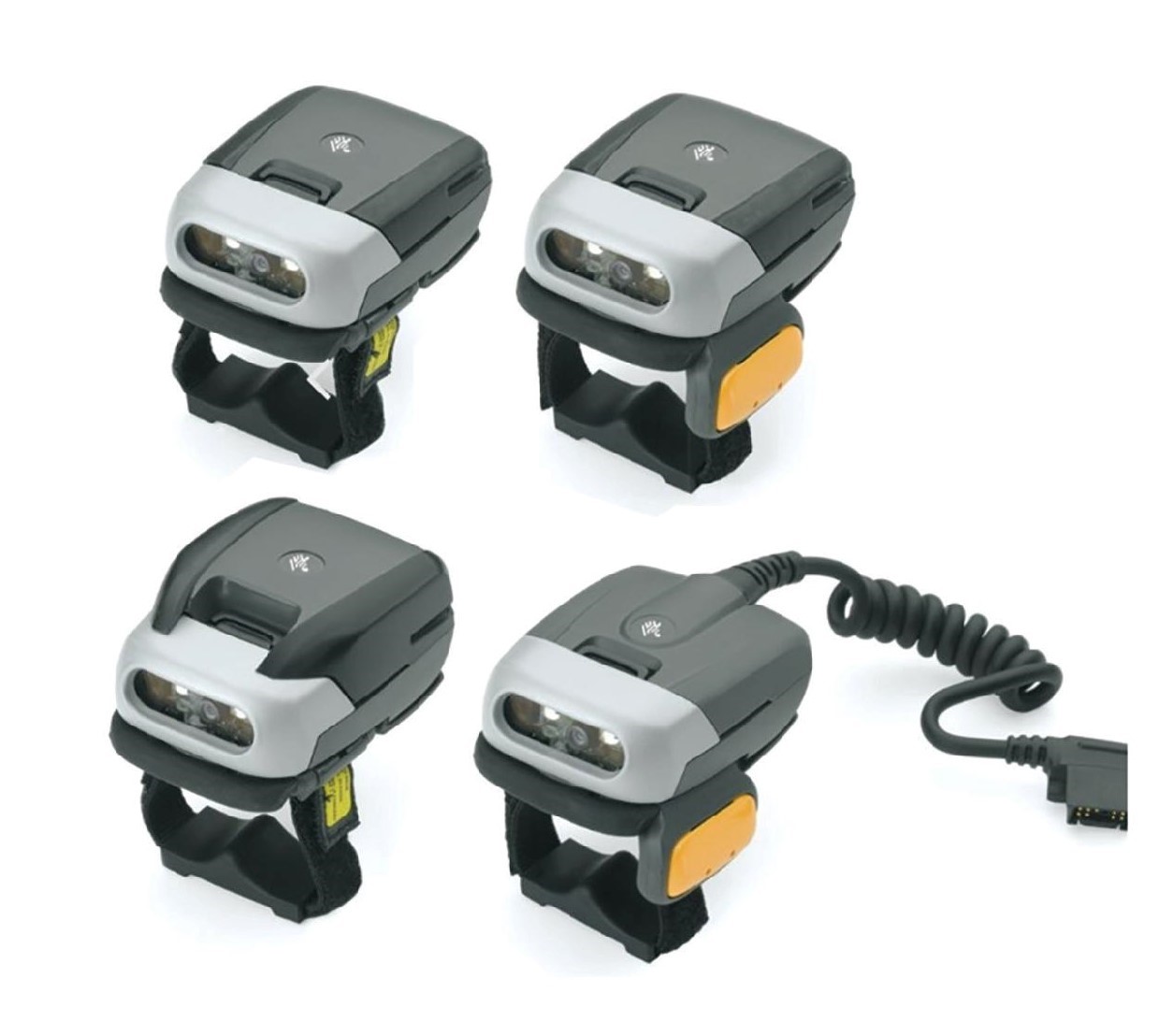

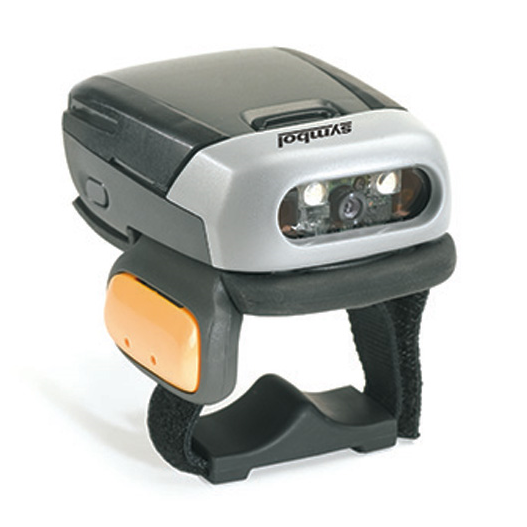

ZEBRA RS507 Hands-Free Imager
Hands-free cordless 1-D/2-D scanning

Increase productivity in scan intensive applications with maximum flexibility, comfort, functionality and performance

Whether your workers are handling and sorting packages, picking or loading shipments in the warehouse or scanning bar codes to meet government regulations for tracking and tracing of product, the RS507 Hands-Free Imager from Zebra delivers the superior blend of technology, form and function your workers need to achieve a new level of scanning efficiency in your operations. The advanced design offers more features and functionality than any other ring
scanner available today. Truly superior ergonomics, including Blue tooth cordless freedom, provide unparalleled user comfort. The unmatched rugged design ensures reliable operation in the most demanding environments. Best-in-class scanning, including support for 1-D and 2-D bar codes, ensures first time every time fast and accurate capture of virtually any bar code. The RS507 pairs easily with most Zebra Mobile Computers, allowing you to extend hands-free
cordless scanning to your workers wherever it will improve productivity. Optional corded adapter for Zebra’s WT4000 provides an easy and cost-effective upgrade path to 1-D and 2-D bar code scanning — without any compromise in scanning performance. The RS507 will complement any voice picking application with hands-free bar code scanning.
