DC Photovoltaic permanent magnet brushless Double-barrelled self-priming solar surface water pump (e



Price: 145.00Dollar/Piece
Min quantity: 100 Piece
Quantity: 10000 Piece
Deliver: In days
Area: China
Expiry: Long-term
Edit time: 2022-10-31 10:17
Hits: 5496

Company integrity file
more>New Products
Hot sale AC/DC Photovoltaic brushless permanent submersible solar water pump set Deep Well Submersible Water Pump borehole pumps 1 HP DC brushless Cast Iron permanent magnet submersible deep-well solar water pump (internal and ex Top Quality Cast Iron Deep Well Pump Brushless Agriculture Dc Solar Submersible Pump Superior Quality Agriculture Irrigation Pump 138v Brushless Solar Dc Iron Cast Water Pump 3 Inch Agriculture Water Pump Solar Stainless Steel Brushless Dc Motor Water Pump
Detail

Overview

Essential details

Packaging & delivery

Product Description

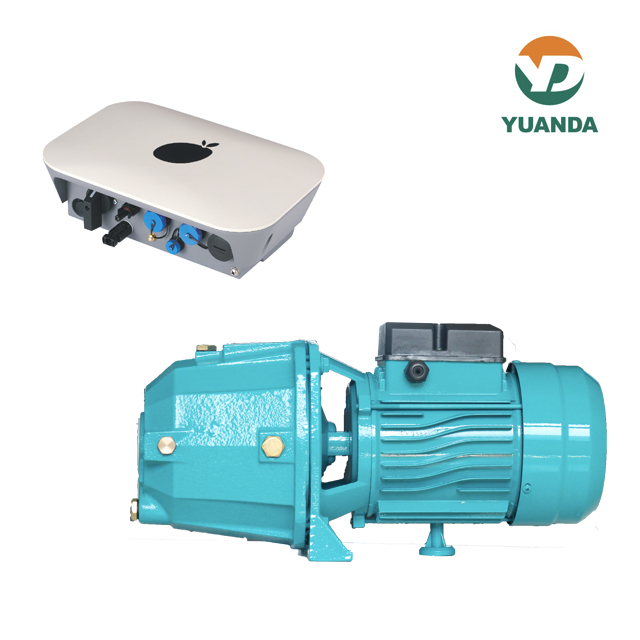

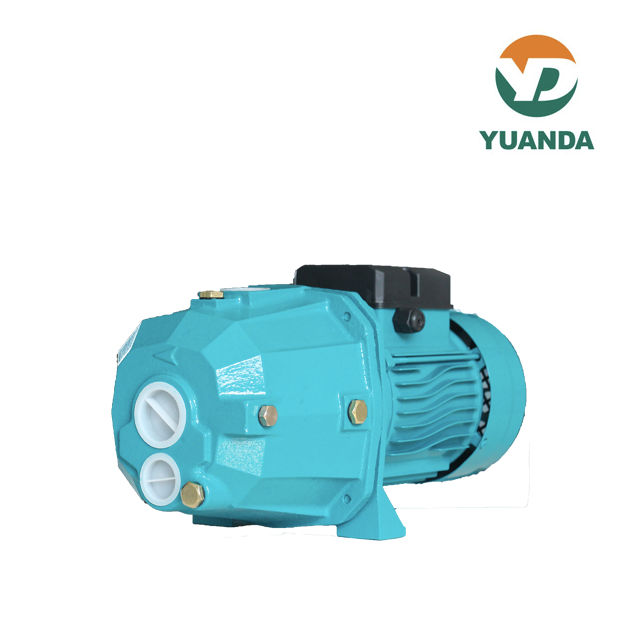

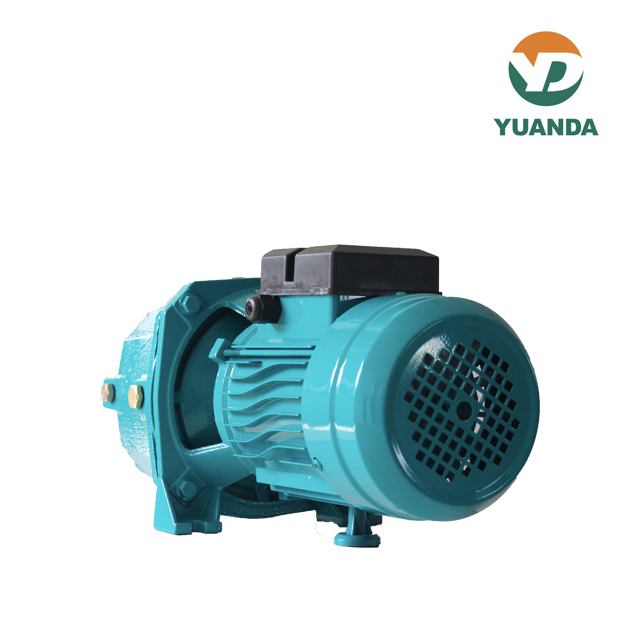

Self-priming double-barrelled surface Solar pump with AC/DC Controller


This surface pump can be widely used for wide-distance water irrigation, gardening aquaculture, etc., because of the high power, maximum head and high efficiency.


In addition, because of the Solar panel, solar power is one of the new energy to be alternative with the electricity power, which is utility in somewhere is not able to use electricity.

It is also an environmentally friendly pump.

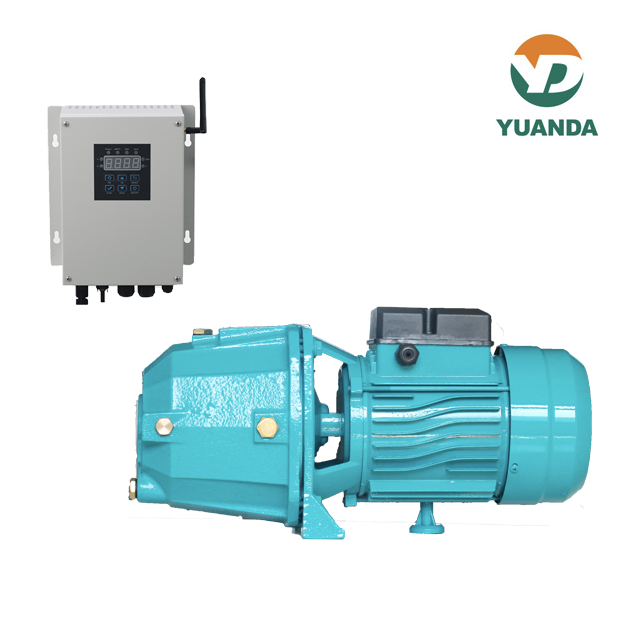

Self-priming double-barrelled surface Solar pump with External Controller

MODEL

VOLTAGE (v)

 POWER

(w)

MAXIMUM FLOW (m³/h)

OUTLET

HIGHEST LIFT(m)

SZX108/750-2.1-58

108

750

2.1

58

Details Images



         Solar panels


MAIN  FEATURES:

1) The pump is partly made by cast iron and plastic, such as outlet, pump body and shaft core.

2) It is a self-priming double-barrelled surface pump with external controller/AC/DC controller.

4) It's a DC pump

5) Motor type is permanent magnet motor

4) The External Controller is with MPPT Function and can use cell phone to control the controller to achieve remote operation.

5) Pump is with Oil cooling

6) Automatically recovery by the water- level fluctuation.

7) High Quality with tests before delivery

8) Energy saving


* The suction head of pump is 20m.

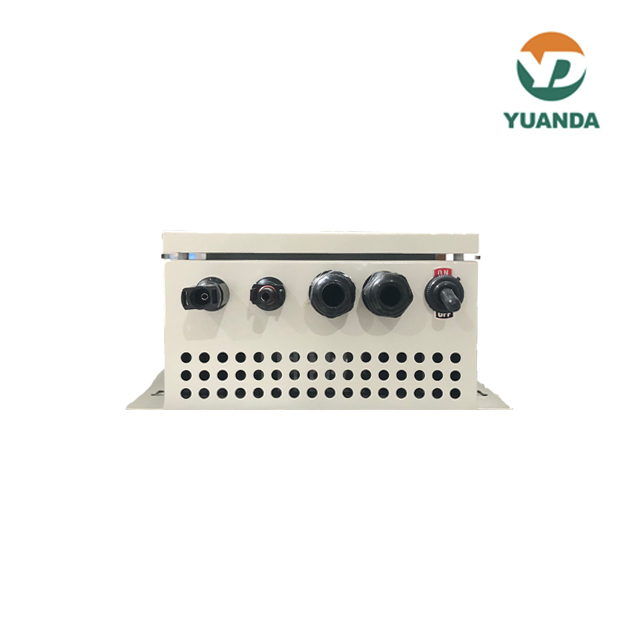

AC/DC Controller

Functions of controller:

1. Switching to AC or DC automatically
2. Intelligent operating
3. Intelligent and immediate indication for issues
4. Clearly display the situation of pumps
5. Low-voltage protection (automatically)
6. Over current protection (automatically)
7. Temperature protection
8. Lack of phase protection
9. Protection for low water level in well (WEL, GND sensor)
10. Protection for full water in tank (TH, GND sensor)
11. MPPT function


① - Breather valve
② - The switch of the controller
③ - Solar panel connector (negative electrode)
④ - Solar panel connector (positive electrode)
⑤ - Antenna of remote control
⑥ - AC connector
⑦ - 2 water level sensors (well and tank)
⑧ - Motor of pump connector
⑨ - The switching adjust button

⑩ - SIM card ( installing inside of it)
⑪ - Earthing

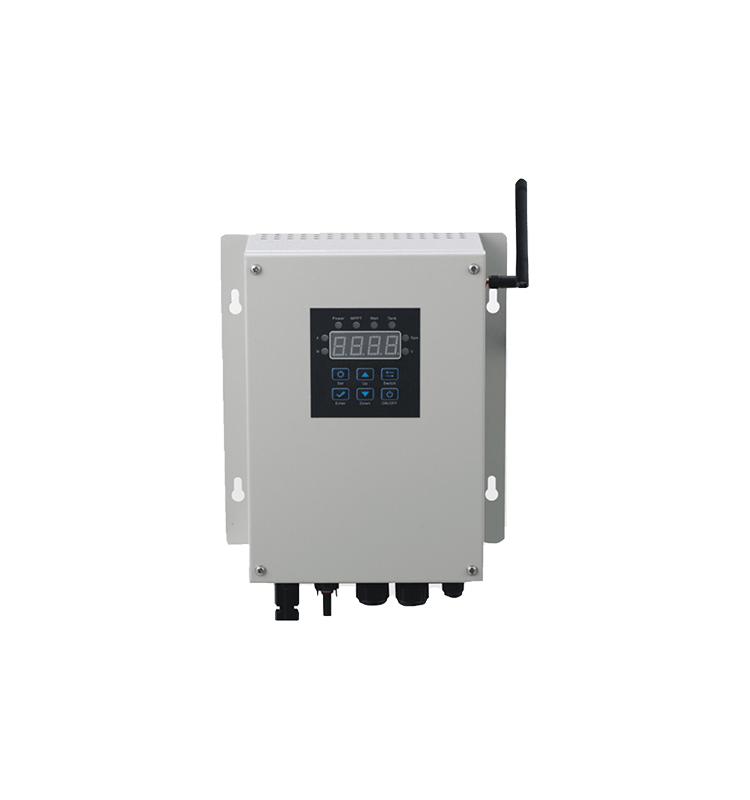

The External Controller


The Functions:

A. Low-voltage protection (automatically)
B. Over current protection (automatically)
C. Temperature protection
D. Lack of phase protection
E. Protection for low water level in well (WEL, GND sensor)

F. Protection for full water in tank (TH, GND sensor)
G. MPPT function
H. Optional choice of battery with solar battery charging system

I. Optional SIM card: pump can be turned on or off by your cell phone

J.  Intelligent controller display for malfunction

Product packaging

We have wooden and carton packing box

We also can packing with customer's specific requirement.




PACKING SERVICE

Customers can require the method and material of package, such as Carton and wooden box, etc.
