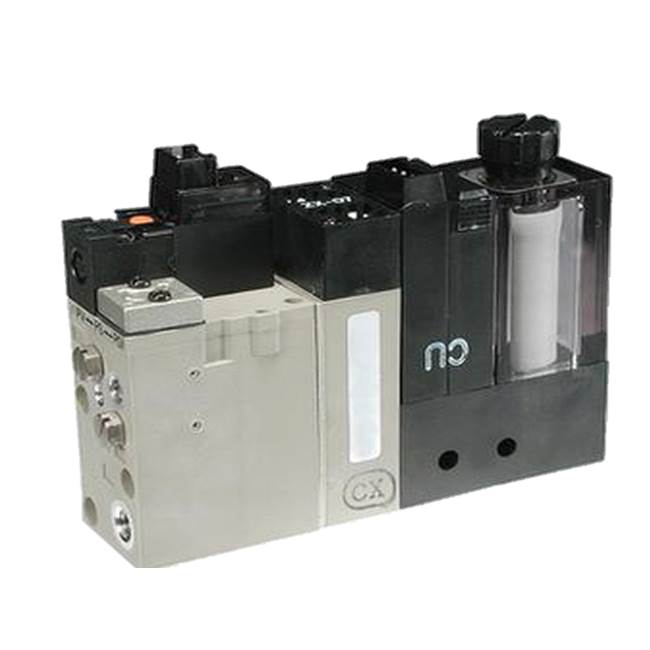

ZX series SMC Vacuum Module: Ejector System ZX1101-K15LZ-F-X121

Price:$100.00/Piece
Min quantity:100Piece
Quantity:10000Piece

Buy

Overview

Essential details

• Place of Origin:

• China

• Brand Name:

• SMC

• Model Number:

• ZX1101-K15LZ-F-X121

• Product name:

• ZX series SMC Vacuum Module: Ejector System

• Type:

• Vacuum Module

• Model:

• ZX1101-K15LZ-F-X121

• Color:

• Black & White

• Operating temperature range:

• -5 to 50°C

• Supply pressure range:

• 0.3 to 0.6 MPa

• Rated voltage:

• 24 VDC / 12 VDC

• Power consumption:

• 0.35 W

• Valve construction:

• Poppet seal

• Manual override:

• Push type

Supply Ability

• Supply Ability

• 200 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

40*30*30 cm

• Port

Taiwan

• Lead time:

• Quantity(pieces)	1 - 20	>20
  Lead time (days)	5	To be negotiated

Video Description

00:00

00:34

ZX series SMC

Vacuum Module: Ejector System

Product Description
