Overview
Essential details
Place of Origin:
Taiwan, China
Brand Name:
MEAN WELL
Model Number:
NDR-120-48
Output Power:
120W
Output Type:
Single
Input Voltage:
90 ~ 264 VAC, 127 ~ 370 VDC
Output Voltage:
48V
Output Frequency:
47~63 Hz
Output Current:
2.5A
Product Name:
NDR-120-48 48V 120W Mean Well Single Output Switching Power Supply
Ripple & Noise:
150 mVp-p
Efficiency:
89 %
Overload:
105 ~ 130 % rated output
Type of Shipping:
Express
Standards:
TUV / EAC / TP / TC
Working Temp:
-20 ~ +70°C
Humidity:
10 ~ 90 % RH

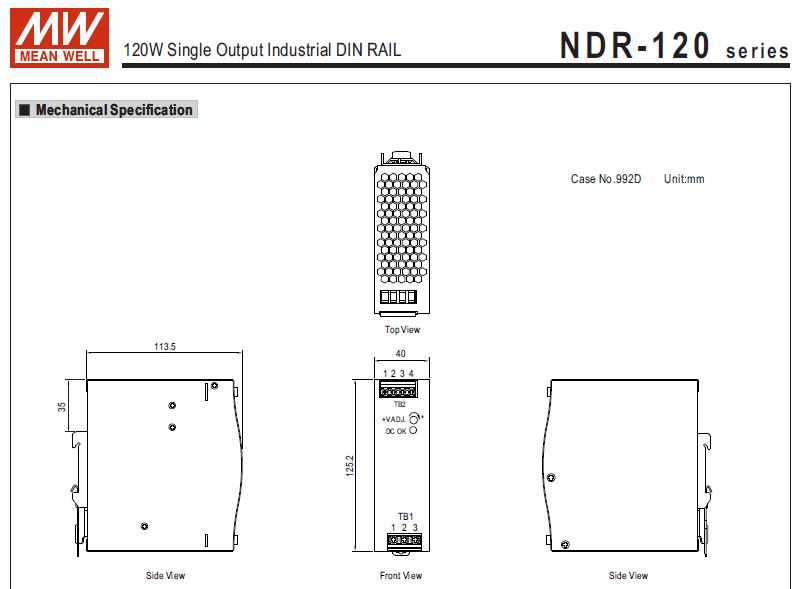

Dimension (L*W*H):
40 * 125.2 * 113.5 mm
Weight:
0.6 kg
Supply Ability
Supply Ability
200 Piece/Pieces per Month
Packaging & delivery
Packaging Details
40*30*30 cm
Port
Taiwan
Picture Example:
Lead time:
Quantity(sets) 1 - 1 >1 Lead time (days) 20 To be negotiated
Video Description

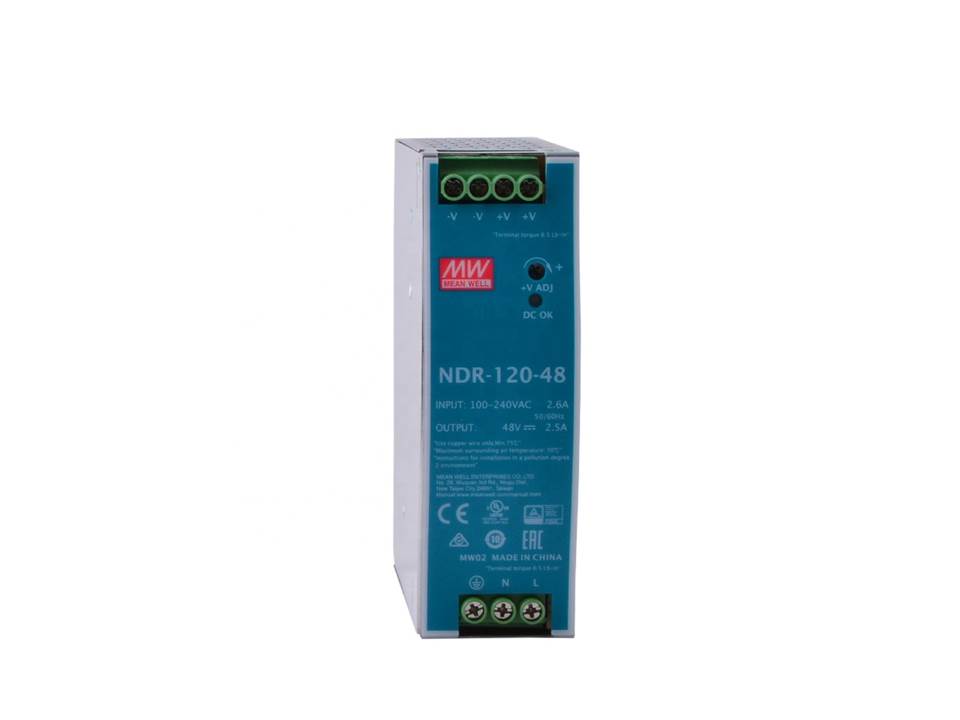

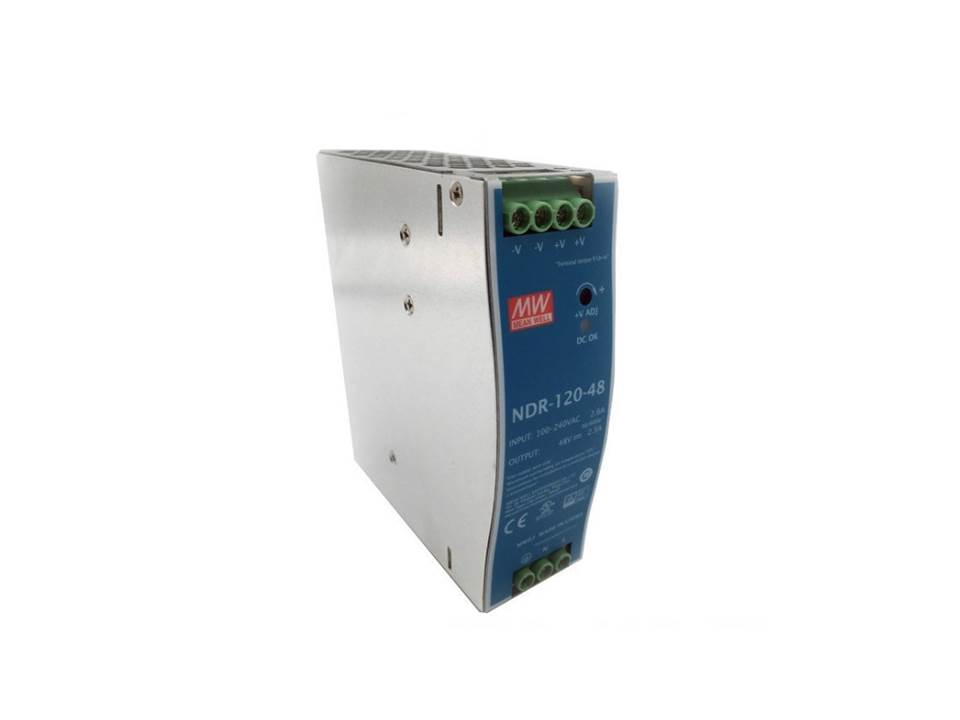

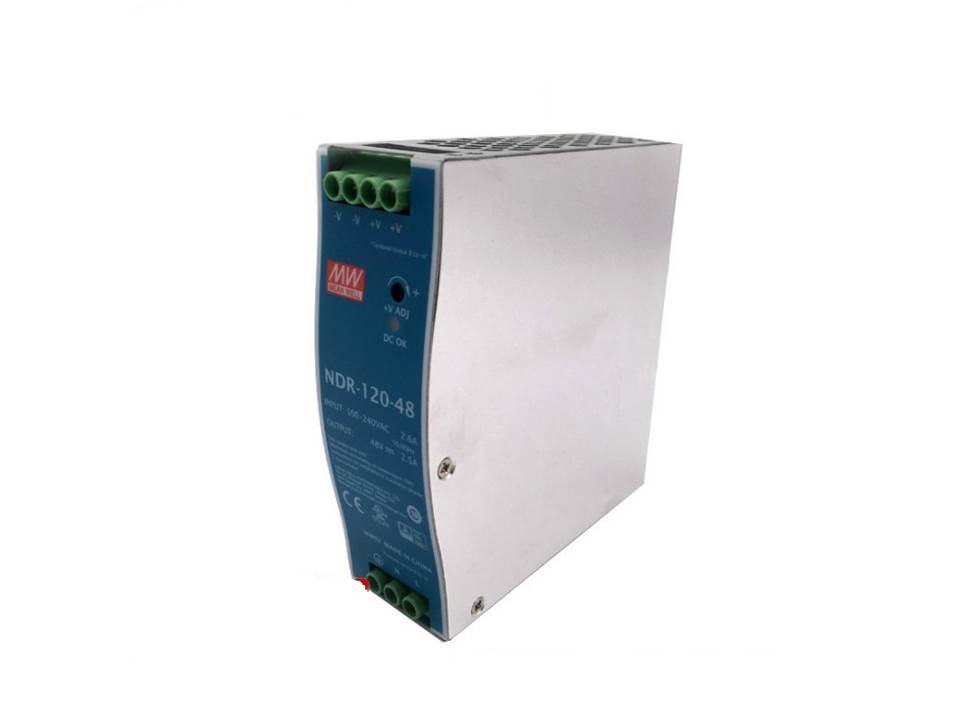

NDR-120-48 48V 120W 2.5A Mean Well
Single Output Switching Power Supply
Product Description
>> Why Choose Meanwell Single Output Enclosed Power Supply NDR-120-48 ?

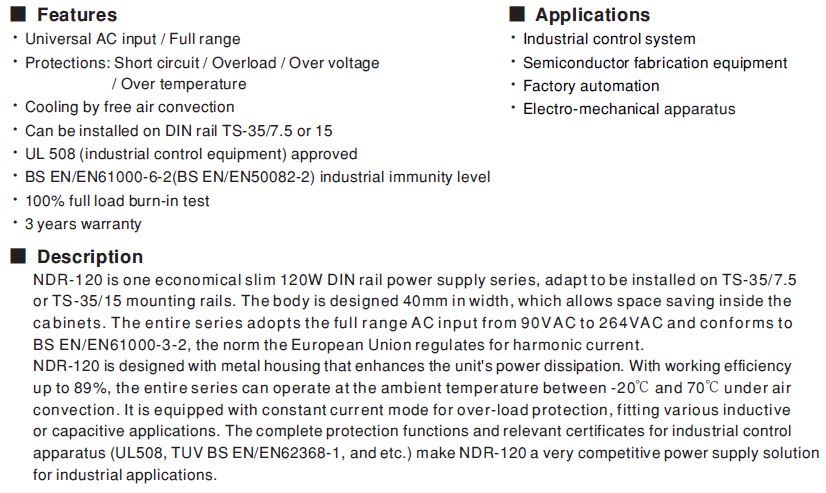

>> What are the main features of Meanwell Single Output Enclosed Power Supply NDR-120-48 ?

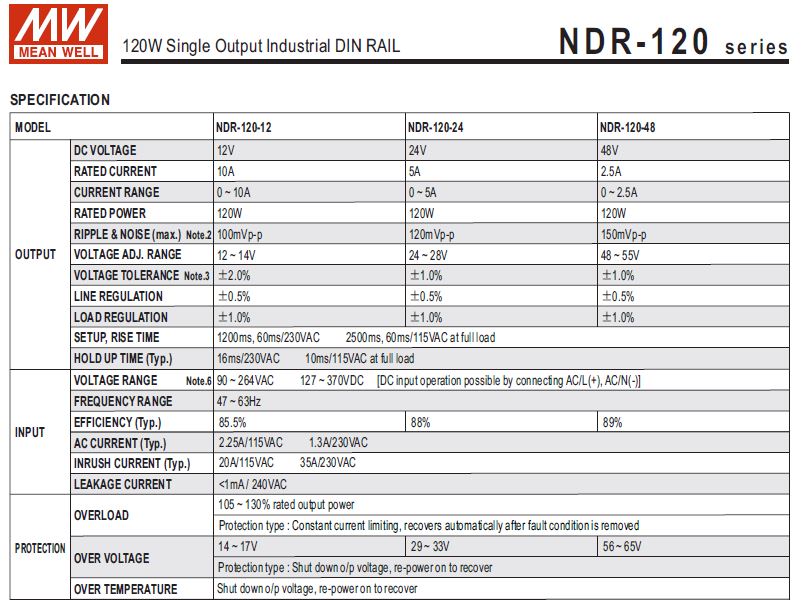

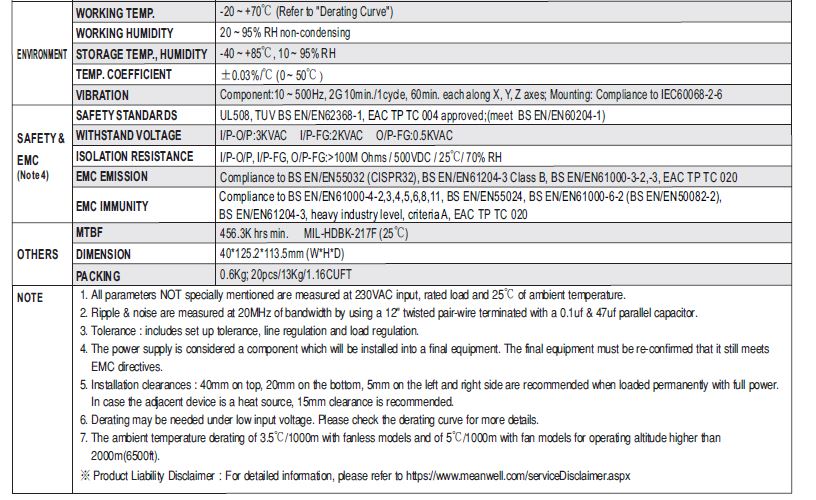

>> What are the Specification Details of Meanwell Single Output Enclosed Power Supply NDR-120-48 ?
