Overview
Essential details
Place of Origin:
Anhui, China
Brand Name:
ZHONGDIAN
Model Number:
ZD-AMS
Rated Voltage:
220V~1000V
Phase:
3 phase 3 wire,3 phase 4 wire
Rated Frequency:
50Hz/60Hz
compensation current:
50A~600A
Filter range:
2nd~50th order harmonics
Harmonic filtering rate:
≥97%
Response time:
<7ms
Certificate:
ISO9001,Type Test Report,IEC
Altitude:
1500m
Supply Ability
Supply Ability
2000 Set/Sets per Month
Packaging & delivery
Packaging Details
durable wooden case with pallet
Port
Nanjing,Shanghai
Picture Example:
Lead time:
Quantity(sets) 1 - 2 >2 Lead time (days) 20 To be negotiated
Product Description
Active Power Filter/Active Harmonic Filter:ZD-AMS Series
The wide application of nonlinear power equipment produces a lot of distorted current harmonics, which cause harmonic voltage when flowing in power grid. This harmonic pollution threatens the safety and stability of power system seriously. Together with electromagnetic interference, power factor reduction, are the three major public hazards for power system.
ZD-AMS active power filter(APF/AHF for short) is a perfect comprehensive solution to power quality problems with power grid such as harmonic wave(can filter 2nd to 50th harmonic interference completely), reactive power, and 3 phase load unbalance.APF is connected in parallel in power grid, to detect the harmonic wave in power grid in real time, generate the reverse-phase compensation current through the converter, and dynamically filter the harmonic wave in power grid. The operation of APF is unaffected by power grid structure and load type, and it will not produce harmonic oscillation with the system, thus perfectly realizing harmonic wave control of various loads. APF can also realize dynamic reactive compensation, and control the capacitor switching, to improve the power factor of power grid. Meanwhile, APF has the function of controlling the 3 phase load current unbalance, thus comprehensively solving various power quality problems with power grid.

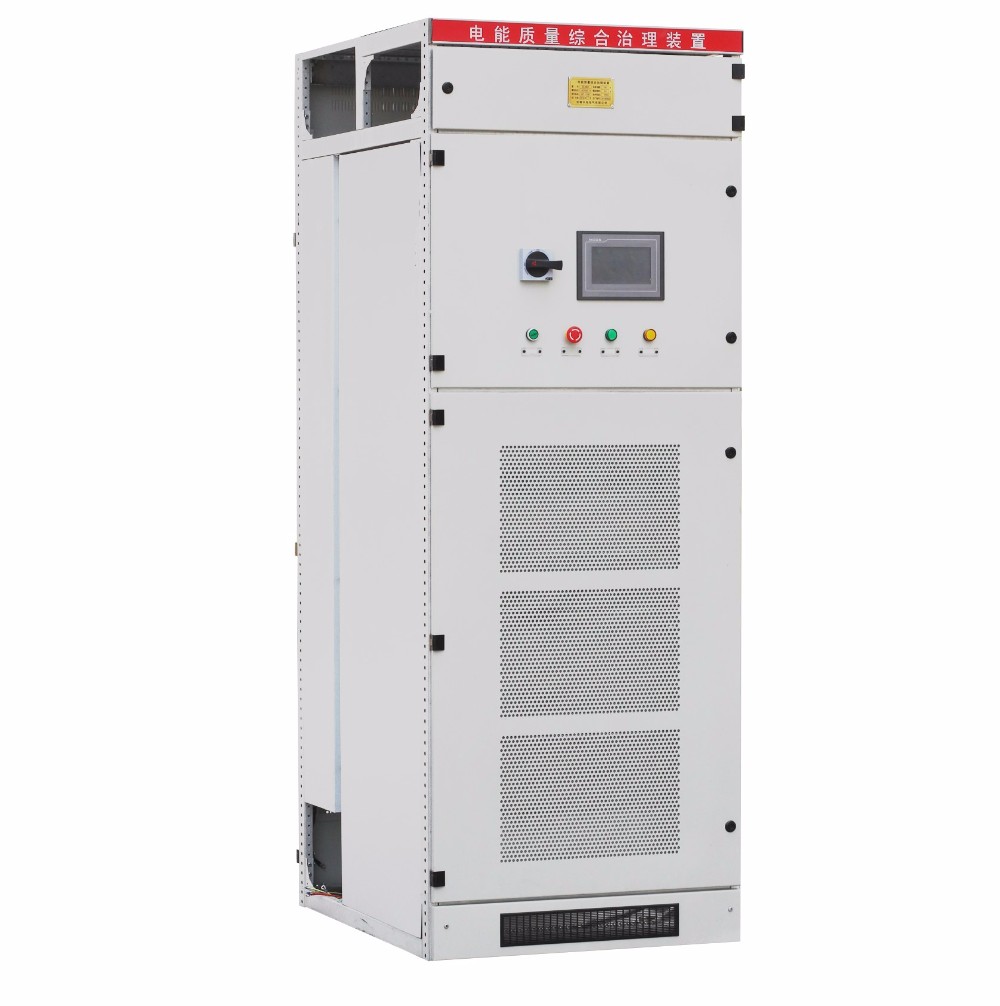

AHF/APF Device.

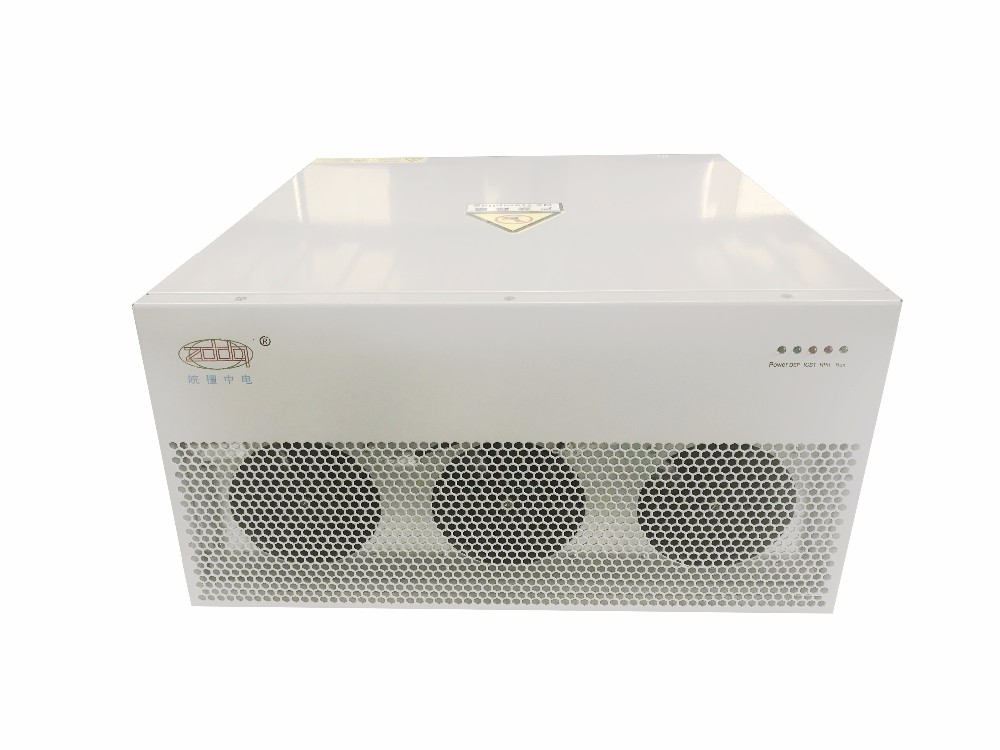

AHF/APF Module

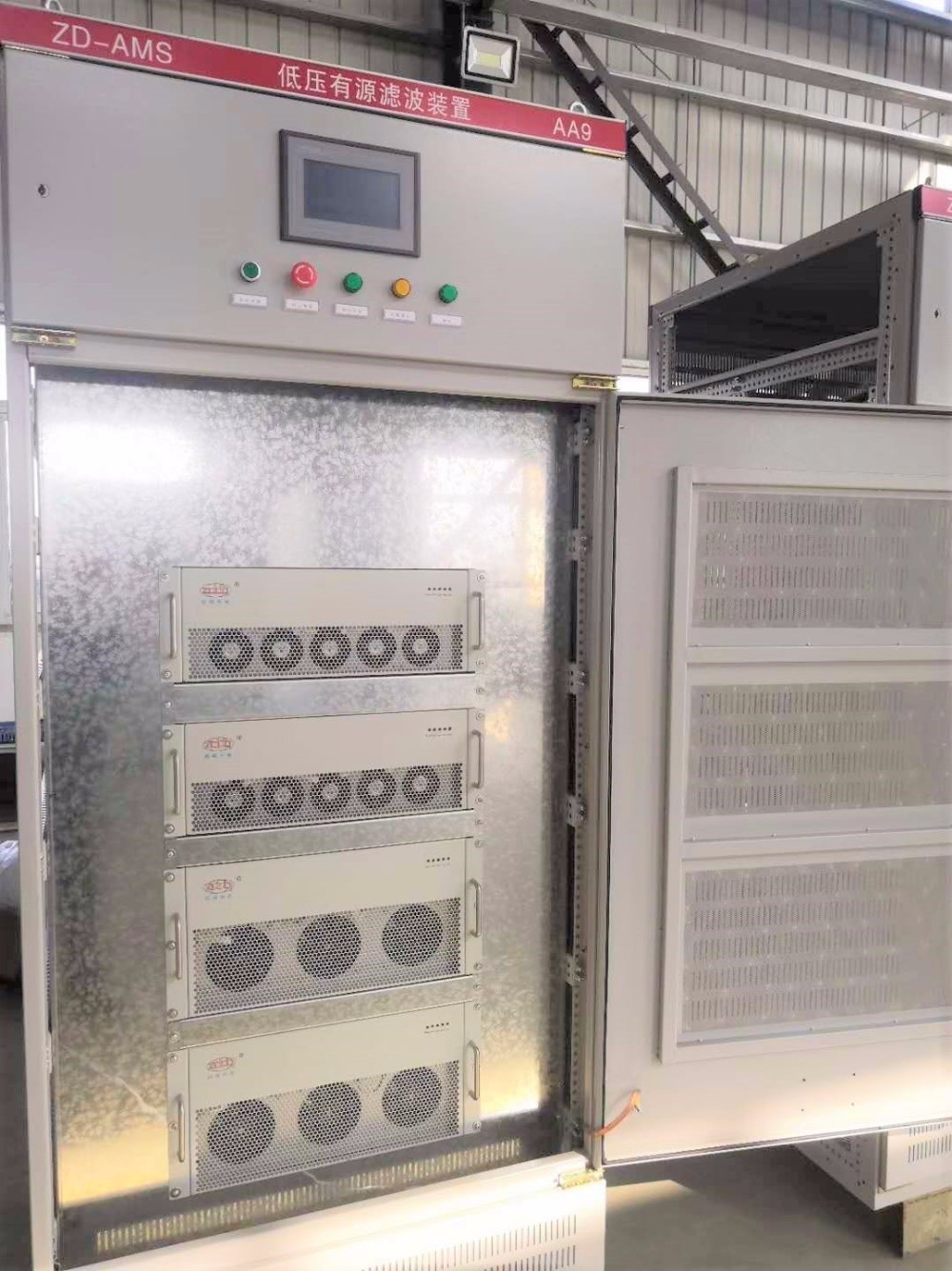

Device with AHF/APF modules.
Modular Specification and Model Table
Remarks: The modular AHFM products support the combination of different models, for example, 75A modular unit and 50A modular unit can be combined into 125A modular cabinet system. The standard cabinet (1,000×800×2,200) can install six 75A modules. If multiple cabinets are running in parallel with higher capacity, CT which meets the specific requirements is needed.
Main function
◆Flitering harmonic pollution.
ZD-AMS check the load current through the external CT in real time, perform computing through the internal DSP, and then extract the harmonic components of the load current. After that, module send the harmonic components to the internal IGBT through PWM signals to control the inverter to generate a current with a power equal to that of the harmonic and a direction reverse to that of the harmonic. Then, it injects the current into the compensation harmonic current to implement the filtering function.
◆Dynamic reactive power compensation.
Filtering harmonics according to detected need for reactive power compensation. APF is composed of command current computing circuitand compensation current generating circuit. Command current computing circuit can control internal capative and inductive fundamental current of compensation current generating circuit, conduct real-time compensation, set the target value of reactive power compensation through operation board.
◆Correct 3 phase unbalance.
ZD-AMS APF can compensate the 3 phases unblance respectively. It can conduct phase adjustment of active power through DC Energy Storage Systems shared by 3 phases, thus to correct unbalanced load of 3 phases. The operation of this function can be set by operation board.
Central Mangement
Reference Table of Model Selection for Central Management
