Overview
Essential details
Place of Origin:
Anhui, China
Brand Name:
ZHONGDIAN
Model Number:
ZD-GWJ
Color:
RAL7035
Product Name:
automatic power factor corrector
Rated Voltage:
6kv 10kv(7.2kv,12kv)
Rated Frequency:
50Hz/60Hz
Compensation capacity:
400-5000Kvar
power factor:
0.9
Switching mode:
Automatic Switching
compensation:
step compensation
Application:
Power Systems
Certificate:
ISO9001,Type Test Report,IEC
Altitude:
1000m
Supply Ability
Supply Ability
3000 Set/Sets per Month
Packaging & delivery
Packaging Details
durable wooden case with pallet
Port
shanghai
Picture Example:
Lead time:
Quantity(sets) 1 - 2 >2 Lead time (days) 20 To be negotiated
Video Description
Product Description

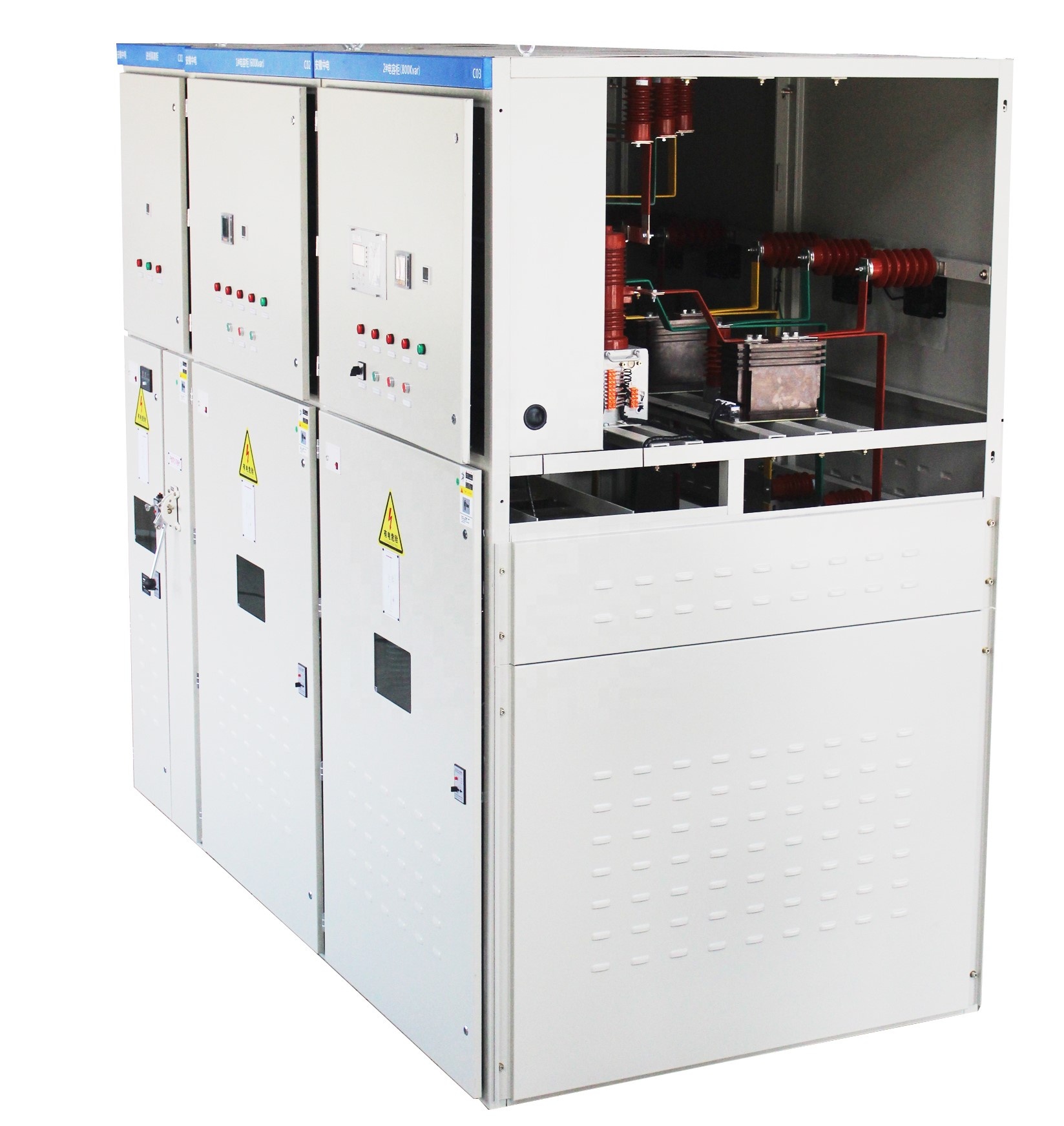

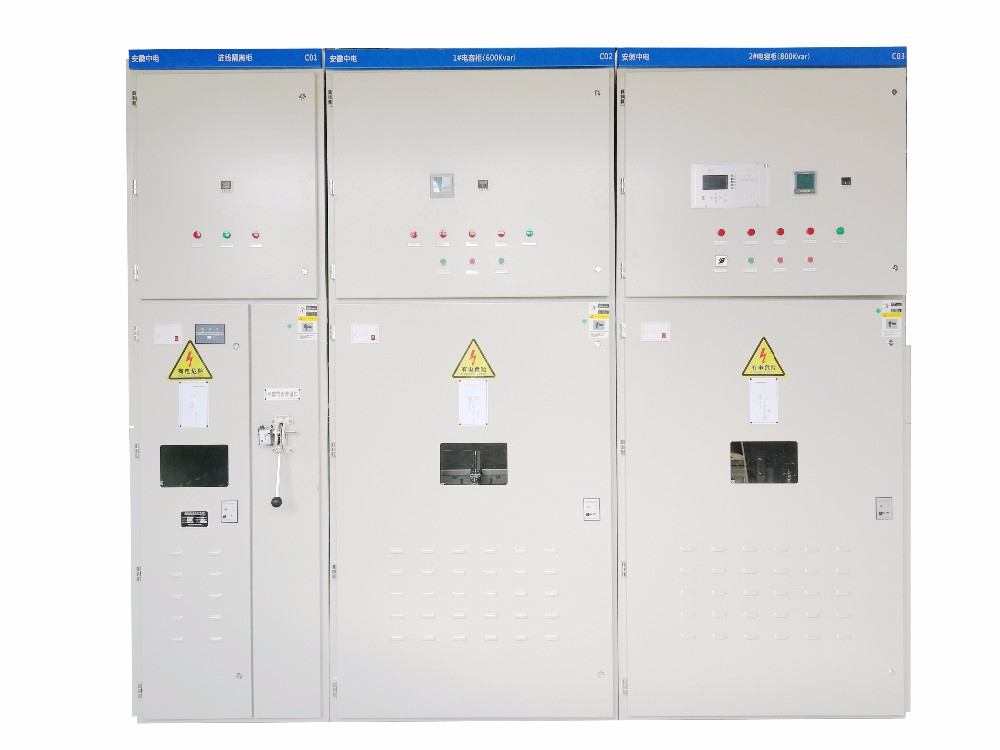

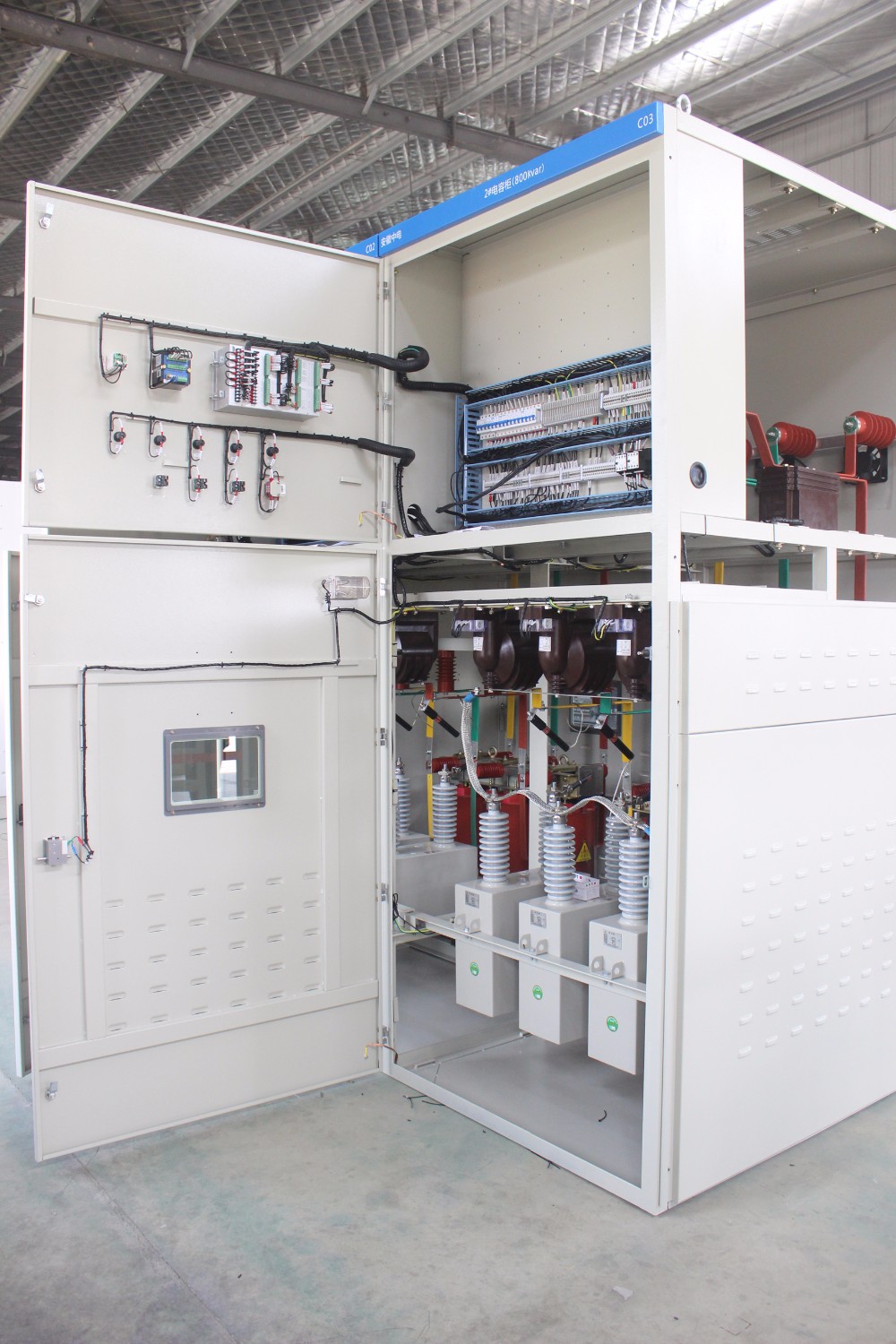

6kv 10kv High voltage automatic reactive power compensation equipment for automatic power factor corrector:ZD-GWJ Series
ZD-GWJ high voltage automatic reactive power compensation device: can detect the reactive power needed by the system in real time, then compare it with the set value, carry on the automatic intelligent switching operation, make the reactive power of the system achieve dynamic balance, in order to improve the power factor of the system, stabilize the system voltage, reduce the system voltage. Low wastage, save electricity cost.
ZD-GWJ Series Specification
Main Function
1.Correct power factor :≥0.90

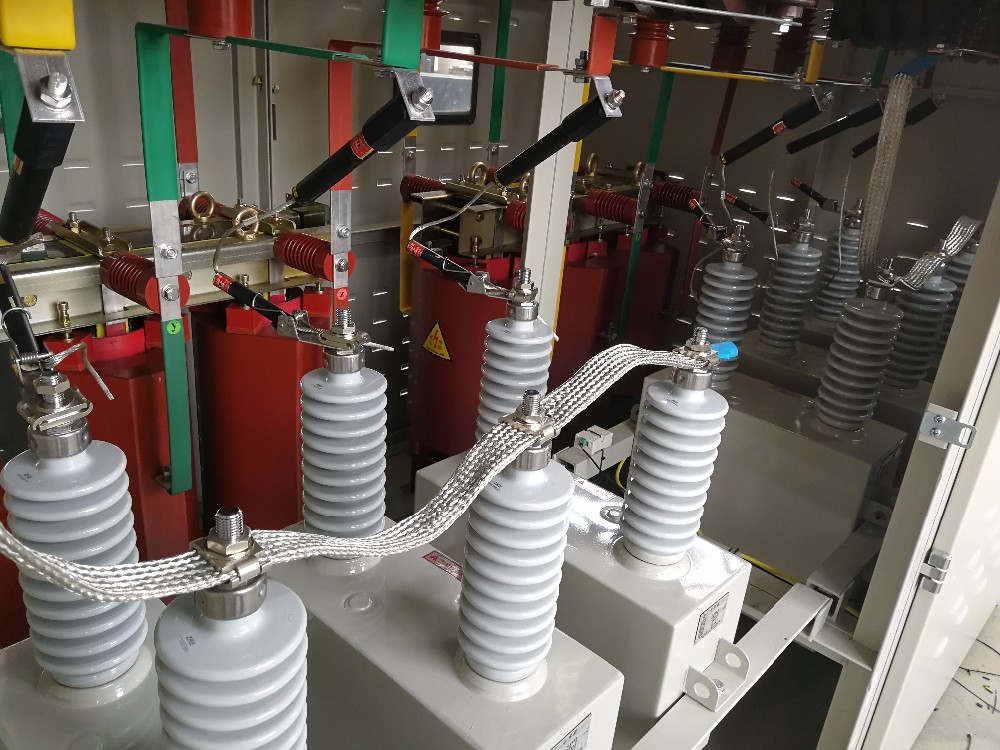

2.ZD-GWJ compensator adops high quality voltage capacitor,and have advantages of high reliability, long life, low consumption, low temperature rise, low impedance ratio.
3. ZD-GWJ compensator is equipped with good discharge function and residual voltage decreases to less than 50V when the devices cut off.
4. High pressure ejecting fuse are adopted as short circuit protection for single capacitor to ensure the safe operation of the devices. The main protections include neutral unbalanced current protection, split-phase voltage protection and voltage differential protection.
5. Series reactors with impedance ratio of 1%-13% is adopted to limit the switching-on current and the 3rd harmonic or above.
6. Perfect protective measures including, over-current, transient break, over-voltage, low voltage and so on, with a separate protective screen to ensure safe running.
7.Two compensation mode optional (Automatic swtiching and manual switching).

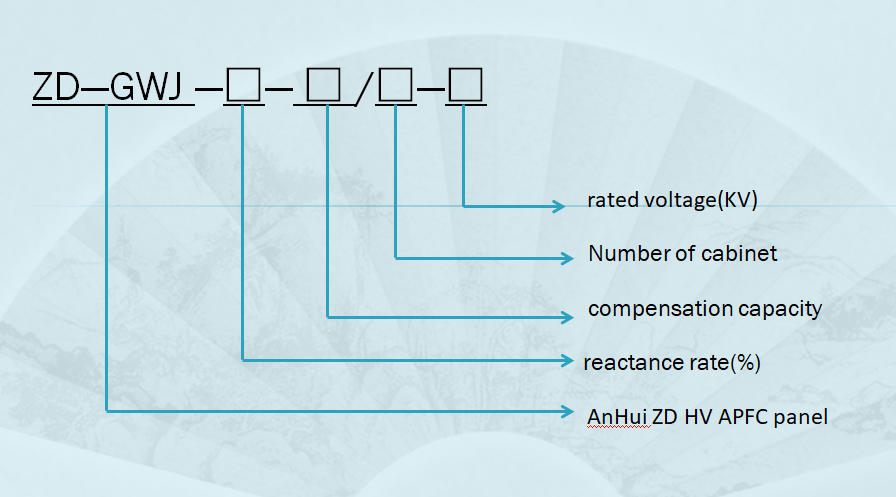

Naming Rules
ZD-GWJ6-2100/3-10 for example
Means,
GWJ: High voltage reactive compensators;
6: Reactance rate of reactors is 6%;
2100: total compensation capacity
3: 3 cabinets(350+1000+750 for example)
10: Rated voltage 10KV
