Overview
Essential details
Place of Origin:
Anhui, China
Brand Name:
ZHONGDIAN
Model Number:
ZD-SVGM
Product Name:
Static var generator
Rated Voltage:
220V~1000V
Phase:
3 phase 3 wire,3 phase 4 wire
Rated Frequency:
50Hz/60Hz
Compensation capacity:
35,50,75,150Kvar
Power factor:
≥0.98
Response time:
<5ms
Certificate:
ISO9001,IEC
Altitude:
1000m
key words:
Static var generator
Supply Ability
Supply Ability
2000 Set/Sets per Month
Packaging & delivery
Packaging Details
durable wooden case with pallet
Port
Nanjing,Shanghai
Picture Example:
Lead time:
Quantity(sets) 1 - 2 >2 Lead time (days) 20 To be negotiated
Product Description

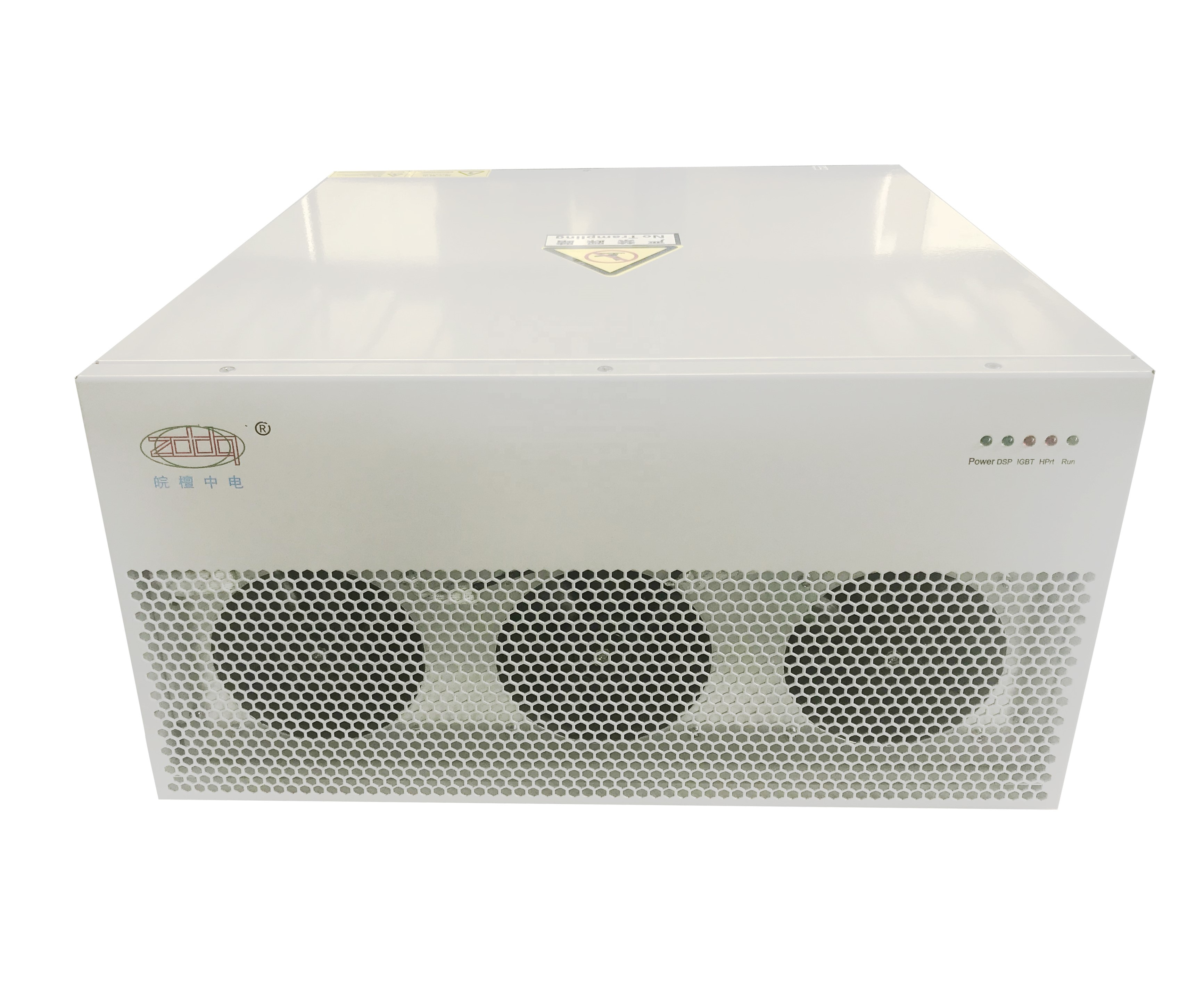

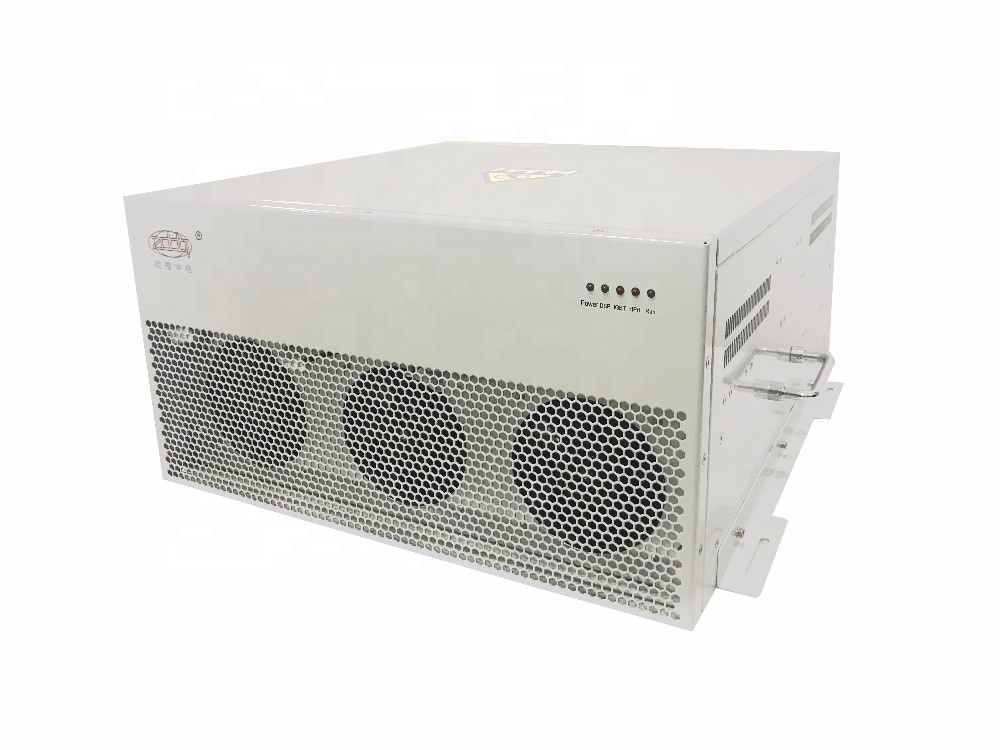

Static Var Generator:ZD-SVGM Series
The static var generator (SVG for short), based on voltage type inverter principle, uses the isolated gate binary transistor (IGBT4) to control the value and phase of AC voltage of inverter, so as to serve the purpose of reactive and harmonic compensation. As the switching frequency of IGBT is very high (dozens of kHz), SVG can realize fast compensation for reactive load, and achieve very high compensation precision. ASVG is currently the best solution in reactive power control filed. Compared with the traditional SVT represented by TSC, the regulation speed of SVG is faster (the response speed is within 5ms), its compensation precision is high (the power factor after compensation is over 0.99), the compensation method is flexible (SVG can compensate both inductive reactive power and capacitive reactive power), and SVG also has the function of active filtration of harmonic current.
Specificaiton
Function and Table
Main Function
1. maintain receiving end voltage, strengthen system voltage stability
2. compensate system reactive power, improve power factor, reduce line loss, save energy and reduce cost
3. suppress voltage fluctuation and flicker
4. suppress three phase unbalance
Model Tabel

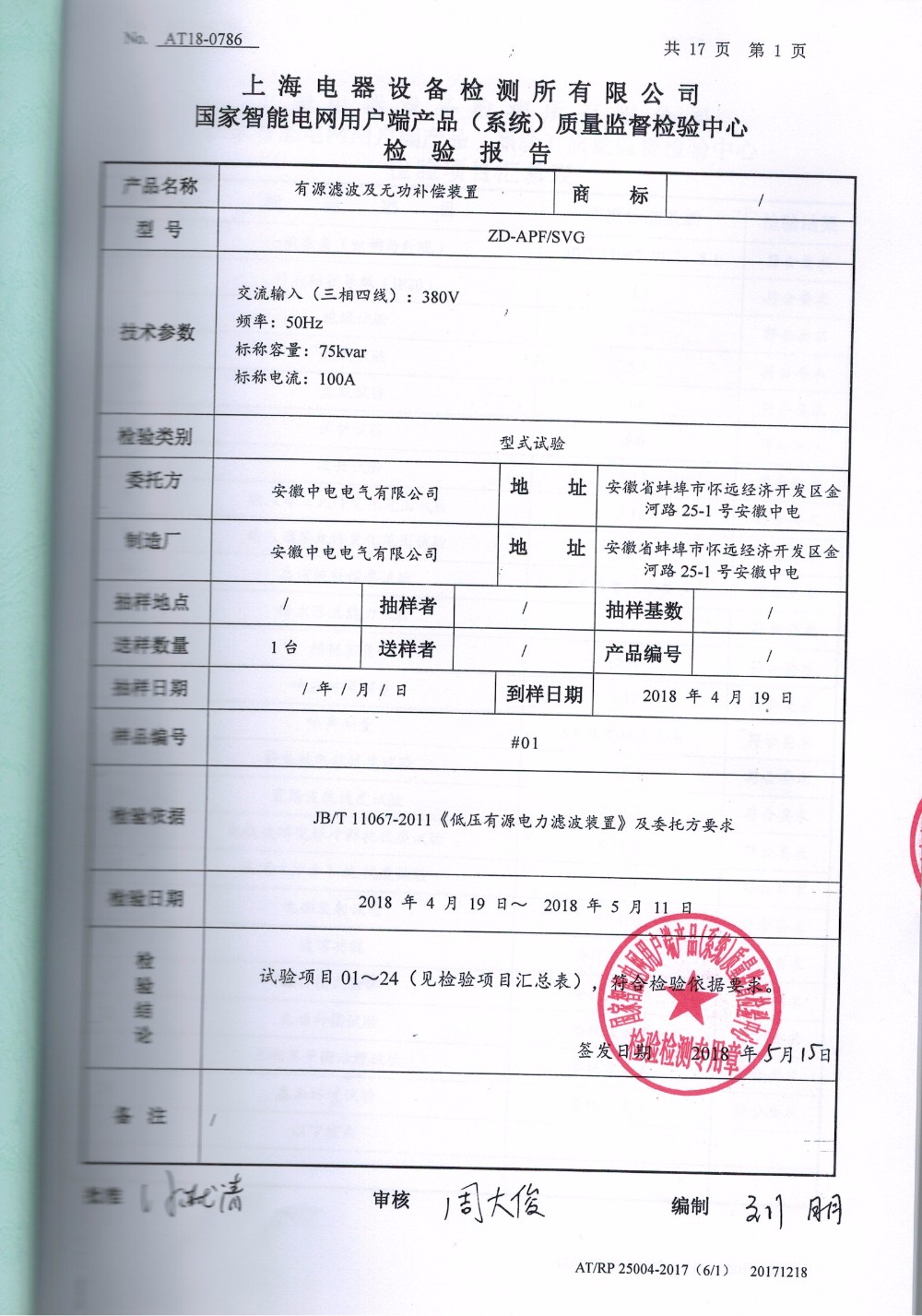

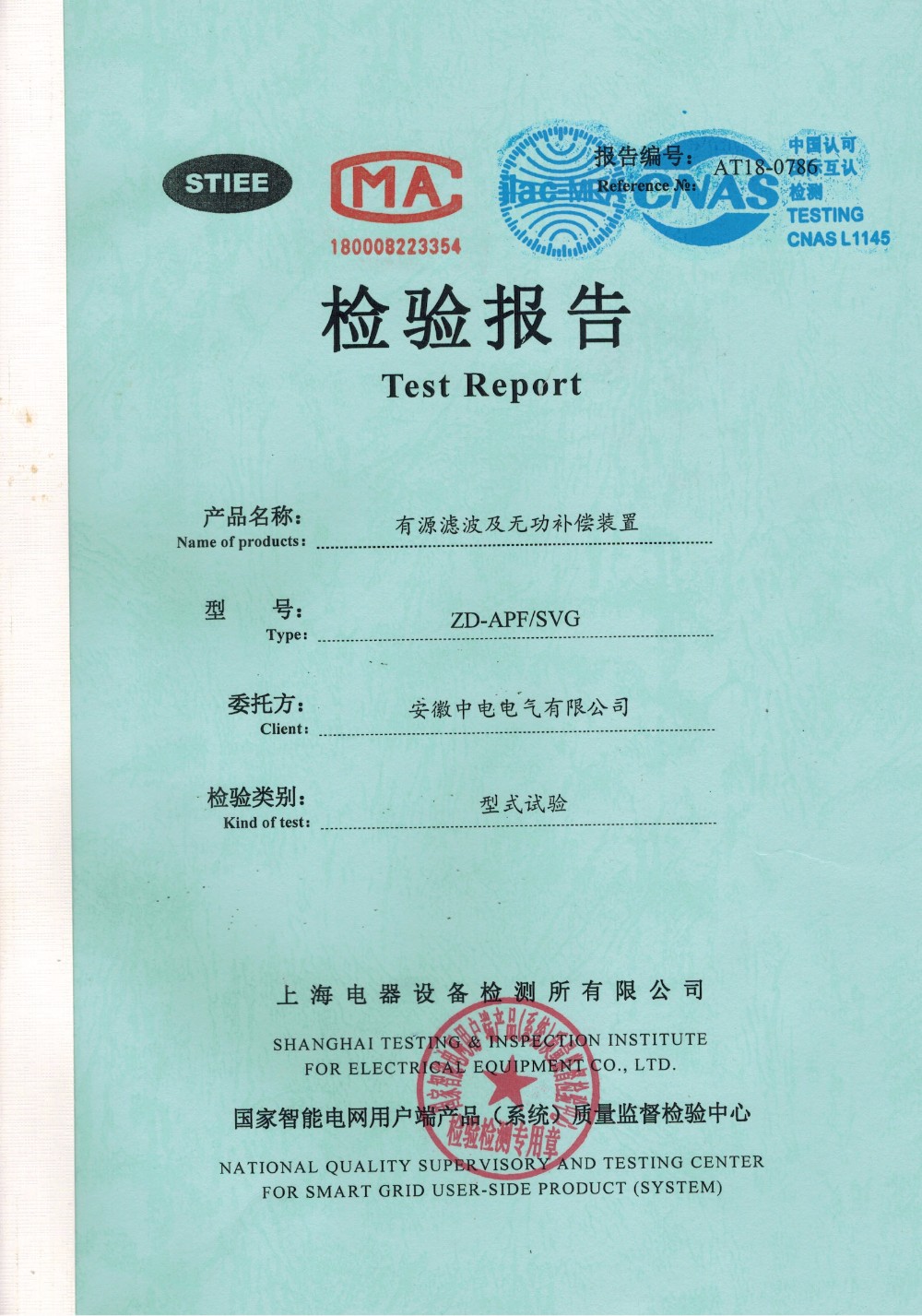

Certifications
