Overview
Essential details
Place of Origin:
Anhui, China
Brand Name:
ZHONGDIAN
Model Number:
ZD-DWT
Product Name:
Dynamic VAR compensation APFC
Rated Voltage:
400V, AC, three phase
Rated Frequency:
50Hz/60Hz
power factor:
0.95
Capacity per panel:
400kvar
Switch:
Thyristor
switching mode:
automatic switching
Application:
power distribution
Certificate:
ISO9001,CCC,IEC
Keyword:
SVC TSC APFC
Supply Ability
Supply Ability
2000 Set/Sets per Month
Packaging & delivery
Packaging Details
durable wooden case with pallet for Dynamic VAR compensation APFC
Port
Nanjing,Shanghai
Picture Example:
Lead time:
Quantity(sets) 1 - 50 >50 Lead time (days) 20 To be negotiated
Product Description

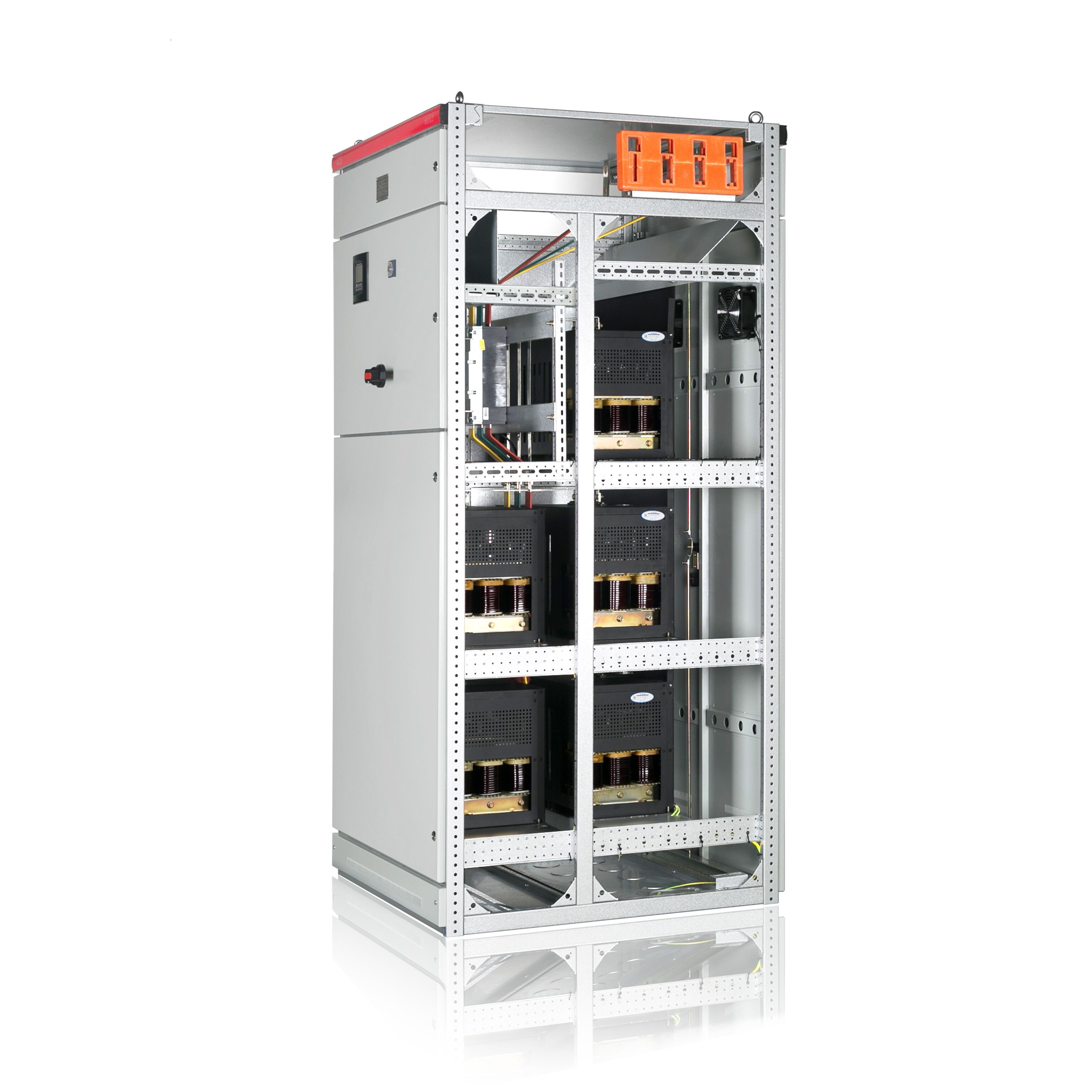

Dynamic VAR compensation APFC with thyristor for power quality improvement
Automatic Power Factor Correction Panel offer feature fully intelligent and automatic operation support and helps in achieving required PF under fluctuating loads. The use of latest technology based components and high fabrication standards also make these panels flawlessly maintain the need of delivering high PF. Further, Switch (Contactor,Thyristor,Compound Switch) also ensures real-time correction of PF. The reactors can filter harmonics and improve power quality.
Capacitors,reactors and Thyristor are designed in modular.Model is ZD-DWT.
Specification
Main features

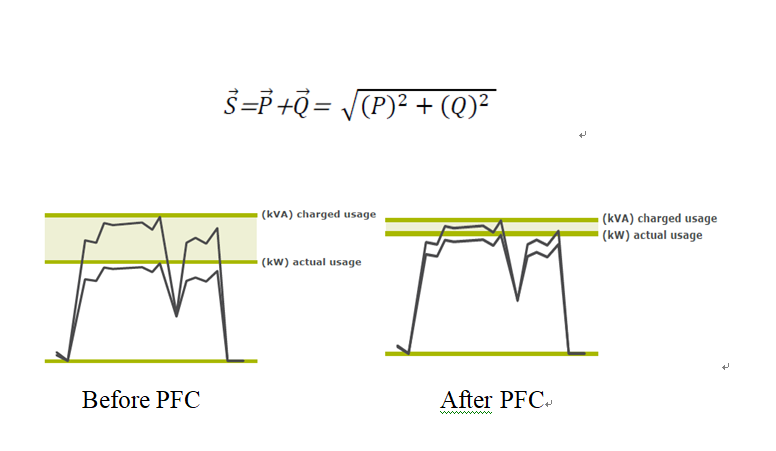

Dynamic VAR compensation APFC benefits
Fast return on investment through lower power costs

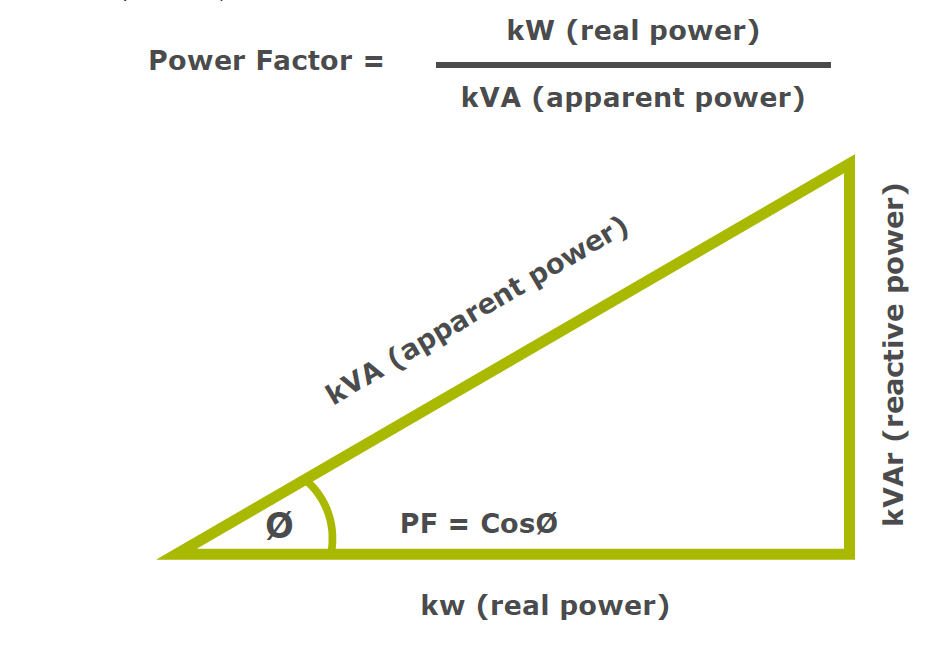

Power factor correction reduces the reactive power in a system.
Power consumption and thus power costs drop in proportion.
Effective use of installation
An improved power factor means that an electrical installation operates more economically (higher effective power for the same apparent power).
Improved voltage quality
Reduced voltage drops
Optimum cable design
Cable cross-sections can be reduced with improvement of power factor (less current). In existing installations for instance, extra or higher power can be transmitted.
Reduced transmission losses
The transmission and switching devices carry less current, i.e. only the effective power, meaning that the ohmic losses in the leads are reduced.

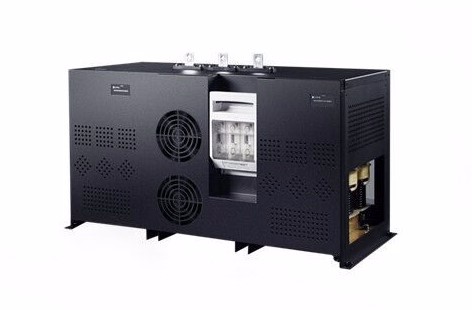

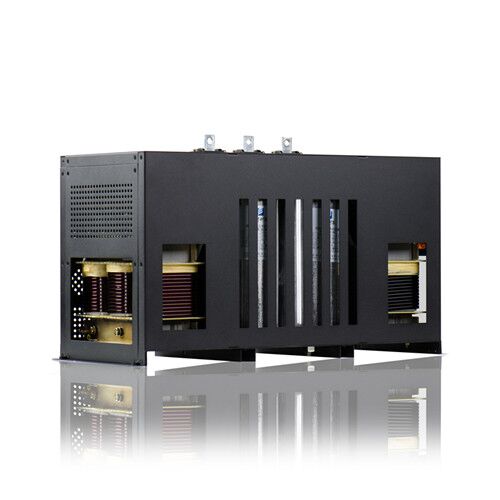

ZD-MTK Module
Integrated Capacitors
ZD-MTK module is mainly composed of capacitors, reactors,Tryristor ,matched trigger circuit and high enjecting break fuse . Module can switch capacitor,suppress and filter harmonic. Make sure switching on when zero-crossing voltage, switching off when zero-crossing current,and ensure no ARC occur.
